Lang 124T Installation And Operation Instructions Manual

Thermostatic electric griddle
Hide thumbs Also See for 124T:
Table of Contents

Advertisement

Quick Links

Download this manual

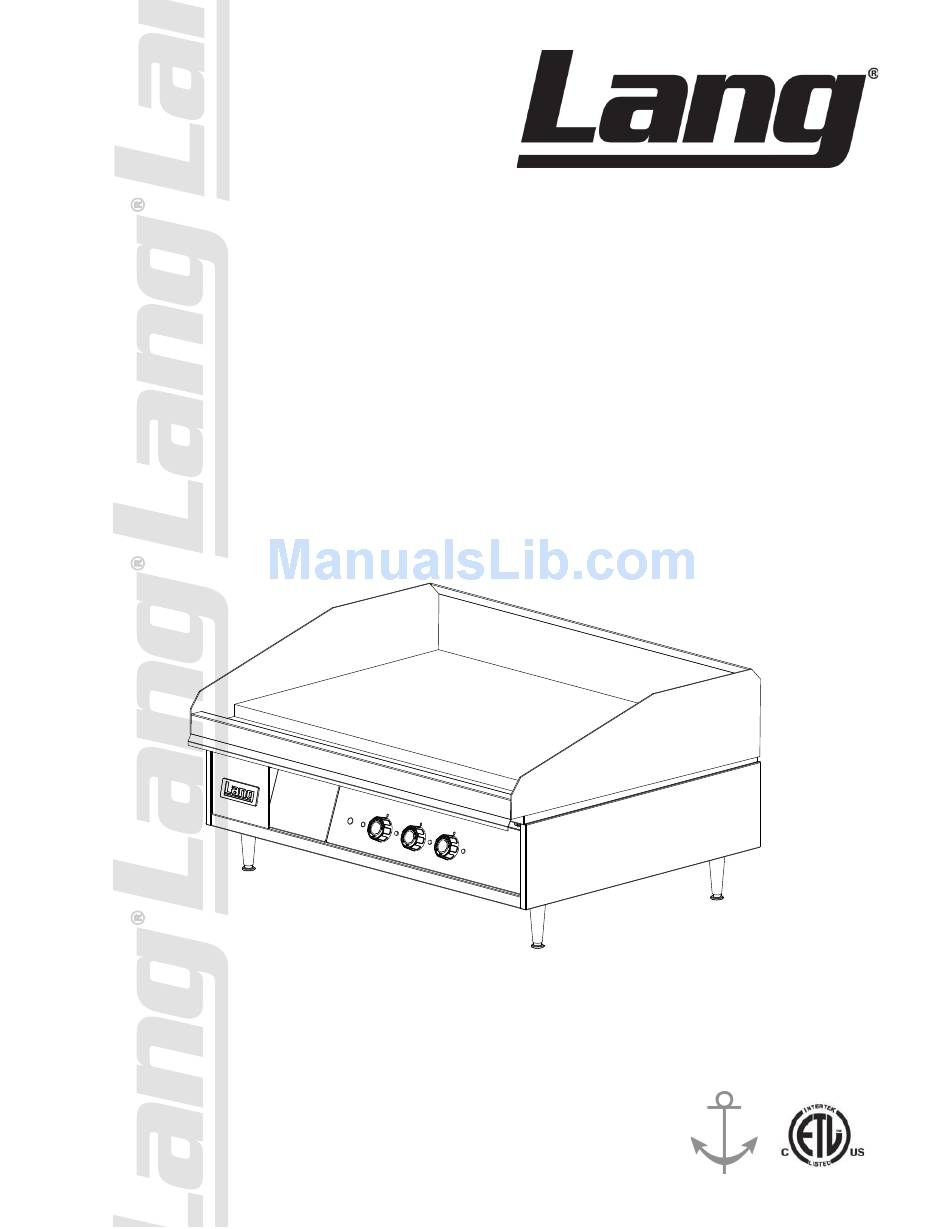

THERMOSTATIC

ELECTRIC GRIDDLE

Commercial & Marine
24T, 24TR, 24TC, 24THE, 24TSS
36T, 36TC, 36TNTS, 36THE
48T, 48THE, 48TC, 48TSS
60T, 60TC, 60THE, 60TSS
72T, 72TC, 72TSS
Installation and
Operation
Instructions
2M-W352 Rev. G 5/1/2012
IL1552
36T


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 124T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lang 124T

Summary of Contents for Lang 124T

  • Page 1: Electric Griddle

    THERMOSTATIC ELECTRIC GRIDDLE Commercial & Marine 24T, 24TR, 24TC, 24THE, 24TSS 36T, 36TC, 36TNTS, 36THE 48T, 48THE, 48TC, 48TSS 60T, 60TC, 60THE, 60TSS 72T, 72TC, 72TSS Installation and Operation Instructions 2M-W352 Rev. G 5/1/2012 IL1552 36T...
  • Page 2 CONTROL PANEL. NO USER-SERVICABLE PARTS INSIDE. REPAIRS SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY. NOTICE Using any part other than genuine Lang factory supplied parts relieves the manufacturer of all liability. Lang reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.

  • Page 3: Table Of Contents

    Exploded View & Parts List ..... 8-23 NOTICE Service on this or any other Lang appliance must be performed by qualified personnel only. Consult your Lang Authorized Service Agent Directory.

  • Page 4: Specifications

    Supply Supply Supply Supply Wire Wire Wire Wire 3 Current Model Volts AC TOT. 1PH. 1 PH 3 PH TOT. 1PH. 1 PH 124T-380VM 380V 50/60 27.3 15.7 15.7 124T-440VM 440V 50/60 23.6 13.6 13.6 124T-480VM 480V 124T-M 208/240V 136T-380VM 380V 27.3...
  • Page 5 Amp 3 Ph Supply Supply Supply Supply Wire 1 Wire 3 Wire 1 Wire 3 Current Model Volts AC Tot. 1PH. Tot. 1PH. 124T 208/240V 124T-220V 220V 50/60 10 45.5 39.4 22.7 22.7 124T-220VCW 220V 50/60 10 45.5 39.4 22.7 22.7...

  • Page 6: Equipment Description

    EQUIPMENT DESCRIPTION Griddle Surface Gutter Grease Pan Feet IL1553 Section Temp. Dial Section Pilot Light Exterior Construction The griddle dimensions are 7” (43.8cm) High, 30” (76.20cm) Deep, and width is dependent on the actual model number. The Sides, Bottom, and Rear wall are constructed of double wall stainless steel, which allows closer installation to combustible surfaces.

  • Page 7: Unpacking

    UNPACKING Receiving the Griddle Upon receipt, check for freight damage, both visible and concealed. Visible damage should be noted on the freight bill at the time of delivery and signed by the carrier’s agent. Concealed loss or damage means it does not become apparent until the merchandise has been unpacked.

  • Page 8: Installation

    INSTALLATION IL1554 Std Leg Marine Bolt Down Leg Above: typical leg installation. Leg Installation There are four, 4” legs provided for 2, 3 and 4 foot griddles. 2.5” There are eight 4” legs provided for 5 and 6 foot griddles. The legs are shipped in the grease drawers IL1550 of the griddle.

  • Page 9: Ventilation & Clearence

    160T #1 1,3,5 2,4,6 phase. Re-phasing the griddle is not chargeable to Lang Manufacturing 160T #2 Company as warranty. To convert 172T #1 1,3,5 2,4,6 to single-phase have a Lang 172T #2 1,3,5 2,4,6 Authorized Service Agent, follow this chart.

  • Page 10: Initial Start-Up

    INITIAL START UP Pre-Power On Before starting the griddle for the first time, clean the griddle body and cooking surface. Use a mild soap and water solution, then rinse with clear water and dry. The griddle is shipped with a protective coating and craft paper covering the cooking surface. This MUST be removed before heating the cooking surface.

  • Page 11: Operation

    OPERATION General The suggested time and temperature chart (below) is provided as a guide for the products listed only. If different temperature settings are to be used, select one side of the griddle and operate at the lowest temperature. Adjoining sections should be set at progressively higher temperatures. Do not try to operate the end sections hot and the center sections cool.

  • Page 12: Cleaning

    MAINTENANCE & CLEANING Cleaning • Always start with a cold griddle. • The stainless exterior can easily be cleaned using a good non-abrasive cleaner. • Always follow the cleaner manufacturer’s instructions when using any cleaner. • Always apply these cleaners when the griddle is cold and rub in the direction of the metal’s grain.
  • Page 13 GRIDDLE CARE (CHROME SURFACES) (Chrome surface griddles are marked with “CHS” at the end of the model number designation on the nameplate.) It takes very little time and effort to keep this Industrial Chrome griddle surface sparkling clean and performing at top efficiency.

  • Page 14: Troubleshooting

    If an item on the list is followed by an asterisk (*), the work should be done by a factory authorized service representative. NOTICE: Service on this, or any other, LANG appliance must be performed by qualified personnel only. Consult your Lang Authorized Service Agent Directory or call the factory at 314-678-6315, or www.langworld.com For the service agent nearest you.
  • Page 18 14 10 Model: Electric Thermostatic Griddle SK2397 Rev. - 8/15/08...

  • Page 19: Parts List

    PARTS LIST May , 202, Rev G Model No: 124T, 124TC, 124THE, 124TSS Accu-Temp Electric Griddle Fig No Part Number Description Application K9-XL-722-2 PLATE ASY 2’ ACU 124T K9-XL-722-21 PLATE ASY 2’ ACU 4.5 124T-480VSJ, 124TSS, 124TSS-480V K9-XL-722-211 PLATE ASSY 2’ ACU WITH 4.5...
  • Page 20 PARTS LIST May , 202, Rev G Model No: 136T, 136TC, 136THE Accu-Temp Electric Griddle Fig No Part Number Description Application K9-XL-722-3 PLATE ASY 3’ ACU 136T, 136T-440VM, 136T-480V K9-XL-722-311 PLATE ASY 3’ ACT TALL B 136T-PE K9-XL-722-W35 PLATE ASY 3’ ACU-NO TAPER 136TNTS K9-XL-724-34 PLATE ASSY 3’...
  • Page 21 PARTS LIST January 24, 202, Rev G Model No: 148T, 148TC, 148TSS, 148THS Accu-Temp Electric Griddle Fig No Part Number Description Application K9-XL-722-4 PLATE ASY 4’ ACU 148T K9-XL-722-41 PLATE ASY 4’ ACU 4.5 148T-SJ, 148TSS K9-XL-722-411 PLATE ASY 4’ ACU TALL B 148T-PE K9-XL-722-44 PLATE ASY 4’...
  • Page 22 PARTS LIST January 25, 202, Rev G Model No: 160T, 160TC, 160TSS Accu-Temp Electric Griddle Fig No Part Number Description Application K9-XL-722-5 PLATE ASY 5’ ACU 160T K9-XL-722-51 PLATE ASY 5’ ACU 4.5 160TSS K9-XL-724-54 PLATE ASY 5’ ACU CHRME 3/4” 160TC-TE, 160THE 2N-11030-30 ELMNT GRID 208V 1257W...
  • Page 23 PARTS LIST August 4, 20, Rev G Model No: 172T, 172TC, 172TSS Accu-Temp Electric Griddle Fig No Part Number Description Application K9-XL-722-6 PLATE ASY 5’ ACU 172T K9-XL-722-61 PLATE ASY 6’ ACU 4.5 172T-480VSJ, 172T-SJ, 172TSS K9-XL-722-611 PLATE ASY 6’ ACU TALL 172T-PE K9-XL-724-6 PLATE ASY 6’...
  • Page 24 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
