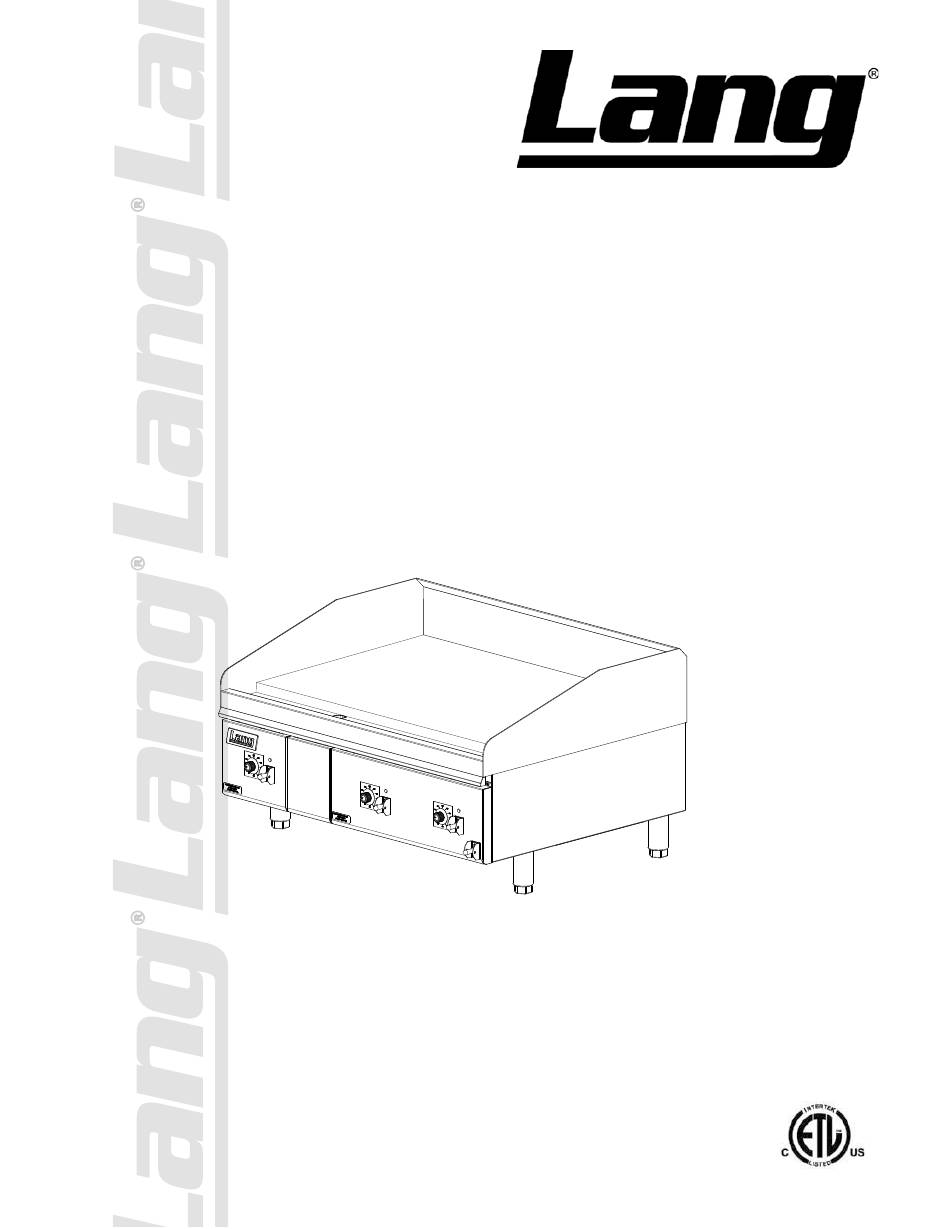

- Page 1 ENVIROZONE - SELECTRONIC ELECTRIC GRIDDLE Commercial 124ZS(D), 136ZS(D) 148ZS(D), 160ZS(D), 172ZS(D) Installation and Operation Instructions 2M-W1992 Rev. B 03/2018 IL2799 136ZS...
- Page 2 CONTROL PANEL. NO USER-SERVICABLE PARTS INSIDE. REPAIRS SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY. NOTICE Using any part other than genuine Lang factory supplied parts relieves the manufacturer of all liability. Lang reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
-
Page 3: Table Of Contents
PROBLEMS, QUESTIONS or CONCERNS Before you proceed consult you authorized Lang service agent directory Call the Lang Technical Service & Parts Department at 314-678-6315. TABLE OF CONTENTS Specifications ......4 Equipment Description . -
Page 4: Specifications
EQUIPMENT SPECIFICATIONS Height x Width x Depth Clearance from Weight Freight Model (Not including legs) combustible surface Actual Shipping Class 15.0" x 24.0" x 28.2" 243 lbs. 280 lbs. 381mm x 610mm x 717mm 110 kg 127 kg 15.0" x 36.0" x 28.2" 368 lbs. - Page 5 Lang or a Lang-authorized service agency. or water connection. Lang is not liable for any unit which has been mishandled, abused, misapplied, subjected to chlorides, harsh THIS WARRANTY IS SUBJECT TO ALL LISTED CONDITIONS.
-
Page 6: Equipment Description
UNPACKING Receiving the Griddle Upon receipt, check for freight damage, both visible and concealed. Visible damage should be noted on the freight bill at the time of delivery and signed by the carrier’s agent. Concealed loss or damage means it does not become apparent until the merchandise has been unpacked. -
Page 7: Installation
INSTALLATION Leg Installation There are four, adjustable legs provided for Enviro-Zone griddles. The legs are shipped in the grease drawers of the griddle. Install them into the threaded holes on the underside of the griddle body. Leveling adjustment may be done by screwing the bottom portion of the leg in and out. -
Page 8: Ventilation & Clearence
2,4,6,8 Re-phasing the griddle is not 160S #1 1,3,5 2,4,6 chargeable to Lang Manufacturing Company as warranty. To convert 160S #2 to single-phase have a Lang 172S #1 1,3,5 2,4,6 Authorized Service Agent, follow 172S #2 1,3,5 2,4,6 this chart. -
Page 9: Initial Start-Up Pre-Power On
INITIAL START UP Pre-Power On Before starting the griddle for the first time, clean the griddle body and cooking surface. Use a mild soap and water solution, then rinse with clear water and dry. Power On Set the main power switch, located at the far left of the control panel, to the “ON” (up) position (there are two “ON”... -
Page 10: Operation
OPERATION General The suggested time and temperature chart (below) is provided as a guide for the products listed only. If different temperature settings are to be used, select one side of the griddle and operate at the lowest temperature. Adjoining sections should be set at progressively higher temperatures. Do not try to operate the end sections hot and the center sections cool. -
Page 11: Cleaning
MAINTENANCE & CLEANING Cleaning • Always start with a cold griddle. • The stainless exterior can easily be cleaned using a good non-abrasive cleaner. • Always follow the cleaner manufacturer’s instructions when using any cleaner. • Always apply these cleaners when the griddle is cold and rub in the direction of the metal’s grain. Griddle Surface Care (non-chromium surfaces) It takes very little time and effort to keep the griddle attractive and performing at top efficiency. -
Page 12: Troubleshooting Symptoms / Possible Causes
TROUBLESHOOTING Symptoms What follows is a chart of symptoms and possible causes to aid in diagnosing faults with the griddle. Refer to the Symptoms column to locate the type of failure then to the possible cause for the items to be checked. To test for a possible causes refer to the TEST section and locate the possible cause then refer to test to identify test procedures. -
Page 13: Possible Causes / Test
TROUBLESHOOTING continued NOTICE: Service on this, or any other, LANG appliance must be performed by qualified personnel only. Consult your Lang Authorized Service Agent Directory or call the factory at 314-678-6315, or WWW.LANGWORLD.COM For the service agent nearest you. BOTH HIGH AND LOW VOLTAGES ARE PRESENT INSIDE THIS APPLIANCE WHEN THE UNIT IS PLUGGED/WIRED INTO A LIVE RECEPTACLE. BEFORE... - Page 16 17 16 Model: 136ZS SK2763 Rev. - 3/10/14 Electric EnviroZone Selectronic Griddle...
- Page 17 2E-30304-22 SWTCB175-450°F w/41100-13 2C-20602-04 TINNERMAN SPD NUT 1/8 DIA K9-142-242 FRONT PANEL WELD ASSY LEFT ZS 2M-60301-43 DIE CAST PLT LANG SATIN 2M-60301-29 PNLLBL SELCT SWTDIAL 450o 2R-70701-28 KNB BLK 1/4BUSH2SETSCW@90 Y9-31601-01-1 PILOT LT 250V W/TIN CLIP K9-141-161-3W1 GREASE DRAWER SLIDE WELD...
- Page 18 2E-30304-22 SWTCB175-450°F w/41100-13 2C-20602-04 TINNERMAN SPD NUT 1/8 DIA K9-142-242 FRONT PANEL WELD ASSY, LEFT ZS 2M-60301-43 DIE CAST PLT LANG SATIN 2M-60301-29 PNLLBL SELCT SWTDIAL 450o 2R-70701-28 KNB BLK 1/4BUSH2SETSCW@90 Y9-31601-01-1 PILOT LT 250V W/TIN CLIP K9-141-161-3W1 GREASE DRAWER SLIDE WELD...
- Page 19 SPACER SUPPORT 1/2LG 2E-30304-22 SWTCB175-450°F w/41100-13 2C-20602-04 TINNERMAN SPD NUT 1/8 DIA K9-142-242 FRONT PNL WELD ASSY, LEFT ZS 2M-60301-43 DIE CAST PLT LANG SATIN 2M-60301-29 PNLLBL SELCT SWTDIAL 450o 2R-70701-28 KNB BLK 1/4BUSH2SETSCW@90 Y9-31601-01-1 PILOT LT 250V W/TIN CLIP K9-141-161-3W1 148ZSD...
- Page 20 SPACER SUPPORT 1/2LG 2E-30304-22 SWTCB175-450°F w/41100-13 2C-20602-04 TINNERMAN SPD NUT 1/8 DIA K9-142-242 FRONT PANEL WELD ASSY, LEFT ZS 2M-60301-43 DIE CAST PLT LANG SATIN 2M-60301-29 PNLLBL SELCT SWTDIAL 450o 2R-70701-28 KNB BLK 1/4BUSH2SETSCW@90 Y9-31601-01-1 PILOT LT 250V W/TIN CLIP K9-141-161-3W1 160ZSD...
- Page 21 SPACER SUPPORT 1/2LG 2E-30304-22 SWTCB175-450°F w/41100-13 2C-20602-04 TINNERMAN SPD NUT 1/8 DIA K9-142-242-1 FRONT PANEL WELD ASSY, LEFT ZS 2M-60301-43 DIE CAST PLT LANG SATIN 2M-60301-29 PNLLBL SELCT SWTDIAL 450o 2R-70701-28 KNB BLK 1/4BUSH2SETSCW@90 Y9-31601-01-1 PILOT LT 250V W/TIN CLIP K9-141-161-3W1 172ZSD...
- Page 22 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Lang - Wells - Toastmaster 265 Hobson Street - Smithville, Tennessee 37166 U.S.A. (314) 678-6303 www.langworld.com www.star-mfg.com...
