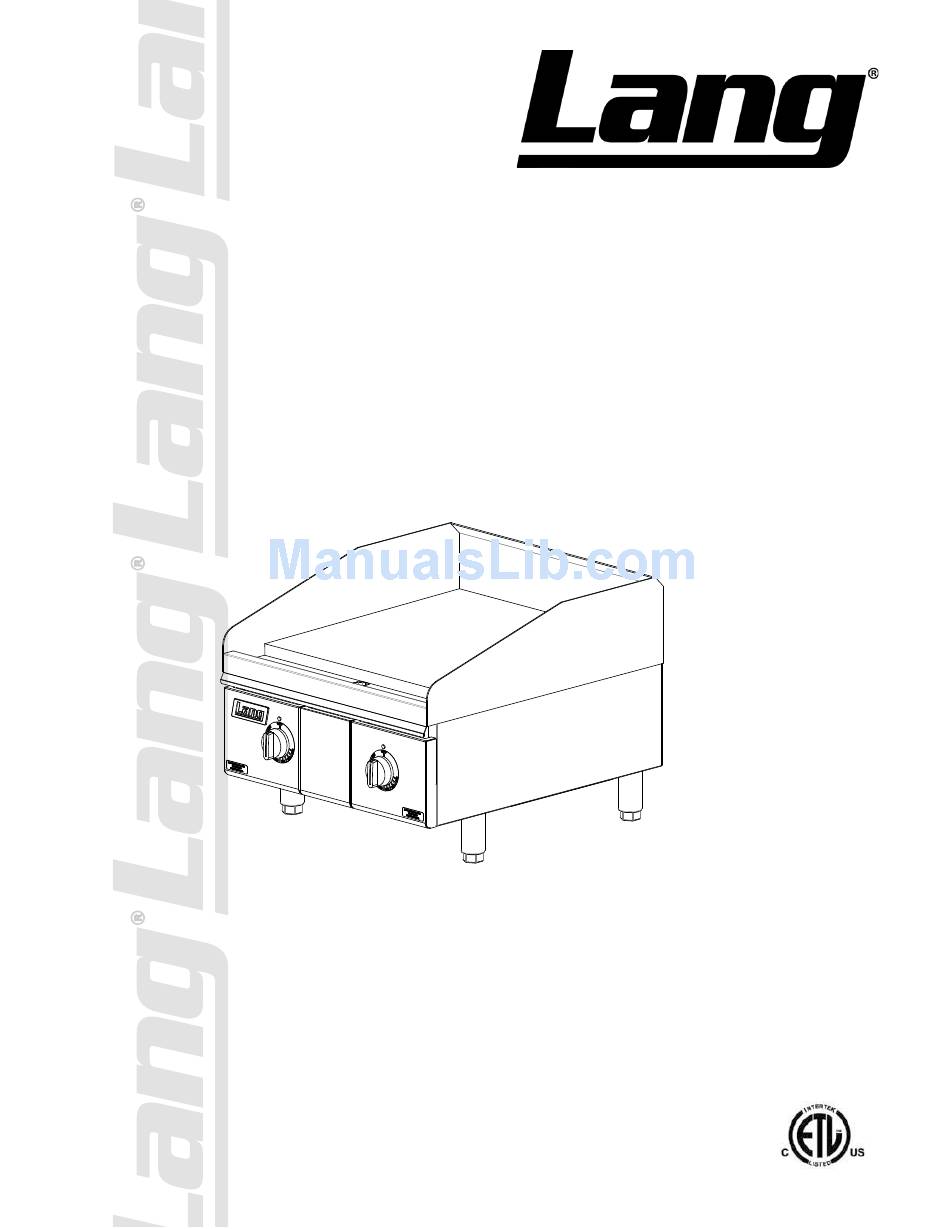

- Page 1 ENVIROZONE-TSTAT ELECTRIC GRIDDLE Commercial 124ZT, 136ZT, 148ZT, 160ZT, 172ZT Installation and Operation Instructions 2M-W1823 Rev. C 2/11/2015 IL2477a 124ZT...
- Page 2 CONTROL PANEL. NO USER-SERVICABLE PARTS INSIDE. REPAIRS SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY. NOTICE Using any part other than genuine Lang factory supplied parts relieves the manufacturer of all liability. Lang reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
-
Page 3: Table Of Contents
Exploded View & Parts List ..... 15-20 NOTICE Service on this or any other Lang appliance must be performed by qualified personnel only. Consult your Lang Authorized Service Agent Directory. -
Page 4: Specifications
Clearance from Weight Freight Model combustible surface Class Width Depth Height Actual Shipping 243 lbs. 280 lbs. 124ZT 24” 30.4” (77.2 cm) 110 kg 127 kg (61 cm) 124ZTD 36.5” (92.7 cm) 368 lbs. 410 lbs. 136ZT 36” 30.4” (77.2 cm) -
Page 5: Equipment Description
EQUIPMENT DESCRIPTION Griddle Surface Gutter Grease Pan IL2479 Section Section Pilot Light Temp Dial Feet Exterior Construction The griddle dimensions are 17” (43.18cm) High, 30” (76.20cm) Deep, and width is dependent on the actual model number. The Sides, Bottom, and Rear wall are constructed of double wall stainless steel, which allows closer installation to combustible surfaces. -
Page 6: Unpacking
UNPACKING Receiving the Griddle Upon receipt, check for freight damage, both visible and concealed. Visible damage should be noted on the freight bill at the time of delivery and signed by the carrier’s agent. Concealed loss or damage means it does not become apparent until the merchandise has been unpacked. -
Page 7: Installation
INSTALLATION Leg Installation There are four, adjustable legs provided for Enviro-Zone griddles. The legs are shipped in the grease drawers of the griddle. Install them into the threaded holes on the underside of the griddle body. Leveling adjustment may be done by screwing the bottom portion of the leg in and out. -
Page 8: Ventilation & Clearence
160T #1 1,3,5 2,4,6 phase. Re-phasing the griddle is not chargeable to Lang Manufacturing 160T #2 Company as warranty. To convert 172T #1 1,3,5 2,4,6 to single-phase have a Lang 172T #2 1,3,5 2,4,6 Authorized Service Agent, follow this chart. -
Page 9: Initial Start-Up Pre-Power On
INITIAL START UP Pre-Power On Before starting the griddle for the first time, clean the griddle body and cooking surface. Use a mild soap and water solution, then rinse with clear water and dry. The griddle is shipped with a protective coating and craft paper covering the cooking surface. This MUST be removed before heating the cooking surface. -
Page 10: Operation
OPERATION General The suggested time and temperature chart (below) is provided as a guide for the products listed only. If different temperature settings are to be used, select one side of the griddle and operate at the lowest temperature. Adjoining sections should be set at progressively higher temperatures. Do not try to operate the end sections hot and the center sections cool. -
Page 11: Cleaning
MAINTENANCE & CLEANING Cleaning • Always start with a cold griddle. • The stainless exterior can easily be cleaned using a good non-abrasive cleaner. • Always follow the cleaner manufacturer’s instructions when using any cleaner. • Always apply these cleaners when the griddle is cold and rub in the direction of the metal’s grain. -
Page 12: Crome Surface Griddle Care
MAINTENANCE & CLEANING GRIDDLE CARE (CHROME SURFACES) (Chrome surface griddles are marked with “CHS” at the end of the model number designation on the nameplate.) It takes very little time and effort to keep this Industrial Chrome griddle surface sparkling clean and performing at top efficiency. -
Page 13: Troubleshooting Symptoms / Possible Causes
If an item on the list is followed by an asterisk (*), the work should be done by a factory authorized service representative. NOTICE: Service on this, or any other, LANG appliance must be performed by qualified personnel only. Consult your Lang Authorized Service Agent Directory or call the factory at 314-678-6315, or www.langworld.com For the service agent nearest you. -
Page 14: Wiring Diagram 208/240Vac
CHK. DATE : SHEET DECIMALS ANGLES CAD FILE : .X = ± .05 ± .5° .XX = ± .03 61114-02 WD LANG GRIDDLE 380 & 480 VAC ACCUTEMP DESCRIPTION: DWG. NO: REV: .XXX = ± .015 PART NO. MATERIAL MODEL NO. NOTES: STAR MANUFACTURING INT’L INC. -
Page 15: Exploded View & Parts List
Model: Electric EnviroZone Griddle 124ZT thru 172ZT SK2583, Rev. A 6/28/13... -
Page 16: Parts List
PARTS LIST February 11, 2015, Rev C Model: 124ZT EnviroZone Electric Griddle Fig No. Part Number Description Quantity Application K9-142-201-23 GRIDDLE PLATE ASSY - 2’ZT 124ZT K9-142-201-323 GRIDDLE PLATE ASSY -2’ ZTD 124ZTD K9-142-201-23-2 GRIDDLE PLT ASSY-2’ZT CHROME 124ZTCHE K9-XL-507-2... - Page 17 PARTS LIST February 11, 2015, Rev C Model: 136ZT EnviroZone Electric Griddle Fig No. Part Number Description Quantity Application K9-142-201-33 GRIDDLE PLATE ASSY - 3’ZT 136ZT K9-142-201-33-1 GRID PLATE ASSY-3’ ZT 136ZTC K9-142-201-333 GRIDDLE PLATE ASSY -3’ ELEC 136ZTD K9-142-201-3330 GRIDDLE PL ASY 3’...
- Page 18 PARTS LIST February 11, 2015, Rev C Model: 148ZT EnviroZone Electric Griddle Fig No. Part Number Description Quantity Application K9-142-201-3430 GRIDDLE PLATE ASSY - 4’ZTDC 148ZTDC-480V K9-142-201-343 GRIDDLE PLATE ASSY - 4’ZTD 148ZTD K9-142-201-43 GRIDDLE PLATE ASSY - 4’ZT 148ZT K9-142-201-43-1 GRID PLT ASSY-4’...
- Page 19 PARTS LIST February 11, 2015, Rev C Model: 160ZT EnviroZone Electric Griddle Fig No. Part Number Description Quantity Application K9-142-201-353 GRIDDLE PLATE ASSY-5’ ZTD 160ZTD K9-142-201-53 GRIDDLE PLATE ASSY - 5’ZT 160ZT K9-142-201-53-3 GRIDDLE PLATE ASSY 5’ ZT 160ZTHE K9-142-201-53-1 GRIDDLE PLATE ASSY 5’...
- Page 20 CHROME UNITS 2P-50100-16 BOM AMI CLEANER CHROME UNITS 2P-50100-17 20” PALMYRA BRUSH CHROME UNITS STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303...
