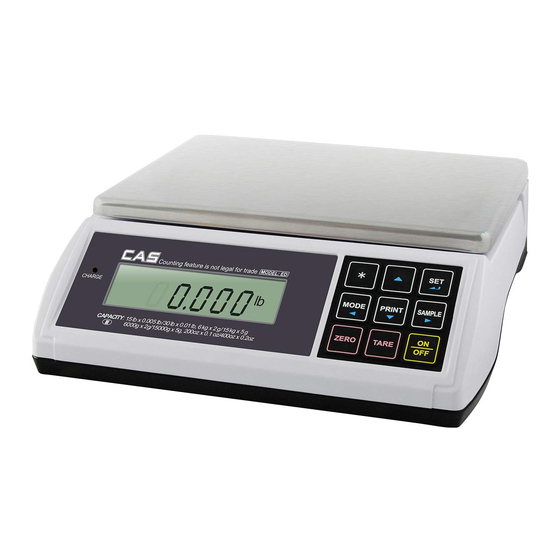

Summary of Contents for CAS ED Series
-
Page 2: Table Of Contents
CONTENTS PRECAUTIONS........ PREFACE..........DISPLAY AND KEYBOARD..OPERATIONS ........SETUP MODE ......... ERROR MESSAGES ..... SERIAL INTERFACE....SPECIFICATIONS ...... -
Page 3: Precautions
PRECAUTIONS... -
Page 5: Preface
This series have been designed with CAS reliability, under rigid quality control and with outstanding performance. Your specialty departments can enjoy with CAS products. We hope that CAS product meets your needs. The user manual is designed to guide you to understand product operation and proper care of product. -
Page 6: Operations
■ KEY FUNCTIONS KEYS DES CRIPTIONS Used to set the zero point to 0.00. Used as an ESC key in Setup Mode. Used to enter a tare weight and used to cancel a tare weight. Used to convert the mode as below. [WEIGHING] [pcs] [%] [WEIGHT LIMIT ON/OFF]... -
Page 7: Weighing With Tare
2. Weighing with Tare ■ Tare is the weight of container being used for a commodity. The TARE key subtracts the weight of the container. ① Place the container on the ② Press the TARE key, NET ③ Place an item in the platter. - Page 8 ④ If you set sample size to 10, place 10 samples on the platter. ⑤ Press the SET key. The display shows unit weight and then shows the number of samples. If the display shows “LACK(◀ )”, the counting result may not correct. (LCD version : Lack of Unit lamp is On) If the display shows “...
-
Page 9: Hold Function
③ Place reference sample on the platter and press the SAMPLE key. The display shows “100.0”. Make sure that reference sample bigger than 3% of maximum capacity. If it is lower than 3% of maximum capacity, the display shows “low”. In this case, increase the weight of reference sample and press the SAMPLE key. - Page 10 6. Cumulative Weight Sum The function of cumulative weight sum is to be showing the aggregate times and weight as adding the value of weighing a several times. Even though power is off, the scale stores data. This function is only available in weighing mode. ①...
- Page 11 ⑤ You can delete cumulative weight sum or aggregate times. Press the SET key to display cumulative weight sum or aggregate times and then press the ZERO(ESC key). ⑥ To print out cumulative weight sum, press the SET key to display cumulative weight sum or aggregate times and then press the PRINT key.
- Page 12 ⑦ Press the SET key, the display shows “WL ON”. ⑧ If you set up LOW/HIGH limit wrong, “WL ERR” will be shown on the display. Then you have to set it up again. For example) LOW=10kg HIGH=9kg High limit is lower than Low limit. ⑨...
- Page 13 ④Press the HOLD(▲) or ⑤Press the SET key, the display ⑥Press the HOLD(▲) or PRINT(▼) key to have number up shows “H00000”. PRINT(▼) key to have or down. To enter next digit, press number up or down. To enter the SAMPLE(▶) key. next digit, press the SAMPLE(▶) key.
- Page 14 Refer to Setup Mode Table on page 19. Sample format(DEP-50) -Weighing Function- -Counting Function- ======== WEIGHT ======== ======== COUNT ======== WELCOME TO CAS WELCOME TO CAS DATE . 2008/10/21 DATE. 2008/10/21 TIME. 17:35:58 TIME. 17:35:58 Weight : 0.000 kg...
- Page 15 Sample format(DLP-50) 1. Weight + tare ※ In order to use the above label format, Barcode set as OFF and weight comparison function as OFF in SET OP MODE 2. Weight + Tare + Barcode ※ In order to use the above label format, Barcode set as ON and weight comparison function as OFF in SET OP MODE 3.
-
Page 16: Auto Print
8-2. Auto Print ① To use auto print function, you have to set printer menu to “Pr AUt” in setup mode. Refer to Setup Mode Table on page 19. ② If the weight is stable, it is printed out automatically. And You can print out data every time pressing the PRINT key. -
Page 17: Setup Mode
SETUP MODE 1. How to Go to Setup Mode Make sure that power is OFF. While pressing the PRINT key, press the POWER key. The display shows “U SEt”. You can select each menu by pressing the MODE key and change the setting by pressing the HOLD or PRINT key. - Page 18 “ HIGH Limit ≥ Weight ≥ LOW Limit - You will hear buzzer. WL M0 ” HIGH Limit ≤ Weight, Weight ≤ LOW Limit “ WL M1 ” - You will hear buzzer. Weight Limit “ WL M2 ” Weight ≤ LOW Limit - You will hear buzzer. “...
- Page 19 3. How to Enter Date ① Press the MODE key until the ② If you do not want to print out date, press the HOLD(▲) key. display shows “dy ON”. It means that date is printed out.. ③ Press the SAMPLE(▶) key, ④...
- Page 20 ⑧ Press the Hold key or Print ⑨ You can see that Date ⑩ Press the SET key to save. key, you can change the pattern is changed. “dysave” is shown on the message on display. display shows a day of the week.
- Page 21 5. How to Enter Label Caption ① Press the MODE key until ② To print out label caption, press the HOLD (▲) key. The display the display shows “LA off”. It shows “LA on”. means that label caption is not printed out.
-
Page 22: Error Messages
The "Err 0" occurs when scale is not stable. Remove unstable facts. “Err 0” The "Err 1" occurs when a current zero point has Please call your CAS dealer. “Err 1” shifted from the last span calibration. The "Err 3" is an overload error. -
Page 23: Specifications
SPECIFICATIONS MODEL ED 3 ED 6 ED15 ED 30 1.5kg/0.5g 3kg/0.001kg 6kg/0.002kg 15kg/0.005kg 3kg/0.001kg 6kg/0.002kg 15kg/0.005kg 30kg/0.01kg 3lb/0.001lb 6lb/0.002lb 15lb/0.005lb 30lb/0.01lb CAPACITY 6lb/0.002lb 15lb/0.005lb 30lb/0.01lb 60lb/0.02lb 50oz/0.02oz 100oz/0.05oz 250oz/0.1oz 500oz/0.2oz 100oz/0.05oz 200oz/0.1oz 500oz/0.2oz 1000oz/0.5oz -1.4995kg -2.999kg -5.998kg -14.995kg -2.999lb -5.998lb -14.995lb -29.99lb TARE SUBTRACTION... - Page 24 MEMO...
- Page 25 MEMO...
- Page 27 뒷표지...
