CAS Poscale User Manual

Ticket printing scale
Hide thumbs Also See for Poscale:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for CAS Poscale

Summary of Contents for CAS Poscale

  • Page 2: Table Of Contents

    CONTENTS PRECAUTIONS ....................4 PREFACE ....................... 6 CHANGING THE PRINTER ROLL ..........6 NAME AND FUNCTIONS .................7 OPERATIONS ....................12 I. SAELS MODE ....................12 Chapter 1 Basic Operation..................14 Chapter 2 Sales for Weighed item................21 Chapter 3 Sales for non-weighed item..............22 Chapter 4 Clerk Operation..................26 Chapter 5 Discount &...

  • Page 3: Precautions

    Scale must be grounded to minimize Do not disassemble the scale. When any damage or defect occurs, weight. static electricity. This will minimize contact your CAS defect or electric shock. authorized dealer immediately for proper repair. Do not pull the plug by its cord when...
  • Page 4 Internal mechanism could be damaged. moving. Do not hold by the platter. CAS authorized dealer. Take the battery out when scale is not in Place the scale on firm and temperature By adjusting 4 corners of the scale, set use for long time.

  • Page 5: Preface

    This manual will help you with the proper operation and care of your new CAS POSCALE. Please review the POSCALE manual before you use the scale and keep it handy for future reference. ■ The Li-ion battery of product may not be fully charged. It is recommended to charge Li-ion battery using AC power before initial usage.

  • Page 6: Name And Functions

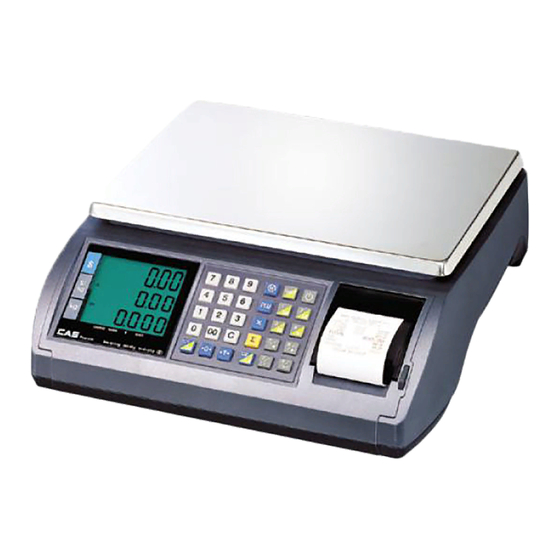

    NAME AND FUNCTIONS OVERALL VIEW ■ STANDARD TYPE ■ POLE TYPE ■ POLE TYPE INSTALLATIONS - Insert the post pipe into a post bracket. - Insert and fasten the display assembly screws.
  • Page 7 NAME AND FUNCTIONS DISPLAY ■ Rear Display(Customer-side display) ex) 15kg Version ■ Front(Clerk-side display)& Pole Display ex) 15kg Version ■ KEYBOARD...
  • Page 8 NAME AND FUNCTIONS Table 1 : Symbols on Display SYMBOLS DESCRIPTION The battery is being charged. When blinks there is some problem with paper roll in the printer. In the subtotal mode SHIFT key pressed To adjust the weight to zero. Stable Tare on Program mode...
  • Page 9 NAME AND FUNCTIONS Table 2 : Key Functions FUNCTIONS KEYS SALES MODE PROGRAM MODE To input all numerical data To input double zero To clear all of numbers input on the display To select clerk 1 To select clerk 2 To set zero To set or clear tare value To go to program mode...
  • Page 10 NAME AND FUNCTIONS FUNCTIONS KEYS SALES MODE PROGRAM MODE To open cash drawer *The cash drawer is opened no matter how the "opening time"is set. To feed the paper To make discount After pressing After pressing * To finalize the payment in cash To print current data * To print receipt...

  • Page 11: Operations

    OPERATIONS & SAELS MODE I. Sales Mode Chapter 1. Basic Operation a. Turning the scale or backlight on / off b. Feeding the paper c. Opening cash drawer d. Self-test on printing e. Zero function f. Tare function Chapter 2. Sales for weighed item a.

  • Page 12: Saels Mode

    SAELS MODE Chapter 1. Basic Operation...
  • Page 13 SAELS MODE Chapter 1. Basic Operation This chapter explains how to turn the scale or backlight on/off, feed the paper, open cash drawer, and do self-test on printer. a. Turning the scale or backlight on/off Press wh en the scale is turned off, then it starts counting 0~9.
  • Page 14 SAELS MODE b. Feeding the paper ■ Feeding the paper is to make sure that printer paper is properly set and operated. Press when user needs to feed the paper. Paper will feed for as long as key is pressed . ▼...
  • Page 15 ■ The scale is not in initial zero point when there is(are) any item(s) on the platter user may need to set zero using "zero" key. The scale is not in initial zero point. Set zero point. User can set zero only within ±2% of capacity. For example, the 6kg POScale model is ±120g.
  • Page 16 SAELS MODE f. Tare function ■ One Time Tare This function is to subtract the weight of actual tare. Place a tare on the platter. For example, 10g. Subtract the tare weight. After setting the tare user may place item on the platter, and the scale reads only the weight of item.
  • Page 17 SAELS MODE ■ Successive Tare This function is to subtract two successive tares. The successive tare can be set in the calibration mode. Please contact your dealer if you want to use "Successive Tare". Place a tare on the platter. For example, 10 g. Press the key.
  • Page 18 SAELS MODE Remove all weights from platter if user does not need tare function. At this time the weight shows negative value of tare. To clear up the tare value, and go back to set zero point, press the key again.

  • Page 19: Chapter 2 Sales For Weighed Item

    User may use or not use PLU (Price Look-Up), which can be pre-programmed into the scales. Let’s look at how to operate the sales function of CAS POScale. Chapter 2. SALES FOR WEIGHED ITEM Chapter 3.
  • Page 20 PLU. CAS POScale can store up to 1,799 PLUs in its memory. Let’s look at how to make a sales transaction using a PLU.
  • Page 21 SAELS MODE * If current PLU, 1 has fixed price attribute, which is set in the program mode user cannot change the unit price for PLU called up. However, if current PLU has non-fixed price attribute user may change (override) the unit price as his/her sales transaction requires.
  • Page 22 SAELS MODE For more than single item sales, Simply input item's unit price and press and quantity. Then display will show total price. * User may make sales up to 1,999 items per transaction. Press to clear previous transaction and go back to initial weighing mode.
  • Page 23 SAELS MODE Press key to change unit price. Input new price, 3.00. Then, press the number of non-weighed item unit, for example, 5 units. Press to clear previous transaction and go back to initial weighing mode.

  • Page 24: Chapter 4 Clerk Operation

    SAELS MODE Chapter 4. CLERK OPERATION...
  • Page 25 SAELS MODE Chapter 4. Clerk Operation There are three different type of clerk modes. max number of sales per CLERK : 99 Table 3: Clerk Mode (refer to clerk mode setting on page 94) Modes DESCRIPTION Receipt Printing All clerks can use the scale for a It prints ticket (receipt) including seriesof sales activity.
  • Page 26 SAELS MODE Call up PLU of Beef Sirloin, #14 for clerk C1. Select the clerk 1. Remove Beef Sirloin from the platter. Select the clerk 2.
  • Page 27 SAELS MODE Remove Turkey from the platter. Call up PLU of Rib Eye, #17 for clerk C3. Select the clerk 3. Remove Rib Eye from the platter.
  • Page 28 SAELS MODE C all up PLU of Potato(No weight Item), #1 for clerk C1. Customer purchase 3 packs of Potato. S elect the clerk 1. S ubtotal Mode. Get subtotal amount. Select appropriate clerk (C1, C2, C3, C4) Selecting C1 in the SUBTOTAL mode and pressing key prints out a ticket (receipt) for Clerk1 transaction(s).
  • Page 29 SAELS MODE - Receipt Samples (Euro Version)
  • Page 30 SAELS MODE b. CLERK MODE 1 (Only one clerk operation) For example, put 2kg of item whose unit price is 3.99 and clerk 1 is making current transaction. Press to select the clerk 1. It automatically prints out ticket (receipt) for current transaction. VOID Press to void (delete) latest transaction.
  • Page 31 SAELS MODE Sales List User may check through previous transactions (lists) before printing receipt, using • Pressing will delete current transaction made in the sales list mode. User may exit from current by using once for current clerk's sales and twice for another transaction.
  • Page 32 SAELS MODE c. CLERK MODE 2 (Supermarket mode) • Only one transaction per clerk at a moment. • It prints ticket (receipt) only for one transaction per clerk. Assumption : a) Please go to clerk mode and set clerk mode as "2 (supermarket mode)". b) 2kg of Beef Sirloin (PLU setting # 14, €3.99/kg, No weight;...
  • Page 33 SAELS MODE d. CLERK MODE 3 (Label-1 mode) • Only one transaction per clerk at a moment. • It prints Label format receipt only for one transaction per clerk. Assumption : a) Please go to clerk mode and set clerk mode as "3 (Label-1 mode)". b) 2kg of Beef Sirloin (PLU setting # 14, €3.99/kg, No weight;...
  • Page 34 SAELS MODE e. CLERK MODE 4 (Label-2 mode) • Only one transaction per clerk at a moment. • It prints Label format receipt only for one transaction per clerk. Assumption : a) Please go to clerk mode and set clerk mode as "4 (Label-2 mode)". b) 2kg of Beef Sirloin (PLU setting # 14, €3.99/kg, No weight;...

  • Page 35: Chapter 5 Discount & Payment

    SAELS MODE Chapter 5. DISCOUNT & PAYMENT...
  • Page 36 SAELS MODE Chapter 5. Discount & Payment a. Discount for a single of transaction ■ Instant Assumption : • Instant discount rate: 10% • Unit price of a commodity: €20 A customer purchased €20.00 for a commodity. Press to make €20.00 valued sales transaction for clerk 1.
  • Page 37 SAELS MODE Press to have the amount of subtotal after instant 10% of discount for a single transaction. CLERK"1"MODE : User doesn't need to select a "Clerk", . ■ Pressing is to finalize the discount for a single transaction and print out the receipt. ■...
  • Page 38 SAELS MODE Press to make €20.00 sales transaction for clerk 1. Press to provide 5% programmed discount for current single transaction. Press to have the amount of subtotal after instant 5% of discount for a single transaction. ■ Pressing is to finalize the discount for a single transaction and print out the receipt.
  • Page 39 SAELS MODE b. Discount for subtotal Once the user gets the total amount by pressing he/she may apply some percentage of discount to the subtotal. Let's assume we apply a 6% discount (refer to II. program mode, SET 1) on a purchase of €170 valued commodity, for example.
  • Page 40 SAELS MODE ■ Pressing will to finalize the discount transaction and print out the receipt. c. Payment ■ Payment function works only in the subtotal mode. Assumption : After clerk 1 has made three sales transactions the subtotal amount of € 46.48 comes up. Customer wants to pay € 20 in credit and rest in cash.
  • Page 41 SAELS MODE Press appropriate numeric keys to input the amount of payment in credit. Press and "pay" key to make payment in credit. Press approproate numeric keys to make rest of payment, €40.00 in cash.
  • Page 42 SAELS MODE Then, the scale automatically prints out receipt. If user is using the scale with cash drawer connected the cash drawer is also automatically opened as the pulse length of cash drawer set when printing the receipt. Default for pulse length of cash drawer is 50 m/s (50/1,000 second). Please refer to page 76 for further detail of "pulse length setting"...
  • Page 43 SAELS MODE d. Duplicate receipt ■ If user sets duplicate receipt ("dbL") as "YES" in the OPTION setting (refer to page on 83) of program mode the scale asks "DUP?" whenever printing receipt by using or PAY key. If user presses it prints the additional copy of receipt, and if press "C"...

  • Page 44: Chapter 6 Sales Transactions Simulation

    SAELS MODE Chapter 6. SALES TRANSACTIONS SIMULATION...
  • Page 45 SAELS MODE Chapter 6. Sales Transactions Simulation Assumption : • Clerk sales mode: "0"- All clerks sales mode (Clerk mode on page 92) • Programmed discount: 5% (Discount percentage mode on page 69) • Obligatory payment function: "0"-disabled (Obligatory payment setting on page 87) •...
  • Page 46 SAELS MODE PLU 3 commodity (Tomato: €1.99/kg), Weight=0.500 kg, clerk 1 sales. Programmed discount (5%) for PLU 3 commodity (Tomato), Weight=0.500kg, clerk 1 sales. €5.00 of Non-weighed Free Price commodity (Garlic bread) x3, clerk 1 sales. Subtotal, for example, €16.45. Total 4 transactions, and clerk 1 sales activities are shown on the display.
  • Page 47 SAELS MODE Discount 10% for subtotal, €16.45. To review sales list press To review sales list press . "dEL" means VOID function has deleted the second transaction. To review sales list press . "p 3" means that PLU 3 transaction has been completed. If user wants to exit from sales list press...
  • Page 48 SAELS MODE If user presses to go back to sales mode the display is shown as right. Two sales transactions for PLU 14 (€3.99/kg) and PLU 15 (€4.99/kg) with weight=0.500kg, clerk 1 sales activities. Subtotal mode. Subtotal is €19.30, for example. Deleting sales transaction in subtotal ■...
  • Page 49 SAELS MODE Go to the 6 sales transaction by using to delete it. Press to delete it. User may exit from this mode by pressing Payment of €10.00 in credit and rest in cash for total €17.30 for example. Input €10.00 of payment in credit. Input €20.00 to pay for remaining balance in cash.
  • Page 50 SAELS MODE...

  • Page 51: Ii. Program Mode

    PROGRAM MODE II. Program Mode Chapter 7. PLU Programming a. Validity Price Code Department Name b. Tax, Non Weighed, fixed PLU price & barcode printing c. One touch PLU data Erasing Chapter 8. Report a. PLU data list b.PLU report c.
  • Page 52 PROGRAM MODE Chapter 11. OPTIONS (Receipt Formatting) a. Duplicate receipt b. Image (graphic logo) c. Printing barcode for a single transaction d. Printing barcode for total transaction e. Obligatory payment f. Discount g. Printing PLU code h. Printing all reports i.
  • Page 53 PROGRAM MODE Table 4 : Most commonly used keys in program mode FUNCTIONS KEYS PROGRAM MODE To get into program mode User can not get into program mode when ∑ (▼) is on, that is, previous transaction(s) is not completed. To choose menu To move to previous or next character To go to the higher level of menu...

  • Page 54: Chapter 7 Plu Programming

    PROGRAM MODE Chapter 7. PLU PROGRAMMING...
  • Page 55 PROGRAM MODE Chapter 7. PLU Programming This chapter explains how to input all PLU-related data into the scale. User can store such information as price, code, department, name, tax rate group, weighed or non-weighed, fixed or not-fixed unit price, barcode printing etc. Lets look at how to input price information on the scale.
  • Page 56 PROGRAM MODE a. Validity, Price, Code, Department, and Name Press key to get into PLU programming mode from main menu, and then press key. To input PLU's validity press numeric keys you wish. For example, if you input 150 for PLU 1 press 1, 5, and 0 and press to store.
  • Page 57 PROGRAM MODE Press to go to input department number, and you can input any number of 0~39, then, press For example, input "1" for the department number. Press to go to input PLU name, . You can input up to 30 characters in accordance to Table 8: code on page 105.
  • Page 58 PROGRAM MODE b. Tax, Non-weighed, fixed PLU price & barcode printing Press to go to tax group setting mode, and you can input any one of tax rate groups, A~H, then press . For example, input tax group 1 for this PLU (please refer to tax rate setting on page 99).

  • Page 59: Chapter 8 Report

    PROGRAM MODE Chapter 8. REPORT...
  • Page 60 This chapter explains how to print out all kind of reports in POScale. POScale provides such reports as PLU data list, PLU, clerk, department, tax, hourly, sales reports. All of report always includes two special PLUs, PLU 0 and 1,800 on top of report.
  • Page 61 PROGRAM MODE Table 6 : "C" key operation while printing Does "C"(cancel) key work while printing report? Report PLU data list Clerk Department Hourly sales Closing b. PLU report ■ PLU report always includes two special PLUs, PLU 0 and PLU 1,800. ■...
  • Page 62 PROGRAM MODE Automatically print out the PLU report ranging from 1 to 20, and two special PLUs.
  • Page 63 PROGRAM MODE c. Clerk report ■ This reports all sales-related activities for four clerks. ■ This report includes such information as the number of clients (customers), clerks total sales amount, proportional percent of total sales amount, the amount and number of canceled transaction, the amount and number of discount, transactions and the amount of sales in cash and credit respectively.
  • Page 64 PROGRAM MODE d. Department report Go to the department report mode.
  • Page 65 PROGRAM MODE e. Tax report and hourly sales report The same process as department report. ■ Tax report: total tax amount and sales amount for each 8 tax groups. ■ Hourly sales report: hourly sales total amount, count, and percent for a day. f.
  • Page 66 PROGRAM MODE Chapter 9. SET 1 (Discount, Barcode formatting & HW setting)

  • Page 67: Chapter 9 Set 1 (Discount, Barcode & Hw Setting)

    "BaudRate". 0: No Auto Power-off Auto Power-off timing setting(min.) Auto power-off works only in battery usage. This version of POScale does not support network LAN number (#) function. It will be provided in the future. Discount Rate (%) Barcode Format Cash Drawer-Opening Pulse (ms.)
  • Page 68 PROGRAM MODE Press to go to BAUD rate setting mode. User may input any one of options 1200~115200 to meet best usage environment. Please refer to "Table 7: SET 1" on page 68 for speed options. For example, select 57600. b.
  • Page 69 PROGRAM MODE d. Barcode format setting for a single transactions Press to go to Barcode format setting for a single transaction mode. Then, press again to get into input barcode string, using code table on page 104. Now you can input appropriate barcode string. The barcodes are entered like string with specific format.
  • Page 70 PROGRAM MODE M : number of sales in receipt N : number of digit(s) M : constant digit(s) The parameter X specifies what will be printed. You can choose between several parameters and can set how many digits will be printed. The parameter N after parameter X is a obligatory! It give the number of digits which will be printed from value specified with parameter X.
  • Page 71 PROGRAM MODE Case 2 (EAN13 type) : Assumption: Weight -1.550 Department – 15 Clerk - 1 String- (total is 12 digits input)Then, Barcode -> 4 01550 62 15 1 9 (total is 12 digits input) Case 3 (UPCA type) : Assumption: Weight -1.025 Unit price - 2.28...
  • Page 72 PROGRAM MODE Case 4 (EAN8 type) : Assumption: Number of receipt - 000579 String- (total is 7 digits input) Then, Barcode -> 2 000038 (total is 7 digits input) Case 5 (CODE128 type) : Assumption: CODE of PLU - 551256 Weigh - 1.545 Unit price - 20.00 Total price - 30.90...
  • Page 73 PROGRAM MODE Lets try to set barcode for above case 1. User should input codes- 49, 87,53, 86, 80, 53- for barcode string, 1W5VU5. Press to input "1", the first digit of string in barcode for a single sale setting mode. Press the following keys to continue to input barcode string.
  • Page 74 PROGRAM MODE e. Barcode format setting for total Press to go to Barcode format setting for a total transaction mode. Then, press again to get into input barcode string using code table on page 105. Now you can to input appropriate barcode string. ■...
  • Page 75 PROGRAM MODE f. Setting pulse length to open cash drawer ■ CAS Poscale may be used with cash drawer 12 volts DC. ■ Default for pulse length of cash drawer is 50 m/s (50/1000 second). However, user can select any of 1~99 ms, which is best fit for user's own cash drawer.
  • Page 76 PROGRAM MODE Press appropriate numeric key to set printing darkness of 1~5 and to save it. For example, set 2. "5" is the most dark set. h. Currency symbol or name Currency symbol or name setting mode. User can input appropriate characters for currency, using code table on page 104.
  • Page 77 PROGRAM MODE Chapter 10. SET 2 (Date, Time & Default setting)

  • Page 78: Chapter 10 Set 2 (Date, Time & Default Setting)

    PROGRAM MODE Chapter 10. SET 2 (Date, Time & Default setting) This chapter explains how to set date and time, erase all of PLU data. In addition to these functions it also shows how to do one-touch default setting. a. Date & time Press to go to SET 2 mode.
  • Page 79 PROGRAM MODE Press to go to Time Setting mode. Press any numeric keys you wish to input. For example, lets input "09:53:00" as time, and press to save time. b. One touch PLU data erasing & default setting Using go to SET 2 mode. Then, press to get PLU Erasing mode.
  • Page 80 PROGRAM MODE Press to go to default setting mode. Then, press to set default.(you can exit to normal weighing mode using Default <SET1> ■ BAUD Rate (bps) = 115200 ■ Auto Power-off time = 00 ■ Discount Rate = 0% ■...
  • Page 81 PROGRAM MODE Chapter 11. OPTION(Receipt Formatting)

  • Page 82: Chapter 11 Options (Receipt Formatting)

    PROGRAM MODE Chapter 11. OPTIONS (Receipt Formatting) This chapter explains how to enable/disable back light and save PLU after transaction. duplicate receipt, printing barcode for a single transaction or total. It also explains how to enable/disable printing graphic logo on receipt, code of PLU and all of reports in the closing report.
  • Page 83 PROGRAM MODE b. Image (graphic logo) (Using key and go to option setting mode from main menu. And then press to get into image setting mode. User may select YES or NO by pressing "1" or "0" respectively, and press to save it.
  • Page 84 PROGRAM MODE c. Printing barcode for a single of transaction (Using key and go to option setting mode from main menu. And then press to get into barcode printing for a single of transaction setting mode. User may select YES or NO by pressing "1" or "0"...
  • Page 85 PROGRAM MODE...
  • Page 86 PROGRAM MODE e. Obligatory payment (Using key and go to option setting mode from main menu. And then press to get into obligatory payment option mode. User may select YES or NO by pressing "1" or "0" respectively, and press to save it.
  • Page 87 PROGRAM MODE g. Printing PLU code (Using key and go to option setting mode from main menu. And then press to get into PLU code printing mode. User may select YES or NO by pressing "1" or "0" respectively, and press to save it.
  • Page 88 PROGRAM MODE i. Printing tax (Using key and go to option setting mode from main menu. And then press to get into tax printing mode. User may select YES or NO by pressing "1" or "0" respectively, and press to save it. j.
  • Page 89 PROGRAM MODE k. Saving PLU (Using key and go to option setting mode from main menu. And then press to get into PLU saving mode. User may select YES or NO by pressing "1" or "0" respectively, and press to save it.

  • Page 90: Chapter 12 Clerk

    PROGRAM MODE Chapter 12. CLERK...
  • Page 91 PROGRAM MODE Chapter 12. CLERK This chapter explains what kind of clerk modes there are and how different they are. In addition, it shows how to input name of clerk 1~4. a. Clerk mode There are three different type of clerk modes. max number of sales per CLERK : 99 Table 3 : Clerk Mode Modes Description...
  • Page 92 PROGRAM MODE b. Clerk name input: 1~4 (Using key and go to clerk name setting mode from main menu. Press to get into clerk name 1 setting mode. User may input up to 16 characters in accordance to "code table" on page 105. For example, lets input "John Kim"...
  • Page 93 PROGRAM MODE Input clerk' name using appropriate numeric keys in accordance to "code table" on page 105. Input clerk' name using appropriate numeric keys in accordance to "code table" on page 105. After finishing clerk name input save it by pressing * Whenever user wants to go back to main menu use .

  • Page 94: Chapter 13 Logo

    PROGRAM MODE Chapter 13. LOGO...
  • Page 95 Press to get into Headline 1 setting mode. Press and input appropriate numeric keys to input codes in the headline 1 (refer to page 105). For example, lets input "CAS" at 16 space in the first headline.
  • Page 96 PROGRAM MODE Press appropriate numeric keys. Press appropriate numeric keys. Press appropriate numeric keys. Press to save the first headline. And user may press to go to input next headline (storable up to 6 header & 2 footer lines), and exit using...

  • Page 97: Chapter 14 Tax Rate Group

    PROGRAM MODE Chapter 14. TAX RATE GROUP...
  • Page 98 PROGRAM MODE Chapter 14. TAX RATE GROUP This chapter explains how to set tax rate group. User may set up to 8 different tax rate groups; A, B, C, D, E, F, G, H, and then store a specific tax group when he/she inputs PLU data.
  • Page 99 PROGRAM MODE User may press to go to input next tax rate group, B. Press...

  • Page 100: Chapter 15 Test

    PROGRAM MODE Chapter 15. TEST...
  • Page 101 PROGRAM MODE Chapter 15. TEST This chapter explains how to test hardware in the following aspects. ■ ADC (Analog Digital Converter): the digital value converted from analogvalue. ■ SPAN ■ Display : self-test ■ Keyboard ■ RAM ■ Printer : self-test ■...
  • Page 102 PROGRAM MODE After making sure the SPAN value press to get back to SPAN test mode and press again to go to next Display test mode. Then test display automatically by pressing Press go to next Keyboard test mode. In this mode user may press any key and a specific number (ex.
  • Page 103 PROGRAM MODE Press to go to Battery voltage mode. Then, press to see current voltage. Please keep in mind that the scale must be unplugged to show current voltage.

  • Page 104: Code [Ms 1250 Windows Central Europe]

    CODE [MS 1250 Windows Central Europe] Table 8 : Code [MS 1250 Windows Central Europe] “ & ‘ < > 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 €...

  • Page 105: Code [Ms 1251 Window Cyrillic(Slavic)]

    Code [MS 1251 Windows Cyrillic(Slavic)] Table 9: Code [MS 1251 Windows Cyrillic(Slavic)] “ & ‘ < > 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 Ђ...

  • Page 106: Code [Ms 1252 Window Latin-1]

    Code [MS 1252 Windows Latin-1] Table 10 : Code [MS 1252 Windows Latin-1] “ & ‘ < > 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 €...

  • Page 107: Code [Ms 1253 Windows Greek]

    Code [MS 1253 Windows Greek] Table 11 : Code [MS 1253 Windows Greek] “ & ‘ < > 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 €...

  • Page 108: Code [Ms 1254 Windows Turkish]

    Code [MS 1254 Windows Turkish] Table 12 : Code [MS 1254 Windows Turkish] “ & ‘ < > 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 €...

  • Page 109: Code [Ms 1257 Windows Baltic]

    Code [MS 1257 Windows Baltic] Table 13 : Code [MS 1257 Windows Baltic] “ & ‘ < > 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 €...

  • Page 110: Code [Farsi Font(Iran)]

    CODE [FARSI FONT (IRAN)] Table 14 : Code [FARSI FONT (IRAN)]...

  • Page 111: Error Messages

    9999.99 this message is number within maximum displayed with beep capacity on the display. When turning on the scale this Please call your CAS dealer. message may be displayed ERROR with continuous beep and it is automatically turned off. Please remove the item from...

  • Page 112: Specification

    ■ Middle length beep: some information event (for example, power on) ■ Long beep: successive event (for example, adding sale to clerk) ■ Five times fast short beeps: error! (Wrong key, wrong data input...) Table 16 : SPECIFICATION Model POScale CAPACITY 15kg 30kg Division, e=...

  • Page 113: Table List

    TABLE LIST Table List page Table 1: Symbols on display........................9 Table 2: Key Functions..........................10 Table 3: Clerk Mode........................26 & 92 Table 4: Most commonly used keys program mode.................54 Table 5: PLU Programming........................56 Table 6: "C" key operation while printing....................62 Table 7: SET1............................68 Table 8: Code [MS 1250 Window Central Europe]................105 Table 9: Code [MS 1251 Window Cyrillic(Slavic)]..............106...

  • Page 114: Cash Drawer Interface Drawing

    CASH DRAWER INTERFACE DRAWING Cash Drawer Interface Drawing ■ POScale may interface only with 12V cash drawer. RJ-11 connector Not connected : 1 x (+12V) : 2 Ground : 3 Ground : 4 (+ 12V) : 5 Not connected : 6 x...

  • Page 115: Program Menu Map

    PROGRAM MENU MAP Table 17 : PROGRAM MENU MAP Mode Sub-Mode Menu On Display Page Validity vALid Price PriCE Code CodE Departmet Name nAME (CHAPTER 7) Tax rate group A~H Weighed or non-weighed? no W Fixed or non-fixed unit price? FIX Pr Barcode printing? Pr bAr...
  • Page 116 PROGRAM MENU MAP Duplicate receipt? Image(Graphic Logo) iMAGE Printing barcode for a single transaction on receipt? bAr S Printing barcode for total on receipt? bAr t Obligatory payment? ob PAY Options Mode Discount? diSCn (CHAPTER 11) Printing PLU code? Pr CodE Printing all reports? rEPALL Printing T ax?
  • Page 117 MEMO...
