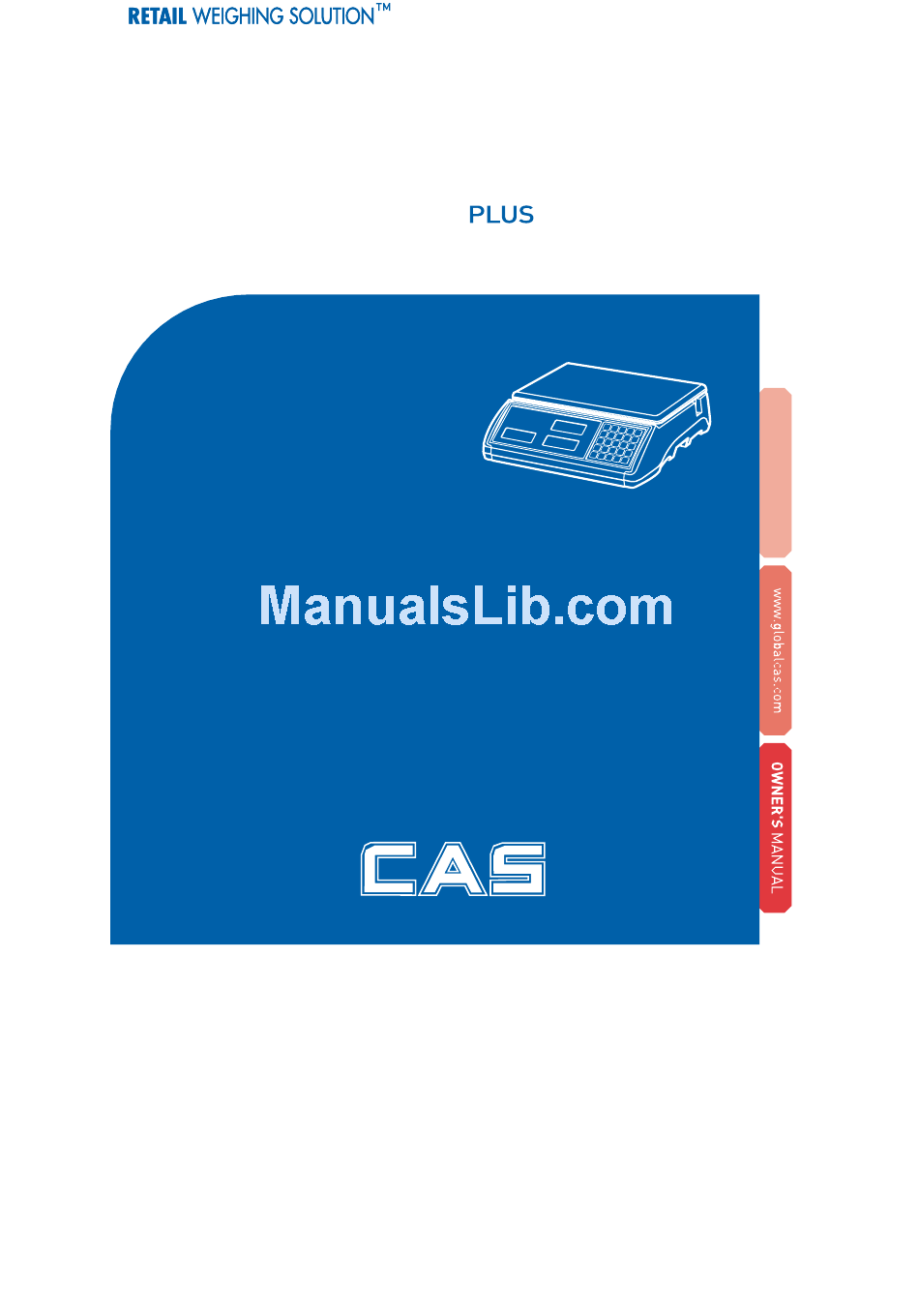

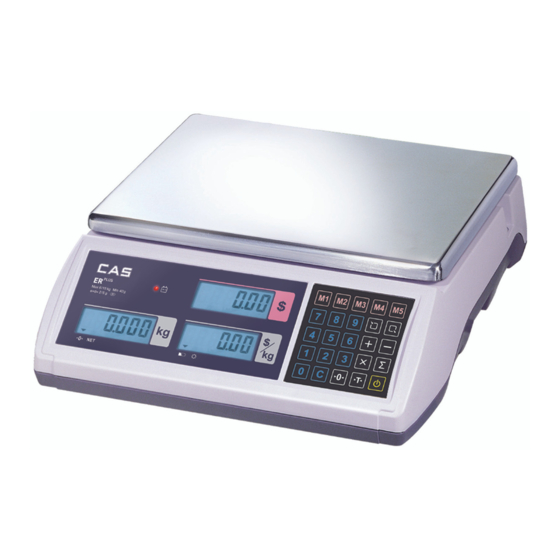

  • Page 1 SERIES Price Computing cale...

  • Page 2: Table Of Contents

    CONTENTS PRECAUTIONS ..........4 PREFACE ............6 OVERALL VIEW ..........6 DISPLAY & KEYBOARD ........7 OPERATIONS ........... 10 I. Programming Mode ......... 10 ......11 Chapter 1. Basic Operation ... 14 Chapter 2. PLU Saving & Calling-up ....17 Chapter 3.

  • Page 3: Precautions

    PRECAUTIONS...

  • Page 5: Preface

    PLUS. Thank you for the purchasing CAS ER This series have been designed with CAS reliability, under rigid quality control and with outstanding performance. Your specialty departments can enjoy with CAS product. We hope that CAS product meets your needs.

  • Page 6: Display & Keyboard

    DISPLAY & KEYBOARD ■ LCD TYPE : Front Display Max 6 /15 kg Min 40 g Max 6 /15 kg Min 40 g e=d= 2 /5 g e=d= 2 /5 g ■ LCD TYPE : Rear Display Max 6 /15 kg Min 40 g e=d= 2/5 g Max 6 /15 kg Min 40 g e=d= 2/5 g ■...
  • Page 7 ■ LED TYPE : Front Display ■ LED TYPE : Front Display Table : Symbols on Display SYMBOLS DESCRIPTION To adjust zero Tare on Back light on Low battery warning Charge status...
  • Page 8 ■ KEYBOARD Table: Key Functions KEYS FUNCTIONS To input all of numerical data Direct PLU keys To save PLU To call up PLU To clear data To set zero To set or clear tare value To turn on & off the scale To make several sales transaction by adding up To make discount transaction To multiply the same item when making sales transaction...

  • Page 9: Operations

    OPERATIONS . Programming Mode Chapter 1. Basic Operation Turning the scale on / off Turning backlight on / off(Option in LCD version only) Zero function Tare function – One Time tare – Successive tare – Preset tare Chapter 2. PLU Saving & Calling-up Saving unit price on PLU Saving valid date set on PLU(Option) Saving PLU name...

  • Page 10: Chapter 1. Basic Operation

    Chapter 1. Basic Operation a. Turning the scale on / off Press ON/OFF key to turn on. Press ON/OFF key to turn off(LED, VFD Version). Press ON/OFF key for a few sconds to turn OFF(LCD Version) b. Turning backlight on/off(Option in LCD version only) Press ON/OFF key to turn on.

  • Page 11: Preset Tare

    d.Tare function Tare means the weight of container. You may use tare function when you weigh an item with container and measure only the weight of item. ■ One time tare Place a container on the platter. Press TARE key to set zero point. Ex) 200g of tare.
  • Page 12 Press TARE key to set tare. Press appropriate numeric keys. Ex) 10g Press TARE key again to set zero.

  • Page 13: Chapter 2. Plu Saving & Calling-Up

    Chapter 2. PLU Saving & PLU Calling-up a. Saving unit price on PLU This section explains how to save unit price in PLU Number of PLU Range Remarks 1~200 PLU Name Press numeric key to input unit price you wish Press key.
  • Page 14 b. Saving valid date set on PLU This section explains how to save valid date in PLU. You can input the valid date. Range is 0 ~ 999. Valid date Packed on date Sell by date Remarks 07.12.11 (Today) (No print) 07.12.11 (Today) 07.12.11(Today) 07.12.11(Today)
  • Page 15 ■ Please refer to “Alphabetic key location”.
  • Page 16 d. Calling up a PLU ■ Indirect PLU To call up indirect PLU saved press To go back to nomal weighing mode appropriate numeric keys (address) and press C key Ex) PLU 10 ■ Direct PLU To go back to nomal weighing mode press C To call up direct PLU saved just Press appropriate direct PLU key.

  • Page 17: Chapter 3. User's Set-Up Mode

    Chapter 3. User’s Set-up Mode This section explains how to set up the following functions. Functions Options Remarks 1. Auto power-off NO / 10 / 30 / 60 When backlight option selected in 2. LCD Backlight On/OFF OFF / ON / 3 / 5 / 10 LCD version only 3.
  • Page 18 Select an option you wish to have by using TARE key. Ex) 30 (minuets) b. LCD backlight ON/OFF function (Option in LCD version only) This section explains how to set backlight on & off function and automatic off function. Table : Options Description Remarks...
  • Page 19 c. Brightness control (Option in LCD version only) This section explains how to set brightness level (1~7) Press ZERO key to move next function setting, backlight brightness. Press TARE key to select brightness. (1~7) d. Low battery backlight auto off function (Option in LCD version only) This section explains how to set backlight auto off.
  • Page 20 e. Suspend mode function (Only LED version) This section explains how to set a time to suspend mode. Table : Options Description Remarks No suspend mode. 20(seconds) Suspend mode in 20 seconds when no use. 40(seconds) Suspend mode in 40 seconds when no use. 60(seconds) Suspend mode in 60 seconds when no use.

  • Page 21: Chapter 4. Formatting Printing Receipt

    Chapter 4. Formatting printing receipt This chapter explains how to set the receipt format in the following fields. Options Description Remarks Maximum 1,2 line / 24 To input characters you wish to have on the receipt HEADER characters, 3 line / 16 header.
  • Page 22 ON/OFF key under the scale power off. wish to have. “1” on the “Unit Price” display represents that you Ex) CAS. are ready to input the first character. To save it and go next header line press TARE Using ASCII code you can input appropriate data key.
  • Page 23 To save it and go next header line pr ess TARE Using ASCII code you can input appropriate data key. on Header 2. Ex) THANK YOU c. Receipt currency (unit) setting Initial currency (unit) display status. Using ASCII code you can input appropriate character or currency symbols on unit.
  • Page 24 d. Receipt DATE setting To save it and go to “Initial DATE display” status Just input appropriate weekday you wish to have, press TARE key. using numeric key. Ex) 1(Monday) ~ 7(Sunday) Press C key to go to next “Month” Just input appropriate month you wish to have, setting.
  • Page 25 Press C key to go to next “Year” setting. Just input appropriate year you wish to have, not using ASCII code. Ex) Year 2008 e. Receipt TIME setting Just input appropriate time you wish to Press C key to go to next “Hour” have, not using ASCII code.
  • Page 26 Just input appropriate second you wish to have, Press C key to go to next “Second” not using ASCII code. setting. Ex) Second 56 ● If you press C or T(TARE) key you cas automatically go to nomal weighing mode.

  • Page 27: Sales Mode

    . Sales Mode Chapter 5. Sales Transaction Sales with free price (hand pricing) Sales using PLU direct PLU indirect PLU Adding up several sales for weighed items Adding up several sales transactions for non-weighed items (Fixed Price Added) Multiplying the same item sales Calling up or deleting total amount Cancel Chapter 6.
  • Page 28 Chapter 5. Sales Transaction PLUS may make sales transaction either with free price or with PLU. a.Sales with free price (hand pricing) This section explains how to make sales transaction with free price (hand pricing). Remove the item from the platter. Place an item on the platter and press appropriate numeric keys to input unit price.
  • Page 29 If you press ∑ key add this transaction to daily Remove the item from the platter. total amount and number of sales data, unit-price & total-price window is clear. if the scale is connected printer, sale transaction data will printed out.
  • Page 30 c. Adding up several sales transactions for weighed items ● Use key to makes the adding-up transactions. ● You may either call up PLU or just input the unit price. Place an item on the platter. Call up an indirect PLU. Ex) “PLU 6 for Kiwi”...
  • Page 31 Remove the item from the platter. Press key. “Total Price” display says total price added, and “Unit Price” display says the number of sales transactions added. ● You may also place the item on the platter first and then input unit price in the scale later. ●...
  • Page 32 d. Adding up several sales transactions for non-weighed items ( Fixed price added) Input a unit price Press key. Call up another PLU. Press key to go to normal weighing Ex)PLU#8 which unit price is 3.99 for mode. “Garlic bread”. Press Press key to go to normal weighing...
  • Page 33 e. Multiplying the same item sales ● You may either call up PLU or input unit price into the scale. Input a unit price Press key. Ex) 3.00 for “Canned Soup” Press appropriate numeric key to input the Press key. number of items.
  • Page 34 f. Calling up or deleting total amount ■ When you just check total amount. Press ∑ key just to check total amount. Press key to go to normal weighing mode. Ex) Total amount=115.00, Total number of transaction= 5. ● The scale beeps when there is no adding-up transaction. ■...
  • Page 35 g. Cancel ■ When user makes more than two sales transactions he/she can cancel previous mistake transaction(s) of them by doing “Cancel” function. Press key and appropriate numeric keys to Press numeric keys to input a unit price. Ex) Item’s unit price=2.00 make next another sales transaction.

  • Page 36: Chapter 6. Discount & Payment

    Chapter 6. Discount & Payment a. Discount on total sales amount Press ∑ key just to check total amount. Press key. Ex) Total amount=115.00, Total number of transaction= 5. Press appropriate numeric keys to input Press key. the amount of discount. ●...
  • Page 37 b. Payment function on total sales amount Press ∑ key to call up total price. Press appropriate numeric keys to make payment. Ex) 120.00 payment ● In the case of no change needed then, just press ∑ key to finalize the sales transactions. However, in the case of change needed please continue the following steps.

  • Page 38: Chapter 7. Daily Total Sales Amount

    Chapter 7. Daily Total Sales a. Calling up daily total sales data Press ∑ key again to call up daily total sales. Press ∑ key for 3 seconds until “dtP” Ex) daily total amount of sales=444.99, message shows up. For PLU #14, press appropriate numeric If you look at the amount of individual keys and to show daily total amount of...
  • Page 39 b. Deleting daily total sales data Press ∑ key again to call up daily Press ∑ key for 3 seconds until “dtP” total sales. message shows up. Ex) daily total amount of sales=444.99, Press C key to delete “daily total sales” data.

  • Page 40: Chapter 8. Euro Setting Method(Option)

    Chapter 8. EURO Setting Method (Option) ■ KEYBOARD Table: Key Functions KEYS FUNCTIONS To input all of numerical data Direct PLU keys To save PLU To call up PLU To clear data To set zero To set or clear tare value To turn on &...
  • Page 41 a. Saving Euro rate Press the key. Press the key. If you have entered the euro rate before, you will see the previous euro rate ‘10’ in the unit price display. Enter appropriate euro rate. For example, enter Press the key to save it, then you will go €1 = 6.55878 (local currency).
  • Page 42 b. Switching Currency Place an item on the platter and press You will see the euro currency rate for 2 seconds and this messaege is key in the normal weighing mode. disappeared. Remove the item from the platter. Please make sure euro currency symbol is on.

  • Page 43: Ascii Code

    Table: ASCII Code HIGH ORDER LOW ORDER ‘ ˝ & ´ < > Picture1: Alphabet location on the keyboard...

  • Page 44: Error Messages

    The “Err 0” occurs when scale is not stable. Remove unstable facts. The “Err 1” occurs when a current zero “Err 1” point Please call your CAS dealer. has shifted from the last span calibration. “Err 3” The “Err 3” is an overload error.

  • Page 45: Specification

    Table: SPECIFICATION PLUS MODEL Dual Interval Dual Interval Dual Interval CAPACITY Max 3/6kg Max 6/15kg Max 15/30kg e = 1/2g e = 2/5g e = 5/10g DISPLAY 5 / 6 / 6 (Weight/Unit Price/Total Price) SYMBOL ON DISPLAY Power, Zero, Tare, Low battery, Backlight (Option for only LCD version) MAXIMUM TARE - 2.999 kg - 5.998 kg...
  • Page 46 MEMO...
