CAS SC Series Owner's Manual

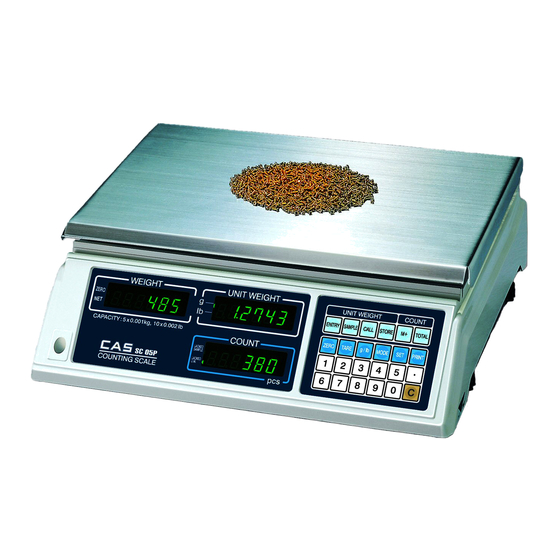

Sc series precision counting scale
Hide thumbs
Table of Contents

Advertisement

Quick Links

SC Series
Precision Counting Scale
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CAS SC Series

Summary of Contents for CAS SC Series

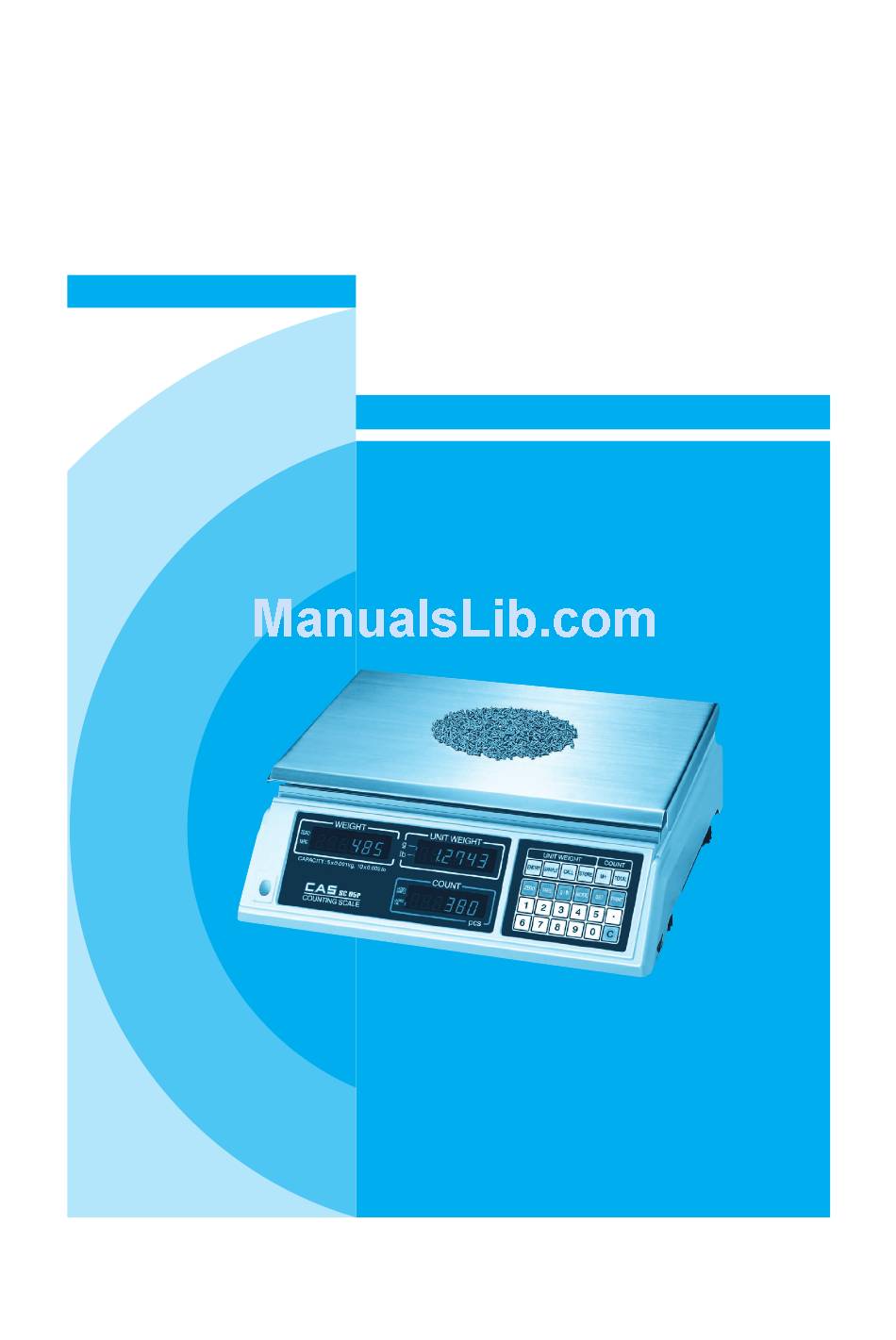

  • Page 1 SC Series Precision Counting Scale OWNER’S MANUAL...

  • Page 2: Table Of Contents

    CONTENTS PRECAUTIONS PREFACE NAMES AND FUNCTIONS OPERATIONS 1. When You Know the Unit Weight of a Sample 2. When You Know the Quantity of the Samples 3. Storing Unit Weight to Memory 4. Counting with Stored Unit Weight 5. Add-up Samples 6.

  • Page 3: Precautions

    PRECAUTIONS Make sure that you plug your scale into the proper power outlet. Plug into a power outlet 10 minutes before operations. Place the scale on a flat and stable Do not subject the scale to sudden surface. temperature changes. Do not subject the platter to sudden This scale must be installed in a dry shocks.
  • Page 4 If the scale is not properly level, please adjust the 4 legs at the bottom of the scale (turn legs clockwise or counterclockwise) so as to center the bubble of the leveling gauge inside the indicated circle. Leveling gauge Keep the scale away from strong EMI noises may cause incorrect weight readings.

  • Page 5: Preface

    CAS products. We believe that your needs will be satisfied and you will have proper reliability. This manual will help you with proper operation and care of the SC Series. Please keep it handy for future reference.

  • Page 6: Key Functions

    DISPLAYS WEIGHT UNIT WEIGHT ZERO ZERO TARE TARE CAPACITY : 5 x 0.001kg, 10 x 0.002lb COUNT LACKED SAMPLE SC 05P LACKED U.W. COUNTING SCALE KEY FUNCTIONS KEYS FUNCTIONS Numeric keys used to enter numerical data. Decimal key. Clear key used to clear recorded unit weight or recorded quantity. Used to set the Zero Point.

  • Page 7: Operations

    KEYS FUNCTIONS Used to enter the unit weight of a sample. ENTRY Used to enter quantity of samples. SAMPLE Used to call the unit weight from memory. CALL Used to save each data in the unit weight mode. STORE (This key does not work in weighing mode) Used to add-up samples.

  • Page 8: When You Know The Quantity Of The Samples

    ENTRY Press the ENTRY key, then you will see Remove the samples and press the C key. the quantity of samples. NOTE: You have to enter the unit weight more than recommendation below. (Refer to TABLE 1.) TABLE 1. MODEL SC-0.5P SC-10P SC-25P...

  • Page 9: Storing Unit Weight To Memory

    SAMPLE Press the SAMPLE key, then you will see the Remove the samples and press the C key. unit weight of a sample on the unit weight display. NOTE: You have to place more samples than “Lack of sample” weight to know the exact unit weight of a sample(Refer to TABLE 2.) MODE TABLE 2.

  • Page 10: Counting With Stored Unit Weight

    1 2 3 4 5 STORE Enter a unit weight. (1.2345g) Press the STORE key. STORE STORE Enter tare weight. (20g) Press the STORE key. (If you don’t use tare, go to step 8.) STORE STORE Enter “0” or “1”. Press the STORE key.

  • Page 11: Add-Up Samples

    CALL ENTRY Place the samples on the platter. Press the ENTRY key, then you will see the quantity of the sample. ENTRY TARE Remove the samples and press the C key to Press the TARE key to clear tare weight. clear unit weight.

  • Page 12: How To Set The Limit Of Samples

    TOTAL Press the TOTAL key to check the total quantity Press the C key to clear this data. of samples. (If you don’t want to clear this data, press the TOTAL key.) 6. How to Set the Limit of Samples MODE Press the MODE key twice.

  • Page 13: How To Use Tare

    7. How to Use Tare Tare is the weight of a container being used for a sample. The TARE key subtracts the weight of the container. A) Unknown (Weighed) Tare If you do not know the weight of the container, you may use this method. Make sure that ZERO lamp is on.

  • Page 14: Printer

    If the min.weight is 2, the last digit should be 2,4,6,8,0. If the min.weight is 5, the last digit should be 5,0. 8. Printer You can use only CAS TOP PRINTER. If you press PRINT key, “Auto Print” will be displayed then printing is performed.

  • Page 15: Specifications

    SPECIFICATIONS MODEL SC-5P SC-10P SC-25P 5,000g /10lb 10,000g /25lb 25,000g /50lb CAPACITY 1g /0.002lb 2g /0.005lb 5g /0.01lb MIN. GRADUATION -4,999g -9,998g -9,995g MAX. TARE WEIGHT 25g /0.05lb 50g /0.125lb 125g /0.25lb LACK OF SAMPLE 0.05g 0.1g 0.25g MIN. UNIT WEIGHT MAX.

  • Page 16: Specifications For Ce Marked Product

    SPECIFICATIONS FOR CE MARKED PRODUCT 1. Symbol Description SYMBOL PUBLICATION DESCRIPTION IEC 417. NO. 5032 ALTERNATING CURRENT IEC 417. NO. 5019 PROTECTIVE CONDUCTOR TERMINAL 2. Electrical conditions for LVD (Low Voltage Directive) testing. Power source: AC 220V ~ 240V 50Hz, 250mA, 10W Insulation class: 3.

This manual is also suitable for:

Sc-5pSc-10pSc-25p
