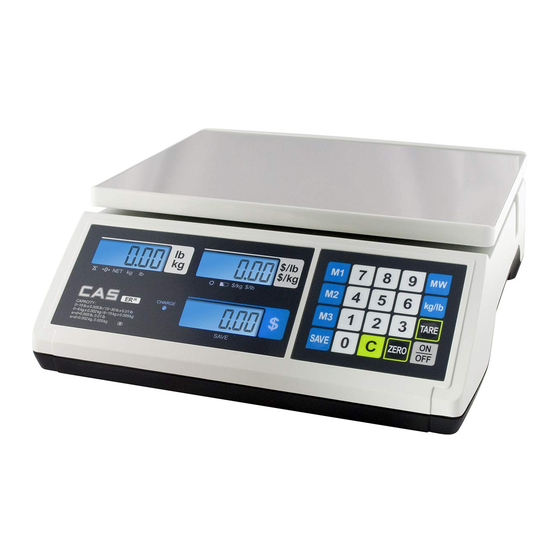

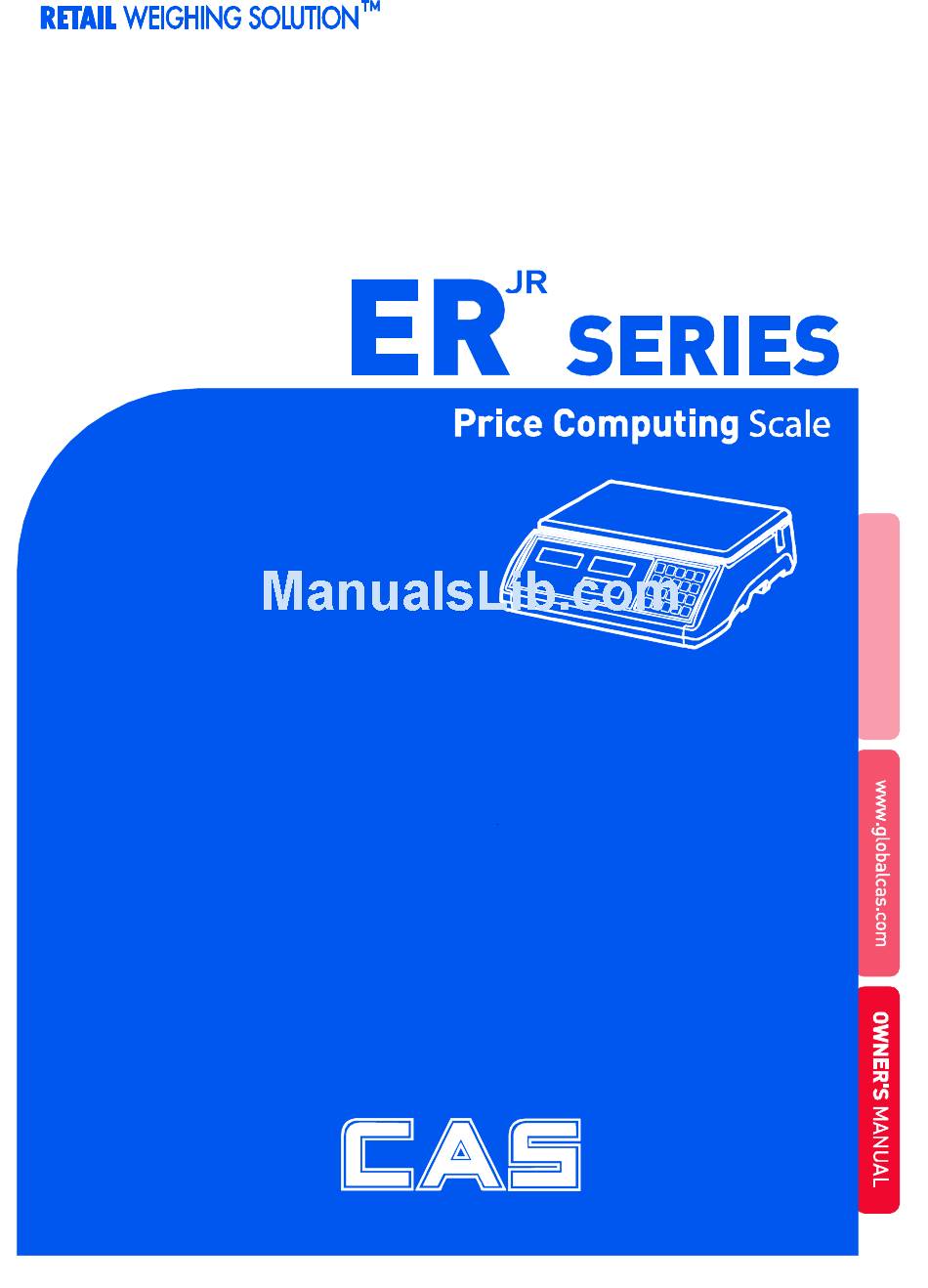

CAS ER JR series User Manual

Price computing scale

Hide thumbs

Table Of Contents

Table of Contents

Need help?

Do you have a question about the ER JR series and is the answer not in the manual?

Questions and answers

Summary of Contents for CAS ER JR series

Page 2: Table Of Contents
CONTENTS PRECAUTIONS ............4 PREFACE ............... 6 OVERALL VIEW ............6 DISPLAY & KEYBOARD ........... 7 OPERATIONS ............... 9 Chapter 1. Basic Operation ........10 Chapter 2. PLU Saving & Calling - up ....... 12 Chapter 3. User's Set-up Mode ........14 Chapter 4.
Page 3: Precautions
PRECAUTIONS...
Page 5: Preface
CAS scales are designed and produced under rigid quality control to deliver outstanding performance, reliability and long life. This manual will help you with the proper operation and care of your new CAS ER Please review the ER scale manual before you use the scale and keep it handy for future reference.
Page 6: Display & Keyboard
DISPLAY & KEYBOARD Front Display Rear Display KEYBOARD...
Page 7 ■ Table : Key Functions KEYS FUNCTIONS 0 ~ 9 Numbers import M1 ~ M4 Direct PLU keys Function key, PLU restore, Push more than 2 second when using PLU Restore mode or finalize sales transaction To make several sales transaction by adding up To clear data To set zero To set up or clear tare value...
Page 8: Operations
OPERATIONS Programming Mode Chapter 1. Basic Operation a. To turn on/off scale b. To turn on/off backlight c. Zero function d. Tare function - One time tare - Successive tare Chapter 2. PLU Saving & Calling-up a. Saving unit price on PLU b.
Page 9: Chapter 1. Basic Operation
Chapter 1. Basic Operation a. To turn on/off the scale ① Press the ON/OFF key to turn on. ② Press the ON/OFF key for a few seconds to turn off. b. To turn on/off the backlight ① Press ON/OFF key for a few seconds ②...
Page 10 d. Tare function Tare means the weight of container. You may use tare function when you weigh an item with container and measure only the weight of item. ■ One time tare ① Place a container on the platter. ② Press TARE key to set zero point. EX) 200g of tare.
Page 11: Chapter 2. Plu Saving & Calling-Up
Chapter 2. PLU Saving & Calling-up a. Saving unit price on PLU This section explains how to save unit price in PLU. Number of PLU Range Remarks PLU name ② Press “ ” key for a few seconds to ① Press number key to input unit price you wish to have.
Page 12 b. Saving PLU name (Option)  C key is to input, save a character, and move to next character (or byte).  TARE key is to move next programming menu. ① Input appropriate ASCII codes to save ② Press TARE key to exit to normal the PLU name.
Page 13: Chapter 3. User's Set-Up Mode
Chapter 3. User’s Set-up Mode This section explains how to set up the following functions. Functions Options Remarks a. Auto power-off NO / 10 / 30 / 60 b. Backlight ON/OFF OFF / ON / 3 / 5 / 10 c.
Page 14 b. Backlight ON/OFF function This section explains how to set backlight on & off function and automatic off function. Options Description Remarks Backlight always off Backlight always on 3 (Seconds) Automatic backlight-off when not in use for 3 seconds. 5 (Seconds) Automatic backlight-off when not in use for 5 seconds.
Page 15 d. Low battery backlight auto off function This section explains how to set Backlight Auto Off. If the scale uses backlight Auto Off function, it will turn off when low battery indicator occurs ① Press ZERO key to move next function setting, ②...
Page 16: Chapter 4. Formatting Printing Receipt
Chapter 4. Formatting Printing Receipt This chapter explains how to set the receipt format in the following fields. Options Description Remarks To input characters you wish to have on Maximum 1,2 line / 24 characters, HEADER the receipt header. 3 line / 16 characters for each line To input currency symbol or characters UNIT Maximum 8 characters...
Page 17 ① Hold down C key and press ON/OFF ② Input appropriate ASCII codes (page on 30) key under the scale power off. “O1” on the you wish to have. Ex) CAS. “Unit Price” display represents that you are ready to input the first character.
Page 18 ⑤ To save it and go next header line press ⑥ Using ASCII code you can input TARE key. appropriate data on Header 3. Ex) THANK YOU c. Receipt currency (unit) setting ① Initial currency (unit) display status. ② Using ASCII code you can input appropriate character or currency symbols on UNIT.
Page 19 ③ Press C key to go to next “DAY” setting. ④ Just input appropriate day you wish to have, not using ASCII code. Ex) 12th day ⑤ Press C key to go to next “YEAR” setting. ⑥ Just input appropriate year you wish to have, not using ASCII code.
Page 20: Chapter 5. Sales Transaction
Chapter 5. Sales transaction can provide inputting the unit price through the numeric key and calling up PLU. a. Input the unit price through the numeric key This section explains how to input the unit price through the numeric key and complete the sales transaction.
Page 21 b. Input the unit price through calling up PLU ① Press M1~M4 key can call up ② Place an item on the platter. the PLU. EX) M1 ③ If you press “ ” key add this ④ Remove an item on the platter. transaction to daily total amount and number of sales data.,Unit-price &...
Page 22 c. Add up the total amount Press key to make the adding-up transactions. You may either call up PLU to input the unit price. ① Press M1~M4” key to call up the ② Place an item on the platter. PLU directly. e.g. M1. ④...
Page 23 ⑧ Remove the item from the platter ⑦ Press key. “ Total price ” display says total price added. And “ Unit ” display says the number of sales transactions added You can also place the item on the platter first, and then input the unit price The maximal adding-up times is 1000, and the maximal total price is 999,999...
Page 24 d. Inspect or clear the total amount Checking total account. ① Press key to inspect the total ② Press Key to go to normal weighing amount. mode. e.g. total amount=115.00. total number of transaction = 5 ③ Press ④ Press C key to clear the total key to inspect the total price.
Page 25: Chapter 6. Euro Setting Method(Option)
Chapter 6. EURO Setting Method(Option) ■ KEYBOARD ■ Table : Key Functions KEYS FUNCTIONS 0 ~ 9 Numbers import M1 ~ M4 Direct PLU keys Function key, PLU restore, Push more than 2 second when using PLU Restore mode or finalize sales transaction Used to set Euro to local currency, and vice versa To clear data To set zero...
Page 26 a. Saving EURO rate ① Press the ② Press the key for a few seconds If you have entered the EURO rate before, you will see the previous EURO rate ‘10’ in the unit price display ③ Enter appropriate euro rate. ④...
Page 27 b. Switching currency ① Place an item on the platter and press ② You will see the EURO currency rate key in the normal weighing mode for 2 seconds and this message is disappeared ③ Please make sure EURO currency ④...
Page 28: Error Messages
The "Err 0" occurs when scale is not stable. Remove unstable facts. The "Err 1" occurs when a current zero point has "Err 1" Please call your CAS dealer. shifted from the last span calibration. "Err 3" The "Err 3" is an overload error.
Page 29: Ascii Code
Table: ASCII Code HIGH ORDER LOW ORDER ‘ ˝ & ´ ￥ < > Picture1: Alphabet location on the Keyboard...
Page 30: Specification
■ Table : SPECIFICATION MODEL Dual Interval Dual Interval Dual Interval CAPACITY Max 3/6kg Max 6/15kg Max 15/30kg e = 1/2g e = 2/5g e = 5/10g DISPLA Y 5 / 6 / 6 (Weight/Unit Price/Total Price) SYMBOL ON DISPLA Y Charge, Stabilization, Zero, Tare, Low battery, Sum, Backlight MAXIMUM TARE - 2.999 kg...
