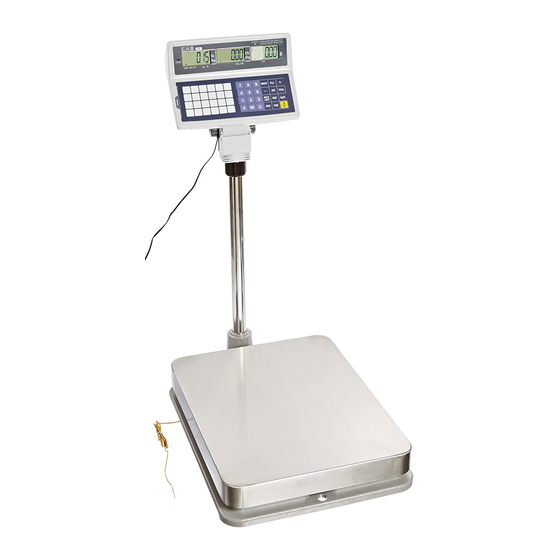

CAS EB Series Manual

Retail bench scale
Hide thumbs Also See for EB Series:
Table of Contents

Advertisement

Quick Links

2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EB Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CAS EB Series

Summary of Contents for CAS EB Series

  • Page 2: Table Of Contents

    CONTENTS PRECAUTIONS ............4 PREFACE ..............6 OVERALL VIEW OF EB SERIES ......6 DISPLAY & KEYBOARD ........7 OPERATIONS ............9 I. Programming Mode .......... .9 ........ .10 Chapter 1. Basic Operation ....14 Chapter 2. PLU Saving & Calling-up ......

  • Page 3: Precautions

    PRECAUTIONS...

  • Page 5: Preface

    PREFACE Thank you for the purchasing CAS EB series. This series have been designed with CAS reliability, under rigid quality control and with outstanding performance. Your specialty departments can enjoy with CAS product. We hope that CAS product meets your needs.

  • Page 6: Display & Keyboard

    DISPLAY & KEYBOARD ■ LCD TYPE : Front Display Table : Symbols on Display SYMBOLS DESCRIPTION To adjust zero Stable status Tare on Charge status Display battery status Back light on status ■ KEYBAORD...
  • Page 7 Table: Key Functions KEYS FUNCTIONS To input all of numerical data Direct PLU keys (24EA) To save PLU , Display battery voltage %(push more than 2second) To call up PLU To clear data To set zero To set or clear tare value To turn on &...

  • Page 8: Operations

    OPERATIONS . Programming Mode Chapter 1. Basic Operation Turning the scale on / off Turning backlight on / off Zero function Display battery voltage Tare function One time tare Successive tare Hold function Chapter 2. PLU Saving & Calling-up Saving unit price on PLU Saving PLU name (option) Calling up PLU Indirect PLU...

  • Page 9: Chapter 1. Basic Operation

    Chapter 1. Basic Operation a. Turning the scale on / off 1) Press ON/OFF key to turn on. 2) Press ON/OFF key to turn OFF b. Turning the backlight on / off 1) Press Back light key for Back light on. 2) Press Back light key for Back light off...
  • Page 10 c. Zero function 1) Press ZERO key to set zero point unless the weight window indicate “0.00”under the empty platter. d. Display battery voltage 1) Press Battery key to check battery voltage left. ● It shows percentage of full voltage. ●...
  • Page 11 2) Press “TARE” key to enter a tare weight Ex) 2.00Kg of tared ■ Successive tare 1) Place another container on the platter. Ex) 1.00 kg of tare 2) Press “TARE” key to enter a tare weight 3) After weighing item remove all of the container from the platter. 4) Press “TARE”...
  • Page 12 f. Hold function ■ Key Hold function Place an item on the platter and press the Hold key. 2) Then weight display will show “Hold”. The “Hold” blinks for two times, and then the average weight blinks for 3 times. 3) Then automatically exit to normal weighing mode.

  • Page 13: Chapter 2. Plu Saving & Calling-Up

    Chapter 2. PLU Saving & PLU Calling-up a. Saving unit price on PLU Number of PLU Range Remarks 1~200 1~28 PLU name (option) Number of direct PLU may be different on product model. ● “C” key is to clear data input. ●...
  • Page 14 4) Press “ ” key. b. Saving PLU name (option) ■ If you have “24 PLU name inputting option” you may save the name of PLU for 1~28. ■ “C” key is to input, save a character, and move to next character (or byte). ■...
  • Page 15 Press "4", "C" Press "C" Press "4", "5" Press "C" 2) Press TARE key to exit to normal weighing mode or C key up to maximum 8th byte. Then automatically exit to normal weighing mode. ■ Please refer to “Alphabetic key location”.
  • Page 16 c. Calling up a PLU ■ Indirect PLU 1) To call up indirect PLU Saved press appropriate numeric keys (address) and Ex) PLU 10 2) To cancel calling up indirect PLU press “ ” key ■ Direct PLU 1) To call up direct PLU Saved press appropriate numeric keys (address) and PLU key. Ex) PLU 10 2) To cancel calling up direct PLU press “...

  • Page 17: Chapter 3. User's Set-Up Mode

    Chapter 3. User’s Set-up Mode This section explains how to set up the following functions. Functions Options Remarks NO / 10 / 30 / 60 1. Auto power-off OFF / ON / 3 / 5 / 10 2. LCD Backlight On/OFF 1 ~ 7(defualt 3) 3.
  • Page 18 a. Auto power-off This section explains how to set backlight on & off function and automatic off function. Table : Options Description Remarks No auto power-off. Auto power-off in 10 minutes when no use. 10 (minutes) Auto power-off in 30 minutes when no use. 30 (minutes) Auto power-off in 60 minutes when no use.
  • Page 19 b. LCD backlight ON/OFF Table : Options Description Remarks Backlight OFF Backlight ON Automatic backlight-off when not in use for 3 seconds. 3 (Seconds) Automatic backlight-off when not in use for 5 seconds. 5 (Seconds) Automatic backlight-off when not in use for 10 seconds. 10 (Seconds) 1) Use “TARE”...
  • Page 20 C. LCD backlight brightness control This section explains how to set backlight on & off function and automatic off function. Table : Options Description Remarks 1(dimmest) ~ 7(brightest). 1 ~ 7 1) Use “TARE” key to select one of backlight brightness level. Ex) Select 3rd level of backlight brightness.
  • Page 21 2) Press “ZERO” key to move next function setting. e. Selecting the printer This section explains how to select the printer option when you’d like to use the printer connected to EB series. Table : Options Description Remarks No printer in use...

  • Page 22: Chapter 4. Formatting Printing Receipt

    Chapter 4. Formatting printing receipt This chapter explains how to set the receipt format in the following fields. Options Description Remarks Maximum 1,2 line / 24 To input characters you wish to have on the receipt HEADER characters, 3 line / 16 header.
  • Page 23 “O1” on the “Unit Price” display represents that you are ready to input the first character. 2) Input appropriate ASCII codes (page on 16) you wish to have. Ex) CAS. 3) To save it and go next header line press “TARE” key.
  • Page 24 4) Using ASCII code you can input appropriate data on Header 2. Ex) 820-1111, telephone #. To save it and go next header line press “TARE” key. 6) Using ASCII code you can input appropriate data on Header 2. Ex) THANK YOU c.
  • Page 25 2) Using ASCII code you can input appropriate character or currency symbols on UNIT. Ex) $ d. Receipt DATE setting 1) To save it and go to “Initial DATE display” status press “TARE” key. 2) Just input appropriate day of week you wish to have, not using ASCII code. Ex) 2 (Tueseday) 3) Press “C”...
  • Page 26 4) Just input appropriate month you wish to have, not using ASCII code. Ex) 12 (December) 5) Press “C” key to go to next “day” setting. 6) Just input appropriate day you wish to have, not using ASCII code. Ex) 12th day Press “C”...

  • Page 27: Sales Mode

    . Sales Mode Chapter 5. Sales Transaction Sales with free price (hand pricing) Sales using PLU direct PLU indirect PLU Adding up several sales transaction for weighed item Adding up several sales transaction for non-weighed item (Fixed Price Added) Multiplying the same item sales Calling up or deleting total amount Cancel Chapter 6.

  • Page 28: Chapter 5. Sales Transaction

    Chapter 5. Sales Transaction EB series may make sales transaction either with free price or with PLU. a. Sales with free price (hand pricing) This section explains how to make sales transaction with free price (hand pricing). 1) Place an item on the platter and press appropriate numeric keys to input unit price.
  • Page 29 b. Sales using PLU ■ Direct PLU 1) Call up a direct PLU. Ex) “PLU 1” (option name : banana) 2) Place an item on the platter. 3) If you press “∑” key add this transaction to daily total amount and number of sales data. And unit-price &...
  • Page 30 ■ Indirect PLU 1) Call up an indirect PLU. Ex) “PLU 6 for Kiwi”. 2) Place an item on the platter. 3) If you press “∑” key add this transaction to daily total amount and number of sales data. And unit-price & total-price window is clear. ※...
  • Page 31 c. Adding up several sales transactions for weighed item ■ Use “+” key to makes the adding-up transactions. ■ You may either call up PLU or just input the unit price. 1) Call up an indirect PLU. Ex) “PLU 6 for Kiwi”. 2) Place an item on the platter.
  • Page 32 5) Input a unit price Ex) 2.99 for Honey melon”. 6) Place an item on the platter. 7) Press “+” key. “Total Price” display says total price added, and “Weight” display says the number of sales transactions added. 8) Remove the item from the platter. ●...
  • Page 33 d. Adding up several sales transactions for non-weighed item (Fixed price added) 1) Input a unit price Ex) 2.99 for “Strawberry Cream Cheese”. 2) Press “+” key. 3) Press “+” key to go to normal “0” point mode. 4) Call up another PLU. Ex) PLU# 8 which unit price is 3.99 for “Garlic bread”.
  • Page 34 5) Press “+” key. 6) Press “+” key to go to normal “0” point mode. ● Please refer to “Chapter 7. Daily Total Sales Amount” for calling up or deleting the daily total. e. Multiplying the same item sales ■ You may either call up PLU or input unit price into the scale. 1) Input a unit price Ex) 3.00 for “Canned Soup”...
  • Page 35 3) Press appropriate numeric key to input the number of items. ● You may cancel previous number of item input by pressing “C” key and retry it. ● You may go back to normal weighing mode by pressing “C” key when “Unit Price” display shows “0”.
  • Page 36 f. Calling up or deleting total amount ■ When you just check total amount. 1) Press “∑” key just to check total amount. Ex) Total amount=115.00, Total number of transaction= 5. ● The scale beeps when there is no adding-up transaction. 2) Press “+”...
  • Page 37 2) Press “C” key to delete total amount. However, this total amount is still saved on daily total sales amount. g. Cancel ■ When user makes more than two sales transactions he/she can cancel previous mistake transaction(s) of them by doing “Cancel” function. 1) Press numeric keys to input a unit price.
  • Page 38 3) Place item on the platter and do “ADD” function. Ex) unit price=1.99, 1.00 kg Remove it from the platter. 4) To cancel previous transaction input the same unit price and place the same item on the platter. Then, press “-” key. ●...

  • Page 39: Chapter 6. Discount & Payment

    Chapter 6. Discount & Payment a. Discount on total sales amount 1) Press “∑” key just to check total amount. Ex) Total amount=115.00, Total number of transaction= 5. 2) Press “-” key. 3) Press appropriate numeric keys to input the amount of discount. 4) Press “-”...
  • Page 40 b. Payment on total sales amount 1) Press “∑” key to call up total price. ● In the case of no change needed then, just press “∑” key to finalize the sales transactions. However, in the case of change needed please continue the following steps. 2) Press appropriate numeric keys to make payment.

  • Page 41: Chapter 7. Daily Total Sales

    Chapter 7. Daily Total Sales (option) a. Calling up daily total sales data 1) Press “∑” key for 3 seconds until “dtP” message shows up. 2) Press “∑” key again to call up daily total sales. Ex) daily total amount of sales=444.99, 3) If you look at the amount of individual PLU sales call up appropriate PLU.
  • Page 42 b. Deleting daily total sales data 1) Press “∑” key for 3 seconds until “dtP” message shows up. 2) Press “∑” key again to call up daily total sales. Ex) daily total amount of sales=444.99, 3) Press “C” key to delete “daily total sales” data. “Clear” message shows up shortly, and then it goes to normal weighing mode.

  • Page 43: Chapter 8. Euro Setting Method (Option)

    Chapter 8. EURO Setting Method (Option) ■ KEYBAORD ■ Table: Key Functions KEYS FUNCTIONS To input all of numerical data Direct PLU keys (24EA) To save PLU To call up PLU To clear data To set zero To set or clear tare value To turn on &...
  • Page 44 Display battery voltage(%) To make several sales transaction by adding up To make discount transaction To multiply the same item when making sales transaction To check total sales amount or finalize sales transaction Used to set Euro to local currency, and vice versa a.
  • Page 45 4) Press the key to save it, then you will go to normal mode. b. Switching Currency 1) Place an item on the platter and press appropriate numeric keys to input unit price. 2) Press key in the normal weighing mode. You will see the Euro currency rate for 2 seconds and this messaege is disappeared Please make sure Euro currency symbol is on.
  • Page 46 Remove the item from the platter. and press keys to go back to the normal weighing mode. NOTE : € 6.55875 ≒ € 6.56 in this example ※ € 6.55475 ≒ € 6.55 in this example ※ Euro Conversion Option - PLU Unit price is only available in NON EURO.

  • Page 47: Ascii Code

    Table: ASCII Code HIGH ORDER LOW ORDER ‘ ˝ & ´ < > Picture1: Alphabet location on the Keybarod...

  • Page 48: Error Messages

    Remove unstable facts. "Err 0" stable. The "Err 1" occurs when a current zero point Please call your CAS dealer. "Err 1" has shifted from the last span calibration. The "Err 3" is an overload error. Please remove the weight.

  • Page 49: Specification

    EB -60 EB-150 MODEL EB -WS-6 EB-WS-15 EB-WS-30 EB-WL-60 EB-WL-150 EB-60L EB-150L 30 / 0.01 kg 60 / 0.02 kg Capacity / e 6 / 0.002 kg 15 / 0.005 kg 30 / 0.01 kg 60 / 0.02 kg 150 / 0.05 kg 60 / 0.02 kg 150 / 0.05 kg 1/60,000...
  • Page 50 MEMO...
