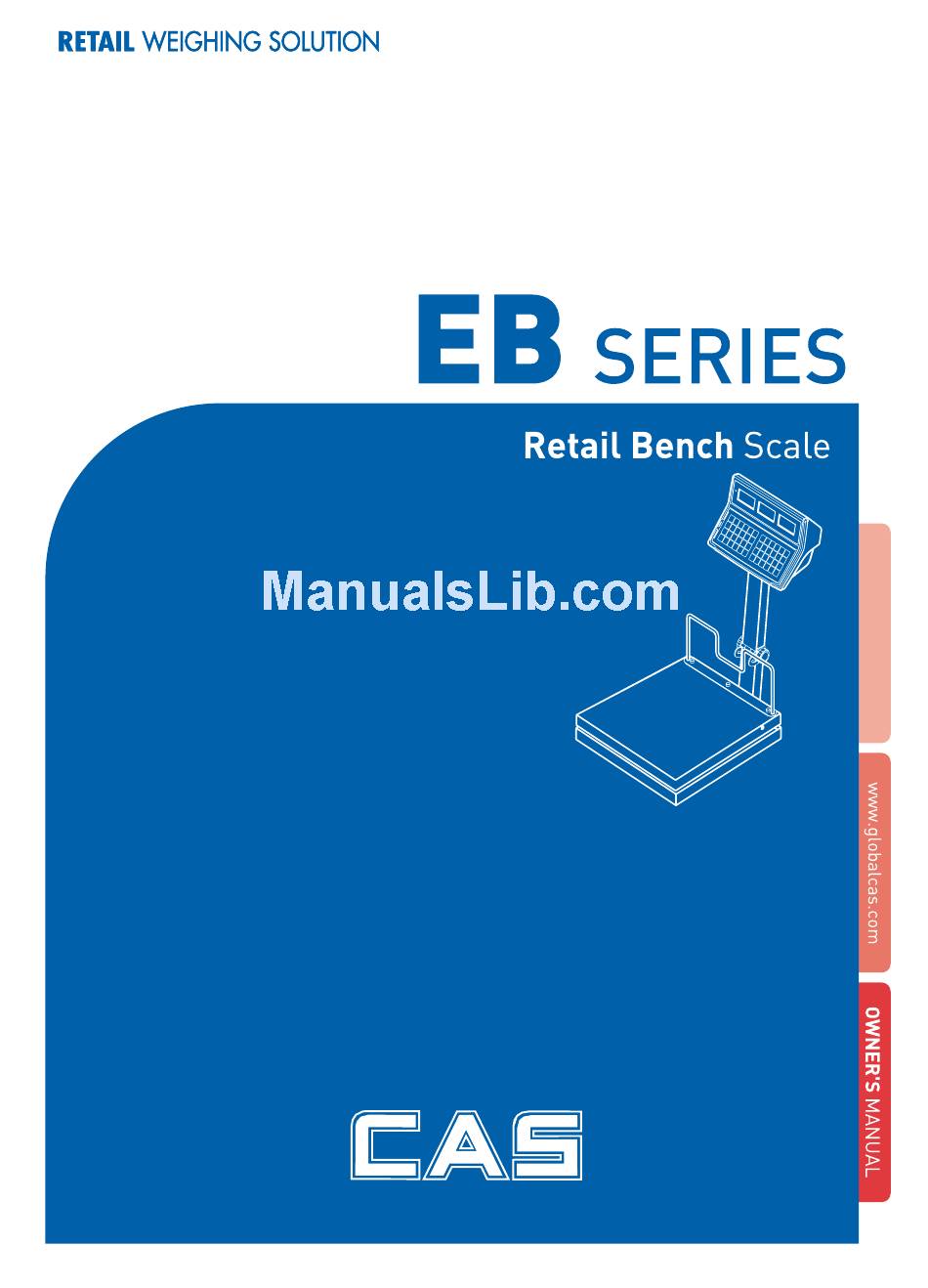

CAS EB-WS-6 Owner's Manual
  1. Manuals
  2. Brands
  3. CAS Manuals
  4. Scales
  5. EB-WS-6
  6. Owner's manual
CAS EB-WS-6 Owner's Manual

CAS EB-WS-6 Owner's Manual

Eb series
Hide thumbs Also See for EB-WS-6:
Table of Contents

Advertisement

Quick Links

2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EB-WS-6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CAS EB-WS-6

Summary of Contents for CAS EB-WS-6

  • Page 2: Table Of Contents

    CONTENTS PRECAUTIONS ............4 PREFACE ..............6 OVERALL VIEW ............6 DISPLAY & KEYBOARD ........7 OPERATIONS ............9 I. Programming Mode .......... .9 ........ .10 Chapter 1. Basic Operation ....13 Chapter 2. PLU Saving & Calling-up ......17 Chapter 3.

  • Page 3: Precautions

    PRECAUTIONS...

  • Page 5: Preface

    PREFACE Thank you for the purchasing CAS EB series. This series have been designed with CAS reliability, under rigid quality control and with outstanding performance. Your specialty departments can enjoy with CAS product. We hope that CAS product meets your needs.

  • Page 6: Display & Keyboard

    DISPLAY & KEYBOARD ■ LCD TYPE : Front Display Table : Symbols on Display SYMBOLS DESCRIPTION ZERO To adjust zero STABLE Stable status Tare on CHARGE Charge status SAVE Save on Display battery status Back light on status ■ KEYBOARD...

  • Page 7: Keys Functions

    KEYS FUNCTIONS To input all of numerical data Direct PLU keys (24EA) To save PLU To call up PLU To clear data To set zero To set or clear tare value To turn on & off the scale To turn on & off the backlight. Used to prevent the auto clearing of unit price and tare weight both To make several sales transaction by adding up...

  • Page 8: Operations

    OPERATIONS . Programming Mode Chapter 1. Basic Operation Turning the scale on / off Turning backlight on / off Zero function Display battery voltage Tare function One time tare Successive tare Chapter 2. PLU Saving & Calling-up Saving unit price on PLU Saving PLU name (option) Calling up PLU Indirect PLU...

  • Page 9: Chapter 1. Basic Operation

    Chapter 1. Basic Operation a. Turning the scale on / off 1) Press "ON/OFF" key to turn on. STABLE ZERO NET 2) Press "ON/OFF" key to turn OFF STABLE ZERO NET b. Turning the backlight on / off 1) Press "BACK LIGHT" key for Back light on. STABLE ZERO NET 2) Press "BACK LIGHT: key for Back light off STABLE ZERO NET...
  • Page 10 c. Zero function 1) Press "ZERO" key to set zero point unless the weight window indicate “0.00”under the empty platter. STABLE ZERO NET d. Tare function Tare means the weight of container. You may use tare function when you weigh an item with container and measure only the weight of item.
  • Page 11 2) Press “TARE” key to enter a tare weight Ex) 2.00Kg of tared STABLE ZERO NET ■ Successive tare 1) Place another container on the platter. Ex) 1.00 kg of tare STABLE ZERO NET 2) Press “TARE” key to enter a tare weight STABLE ZERO NET 3) After weighing item remove all of the container from the platter.

  • Page 12: Chapter 2. Plu Saving & Calling-Up

    Chapter 2. PLU Saving & PLU Calling-up a. Saving unit price on PLU Number of PLU Range Remarks 1~200 1~28 PLU name (option) Number of direct PLU may be different on product model. ● “C” key is to clear data input. ●...
  • Page 13 4) Press MEMORY key. STABLE ZERO NET b. Saving PLU name (option) ■ If you have “24 PLU name inputting option” you may save the name of PLU for 1~28. ■ “C” key is to input, save a character, and move to next character (or byte). ■...
  • Page 14 Press "4", "C" STABLE ZERO NET Press "C" Press "4", "5" STABLE ZERO NET Press "C" 2) Press TARE key to exit to normal weighing mode or C key up to maximum 8th byte. Then automatically exit to normal weighing mode. STABLE ZERO NET ■...
  • Page 15 c. Calling up a PLU ■ Indirect PLU 1) To call up indirect PLU Saved press appropriate numeric keys (address) and PLU key Ex) PLU 10 STABLE ZERO NET 2) To cancel calling up indirect PLU press “ ” key STABLE ZERO NET ■...

  • Page 16: Chapter 3. User's Set-Up Mode

    Chapter 3. User’s Set-up Mode This section explains how to set up the following functions. Functions Options Remarks 1. Auto power-off NO / 10 / 30 / 60 2. LCD Backlight On/OFF OFF / ON / 3 / 5 / 10 3.
  • Page 17 a. Auto power-off This section explains how to set backlight on & off function and automatic off function. Table : Options Description Remarks No auto power-off. 10 (minutes) Auto power-off in 10 minutes when no use. 30 (minutes) Auto power-off in 30 minutes when no use. 60 (minutes) Auto power-off in 60 minutes when no use.
  • Page 18 b. LCD backlight ON/OFF Table : Options Description Remarks Backlight OFF Backlight ON 3 (Seconds) Automatic backlight-off when not in use for 3 seconds. 5 (Seconds) Automatic backlight-off when not in use for 5 seconds. 10 (Seconds) Automatic backlight-off when not in use for 10 seconds. 1) Use “TARE”...
  • Page 19 C. LCD backlight brightness control This section explains how to set backlight on & off function and automatic off function. Table : Options Description Remarks 1 ~ 7 1(dimmest) ~ 7(brightest). 1) Use “TARE” key to select one of backlight brightness level. Ex) Select 3rd level of backlight brightness.
  • Page 20 2) Press “ZERO” key to move next function setting. STABLE ZERO NET e. Selecting the printer This section explains how to select the printer option when you’d like to use the printer connected to EB series. Table : Options Description Remarks No printer in use DEP-50...
  • Page 21 f. Use PLU tare YES / NO function This section explains how to set PLU tare yes & no when you input PLU data. (This section is applied only during using PLU tare with unit change function.) Table : Options Description Remarks Use PLU tare when you input PLU data.

  • Page 22: Chapter 4. Formatting Printing Receipt

    Chapter 4. Formatting printing receipt This chapter explains how to set the receipt format in the following fields. Options Description Remarks Maximum 1,2 li ne / 24 To input characters you wish to have on the receipt HEADER characters, 3 lin e / 16 header.
  • Page 23 “O1” on the “Unit Price” display represents that you are ready to input the first character. STABLE ZERO NET 2) Input appropriate ASCII codes (page on 16) you wish to have. Ex) CAS. STABLE ZERO NET 3) To save it and go next header line press “TARE” key. STABLE ZERO NET...
  • Page 24 4) Using ASCII code you can input appropriate data on Header 2. Ex) 820-1111, telephone #. STABLE ZERO NET To save it and go next header line press “TARE” key. STABLE ZERO NET 6) Using ASCII code you can input appropriate data on Header 2. Ex) THANK YOU STABLE ZERO NET c.
  • Page 25 2) Using ASCII code you can input appropriate character or currency symbols on UNIT. Ex) $ STABLE ZERO NET d. Receipt DATE setting 1) To save it and go to “Initial DATE display” status press “TARE” key. STABLE ZERO NET 2) Just input appropriate day of week you wish to have, not using ASCII code.
  • Page 26 4) Just input appropriate month you wish to have, not using ASCII code. Ex) 12 (December) STABLE ZERO NET 5) Press “C” key to go to next “day” setting. STABLE ZERO NET 6) Just input appropriate day you wish to have, not using ASCII code. Ex) 12th day STABLE ZERO NET Press “C”...

  • Page 27: Sales Mode

    . Sales Mode Chapter 5. Sales Transaction Sales with free price (hand pricing) Sales using PLU direct PLU indirect PLU Adding up several sales transaction for weighed item Adding up several sales transaction for non-weighed item (Fixed Price Added) Multiplying the same item sales Calling up or deleting total amount Cancel Chapter 6.

  • Page 28: Chapter 5. Sales Transaction

    Chapter 5. Sales Transaction EB series may make sales transaction either with free price or with PLU. a. Sales with free price (hand pricing) This section explains how to make sales transaction with free price (hand pricing). 1) Place an item on the platter and press appropriate numeric keys to input unit price. Ex) 1.99 for unit price.
  • Page 29 b. Sales using PLU ■ Direct PLU 1) Call up a direct PLU. Ex) “PLU 1” (option name : banana) STABLE ZERO NET 2) Place an item on the platter. STABLE ZERO NET 3) If you press "TOTAL" key add this transaction to daily total amount and number of sales data. And unit-price &...
  • Page 30 ■ Indirect PLU 1) Call up an indirect PLU. Ex) “PLU 6 for Kiwi”. STABLE ZERO NET 2) Place an item on the platter. STABLE ZERO NET 3) If you press “TOTAL” key add this transaction to daily total amount and number of sales data. And unit-price &...
  • Page 31 c. Adding up several sales transactions for weighed item ■ Use “+” key to makes the adding-up transactions. ■ You may either call up PLU or just input the unit price. 1) Call up an indirect PLU. Ex) “PLU 6 for Kiwi”. STABLE ZERO NET 2) Place an item on the platter.
  • Page 32 5) Input a unit price Ex) 2.99 for Honey melon”. STABLE ZERO NET 6) Place an item on the platter. STABLE ZERO NET 7) Press “+” key. “Total Price” display says total price added, and “Weight” display says the number of sales transactions added. STABLE ZERO NET 8) Remove the item from the platter.
  • Page 33 d. Adding up several sales transactions for non-weighed item (Fixed price added) 1) Input a unit price Ex) 2.99 for “Strawberry Cream Cheese”. STABLE ZERO NET 2) Press “+” key. STABLE ZERO NET 3) Press “+” key to go to normal “0” point mode. STABLE ZERO NET 4) Call up another PLU.
  • Page 34 5) Press “+” key. STABLE ZERO NET 6) Press “+” key to go to normal “0” point mode. STABLE ZERO NET ● Please refer to “Chapter 7. Daily Total Sales Amount” for calling up or deleting the daily total. e. Multiplying the same item sales ■...
  • Page 35 3) Press appropriate numeric key to input the number of items. STABLE ZERO NET ● You may cancel previous number of item input by pressing “C” key and retry it. ● You may go back to normal weighing mode by pressing “C” key when “Unit Price” display shows “0”.
  • Page 36 f. Calling up or deleting total amount ■ When you just check total amount. 1) Press “TOTAL” key just to check total amount. Ex) Total amount=115.00, Total number of transaction= 5. STABLE ZERO NET ● The scale beeps when there is no adding-up transaction. 2) Press “+”...
  • Page 37 2) Press “C” key to delete total amount. However, this total amount is still saved on daily total sales amount. STABLE ZERO NET g. Cancel ■ When user makes more than two sales transactions he/she can cancel previous mistake transaction(s) of them by doing “Cancel” function. 1) Press numeric keys to input a unit price.
  • Page 38 3) Place item on the platter and do “ADD” function. Ex) unit price=1.99, 1.00 kg Remove it from the platter. STABLE ZERO NET 4) To cancel previous transaction input the same unit price and place the same item on the platter.

  • Page 39: Chapter 6. Discount & Payment

    Chapter 6. Discount & Payment a. Discount on total sales amount 1) Press “TOTAL” key just to check total amount. Ex) Total amount=115.00, Total number of transaction= 5. STABLE ZERO NET 2) Press “-” key. STABLE ZERO NET 3) Press appropriate numeric keys to input the amount of discount. STABLE ZERO NET 4) Press “-”...
  • Page 40 b. Payment on total sales amount 1) Press “TOTAL” key to call up total price. STABLE ZERO NET ● In the case of no change needed then, just press “TOTAL” key to finalize the sales transactions. However, in the case of change needed please continue the following steps. 2) Press appropriate numeric keys to make payment.

  • Page 41: Chapter 7. Daily Total Sales

    Chapter 7. Daily Total Sales (option) a. Calling up daily total sales data 1) Press “TOTAL” key for 3 seconds until “dtP” message shows up. STABLE ZERO NET 2) Press “TOTAL” key again to call up daily total sales. Ex) daily total amount of sales=444.99, STABLE ZERO NET 3) If you look at the amount of individual PLU sales call up appropriate PLU.
  • Page 42 b. Deleting daily total sales data 1) Press “ ” key for 3 seconds until “dtP” message shows up. STABLE ZERO NET 2) Press “ ” key again to call up daily total sales. Ex) daily total amount of sales=444.99, STABLE ZERO NET 3) Press “C”...

  • Page 43: Chapter 8. Save Function (Option)

    Chapter . Save function (Option) DISPLAY & KEYBOARD ■ LCD TYPE : Front Display Table : Symbols on Display SYMBOLS DESCRIPTION ZERO To adjust zero STABLE Stable status Tare on CHARGE Charge status SAVE Save on Display battery status Back light on status ■...
  • Page 44 KEYS FUNCTIONS To input all of numerical data Direct PLU keys (24EA) To save PLU To call up PLU To clear data To set zero To set or clear tare value To turn on & off the scale To turn on & off the backlight. Used to prevent the auto clearing of unit price and tare weight both To make several sales transaction by adding up...
  • Page 45 a. Turning the save on/off 1) Press key for Save on. 2) Press key for Save off. ※ In “SAVE” mode the price and tare weight are not automatically cleared when you remove the item from the platter.

  • Page 46: Ascii Code

    Table: ASCII Code HIGH ORDER LOW ORDER ‘ ˝ & ´ < > Picture1: Alphabet location on the Keybarod...

  • Page 47: Error Messages

    Remove unstable facts. stable. The "Err 1" occurs when a current zero "Err 1" point Please call your CAS dealer. has shifted from the last span calibration. "Err 3" The "Err 3" is an overload error. Please remove the weight.

  • Page 48: Specification

    EB -60 EB-150 MODEL EB -WS-6 EB-WS-15 EB-WS-30 EB-WL-60 EB-WL-150 EB-60L EB-150L 30 / 0.01 kg 60 / 0.02 kg Capacity / 6 / 0.002 kg 15 / 0.005 kg 30 / 0.01 kg 60 / 0.02 kg 150 / 0.05 kg 60 / 0.02 kg 150 / 0.05 kg 1/60,000...
  • Page 49 MEMO...
  • Page 50 MEMO...
  • Page 51 MEMO...
  • Page 52 MEMO...
  • Page 53 59 54...
