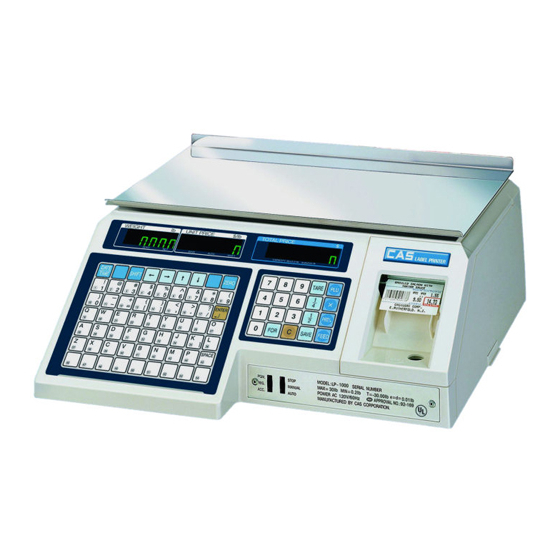

CAS LP 1.6 Series Owner's Manual

Label printing scale
Hide thumbs
Table of Contents

Advertisement

Quick Links

LP 1.6 Series
Label Printing Scale
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LP 1.6 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CAS LP 1.6 Series

Summary of Contents for CAS LP 1.6 Series

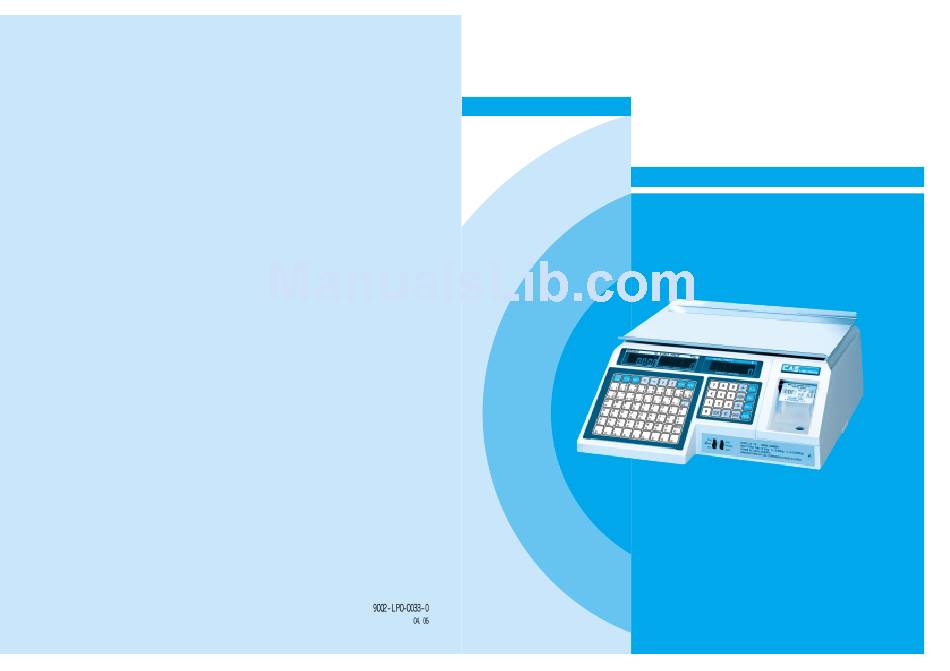

  • Page 1 LP 1.6 Series Label Printing Scale OWNER’S MANUAL...

  • Page 2: Table Of Contents

    CONTENTS PRECAUTIONS 4.6 Programming the Shop Data 4.7 SET 1. Installation Procedures 4.7.1 Programming the Date (SET #1) 1.1 Cautions 4.7.2 Programming the Time (SET #2) 1.2 Assembling the Display Pole 4.7.3 Programming the Department Number (SET #3) 1.3 Installing the Label Roll 4.7.4 Programming the Label (SET #4) 2.

  • Page 3: Precautions

    PRECAUTIONS WARNING Precautions when installing the scale. To ensure that you get the most from your scale, Make sure to plug your scale into the proper power outlet. For maximum performance, please follow these instruction. plug into a power outlet 30 minutes before the usage for warm up. Attention Warning For consistent and accurate reading,...

  • Page 4: Installation Procedures

    1. Installation Procedures 1.1 Cautions A) Environment : This scale must be installed in a dry and liquid free environment. B) Location : This scale must be placed on a flat and stable surface. Please keep the scale away from oscillating fans, ventilation systems, or drafts as these air disturbances can be picked-up by the scale and may cause incorrect weight readings.

  • Page 5: Installing The Label Roll

    Tilt the rear cover towards the back of the scale and connect the three connectors to their 1.2 Installing the Label Roll adequate receptacles on the rear display P.C.B (See below fig.) To install the label roll at any time you must follow the directions in this section. Remove the printer front-cover and the printer side-cover.

  • Page 6: Keypad & Display

    Take the new roll of labels and find the ending. Peel-off and discard about 3 labels. Place the 2. Keypad & Display label in the scale and thread the backing through the appropriate places. Please view the checkpoints on the diagram. Feed the backing paper over the Paper Pressure 2.1 Numeric Keypad Shaft lifting the Pressure Plate in order to place backing between the two ( );...

  • Page 7: Plu Keypad

    2.2 PLU Keypad Functions The PLU Keypad is used to enter alpha-numerical data. To use the keypad for programming This key displays the time and date in REG mode. you must remove the pull-out sheet. To use the PLU Keypad in REG mode, you can write the name and number of the PLU’s on the corresponding speed keys on the pull-out sheet.

  • Page 8: Displays

    2.3. Displays LABEL PEEL SENSOR : This sensor is used in conjunction with IR LED to detect if there is a printed label waiting to be taken. 2.3.1 Weight Display The WEIGHT display shows the weight of an item on the platter whether it be positive or THERMAL PRINTHEAD : The Thermal Printhead is the part that does the actual printing.

  • Page 9: Operation

    3.1.2 How to Use TARE 3. Operation Known Tare: 3.1 REG mode Operations If you know the weight of container you may use this method to enter the tare. 3.1.1 Simple Weighing For example, if the weight of the container is 10g press the 1, 0, and TARE key. Call up a There are two types of sales you can generate;...

  • Page 10: How To Use Pay Key

    Press the PRT/* key. You will see changes on the display. Call up a PLU and put an item on the platter. If you do not want to add up, (If you press the PRT/* key again, you will have a total price label.) press the PRT/* key instead of + key.

  • Page 11: Multiple Labels

    3.1.6 Multiple Labels 3.1.7 Auto Printing (AUTO MODE) You can generate identical labels by using multiple label printing. To use multiple label In AUTO mode, labels are issued when the weight is stabilized and greater than 100g. The printing, and press the X key, enter the quantity of duplicate labels you need, and then press use of PRT/* key will also generate a label.

  • Page 12: Program Mode

    4.2 PLU Programming 4. PROGRAM Mode PLU means Price Look Up. PLUs are used to store the price, name, and other data of items 4.1 System Maps being sold. To go to PROGRAM mode, press 10000 by using numeric keys and VOID key. You can press the key or key to go up and down the Main Menu in PROGRAM mode...
  • Page 13 1) To go to PROGRAM mode, press 10000 by using numeric keys and VOID key. 2) The display shows: “PLU ”. 3) Press PRT/* key. The display shows: “PLUno 4000”. The number in the UNIT PRICE display indicates the amount of empty PLUs ready to be programmed.

  • Page 14: Preset Keys Programming

    10) The display shows “nAME 02.01 ”. 4.3 Preset keys Programming Type in the second line of name. The preset keys are used to quickly access a PLU with only one key press. For example, if 11) Press PRT/* key. you had preset key programmed to call up PLU number 100, all you need to press is preset 12) The display shows “MSGno ”.

  • Page 15: Message (Ingredients) Programming

    4) The display shows “S kEy 0”. Press the Preset key (1 to 54) you wish to program. The 1) To go to PROGRAM mode press 10000 by using numeric keys and VOID key. number in the UNIT PRICE display is the number of the Preset key you have just pressed. 2) Press key two times.
  • Page 16 How to program the head data How to program the shop data 1) To go to PROGRAM mode press 10000 by using numeric keys and VOID key. 1) To go to PROGRAM mode press 10000 by using numeric keys and VOID key. 2) Press key three times, the display shows “HEAd”.

  • Page 17: Set

    4.7 SET SET MENU DEFINITIONS SET MENU DEFINITIONS Adjust Date (For details, see page 34) (For details, see page 42) Time (For details, see page 35) Printing Information (For details, see page 43) Department Number (For details, Auto Printing see page 36) (For details, see page 45) Label Length (For details, see page 37)

  • Page 18: Programming The Date (Set #1)

    4.7.1 Programming the Date (SET #1) 4.7.2 Programming the Time (SET #2) How to program the Time How to program the date 1) To go to PROGRAM mode press 10000 by using numeric keys and VOID key. 1) To go to PROGRAM mode, press 10000 by using numeric keys and VOID key. 2) Press key five times.

  • Page 19: Programming The Department Number (Set #3)

    4.7.3 Programming the Department Number (SET #3) 4.7.4 Programming the Label (SET #4) The label format type controls the label size and barcode format. 1) Label length How to program the department number 1) To go to PROGRAM mode press 10000 by using numeric keys and VOID key. 2) Press key five times.
  • Page 20 3) Label mask 2) Label format How to program the label format 1) To go to PROGRAM mode, press 10000 by using numeric keys and VOID key. 2) Press key five times. 3) The WEIGHT display shows“SEt”. 4) Press PRT/* key and the display shows “SEt EntEr”. 5) Press 4 key and PRT/* key.
  • Page 21 6) The display shows “LAbEL EntEr 1”. 7) To program label barcode, press “4” key. The display shows “LAbEL bArCod “. 8) Look at the table and enter barcode number and press PRT/* key. TYPE EAN 13 EAN 13 EAN 13 NOTE : If there is no Head on the label format it is not printed even though you set it to “1”...

  • Page 22: Programming The Adjust Number (Set #5)

    4.7.5 Programming the Adjust Number (SET #5) How to program the adjust number - ADJUST is to adjust the position of label. 1) To go to PROGRAM mode press 10000 by using numeric keys and VOID key. - FEED is to feed label(or receipt). 2) Press key five times.

  • Page 23: Programming The Auto Print Function (Set #7)

    4.7.7 Programming the Auto Print Function (SET #7) The auto print function is used to determine when an automatic buffered label should be printed or buffered. The number stored in auto print is a weight value which is equal to the amount of stabilized positive weight variance needed to print or buffer a label.

  • Page 24: Programming Address (Set #8)

    4.7.9 Programming Baud Rate (SET #9) 4.7.8 Programming Address (SET #8) Address means the ID of the scale when you network scales. The address can be from 0 to 99, How to program baud rate How to program address 1) To go to PROGRAM mode, press 10000 by using numeric keys and VOID key. 1) To go to PROGRAM mode, press 10000 by using numeric keys and VOID key.

  • Page 25: Int(Initialize Plu And Msg Data)

    4.8 INIT (Initialize PLU and MSG data) 4.9 Password You can initialize all PLU’s data , MESSAGE data or ALL data. Password can be from 1000 to 999999 but you have to set the numbers of four digits. If you set it to 0, there is no password.

  • Page 26: Account Mode

    5.2 Print Report 5. ACCOUNT Mode There are four types of sales reports : Grand Total, ALL PLU, Non-PLU, and PLU no. Each ACC mode is used for accessing sales totals, clearing all sales totals, and printhead check of the reports prints on a label; the PLU prints a report label for each PLU that had sales activity.

  • Page 27: All Plu

    1) To go to ACCOUNT mode, press 20000 by using numeric keys and VOID key. 1) To go to ACCOUNT mode, press 20000 by using numeric keys and VOID key. 2) The display shows “Print”. 2) The display shows “Print”. 3) Press PRT/* key.

  • Page 28: Clearing Sales Data

    5.3 Clearing Sales Data 5.3.2 All PLU If you want to clear sales data, you have to use this function after you have already printed the sales data you needed. 1) To go to ACCOUNT mode, press 20000 by using numeric keys and VOID key. 2) Press key.

  • Page 29: All

    5.4 Printhead Check (CHESS) 5.3.4 All You can use this function to check the quality of print and if there are any scratches or burn on the printhead. This function produces a pattern on the label which you can use to determine the condition of the printhead.

  • Page 30: Error Messages

    6. Error Messages 7. Specifications MODEL LP-1.6, LP-1.6R Error 1 The PLU number you have called up does not exist. Error 2 The PLU number you have called up is out of range. CAPACITY 6 kg 15 kg 30 kg Error 3 The weight on the platter is not stable or you have pressed the keys before the weight became stable.

  • Page 31: Appendix

    58mm 40mm 58mm 40mm APPENDIX LABEL FORMAT 58mm 40mm (W 58mm 30mm 58mm 40mm 58mm 40mm 58mm 40mm (W 58mm 30mm 58mm 40mm 48mm 40mm 54mm 35mm 54mm 35mm 48mm 40mm 48mm 40mm 54mm 35mm 58mm 40mm...
  • Page 32 54mm 53mm 54mm 53mm 58mm 60mm 58mm 60mm 48mm 54mm 48mm 54mm 48mm 68mm 48mm 68mm 58mm 51mm 58mm 51mm...
  • Page 33 58mm 60mm 48mm 68mm 58mm 63mm 58mm 63mm 58mm 60mm...
