ALLEN & HEATH PL-5 User Manual

Note: This user guide describes setup and operation of the PL-5 with reference to the PL-4 wall plate and an iDR
system. The PL-5 may also be used with the PL-12 wall plate for remote control of a GR2 audio zone mixer.
Please see PL-12 user guide AP6506 for further details of this application.
PL-4
This product complies
Electromagnetic Compatibility directives 89/336/EEC &
92/31/EEC.
NOTE: Any changes or modifications to the
equipment not approved by Allen & Heath could void
the compliance of the equipment. Whilst we believe
the information in this guide to be reliable we do not
assume responsibility for inaccuracies. We also reserve
the right to make changes in the interest of further
product development.
PL-5 User Guide AP5196 Issue 2
Copyright© 2006 Allen & Heath Ltd. All rights reserved.
PL-5 User Guide AP5196
PL-5 Remote Controller

User Guide

Introduction

held remote controller for use with the Allen & Heath PL-4 wall plate which is
equipped with an IR (infra-red) sensor. It has 14 user programmable buttons.
Typically, these would be programmed by the installer as a combination of
volume up/down, signal mute, source and patch select for convenient control
by the day-to-day operator. The button layout and markings suit most typical
applications. If required, the installer can create a custom label to adhere to
the controller surface. The PL-5 always sends out the same button codes. The
associated iDR function is independently programmed for each PL-4 wall plate
using the iDR System Manager software. This means that the same remote
can trigger different functions in different rooms. For example, the remote
could be used for local volume control of different zones in different rooms, or
select different sources in different rooms.

Removing the protective film

controller peel off the plastic film that protects the top surface.

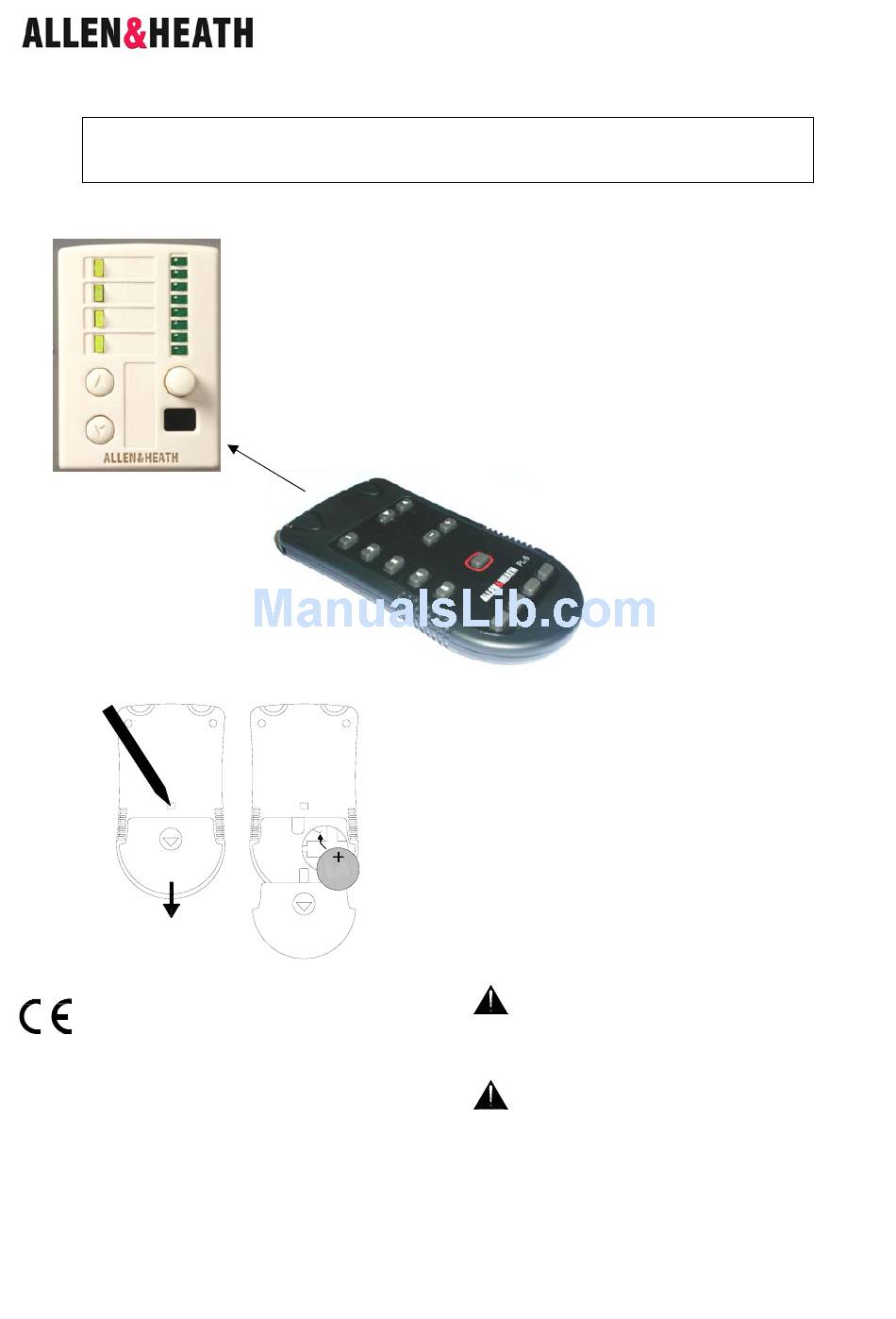

Replacing the battery

lithium battery. A battery is supplied with the unit. To install or
replace the battery first remove the battery compartment cover.
Use a pointed object to press in the cover clip. Slide the cover
off. Insert the battery with + (plus) side up in the direction
CR2025
shown to make contact with the spring terminal.
3V
cover on until it clips in place.
with the European
The PL-5 is a stylish and compact battery powered hand
PL-5
IMPORTANT :
WARNING: Do not subject the PL-5 to heat or
moisture. Do not place it near heat sources such as
radiators, stoves, heat
appliances that produce heat.
CAUTION: Danger of explosion if the battery
is incorrectly replaced. Replace the battery with the
same or equivalent type.
Dispose of old batteries in an environmently friendly
manner.
NOTE: Do not install the PL-4 wall plate in a
position subject to bright sunlight. This may reduce
the effectiveness of the IR signal.
