PL-5 Remote Controller
User Guide

Introduction

held remote controller for use with the Allen & Heath PL-4 and PL-11 wall
plates which are equipped with an IR (infra-red) sensor.
programmable buttons. Typically, these would be programmed by the installer
as a combination of volume up/down, signal mute, source, preset select or
MIDI messages for convenient control by the day-to-day operator. The button
layout and markings suit most typical applications. If required, the installer can
create a custom label to adhere to the controller surface. The PL-5 always
sends out the same button codes.
independently programmed for each PL-4 or PL-11 wall plate using the iDR
System Manager software.
different functions in different rooms. For example, the remote could be used
for local volume control of different zones in different rooms, or select different
sources in different rooms.

Removing the protective film

controller peel off the plastic film that protects the top surface.

Replacing the battery

lithium battery. A battery is supplied with the unit. To install or
replace the battery first remove the battery compartment cover.
Use a pointed object to press in the cover clip. Slide the cover
off. Insert the battery with + (plus) side up in the direction
shown to make contact with the spring terminal.
CR2025
3V
cover on until it clips in place.
with the European

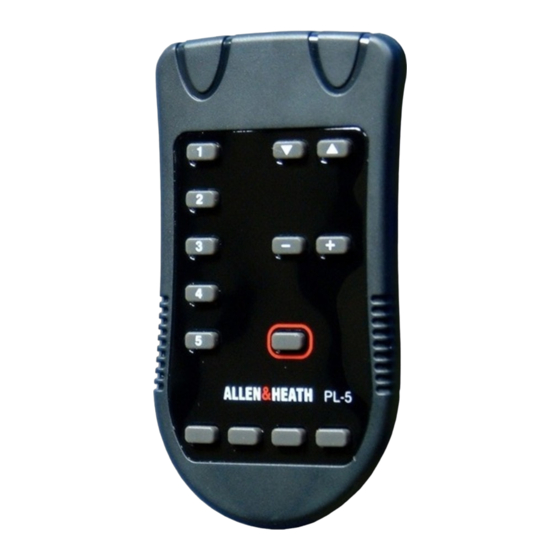

The PL-5 is a stylish and compact battery powered hand
The associated iDR function is
This means that the same remote can trigger
PL-5
IMPORTANT :
WARNING: Do not subject the PL-5 to heat or
moisture. Do not place it near heat sources such as
radiators, stoves, heat
appliances that produce heat.
CAUTION: Danger of explosion if the battery
is incorrectly replaced. Replace the battery with the
same or equivalent type.
Dispose of old batteries in an environmently friendly
manner.
NOTE: Do not install the PL-4 or PL-11 wall plate in a
position subject to bright sunlight. This may reduce the
effectiveness of the IR signal.
AP5196
It has 14 user
Before using the
The PL-5 uses a CR2025 3V
Slide the
exchangers or other
Do not incinerate.
