ALLEN & HEATH IP8 - Remote Controller Manual

Packed items

Check you have received the following:

• IP8 Remote Controller
• Getting Started Guide AP10354
• Safety Sheet
• 12V Power Supply

Introduction

The IP8 is part of the Allen & Heath IP Series of remote controllers. It interfaces with the AHM, dLive or Avantis mixing system via standard TCP/IP Network connections and can therefore be networked with other controllers, computers and third party devices using standard Ethernet infrastructure. It can be powered by an external 12V PSU or over Ethernet (PoE+).
The IP8 controls and functions are programmed using the AHM System Manager software, dLive Surface / Director software, or Avantis mixer / Director software, and can suit a number of applications including:

• Installation – The installer or system integrator can configure the IP8 to provide the degree of control needed by the day to day operator, for example the levels of microphones and music sources in a room.
• Surface extender – The sound engineer can make use of all fader strips on a dLive Surface or Avantis mixer to control Input channels, and set up a 'sidecar' IP8 to control master levels or FX sends/returns.
• Personal Monitoring – The IP8 can be configured to control the Send levels and assignments of multiple channels to a specific mix on the dLive, for example for wireless IEM use, giving musicians the freedom to control their own monitor sound.

Mounting the Remote Controller

The IP8 can be used free standing or mounted in a plinth.
Use the holes indicated below for 6B screws when mounting in a plinth, podium or furniture. Ensure adequate air flow around the unit.

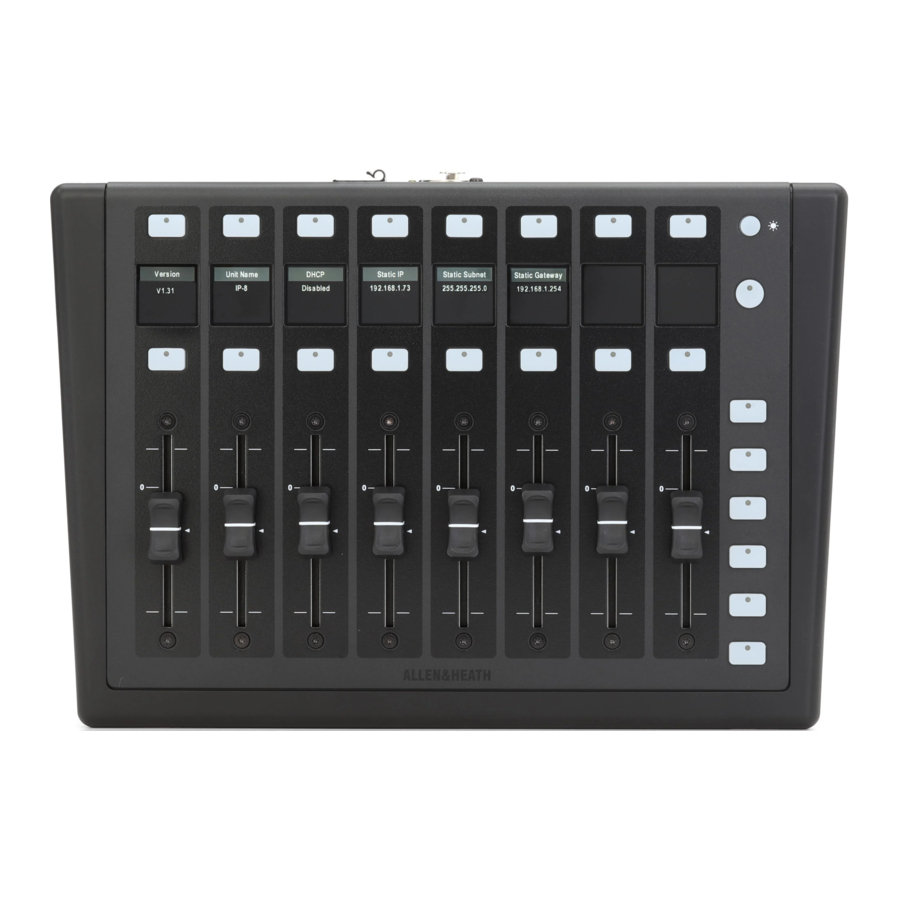

Front Panel

1. SoftKeys – 2 sets of 8x backlit assignable keys. Can be configured individually or as part of a vertical 'Rotary Strip'. Available functions include Send On/Off, PAFL, Mute, Scene Recall, Tap Tempo, Talkback Assign, Custom MIDI.
2. LCD Displays – 8x colour displays providing information on the channels and on the function of the SoftKeys.

3. Faders – 8x assignable motorised faders. Can be configured individually or as part of a vertical 'Rotary Strip'.
   Available functions include Input Level, Mix / Zone Level, DCA / Control Group Level, Aux Send Level, FX Send Level, Custom MIDI.
4. Dimmer – Steps through different brightness presets for all displays and keys, for use in low light environments.
5. SoftKey (Alt View) – Assignable key. Can be configured to show alternative information on the LCD displays.
   Other available functions include Send On/Off, PAFL, Mute, Scene / Preset Recall, Tap Tempo, Talkback Assign, Custom MIDI.
6. SoftKeys (Layers) – 6x additional, backlit assignable keys. Can be configured to change Layers on the Remote Controller. This allows up to 6 different sets of controls / channels instantaneously available at a press of a button. For example you can control the sends of 48 individual Inputs to a monitor mix, or set up the Layers to control the sound to 6 different zones in a venue.
   Other available functions include Send On/Off, PAFL, Mute, Scene Recall, Tap Tempo, Talkback Assign, Custom MIDI.

Rear Panel

1. Network – Fast Ethernet, PoE+ compliant Network port for connection to the mixing system.
   The IP8 provides a locking Neutrik EtherCon socket to protect the connection. Use cables fitted with locking EtherCon for touring or rental applications.
   The maximum cable length is 100m. Use STP (shielded twisted pair) CAT5 or higher cables. Those with both foil and braided screens provide shielding from interference and are generally more rugged. Stranded core cables are less prone to damage when kinked or repeatedly coiled. Refer towww.allen-heath.comfor a list of CAT5 cables available to order.
2. Ext DC In – External PSU input. Alternatively, the IP8 can be powered via the Network port when connected to a PoE+ compliant switch.
   A plastic P-clip cable clamp is provided to secure the DC cable.
   Only use the power supply provided in the box.
3. Reset Network Settings - A recessed switch lets you reset the network settings to factory default. To reset, insert a pointed object to press the switch whilst applying power to the unit, then release.

Connect and power up

Set up the unit Name and IP Address

When connecting multiple IP Remote Controllers to the same network, ensure each unit is set to a unique Name and IP Address beforehand. Alternatively you can enable DHCP on the Remote Controllers, provided a DHCP Server is present on the network and the DHCP range is compatible with the IP Address of the mixing system.
The factory default settings are as follows:

There are two ways of editing these settings:
Browser access – Connect a PC or Mac computer to the Network port of the IP8. Set your computer to a compatible, static IP Address, for example 192.168.1.100 with Subnet 255.255.255.0. Open a web browser and type the IP8 default IP Address 192.168.1.73 in the URL bar. This will give access to the unit network settings. Repeat the operation for each IP8 unit.
System software – Connect the IP8 to a dLive/Avantis/AHM Network port. Use the mixer touchscreen interface or Director / System Manager software to edit the IP8 network settings. Once applied, repeat the operation for each IP8 unit.
Refer to the mixer or AHM processor guides available for download at www.allen-heath.comfor more information.

System connection

Connect the IP8 to a dLive / Avantis / AHM Network port using a CAT5 cable up to 100m long.

Power up the IP8 by plugging the external PSU into the DC In socket. The port Lnk/Err indicator flashes at a steady rate when the link is established. The unit Name and IP address are displayed on the LCD Displays for easy identification of the unit. After a few seconds the IP8 will display the assignments and functions if any have been set for the unit.
If the firmware in a connected IP Remote Controller is not the same version as that in the mixing mixer, then the host mixer or processor will automatically update the IP firmware at power up.

Ethernet Switch

For parallel connection of multiple IP Remote Controllers you can use a standard Ethernet switch.
For PoE (Power over Ethernet), the PoE+ 802.3at standard (25.5W at source) is required. Check that the overall power rating is enough to provide for all IP Remote Controllers you wish to connect (allow 25W per IP8 unit).

Programming the Remote Controller

Use the AHM System Manager software, dLive Surface / Director software, or Avantis mixer / Director software to configure the controller as appropriate.
With dLive, the IP8 can be set to link to either the MixRack or the Surface. This is regardless of the physical Network connection, for example the unit might be physically connected to the MixRack but set to link to the Surface. Linking to the MixRack provides an independent Remote Controller that can be used with or without Surface connection. Linking to the Surface adds the ability to assign extra functions to the IP8 SoftKeys such as Sel and Mix.
The functions and assignments of the IP8 are stored in the dLive / Avantis Scenes or AHM Presets. They are not stored locally on the Remote Controller.
Refer to the mixer or AHM processor guides available for download at www.allen-heath.com for more information.

Dimensions

Technical specs

Dimensions and Weights

Weights
