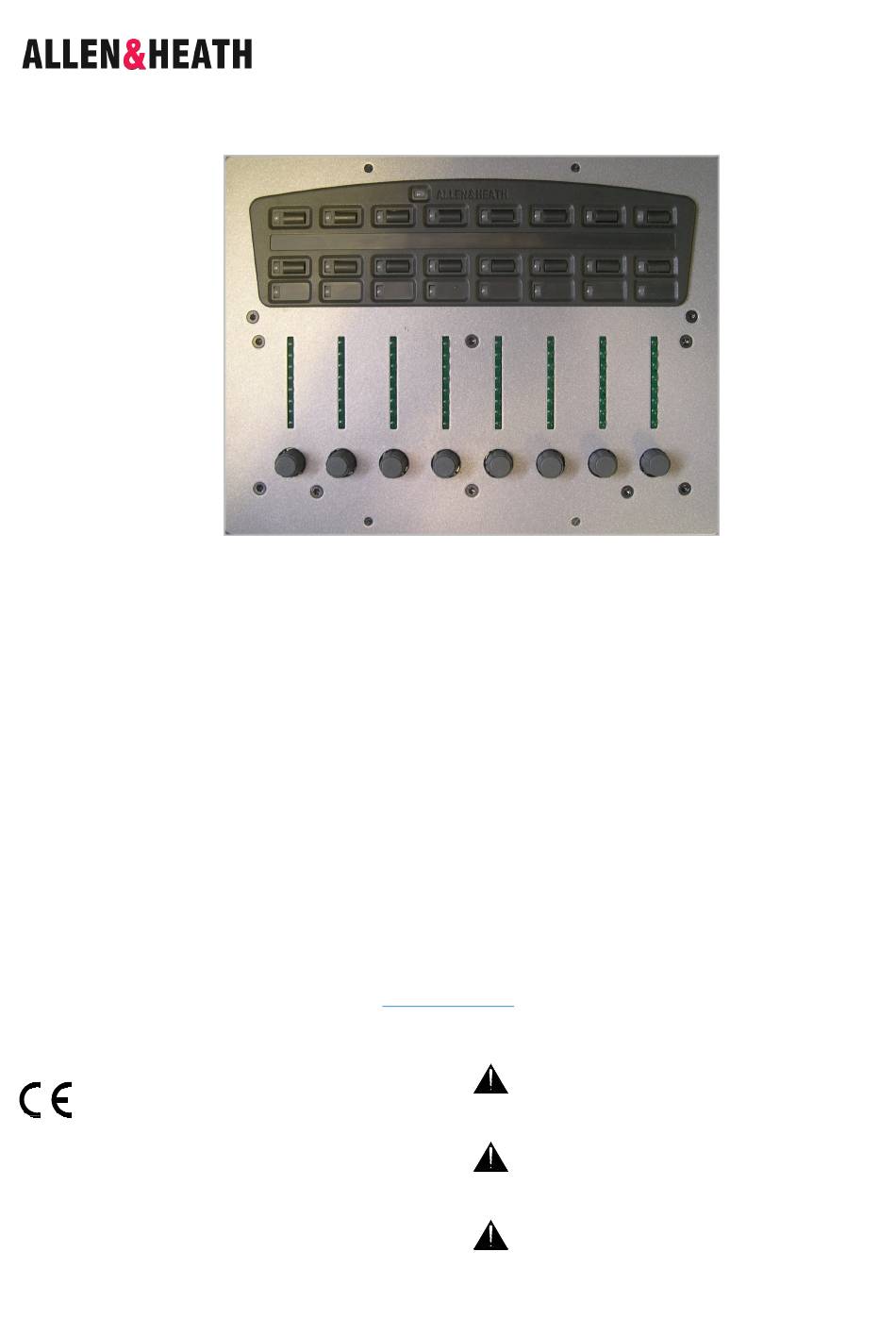

ALLEN & HEATH PL-10 User Manual

Introduction
The PL-10 adds to the extensive range of remote control devices available for the
mix processor and iLive mixing systems. It offers an alternative to the PL-6 fader controller with the advantage that
user settings can be stored and recalled without the need to physically move the controls to the new settings.
The PL-10 is part of the Allen & Heath PL Series of wall plates and remote controllers. It can be mounted into a plinth
or custom furniture, or used free standing. Template cutting details are provided for custom application. The PL-10
interfaces with the Allen & Heath PL-Anet serial port. Multiple PL-10 units can be daisy chained together along with
other PL-Anet devices using CAT5 cable. A terminator is provided for plugging into the last unit in the chain. For
information on the full range of PL products available visit http://www.allen-heath.com. The PL-10 control and indicator
functions are programmed using the iDR System Manager software, or the iLive Surface TouchScreen or Editor
software. Space is provided next to the controls for custom labelling. The PL-10 is ideal as a remote mix controller, for
example as a simple operator controlled mix panel in an installed sound system, or as a personal musicians on-stage
mix controller for in-ear monitors. The installer can program the unit according to the requirements of the application,
providing the degree of control needed by the day to day operator.
8 Rotary Encoders can be configured individually for continuous input, output, group, crosspoint level control or
monitor level. Minimum and maximum ranges can be set. Each rotary encoder has 8 LEDs displaying the control
position. 16 Switches, arranged as two per rotary encoder, can be configured as combinations of level up/down, mute
toggle, polarity toggle, audio monitor select, or preset recall. 24 LED indicators, arranged as three per fader, can be
configured as combinations of 3 colour signal meters, mute status, channel on indication, level sensing or preset
related 3 colour LED indication. Controls can be disabled if not required. A single 3 colour Status LED displays PL-
Anet power and communication status. Custom labels can be fitted into the recessed areas provided (13 x 7mm).
Recommended label height is 6mm.
NOTE: Check the Allen & Heath web site for the latest version of iDR-4/8 or iLive firmware and software:
This product complies
Electromagnetic Compatibility directive 2004/108/EC.
NOTE: Any changes or modifications to the
equipment not approved by Allen & Heath could void
the compliance of the equipment. Whilst we believe
the information in this guide to be reliable we do not
assume responsibility for inaccuracies. We also reserve
the right to make changes in the interest of further
product development.
Copyright© 2011 Allen & Heath Ltd. All rights reserved.
PL-10 User Guide AP5708 issue 2

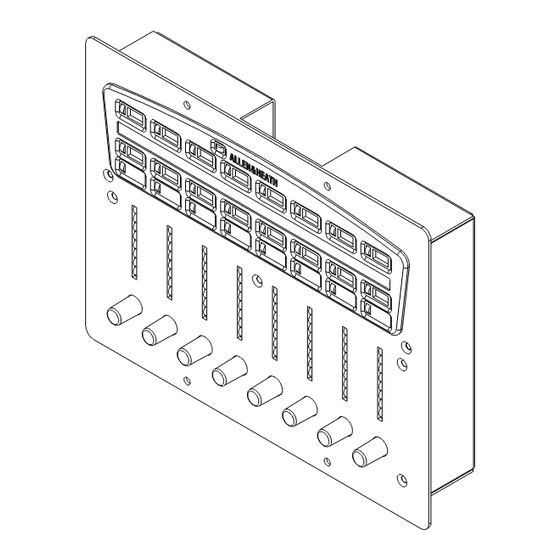

PL-10 Rotary Encoder Remote

User Guide

www.allen-heath.com
with the European
IMPORTANT :
Observe the local standards which may apply
to the installation regarding the grade of cable and
installation methods.
Do not install the equipment where it is
subject to moisture, heat, vibration or excessive
movement.
Connect this equipment to the Allen & Heath
PL-Anet port only. Test for correct wiring and
installation before switching the equipment on.
AP5708
iDR-4/8 audio
1
