ALLEN & HEATH PL-12 User Manual

ALLEN&HEATH
GR2
SOURCE
INDICATOR
SOURCE -
SOURCE +
1
SOURCE
2
SELECT
3
4
SOURCE
5
OFF
ALLEN& HEATH
PRESETS
DISABLE SWITCH OPTION
ZONE 2 FOLLOW ZONE 1 OPTION
TO NEXT PL-12
RJ45/CAT5
ZONE
SELECT JUMPER
PL-12 User Guide AP6506 issue 1
PL-12 Wall Plate
User Guide

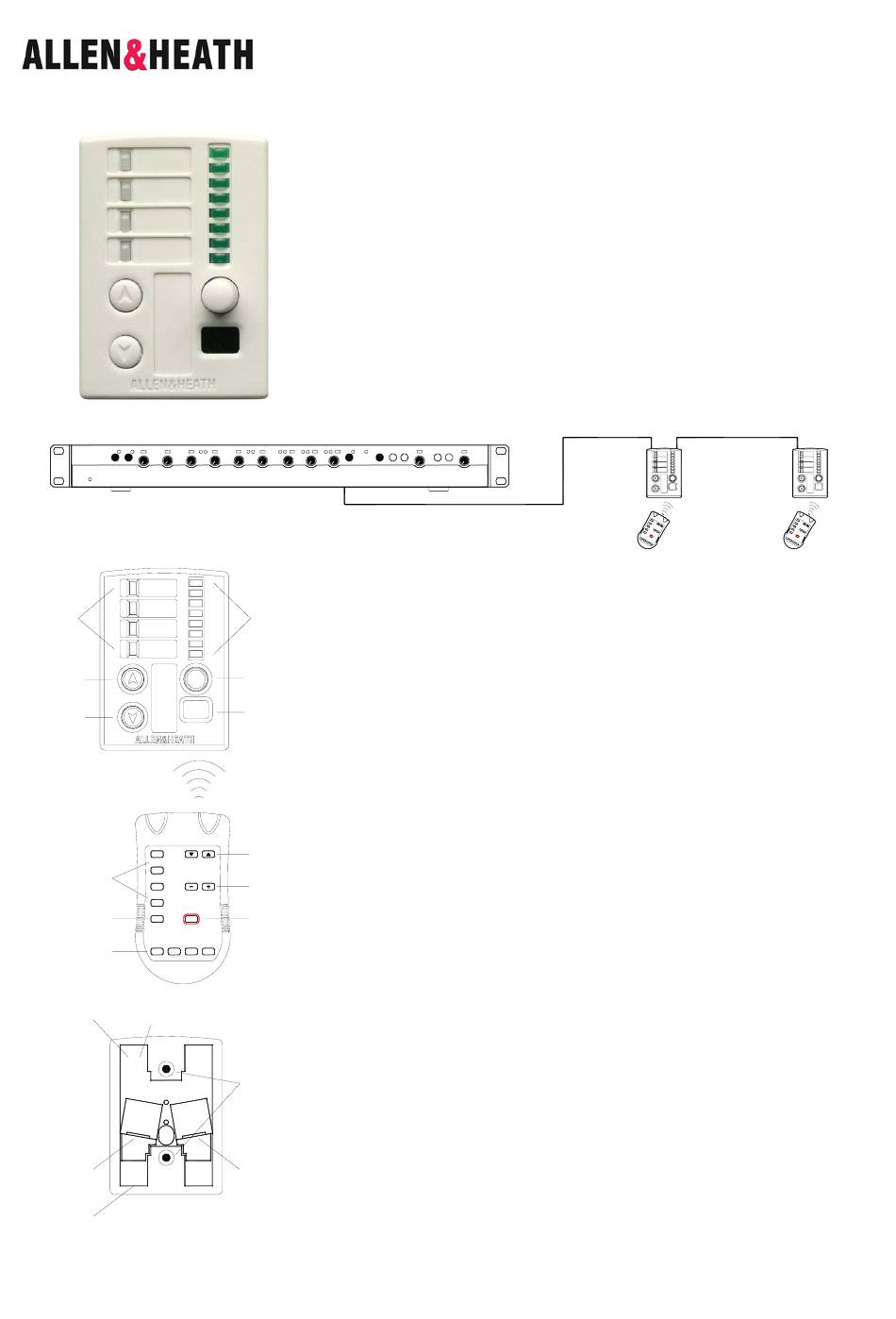

The PL-12 is an 'intelligent' remote controller for use with the Allen & Heath
GR2 audio zone mixer. It provides the non-technical operator with local control
of the music source selection and/or audio level. Up to two controllers may be
connected, just one, one for each zone, or a single unit to simultaneously
control both zones. A menu of setup options allows the installer to configure
its function to match the specific requirements of each application. Additional
switches may be wired for room combining situations and to disable the
controller when the settings should not be changed. The optional PL-5 hand
held infra-red remote controller adds wireless control, and additional features
including the store and recall of up to 4 source/level presets. The PL-12 can
be mounted into a single unit wall box using the standard face plate provided,
or furniture mounted using the cutting template details given here. It interfaces
with the GR2 using standard CAT5 cables. The second controller daisy chains
with the first for convenient single run cabling. Space is provided on the panel
for custom labelling.
PL-12 Controls
• Source select Scroll up/down through the available music sources.
LEVEL
INDICATOR
•
Source indicators Light green to show the selected source, red for mute.
•
Rotary level control Adjusts audio level in 32 steps from off to on.
LEVEL
•
Level indicator 8 LED bar to display the level.
CONTROL
•
Infra-red sensor Detects the optional PL-5 hand held controller.
INFRA-RED
SENSOR
• Label space Recessed areas for custom labelling.
PL-5 Controls
• Source select keys Scroll up/down through the available music sources.
•
Source keys Direct selection of available music sources 1 to 4.
•
Source off key De-selects all sources.
LEVEL
UP/DOWN
•
Level keys Adjust the level up or down.
SOURCE
•
Music mute key Silences the selected source.
SELECT
MUSIC
• Preset keys Store and recall up to 4 presets of level and source selection.
MUTE
PL-12 Installation
• Face plate fixings Mount the module to the wall plate.
•
Zone select jumper Configures which zone to control.
• Disable option Wire a switch to lock out the controls.
•
Zone 2 follow zone 1 option Wire a switch for control of both zones.
FACE PLATE •
To GR2 RJ45 for CAT5 cable connection to GR2.
FIXINGS
•
To next PL-12 RJ45 for CAT5 cable connection to second PL-12 if used.
PL-12 Setup Menu
TO GR2
•
Zone 2 follow zone 1 mode Setting for one PL-12 to control both zones.
RJ45/CAT5
•
Sources to select Choice of combinations of none, 1234, 123, 234, 23.
• Source off Add a source off position to the selection.
•
Power up default Choice of off, last settings, or one of 4 presets.
•
Preset enable Store and/or recall of 4 level/source presets using the PL-5.
PL-12
PL-5
(Option for the PL-12)
(Accessed and stored on the PL-12)
AP6506
