ALLEN & HEATH AH-PL-6 User Manual

Introduction

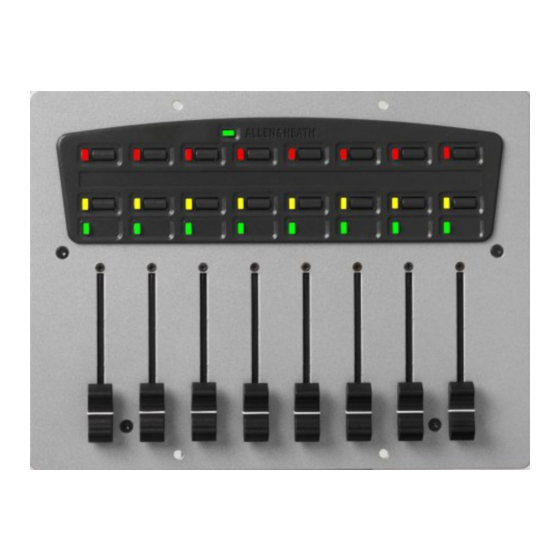

The PL-6 is one of several remote control devices available for the
and iLive mixing systems. It is part of the Allen & Heath PL Series of wall plates and remote controllers. It can be
mounted into a plinth or custom furniture, or used free standing. A suitable template with cutting details is provided for
custom application. The PL-6 interfaces with the Allen & Heath PL-Anet serial port. Multiple PL-6 units can be daisy
chained together along with other PL-Anet devices using CAT5 cable. A terminator is provided for plugging into the
last unit in the chain. For information on the full range of PL products available visit http://www.allen-heath.com. The
PL-6 control and indicator functions are programmed using the iDR System Manager software, or the iLive Surface
TouchScreen or Editor software. Space is provided next to the controls for custom labelling. The PL-6 is ideal as a
remote mix controller, for example as a simple operator controlled fader panel in an installed sound system, or as a
personal musicians on-stage mix controller with in-ear monitors. The installer can program the unit according to the
requirements of the application, providing the degree of control needed by the day to day operator.
8 Faders can be configured individually for input, output, group or crosspoint level control or monitor level. Minimum
and maximum ranges can be set. 16 Switches, arranged as two per fader, can be configured as combinations of level
up/down, mute toggle, polarity toggle, audio monitor select, or preset recall. 24 LED indicators, arranged as three per
fader, can be configured as combinations of 3 colour signal meters, mute status, or preset related 3 colour LED
indication. Controls can be configured as unused if not required. A single 3 colour Status LED displays PL-Anet
power and communication status. Custom labels can be fitted into the recessed areas provided. Recommended
height is 6mm.
NOTE: Check the Allen & Heath web site for the latest version of iDR or iLive firmware and software:
This product complies
Electromagnetic Compatibility directive 2004/108/EC.
NOTE: Any changes or modifications to the
equipment not approved by Allen & Heath could void
the compliance of the equipment. Whilst we believe
the information in this guide to be reliable we do not
assume responsibility for inaccuracies. We also reserve
the right to make changes in the interest of further
product development.
Copyright© 2011 Allen & Heath Ltd. All rights reserved.
PL-6 User Guide AP5197 issue 4
PL-6 Fader Remote
User Guide
www.allen-heath.com
with the European
iDR-4/8
IMPORTANT :
Observe the local standards which may apply
to the installation regarding the grade of cable and
installation methods.
Do not install the equipment where it is
subject to moisture, heat, vibration or excessive
movement.
Connect this equipment to the Allen & Heath
PL-Anet port only. Test for correct wiring and
installation before switching the equipment on.
AP5197
audio mix processor
