ALLEN & HEATH AH-PL-4 User Manual

EXAMPLE
iDR
PL-Anet SERIAL PORT
PL-3
PL-3
PL-4
PL-5
PL-4
PL-5
TERMINATION

PL-ANET

DR-LINK
CAUTION 20V DC
DIGITAL EXPANDER
TO AVOID DAMAGE ONLY CONNECT
COMPATIBLE REMOTE CONTROL
EQUIPMENT TO THE PL-ANET PORT.
This product
Electromagnetic Compatibility directives 89/336/EEC &
92/31/EEC.
NOTE: Any changes or modifications to the
equipment not approved by Allen & Heath could void
the compliance of the equipment. Whilst we believe
the information in this guide to be reliable we do not
assume responsibility for inaccuracies. We also reserve
the right to make changes in the interest of further
product development.
Copyright© 2004 Allen & Heath Ltd. All rights reserved.
PL-4 User Guide AP5082 issue 4

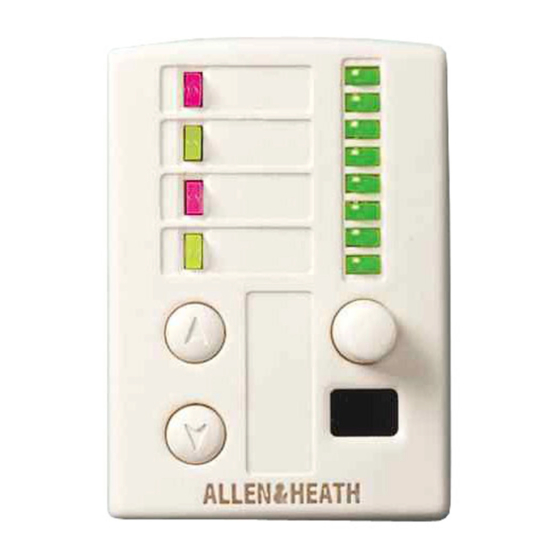

Introduction

for the iDR audio mix processor system. It is part of the Allen & Heath PL
Series of wall plates and remote controllers. It is a wall plate or furniture
mounted module comprising plastic control panel and attached circuit
assembly. It can be mounted in a single unit wall box using a standard face
plate (UK, EU or US version supplied). A suitable template with cutting details
is provided for custom application. The PL-4 interfaces with the Allen & Heath
PL-Anet serial port. Multiple PL-4 units can be daisy chained together along
with other PL-Anet devices using CAT5 cable. For information on the full range
of PL products available visit http://www.idrseries.com. The wall plate control
and indicator functions are programmed using the iDR System Manager
software. Space is provided on the control panel for custom labelling. The PL-
4 is ideal as a wall mounted room remote controller in installed audio systems.
The installer can program the unit so that the non-technical operator has local
control of volume, mute, source select, and preset changes which reconfigure
the room for different functions, as well as the convenience of the PL-5 infra-
red remote controller.
2 switches can be assigned for level up or down control (input, output,
crosspoint or group), mute toggle, audio monitor select, or preset recall. 4
LED indicators can be assigned as audio meters (choice of 8x points in the
signal path), mute status, or as preset related static display. They can display
four states: off, green, yellow or red. Rotary control can be assigned as a
continuous level control (input, output, crosspoint or group). An 8 LED meter
bar displays the control position. Infra-red controller allows wireless local
ROOM 1
control using the hand-held PL-5 remote controller. Each of the 14 keys on the
PL-5 can be assigned in the same way as the switches described above. The
PL-4 can be used without the IR controller. Custom labels Recessed areas
ROOM 2
are provided for fitting custom adhesive labels. Recommended maximum label
sizes are 6x14mm and 26x9mm.

Number and addressing of devices

ROOM 3
PL devices that can be connected depends on their type and the cable
lengths. Up to 12x PL-4 devices (more if using half speed scan) may be
connected in an iDR system, with or without the PL-9 hub. Fewer devices may
be connected if long distances or other PL types are also involved. To check
ROOM 4
this refer to the PL Combinations Calculator spreadsheet available from our
web site. The iDR allocates the device addresses automatically per PL type in
the order they appear in the chain.
PL-Anet
controllers. It is an RS485 serial connection that uses CAT5 STP cable to
AUDIO IN AUDIO OUT
communicate between devices over long distances. PL-Anet only works with
Allen & Heath PL devices. The connection includes +20V DC to power the
connected devices. The iDR-8 port is shown here.
complies with the European
PL-4 Wall Plate
User Guide
The PL-4 is one of several remote control devices available
is the proprietary Allen & Heath system for daisy chaining remote
Observe the local standards which may apply
to the installation.
ensure that any exposed metal plates are correctly
bonded to ground.
where it is subject to moisture, heat or vibration.
Connect this equipment to the Allen & Heath
PL-Anet port only.
installation before switching the equipment on.
NOTE: Do not install the PL-4 in a position subject
to bright
effectiveness of the IR signal.
IR function we recommend that you install only one
PL-4 per room to avoid multiple pickup from the
same hand set.
The maximum number of
IMPORTANT :
To ensure operator safety
Do not install the equipment
Test for correct wiring and
sunlight. This may
If you are using the
AP5082
reduce the
1
