Summary of Contents for ALLEN & HEATH IP1

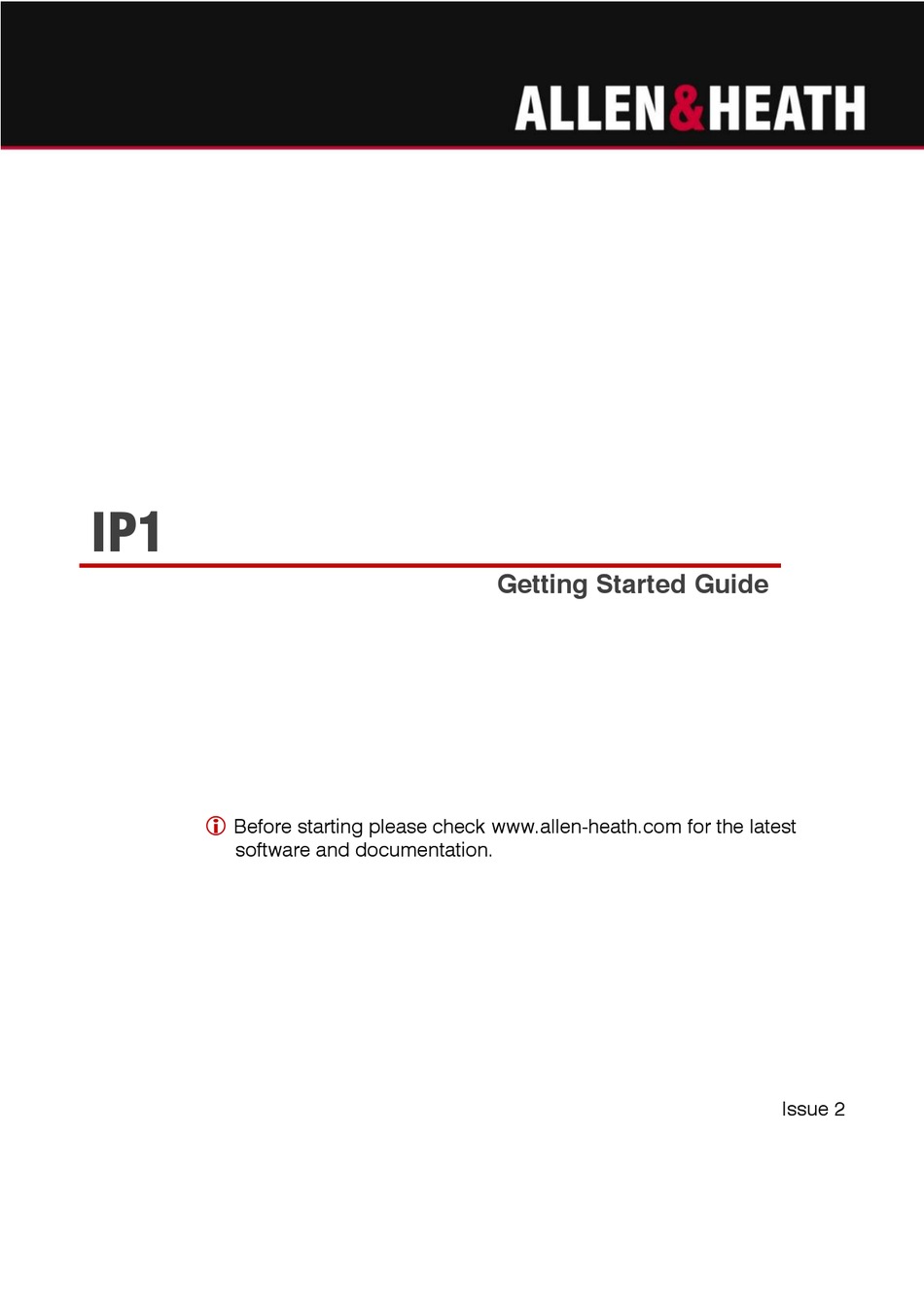

- Page 1 Getting Started Guide Before starting please check www.allen-heath.com for the latest software and documentation. Issue 2...
- Page 2 Check with your Allen & Heath distributor or agent for any additional warranty information which may apply. If further assistance is required please contact Allen & Heath Ltd. IP1 Getting Started Guide Issue 2...
-
Page 3: Important - Read Before Starting
Check for the latest version of this Getting Started Guide. You can also join our Allen & Heath Digital Community to share knowledge and information with other dLive users. IP1 Getting Started Guide Issue 2... -
Page 4: General Precautions
Register your product Register your product online at www.allen-heath.com/register. IP1 Getting Started Guide Copyright © 2021 Allen & Heath. All rights reserved. ALLEN&HEATH Allen & Heath Limited, Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK http://www.allen-heath.com... -
Page 5: Table Of Contents
Register your product....................4 Contents ......................... 5 Packed items ........................6 Introduction ....................... 6 Mounting the Remote Controller ............... 7 IP1 /US ..................... 7 IP1 /EU ..................... 7 Front Panel ......................8 Connection and configuration ................9 System connection ................... 9 Set up the unit Name and IP Address ............ -
Page 6: Packed Items

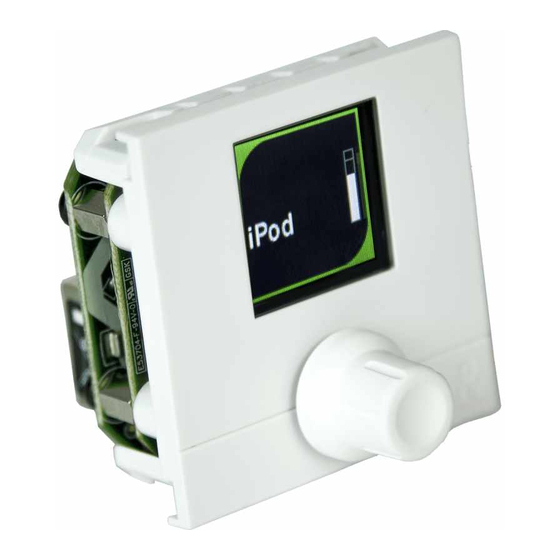

Safety Sheet 1. Introduction The IP1 is part of the Allen & Heath IP Series of remote controllers. It interfaces with the AHM, dLive or Avantis mixing system via standard TCP/IP Network connections and can therefore be networked with other controllers, computers and third party devices using standard Ethernet infrastructure. -
Page 7: Mounting The Remote Controller
30mm and Honeywell / MK Elements or compatible plates. Refer to the instructions of the face plate and/or wall box for screw specification and mounting. EU wall box UK wall box Face Face plate plate IP1 Getting Started Guide Issue 2... -
Page 8: Front Panel
Source Select or Scene / Preset Select mode. Available functions include Input Level, Mix/Zone Level, DCA / Control Group Level, Aux Send Level, FX Send Level, Matrix Send Level, Source Selector (Level+Source), Pan, Scene / Preset Select. IP1 Getting Started Guide Issue 2... -
Page 9: Connection And Configuration
The maximum cable length is 100m. Use STP (shielded twisted pair) CAT5 or higher cables. System connection Connect the IP1 and a dLive / Avantis / AHM Network port to the same PoE network switch using a CAT5 cable up to 100m long. AHM/dLive... -
Page 10: Reset Network Settings
IP Address, for example 192.168.1.100 with Subnet 255.255.255.0. Open a web browser and type the IP1 default IP Address 192.168.1.74 in the URL bar. This will give access to its network settings. Repeat the operation for each IP1 unit in the system. System software –... -
Page 11: Programming The Remote Controller
/ Director software to configure the controller as appropriate. With dLive, the IP1 can be set to link to either the MixRack or the Surface. This is regardless of the physical Network connection, for example the unit might be physically connected to the MixRack but set to link to the Surface. -
Page 12: Dimensions
5. Dimensions 32.35 50.00 15.10 IP1 Getting Started Guide Issue 2... - Page 13 24.45 45.00 IP1 Getting Started Guide Issue 2...
-
Page 14: Technical Specs
131 x 170 x 90 mm x 0.2kg (7.5 ounces) IP1 /EU 50 x 32 x 50 mm x 70g (2.5 ounces) IP1 /EU (boxed) 131 x 170 x 90 mm x 0.2kg (7.5 ounces) IP1 Getting Started Guide Issue 2...
