WARNING: If the information in this manual is
not followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do not use
any phone in your building.
Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

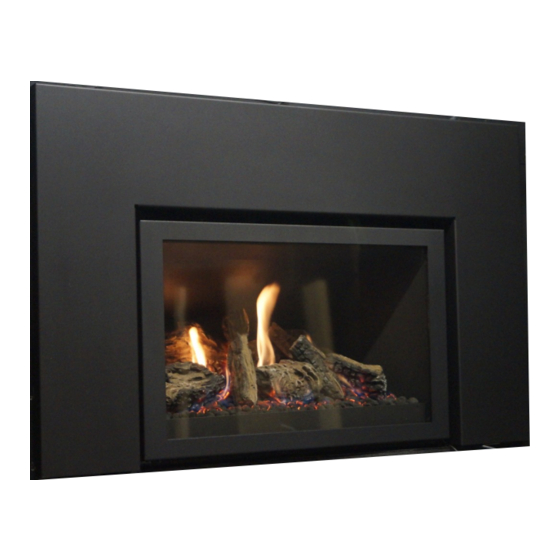

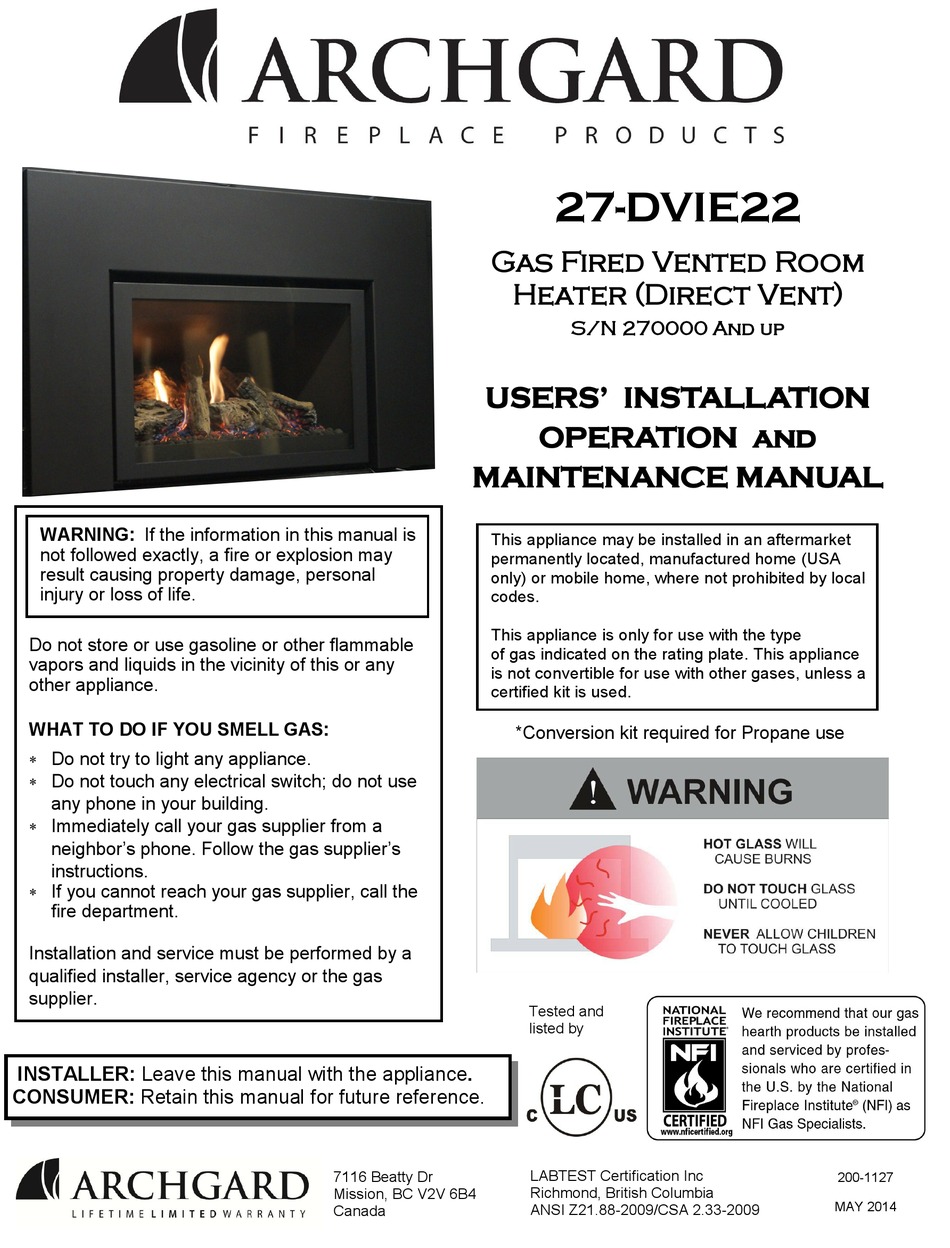

Gas Fired Vented Room
Heater (Direct Vent)
USERS' INSTALLATION
MAINTENANCE MANUAL
This appliance may be installed in an aftermarket
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by local
codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This appliance
is not convertible for use with other gases, unless a
certified kit is used.
7116 Beatty Dr
Mission, BC V2V 6B4
Canada
27-DVIE22
S/N 270000 And up
OPERATION and
*Conversion kit required for Propane use
Tested and
listed by
LABTEST Certification Inc
Richmond, British Columbia
ANSI Z21.88-2009/CSA 2.33-2009
200-1127
MAY 2014
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Archgard 27-DVIE22
Summary of Contents for Archgard 27-DVIE22
- Page 1 27-DVIE22 Gas Fired Vented Room Heater (Direct Vent) S/N 270000 And up USERS’ INSTALLATION OPERATION and MAINTENANCE MANUAL WARNING: If the information in this manual is This appliance may be installed in an aftermarket not followed exactly, a fire or explosion may...
- Page 2 27-DVIE22...
- Page 3 INTRODUCTION Congratulations on choosing an Archgard Gas Fireplace! The 27-DVIE22 is one of the most advanced Direct Vent Insert heaters available today. It is solidly designed using the latest technology and manufactured to the highest quality. It is our aim to provide you with an appliance for many trouble-free years of reliable service.
-
Page 4: Table Of Contents
27-DVIE22 TABLE OF CONTENTS Caution and Safety Instructions Appliance Certification, Installation Codes and Specifications Rating Plate Configure the Fireplace and Control Panel Locations Minimum Fireplace Opening Dimensions and Sealing the Vent Factory Built (metal) Fireplace Requirements 10-11 Mantle and Sidewall Clearance to Combustibles... -
Page 5: Caution And Safety Instructions
Y O U R S A F E T Y Do not install or operate your Archgard 27-DVIE22 without reading and understanding this manual. Any installation or operational deviation from this instruction manual voids the Archgard Industries Warranty and may prove hazardous. -
Page 6: Appliance Certification, Installation Codes And Specifications
The listing label is attached to the appliance on the bottom right side of the appliance. A copy is shown on page Please contact Archgard Industries Ltd., if you have any questions regarding the certification of this appliance. INSTALLATION CODES This appliance must be installed by a qualified gas appliance installer. -
Page 7: Rating Plate
27-DVIE22 RATING PLATE We recommend that our gas hearth products be installed and serviced by professionals who are certified in the U.S. by the National Fireplace Institute® (NFI) as NFI Gas Specialists. -
Page 8: Configure The Fireplace And Control Panel Locations
27-DVIE22 CONFIGURE THE FIREPLACE - CONTROL PANEL LOCATIONS The control panels can be mounted in the following different ways. They are shipped in the “Controls In” configuration. They can be moved to the “Controls Out” configuration by removing the two mounting screw on each side and swinging the panels out and re- installing the screws. -
Page 9: Minimum Fireplace Opening Dimensions And Sealing The Vent
27-DVIE22 MINIMUM FIREPLACE OPENING DIMENSIONS Masonry Fireplace Min flue size required TOP VIEW SIDE VIEW 4” (102) x 7” (178) Fig. 9-B Fig. 9-A DIMENSIONS 17-3/4” 15” 16” 25 1/2” 0” “Controls Out” (451 mm) (381 mm) (406 mm) (648 mm) DIMENSIONS 17-3/4”... -
Page 10: Factory Built (Metal) Fireplace Requirements
27-DVIE22 Factory –Built (metal) Wood-Burning Fireplace Opening Requirements Fig. 10-A I N S T A L L E R N O T E S The installer must mechanically attach a marking (supplied in the manual bag) to the inside of the firebox of the... - Page 11 27-DVIE22 W A R N I N G Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. W A R N I N G Any hearth extending out in front of the insert must not have any portion above 7”...
-
Page 12: Mantle And Sidewall Clearance To Combustibles
27-DVIE22 MANTLE CLEARANCES W A R N I N G Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. Fig. 12-A... -
Page 13: Gas Connections
27-DVIE22 GAS CONNECTIONS Before connecting the appliance to the gas supply line, double check that the appliance you have purchased is designed for the gas type you are using. The gas type markings are located on the certification label and also on the appliance’s gas valve. -
Page 14: Conversion Kit Instructions
27-DVIE22 CONVERSION KIT INSTRUCTIONS W A R N I N G The conversion kit shall be installed by a qualified service agency in accordance with the manufacturers instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explo- sion or productions of carbon monoxide may result, causing property damage, personal injury or loss of life. - Page 15 27-DVIE22 CONVERSION KIT INSTRUCTIONS, cont. CONVERT THE GAS VALVE COMPLETE THE CONVERSION Turn on the gas and electrical supplies. Turn on the fireplace so the burner is on Check for leaks at all connections. Test inlet and outlet pressure. Visually check pilot flame. Flame should envelope top of the flame sensor and extend forward onto the burner.
-
Page 16: Appliance Description, Leveling The Appliance And Electrical Requirements
ELECTRICAL CONNECTIONS The 27-DVIE22 comes complete with an adjustable speed fan with 6 levels wired directly to the main control module for your protection against shock hazard. Do not cut or remove the grounding prong from this plug. -
Page 17: Venting Instructions
3” (76 mm) inside bend radius. The 27-DVIE22 showing the Fresh Air Intake and The Air Intake Flex Liner must be connected to the inlet Exhaust locations. - Page 18 27-DVIE22 VENTING INSTRUCTIONS 999-INS-TK Instructions for use with Archgard vertical termination cap. Part # 999-INS-TK Install the termination cap being sure to provide sufficient space (around and on top) so as not to impede the flow of air, both into and out of the cap. This cap is only to be used for non combustible installations. Do not recess into the top of the chim- ney.
-
Page 19: Surround Installation And Rocker Switch Wiring
27-DVIE22 SURROUND INSTALLATION Surround options available are dependent upon the control panel configuration. (See Control Panel Locations regarding configuration.) Shallow surround options are not available on a unit with ‘Controls Out’ configuration. Make sure the gas and electrical lines are properly connected to the appliance. Slide the unit into the fireplace and slide the excess flue liner material back onto the chimney. -
Page 20: Log Placement
27-DVIE22 LOG PLACEMENT The Archgard pan burner bed and fiber logs are designed to give a realistic fire package, and created to look the same as the day they were originally installed. Care must be given when first installing the logs, and if removed for servicing, as they can be damaged or broken if not handled properly. - Page 21 27-DVIE22 LOG PLACEMENT... Continued L O G Locate Log 1 and align the holes in the bottom line up with the two locater pins. Push down firmly onto locater pins. Fig. 21-A LOG #1 L O G # 2 Locate log #2 using the locator pin on the burner for the left side. Sit the right side of the log into the notch of log #1 (as shown in inset) Fig.
- Page 22 27-DVIE22 LOG PLACEMENT... Continued L O G Locate Log #4 and align the two holes in the log with the two locater pins in the center of the burner. Push down onto locator pins as shown. Fig. 22-A LOG #4 L O G Locate Log #5 and align the hole in the bottom with the locater pin in the burner.
- Page 23 27-DVIE22 LOG PLACEMENT... Continued N O T E Logs #1, #3 and #4 have been crafted to allow airflow from under the logs. DO NOT crush the bottom of the logs to make these sit flush with the top of the burner. Care must also be taken to not completely block the front of the logs with embers.
- Page 24 27-DVIE22 COMPLETE LOG SET Fig. 24-A LOG 5 LOG 2 LOG 1 LOG 3 LOG 6 LOG 4 Item # Item Description Unit 310-6270 Complete Log Set 310-6270-1 Log 1 (Right Side) 310-6270-2 Log 2 (Rear) 310-6270-3 Log 3 Left Side)
-
Page 25: Glass Door Removal / If Your Glass Should Break
Do not operate appliance with the glass front cracked or broken. Replacement of the glass should be done by a licensed or qualified service person. IF YOUR GLASS BREAKS In the event your glass cracks or breaks, Archgard recommends that a complete new door assembly be ordered to replace the original door. ... -
Page 26: Final Installation Check And Initial Operation
27-DVIE22 FINAL INSTALLATION CHECK Each Archgard Gas Fireplace is checked and tested at the factory prior to being packaged and shipped to our dealers and finally installed in your home. Archgard recommends that before leaving this unit with the customer, the installer must ensure that the appliance is firing correctly and that the electrical system is in working order. -
Page 27: First Fire And Lighting Instructions (Caution)
27-DVIE22 FIRST FIRE A T T E N T I O N When operated for the first few times, the appliance will emit some odor and fumes. This is due to the heat evaporating the oils and solvents used in the production of the fireplace. -
Page 28: Lighting Instructions On Rating Plate
27-DVIE22 LIGHTING INSTRUCTIONS ON RATING PLATE... -
Page 29: Remote Control Setup And Operation
27-DVIE22 REMOTE CONTROL SETUP AND OPERATION I M P O R T A N T The Proflame II Transmitter is an integrated part of the Proflame II System, which consists of these elements: Proflame II Transmitter, to be used in conjunction with: ... - Page 30 27-DVIE22 REMOTE CONTROL SETUP AND OPERATION HANDHELD REMOTE DISPLAY (future option) N/A on this unit Fig. 30-A W A R N I N G THE TRANSMITTER AND RECEIVER ARE RADIO FREQUENCY DEVICES. PLACING THE TRANSMITTER IN OR MEAR METAL ENCLOSURES MAY RE-...
- Page 31 27-DVIE22 REMOTE CONTROL SETUP AND OPERATION INITIALIZING THE SYSTEM FOR HANDHELD REMOTE OPERATION Connect IFC Control Module to AC power supply. A single “beep” will indicate the presence of power. NOTE: This will initiate Pilot Start-up in Manual Mode. The pilot will spark repeatedly and ignite if gas has been supplied to the unit if the main power switch is in the “ON”...
- Page 32 27-DVIE22 REMOTE CONTROL SETUP AND OPERATION TEMPERATURE INDICATION DISPLAY With the system in the “OFF” position, press the Thermostat Key and the Mode Key at the same time to switch between Fahrenheit (F) or Celsius (C). Verify on the LCD screen the correct designation is visible...
- Page 33 27-DVIE22 REMOTE CONTROL SETUP AND OPERATION ROOM THERMOSTAT (TRANSMITTER OPERATION) The Remote Control can operate as a room thermostat. The thermostat can be set to a desired temperature to control the comfort level in a room. To activate this function: ...
- Page 34 27-DVIE22 REMOTE CONTROL SETUP AND OPERATION Continuous Pilot/Intermittent Pilot (CPI/IPI) selection With the system in “OFF” position press the Mode Key to index to the CPI mode icon. Pressing the UP Arrow Key will activate the Continuous Pilot Ignition mode (CPI). Pressing the Down Arrow Key will return to IPI. A single “beep”...
- Page 35 27-DVIE22 REMOTE CONTROL SETUP AND OPERATION KEY LOCK This function will lock the keys to avoid unsupervised operation. To activate this function, press the MODE and UP Keys at the same time. To deactivate this function, press the MODE and UP Keys at the same time.
-
Page 36: Sit Intermittent Ignition Sequence
27-DVIE22 SIT INTERMITTENT IGNITION SEQUENCE Fig. 36-A... -
Page 37: Maintenance And Cleaning The Appliance
Regularly: Frequent cleaning of the ceramic glass is required. Archgard recommends using a good quality “gas fireplace” glass cleaner that is available at any hearth retail location. DO NOT CLEAN WHILE HOT. -
Page 38: Servicing Under Warranty And Adjusting Primary Air
27-DVIE22 SERVICING UNDER WARRANTY Before servicing, read the terms and conditions of the Archgard warranty at the back of the manual. Contact the authorized Archgard dealer where you purchased the appliance from and provide them with details of the problem, along with the initial installation information (from the front of this manual). -
Page 39: Checking Inlet/Outlet Gas Pressures, Adjusting Pilot And Convertible Pilot Orifice
27-DVIE22 CHECKING INLET AND OUTLET GAS PRESSURE 1. Remove the surround. 2. The pressure test taps are located on the valve. The taps are located in the gas valve front face. The inlet is marked ‘IN’ and the outlet is marked ‘OUT’. See Fig.39-A 3. -
Page 40: Replacing Convection Blower
27-DVIE22 REPLACING COMFORT BLOWER C A U T I O N Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing This appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical code, CSA C22.1. -
Page 41: Wiring Schematic
27-DVIE22 WIRING SCHEMATICS Synchronization button Fig. 41-A Main On/Off switch must be connected to the surround switch and in the “on” position for the remote to operate the fireplace... -
Page 42: Warranty
Problem Description ❖ NOTE: Warranty may be void if work is carried out by an unqualified person (s). Only original Archgard parts may be used. Please consult your Archgard dealer or representative if in doubt about a replacement part (s). -
Page 43: Frequently Asked Questions
Q. My fan/blower makes a “whirring” or “humming” noise. A. Your Archgard gas appliance uses a powerful fan to push heated air into your room. It is not unusual to hear a “humming” noise when your fan is running. Note: the sound will change depending on the set- ting that your fan speed control is set at. -
Page 44: Replacement Parts
27-DVIE22 REPLACEMENT PARTS LIST - ARCHGARD 27-DVIE22N Item # Item Description Unit 200-1127 Owner’s Manual 308-6011 SIT Pro Flame II Electronic Control Module 308-6014 SIT Pro Flame II Handheld Transmitter 308-6017 SIT 885 Gas Valve c/w Step Motor 305-6002 Module Main Wiring Harness (5 wire) -
Page 45: Notes
27-DVIE22 NOTES... -
Page 46: Warranty Registration Card
POSTAGE WARRANTY REGISTRATION RCHGARD NDUSTRIES 7116 BEATTY DRIVE MISSION, B.C. CANADA V2V 6B4 FOLD DOWN AT LINE FOLD DOWN AT LINE & TAPE CLOSED 27-DVIE22 Model # : Serial #: Date Installed: yyyy Name: Address: City: State/Prov: ZIP: Phone: ( _____ ) Dealer's Name &... - Page 48 Archgard Industries Ltd. 7116 Beatty Drive Mission, B.C. V2V 6B4 Canada Website: www.archgard.com...
