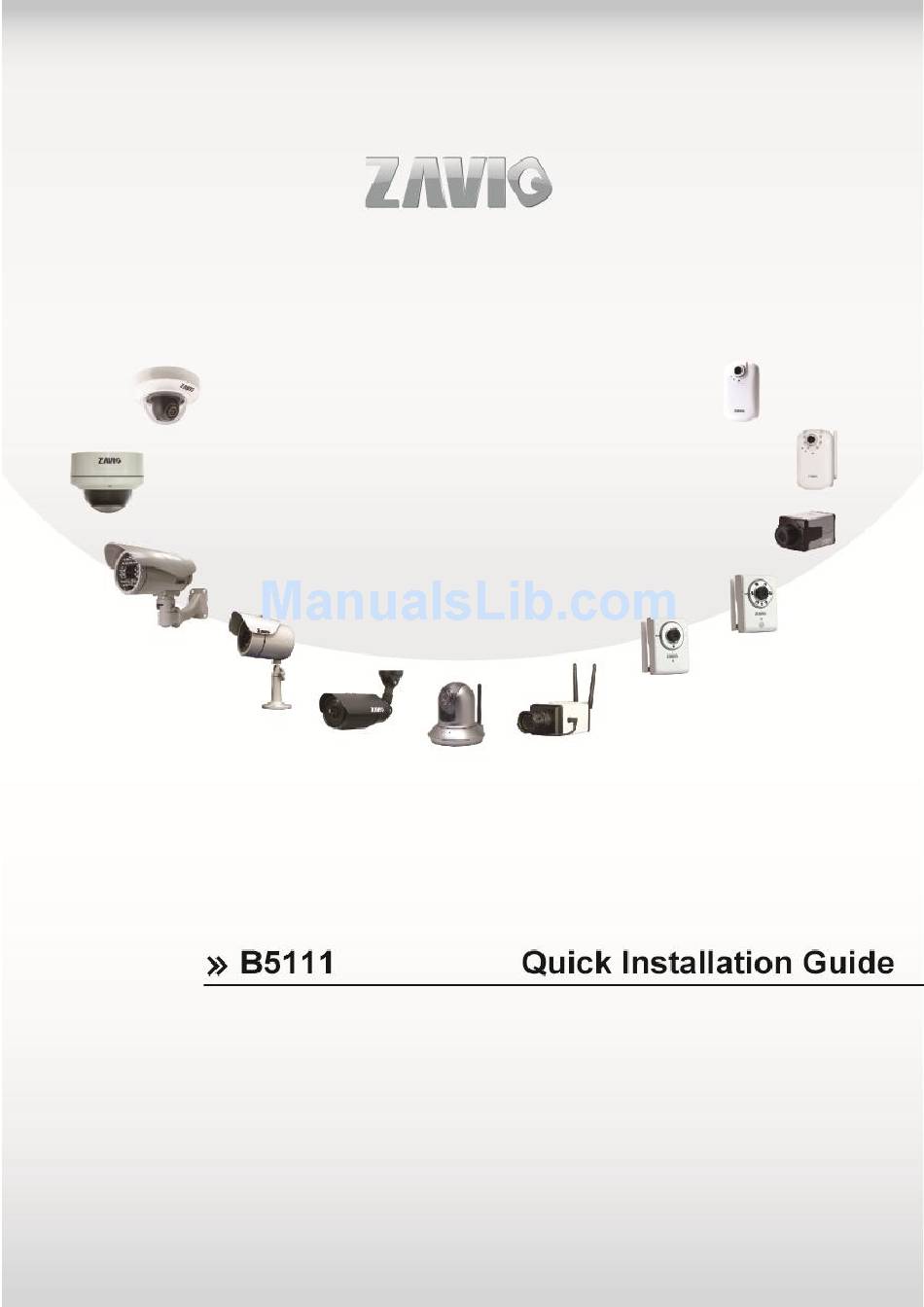

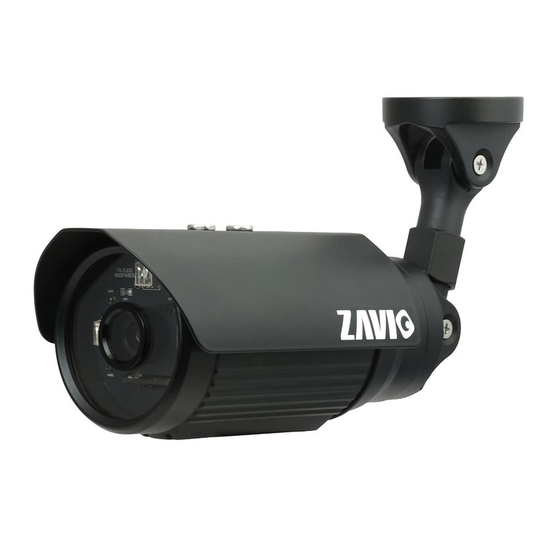

Zavio B5111/ B5210 Quick Installation Guide Please follow the installation steps below to set up your B5111/ B5210 Bullet IP Camera. Check the package contents against the list below. See P.1 Physical overview. See P.2 LED Indicator Definition. See P.2 Install the hardware and connect all cables. -
Page 3: Physical Overview. See
Physical Overview LED Indicator Definition Indication Steady red for booting up process. Power Steady blue for booting up completion. Flash purple for FW upgrading. Network Flash yellow while Network activity. Steady yellow means MicroSD card ready. MicroSD Card Flash yellow while accessing MicroSD card. Reset: When the device is empowered, press the Reset Button to reboot the device, or hold the Reset Button for 10 seconds to the settings back to factory default. -
Page 4: Install The Hardware And Connect All Cables. See
Install the hardware and connect all cables a. Wall mounting and Ceiling mounting 1. Use the 2 supplied screws to fix the base plate to a flat surface. 2. Loosen the screws on the bracket to aim the shooting area. 3. -
Page 5: Access The Ip Camera Using Intelligent Ip Installer. See
Access the IP Camera using Intelligent IP Installer 1. Please check two settings before using Intelligent IP Installer. b. Browser’s Internet Properties Security a. Browser’s Internet Properties Privacy Default Level Uncheck Pop-up Blocker 2. Click the Intelligent IP Installer Icon on your desktop. The main page will show up listing all active camera and video server devices. - Page 6 4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar: This website wants to install the following add-on: ‘AxvideoView.cab from ‘Zavio Inc’. 5. Click the information bar, and select Install ActiveX control.
-
Page 7: Lighting Environment Setting. See
Mac OS using Safari Browser 2. Click Bonjour function and select the 1. Select Safari icon camera you wish to access. 3. Enter name and password to login to the 4. The monitor image will be displayed in your browser. IP camera. -
Page 8: Change The Web Interface Into Your Preferred Language. See
Change the Web Interface into your preferred language Use the settings screen to set the language of the Web Interface. Go to “Setting > System > Maintenance ”. 1. Insert Software CD into your CD-ROM. 2. Browse and select the preferred language from language pack in the Software CD and then click OK. 3. - Page 9 Memo ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………………………………………..
