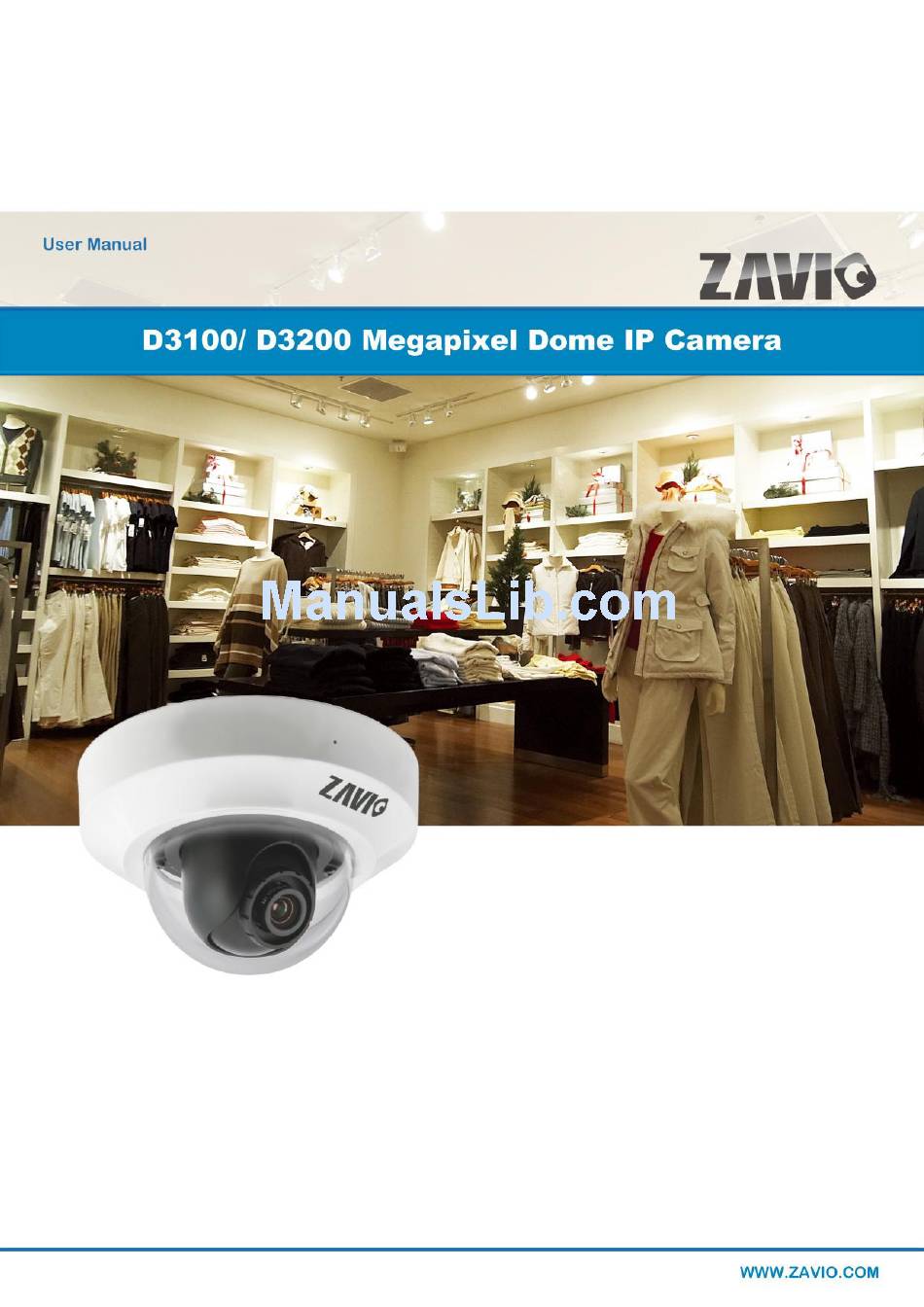

Zavio D3100 User Manual

Zavio D3100 User Manual

Megapixel dome ip camera
Hide thumbs Also See for D3100:

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D3100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Zavio D3100

  • Page 2: Table Of Contents

    Content Safety Instruction ................................Minimum System Requirement & Product Feature ....................Minimum System Requirement ............................ Product Feature .............................. Main Page ..................................Basic Setup ................................ Account ................................Network................................ Date Time ..............................Video ................................Audio................................Live View................................. Video ................................Audio................................Camera Setting ............................. PTZ Control ..............................
  • Page 3: Safety Instruction

    User Manual Safety Instruction  Before you use this product This product has been designed with safety in mind. However, the electrical products can cause fires which may lead to serious body injury if it is not used properly. To avoid such accidents, be sure to heed the following.
  • Page 4  In case of a breakdown In case of system breakdown, discontinue use and contact your authorized dealer.  In case of abnormal operation  If the unit emits smoke or an unusual smell,  If water or other foreign objects enter the cabinet. ...
  • Page 5: Minimum System Requirement & Product Feature

    Minimum System Requirement & Product Feature System Requirement For normal operation and viewing of the network camera, it’s recommended that your system meet these minimum requirements for proper operation: Item Requirements Minimum Intel® Core 2 Duo or higher (Core i3 or above is recommended) Graphic Card 256 MB RAM graphic cards...
  • Page 6: Product Feature

    Product Features SYSTEM H.264 / MPEG-4 / Motion JPEG: Resolutions Higher than 1024 * 800 pixels Screen Resolution H.264 / MPEG-4 / Motion JPEG Compressing format Up to 30 fps at 1280x800 Frame Rate Rotation: Mirror, Flip, Mirror Flip Brightness / Contrast / Saturation Image settings Overlay capabilities: time, date, text and privacy image Image snapshot...
  • Page 7: Main Page

    Main Page Toolbar of Main Page...
  • Page 8 Client Setting Click the drop-down menu to choose video compression mode of Live View among H.264, MPEG-4, MJPEG and H.264. Profile Note: As long as the operating system is not able to afford loading under H.264 mode, please downgrade the mode to MPEG-4 or MJPEG. Select the desired view size of image resolution between Fit View Size Screen and Full Screen.
  • Page 9 Click the Home button and it brings you back to the center no matter what position you are Move the camera view to the direction that the various arrows you click on. Use the various direction arrows to steer the camera view to the required position, and name Preset it for the specified position.
  • Page 10: Basic Setup

    Basic Setup Account Account List The device default account and password setting is “admin / admin”. That means everyone who knows IP address can access the device including all configuration. It is necessary to create a new password if the device is intended to be accessed by specific ones.
  • Page 11: Network

    Network TCP/IP Internet Protocol Version 4 (TCP/IPv4) Obtain an IP address automatically (DHCP): If a DHCP server is installed on the network, to select this while the IP address is assigned by the DHCP server. Obtain DNS server address automatically: Select this to obtain the address of DNS server automatically.
  • Page 12 Note: Reboot the IP Camera after the network setting has been made. Note: If you connect the IP Camera with your computer directly, the default network domain of camera is 192.168.1.xx PPPoE If your ISP provides Dynamic IP with authentication by username and password, type all PPPoE information in this part.
  • Page 13: Date Time

    Use the following DNS server address: Select this when you set the fixed address as the IP address of DNS server.  Primary DNS server: Enter the IP address of the primary DNS server.  Secondary DNS server: Enter the IP address of the secondary DNS server. Note : 1.
  • Page 14: Video

    Note: The NTP server (Network Time Protocol) is the time server which is an Internet standard protocol built on the top of TCP / IP. This assures accurate synchronization to the millisecond of computer clock times in a network of computers. Video Video Setting Image...
  • Page 15 Overlay Text information can be showed on the display screen, such as Date / Time and the user-defined title. Privacy Mask Privacy Mask is an area of solid color that bans users from viewing part of monitored area. Click “Add” and a setting pop-up window comes out. A translucent rectangle is located at up left of the image, drag it to where you wish to cover and resize it.
  • Page 16: Audio

    Audio Audio Channel  Full duplex: Select it for simultaneous communication in both direction between the connected administrator and IP CAM. It means both parties can speak and be heard at the same time.  Half duplex: Select it for communication in both directions, but only one direction at a time. It cannot receive signal until the transmission has been done.
  • Page 17: Live View

     G.711 U-law : one codec for “Computer Audio”, used in North America & Japan areas.  G.711 A-law : another codec for “Computer Audio”, used in Europe and the rest of the world.  AMR Audio: an audio codec of the third generation communication for mobile. PHONE.
  • Page 18 White Balance Color Tone: 3 optional color tones(cool, real and warm), it depends on individual preference to select. Auto White Balance: This is used to adjust for the different colors present in different light sources, to make the colors in the image appear the same. The IP camera can be set to automatically identify the light source and compensate for its color.
  • Page 19: Ptz Control

    Except the View Area1 has been fixed to be full resolution, the rest of the three are available to be Note: set to resolution you wish in the drop-down menu. PTZ Control (for D3100 only) PTZ Setting You may set the speed of digital pan/tilt/zoom, and also speed for preset/patrol. The range goes 1-100(slow to fast).
  • Page 20: Playback

    Playback Client PC This is for uploading the recorded file saved in the PC and play back to see the video. Click it to upload the recorded file in the PC Click it to stop the current video Click it to pause the playing video Click it to slow down the playing speed Click it to speed up the playing speed It displays the current playing video length...
  • Page 21: Network Storage

    Network Storage Network storage provides the storage function for saving image files to the specified computer and folder connected with the operating computer. Before using this function you must go to Event Server in Event to configure all settings and make the recording file saved here.
  • Page 22: Event List

    SD Card Make sure to insert the SD Card first then click “on”. Create a folder name for event server in SD Card. Optional selection for overwrite the previous file or not, if not, you may set a warning when the capacity below the following percentage:5%, 10%, 25% and 50%.
  • Page 23: Motion Detection

     IP Notification: The event is triggered when the network being restarted or the IP being changed. And there are optional network types to select, such as DHCP、Static IP and PPPoE. Action There are multiple choices for action taking which is optional for user to select all of them or part of them: Send Image、Send Notification、Activate Digital Output or Night Mode.
  • Page 24: Tampering Detection

    Tampering Detection Select “on” if you want to activate the tempering detection. Trigger Duration: This setting is set for the trigger will be started for the duration of tampering lasts you configure. The duration range is from 5 seconds to 900 seconds. Schedule The schedule is made for Event List to set the recording period.
  • Page 25: Security

    Security Account Please refer to p.9 IP Address Filter Once enabled it, the listed IP address are allowed or denied access to the product. Add the IP Address that you’d like to allow or deny and select allow or deny from the list and save it. HTTPS HTTPS is a URL scheme used to indicate a secure HTTP connection.
  • Page 26 General RTP Port Range: The default value of port range is 5000 ~ 7999 and can be changed from 1124 to 65534. RTSP Port: The default value is 554. If the IP Cameras connected with router and installed outside are over 2 sets and all of them need support RTSP, please fill the value in the blank space in the range from 1124 to 65534.
  • Page 27: Digital I/O

    DDNS DDNS is a system which allows the domain name data held in a name server to be updated in real time. The most common use for DDNS is allowing an internet domain name to be assigned to a computer with a varying / dynamic IP Address.
  • Page 28: Electromagnetic Compatibility (Emc)

    Electromagnetic Compatibility (EMC) FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This manual is also suitable for:

D3200
