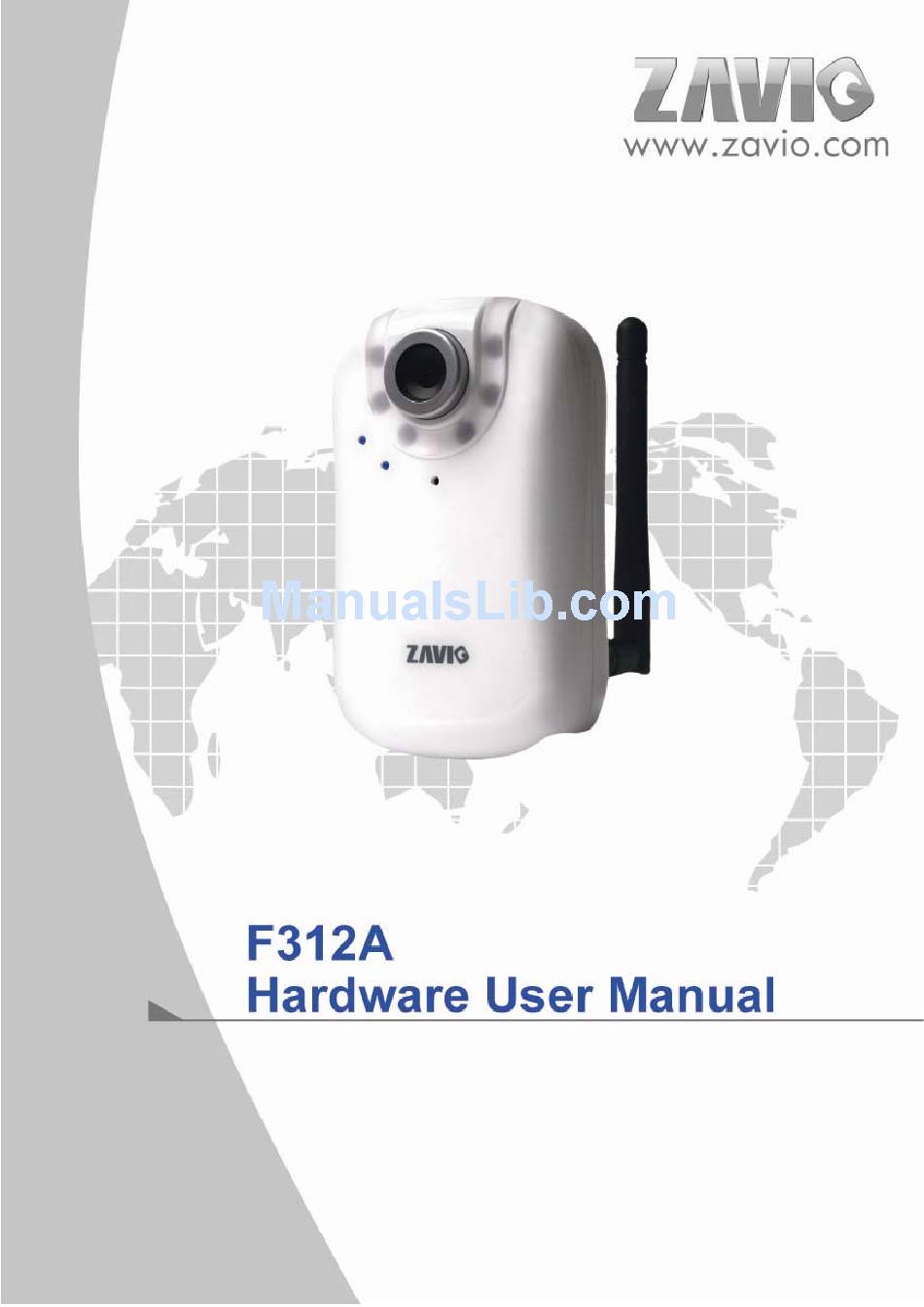

  • Page 1 F312A User Manual...

  • Page 2: Table Of Contents

    F312A User Manual F312A IP Camera Hardware User Manual -Contents- Statement and Declaration CHAPTER 1. SAFETY INSTRUCTION ..................6 CHAPTER 2. INTRODUCTION .....................8 CHAPTER 3. PACKAGE CONTENTS ..................9 CHAPTER 4. PHYSICAL DESCRIPTION..................10 ................................10 4.1 F RONT ............................... 11 4.2 B OTTOM CHAPTER 5.
  • Page 3 F312A User Manual Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:...
  • Page 4 F312A User Manual Česky [Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními [Czech] požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets [Danish] typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
  • Page 5 F312A User Manual Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in Nederlands overeenstemming is met de essentiële eisen en de andere relevante bepalingen van [Dutch] richtlijn 1999/5/EG. Malti Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma [Maltese] mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva...

  • Page 6: Federal Communication Commission Interference Statement

    F312A User Manual Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 7: Chapter 1. Safety Instruction

    F312A User Manual Hardware User Manual Chapter 1. Safety Instruction  Before you use this product This product has been designed with safety in mind. However, the electrical products can cause fires which may lead to serious body injury if not used properly. To avoid such accidents, be sure to heed the following.
  • Page 8 F312A User Manual  In case of a breakdown In case of system breakdown, discontinue use and contact your authorized dealer.  In case of abnormal operation If the unit emits smoke or an unusual smell,  If water or other foreign objects enter the cabinet, or ...

  • Page 9: Chapter 2. Introduction

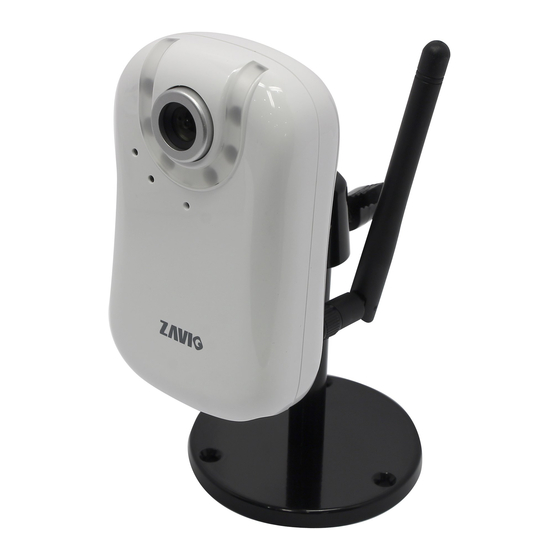

    F312A User Manual Chapter 2. Introduction The ZAVIO F312A is an ultra-compact IP Camera equipped with a high sensitivity progressive scan CMOS sensor, achieving high image quality and superior low-light performance. F312A also supports 802.11b/g wireless connection and night-vision capability even in complete darkness through 6 high power LEDs.

  • Page 10: Chapter 3. Package Contents

    F312A User Manual Chapter 3. Package Contents - F312A Network Camera Camera - To provide brief product information and quick installation and Quick Installation Guide wireless setting - To provide IP Surveillance Software, Intelligence IP Installer, User Manuals, and Software CD Language Packs –...

  • Page 11: Chapter 4. Physical Description

    F312A User Manual Chapter 4. Physical Description 4.1 Front View  Focus Adjustment Ring - Adjust focus manually to achieve the best image quality  Night-Vision White LEDs - LEDs will light up when the environment is too dark. ...

  • Page 12: Bottom View

    F312A User Manual 4.2 Bottom View  Power Connector - For connection of 5V DC input.  Reset – When the device is empowered, press the Reset Button to reboot the device, or hold the Reset Button for 10 seconds to set the device settings back to factory default ...

  • Page 13: Chapter 5. Basic Connection

    F312A User Manual Chapter 5. Basic Connection F312A is for both wire and wireless connection. You can follow the procedure below to connect the IP Camera with power and Ethernet for both wire and wireless connection. 5.1 Wire Connection 1. Connect the power adaptor to IP Camera.

  • Page 14: Chapter 6. Application

    F312A User Manual Chapter 6. Application...
