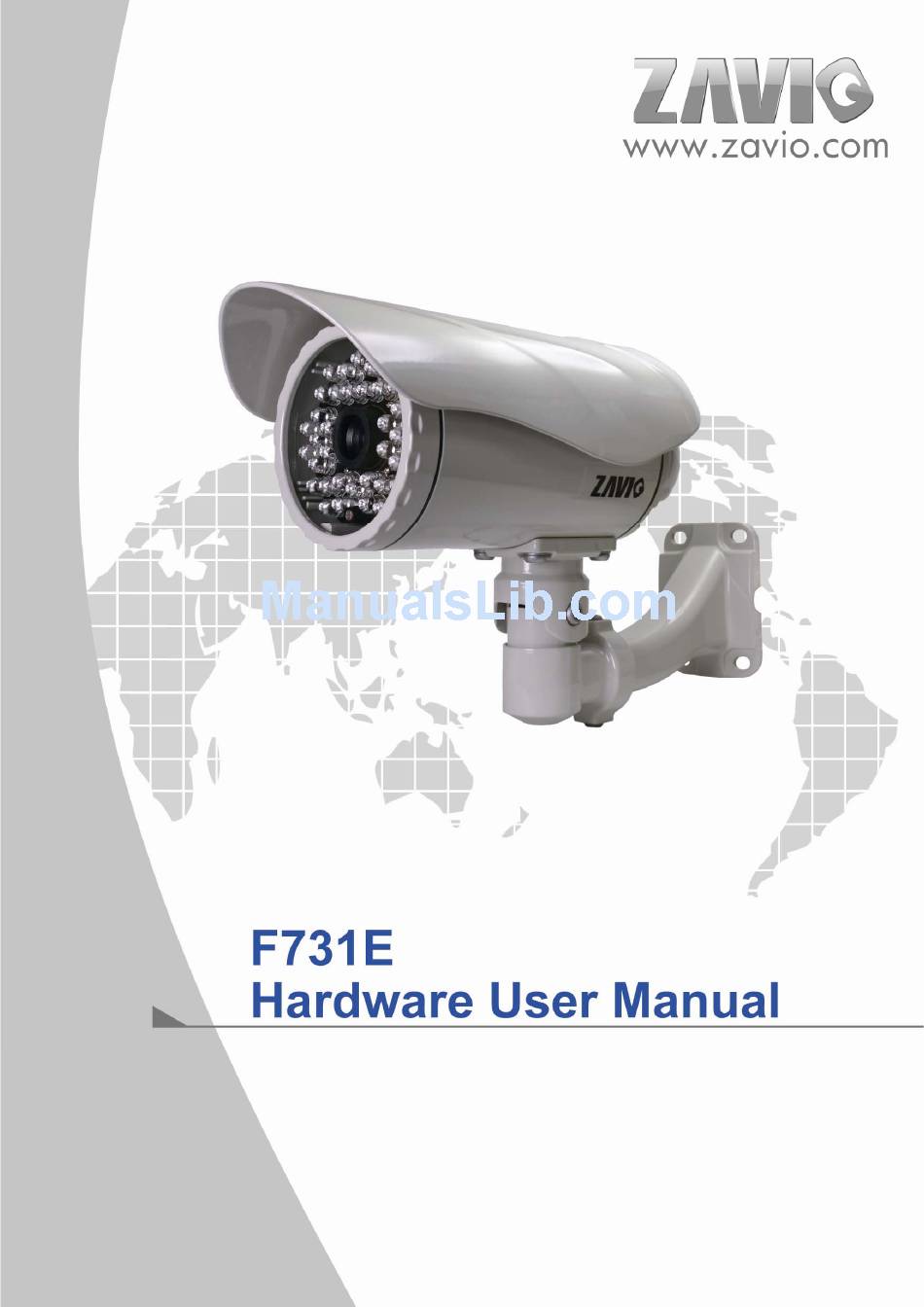

- Page 1 F731E User Manual...
-
Page 2: Table Of Contents
F731E User Manual F731E 35M IR Outdoor IP Camera Hardware User Manual -Contents- CHAPTER 1. SAFETY INSTRUCTION ..................2 CHAPTER 2. INTRODUCTION .....................4 CHAPTER 3. PACKAGE CONTENTS ..................5 CHAPTER 4. PHYSICAL DESCRIPTION..................6 CHAPTER 5. BASIC CONNECTION ....................7 5.1 P E) C ...................... -
Page 3: Chapter 1. Safety Instruction
F731E User Manual Hardware User Manual Chapter 1. Safety Instruction Before you use this product This product has been designed with safety in mind. However, the electrical products can cause fires which may lead to serious body injury if not used properly. To avoid such accidents, be sure to heed the following. - Page 4 F731E User Manual In case of a breakdown In case of system breakdown, discontinue use and contact your authorized dealer. In case of abnormal operation If the unit emits smoke or an unusual smell, If water or other foreign objects enter the cabinet, or ...
-
Page 5: Chapter 2. Introduction

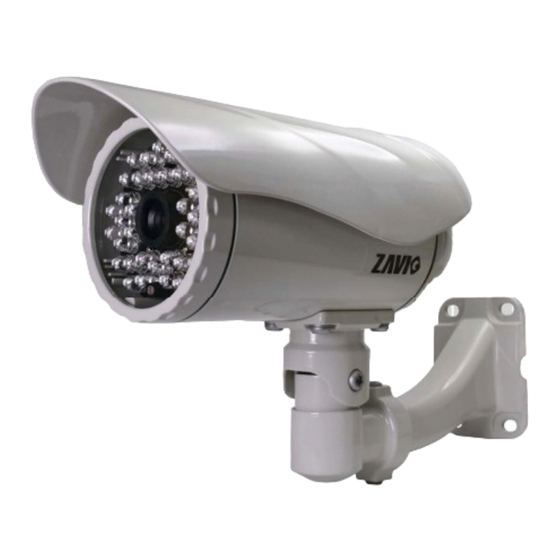

F731E User Manual Chapter 2. Introduction The F521E is an IP67 rated weather proof IP camera designed for 24hr indoor/outdoor surveillance even in the harshest conditions. The F7311E is equipped with high resolution CMOS sensor with infrared LEDs with up to 35m working distance. The auto-changeable IR filter inside also provides superior day/night performance. -
Page 6: Chapter 3. Package Contents
F731E User Manual Chapter 3. Package Contents Camera – F731E Outdoor IR Network Camera Quick Installation Guide - To provide brief product information and quick installation and wireless setting Software CD - To provide IP Surveillance Software, Intelligence IP Installer, User Manuals, and Language Packs Wall Bracket –... -
Page 7: Chapter 4. Physical Description
F731E User Manual Chapter 4. Physical Description Overview Infrared LEDs - Infrared LEDs for night use up to 15 working distance Housing- IP67 related protection against dust and heavy rain Reset - When the device is empowered, press the Reset Button to reboot the device, or hold the Reset Button for 10 seconds to set the device settings back to factory default ... - Page 8 F731E User Manual DI / DO Terminal connector diagram Please refer the following illustration below for connection method. NO COM D- D+ Ground Switch Alarm out device Ground Max. 30W...
-
Page 9: Chapter 5. Basic Connection
F731E User Manual Chapter 5. Basic Connection F731E offers Power over Ethernet (PoE) connection. However, you still can use F731E with PoE or without PoE connection. You can follow the procedure below to connect the IP Camera for both applications. 5.1 Power over Ethernet (PoE) Connection 1. -
Page 10: Chapter 6. Application
F731E User Manual Chapter 6. Application...
