Summary of Contents for Zavio M511E

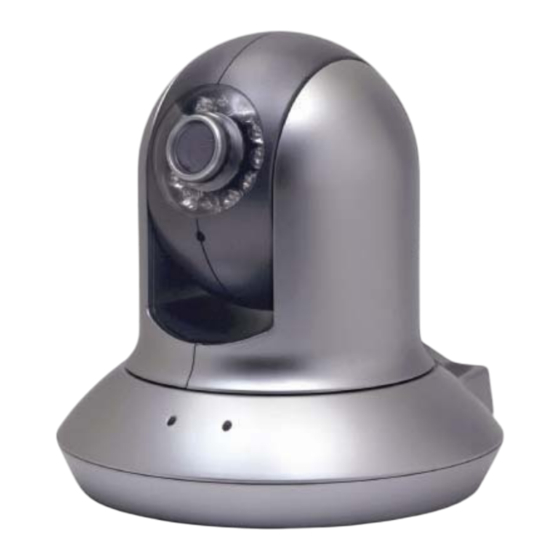

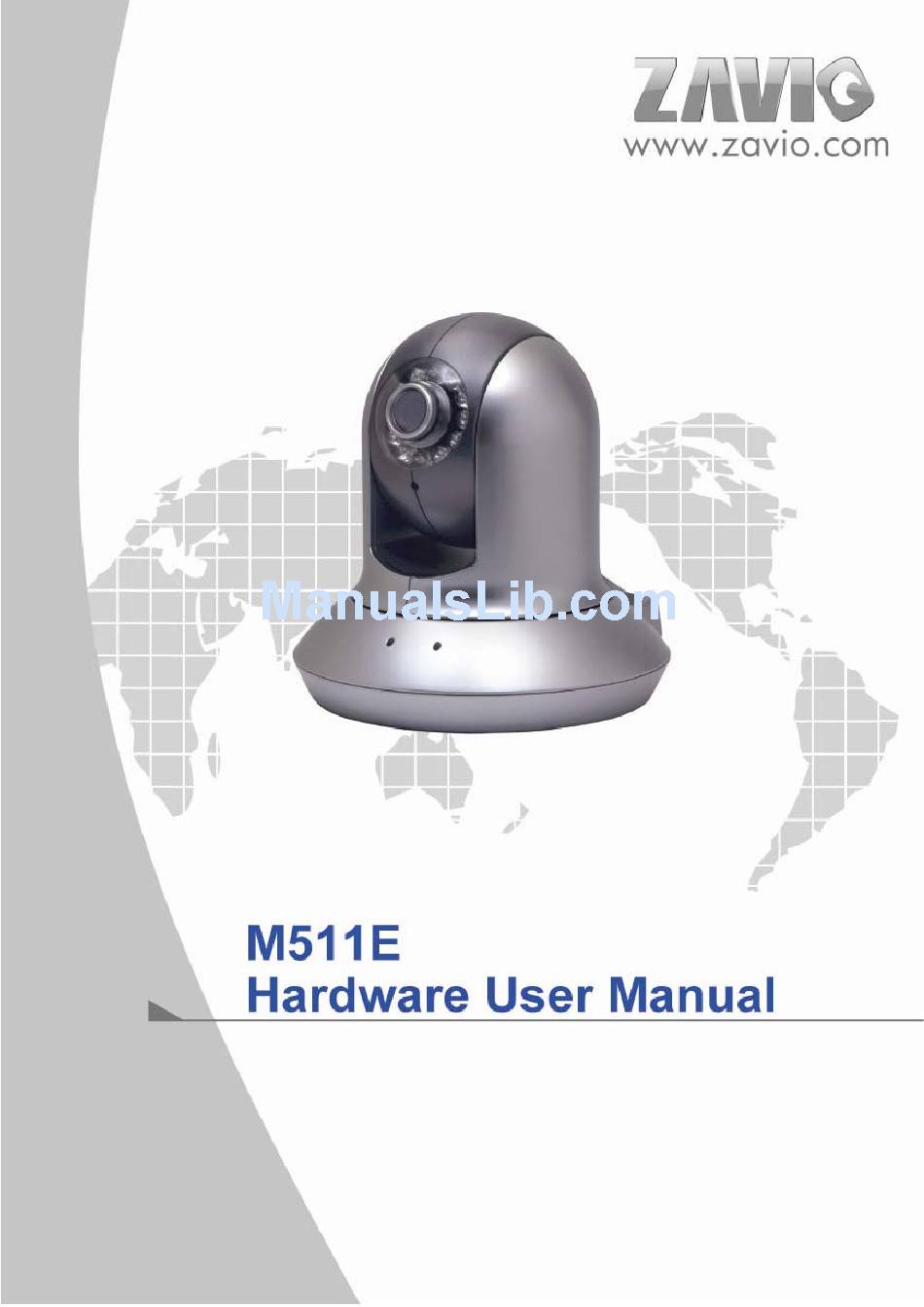

- Page 1 M511E User Manual...
-
Page 2: Table Of Contents
M511E User Manual M511E Day/Night Pan/Tilt IP Camera Hardware User Manual -Contents- CHAPTER 1. SAFETY INSTRUCTION ..................2 CHAPTER 2. INTRODUCTION .....................4 CHAPTER 3. PACKAGE CONTENTS ..................5 CHAPTER 4. PHYSICAL DESCRIPTION..................6 CHAPTER 5. BASIC CONNECTION ....................8 5.1 W ..........................8 ITHOUT ONNECTION 5.2 W... -
Page 3: Chapter 1. Safety Instruction
M511E User Manual Hardware User Manual Chapter 1. Safety Instruction Before you use this product This product has been designed with safety in mind. However, the electrical products can cause fires which may lead to serious body injury if not used properly. To avoid such accidents, be sure to heed the following. - Page 4 M511E User Manual In case of a breakdown In case of system breakdown, discontinue use and contact your authorized dealer. In case of abnormal operation If the unit emits smoke or an unusual smell, If water or other foreign objects enter the cabinet, or ...
-
Page 5: Chapter 2. Introduction
M511E User Manual Chapter 2. Introduction The M511E Day/Night Pan/Tilt IP Camera provides full overview and true day/night capabilities to be the perfect solution for indoor applications that need to cover everything at anytime, but still be cost-effective. Key Features: ... -
Page 6: Chapter 3. Package Contents
Quick Installation Guide Software CD Component Pack Camera Camera – M511E Day / Night Pan / Tilt IP Camera Quick Installation Guide - To provide brief product information and quick installation and wireless setting Software CD - To provide IP Surveillance Software, Intelligence IP Installer, User Manuals, and... -
Page 7: Chapter 4. Physical Description
M511E User Manual Chapter 4. Physical Description Overview Focus Adjustment Ring - Adjust focus manually to achieve the best image quality Infrared LEDs - Infrared LEDs for night use up to 10 working distance Built-In Microphone - Built-In Microphone for Two-way Audio ... - Page 8 M511E User Manual DI / DO Terminal connector diagram Please refer the following illustration below for connection method. D+ D- COM NO Ground Switch Alarm out device Ground Max. 30W...
-
Page 9: Chapter 5. Basic Connection
M511E User Manual Chapter 5. Basic Connection M511E offers Power over Ethernet (PoE) connection. However, you still can use M511E with PoE or without PoE connection. You can follow the procedure below to connect the IP Camera for both applications. -
Page 10: Chapter 6. Application
M511E User Manual Chapter 6. Application...
