Summary of Contents for Zavio F210A

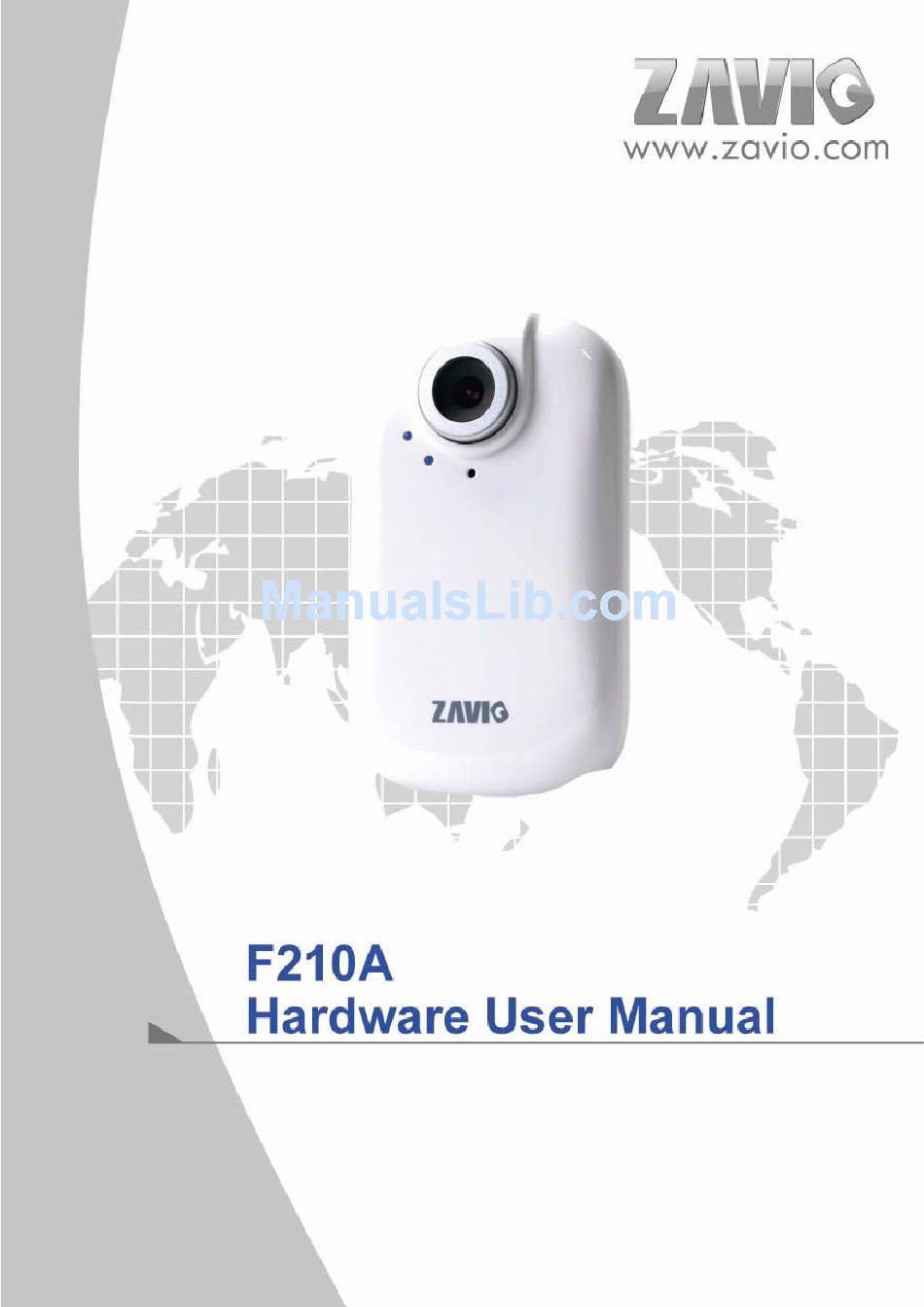

  • Page 1 F210A User Manual...
  • Page 2: Table Of Contents

    F210A User Manual F210A IP Camera Hardware User Manual -Contents- CHAPTER 1. SAFETY INSTRUCTION ..................2 CHAPTER 2. INTRODUCTION .....................4 CHAPTER 3. PACKAGE CONTENTS ..................5 CHAPTER 4. PHYSICAL DESCRIPTION..................6 4.1 F ................................6 RONT 4.2 B ................................. 7 OTTOM CHAPTER 5. BASIC CONNECTION ....................8...
  • Page 3: Chapter 1. Safety Instruction

    F210A User Manual Hardware User Manual Chapter 1. Safety Instruction  Before you use this product This product has been designed with safety in mind. However, the electrical products can cause fires which may lead to serious body injury if not used properly. To avoid such accidents, be sure to heed the following.
  • Page 4 F210A User Manual  In case of a breakdown In case of system breakdown, discontinue use and contact your authorized dealer.  In case of abnormal operation  If the unit emits smoke or an unusual smell,  If water or other foreign objects enter the cabinet, or ...
  • Page 5: Chapter 2. Introduction

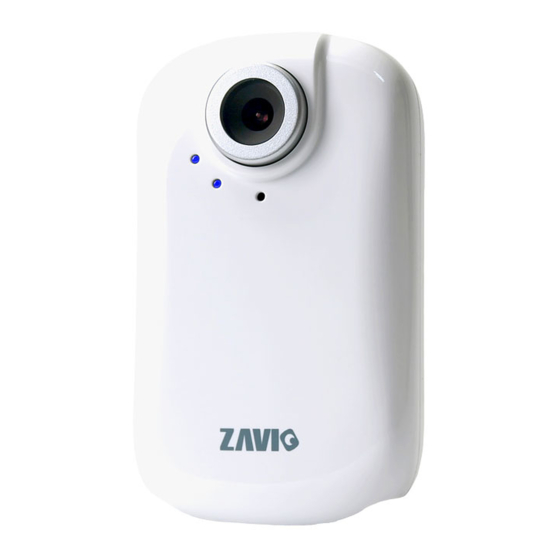

    F210A User Manual Chapter 2. Introduction The Zavio F210A is an ultra-compact IP Camera equipped with a high sensitivity progressive scan CMOS sensor, achieving high image quality and low-light performance. Although it is one of the world's smallest IP Cameras, it still provides all the powerful features and great quality.
  • Page 6: Chapter 3. Package Contents

    F210A User Manual Chapter 3. Package Contents Camera - F210A Network Camera Quick Installation Guide - To provide brief product information and quick installation and wireless setting Software CD - To provide IP Surveillance Software, Intelligence IP Installer, User Manuals, and...
  • Page 7: Chapter 4. Physical Description

    F210A User Manual Chapter 4. Physical Description 4.1 Front View  Focus Adjustment Ring - Adjust focus manually to achieve the best image quality  Network LED Indicator - Network LED will light up after the IP Camera connected with network ...
  • Page 8: Bottom View

    F210A User Manual 4.2 Bottom View  Power Connector - For connection of 5V DC input  Network Connector - For connection to the Ethernet via RJ-45 standard  Reset - When the device is empowered, press the Reset Button to reboot the device, or hold the Reset Button for 10 seconds to set the device settings back to factory default ...
  • Page 9: Chapter 5. Basic Connection

    F210A User Manual Chapter 5. Basic Connection F210A is for wire connection. You can follow the procedure below to connect the IP Camera with power and Ethernet for wire connection. Wire Connection 1. Connect the power adaptor to IP Camera.
  • Page 10: Chapter 6. Application

    F210A User Manual Chapter 6. Application...
