- Page 1 LE-37P 3.5 inch Motherboard User’s Manual Edition 1.1 2021/11/18...
- Page 2 LE-37P User’s Manual Copyright Copyright 2021, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
- Page 3 LE-37P User’s Manual Packing List: Please check the package content before you starting using the board. 1 x LE-37P 3.5 inch Miniboard 1 x SATA Power Cable (Include cooler fan) (OALSATA15-2PJ / 1040613) Appendix G 1 x Audio cable 1 x Dual COM cable...
-
Page 4: Table Of Contents
LE-37P User’s Manual Index Chapter 1 <Introduction>..............4 1.1 <Product Overview>............4 1.2 <Product Specification> ............5 1.3 <Block Diagram>..............6 Chapter 2 <Hardware setup> ............7 2.1 <Connector Location and Reference> ........ 7 2.1.1 <Internal connectors list> ..........8 2.1.2 <External connectors list>.........8 2.2 <Memory Setup>..............9... -
Page 5: Chapter 1

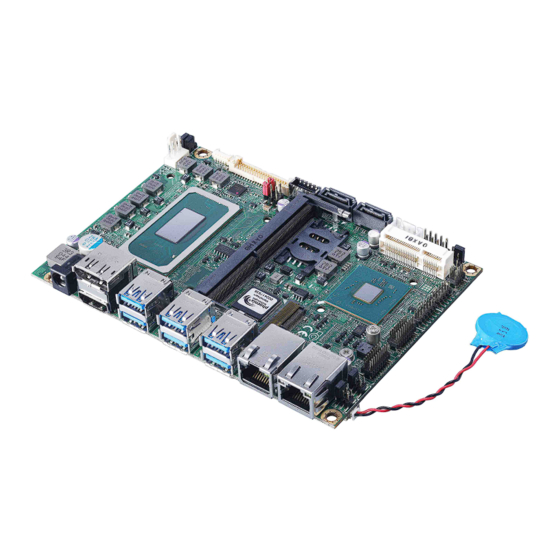

LE-37P User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LE-37P is a 3.5” Motherboard which supports Tiger Lake/11th Gen H Processors, integrated UHD Graphics, DDR4 memory, Realtek High Definition Audio, Intel Gigabit LAN, USB3.2 Gen2, SATA3 with AHCI function for a system. -
Page 6: Product Specification
LE-37P User’s Manual 1.2 <Product Specification> System Processor Tiger Lake/11th Gen H Processor FCBGA1787 package Chipset Intel® QM580E / RM590E (TGL-H Xeon CPUs have to use RM590E) Memory 1 x DDR4 SO-DIMM 3200 MHz up to 32GB, Support Non-ECC, unbuffered memory... -
Page 7: Block Diagram
LE-37P User’s Manual 1.3 <Block Diagram> PTN3460 DDR4 SODIMM 3200 LVDS Tiger Lake H Processor 1 x M.2 KEY M 2280 1 x M.2 KEY M 2280 HDMI 1 x PCIe X16 Slot DMI x8 2 x SATA I219-LM QM580E 1 x M.2 2230... -
Page 8: Chapter 2
LE-37P User’s Manual Chapter 2 <Hardware setup> 2.1 <Connector Location and Reference> TYPE_E DC_OUT CN_INV CN_LVDS SATA3-1 SATA3-2 CN_USB CN_AUDIO CPUFAN JFRNT MINI_CARD CN_DIO CN_COM3/4 CN_COM1/2 M.2 KEY E CN_SMBUS DC_2PJ SYSFAN CN_BAT... -
Page 9: Internal Connectors List
LE-37P User’s Manual i225-LM i219-LM HDMI USB3.2 Gen2 2.1.1 <Internal connectors list> Connector Function DDR4_A 260-pin DDR4 SO-DIMM slot SATA3-1/2 7-pin SATA3 connector CN_AUDIO 5 x 2-pin audio pin header CN_LVDS 20 x 2-pin LVDS connector CN_INV 5-pin LCD inverter connector... -
Page 10: Memory Setup
LE-37P User’s Manual 2.2 <Memory Setup> LE-37P has 260-pin DDR4 SODIMM support up to 32GB of memory capacity and 1.2 Voltage. The memory frequency supports 3200 MHz. Only Non-ECC memory is supported. In the process, the board must be powered off. -
Page 11: Jumper Location And Reference
LE-37P User’s Manual 2.3 <Jumper Location and Reference> JRTC JVLCD JMSATA DC_I CN_I 2.3.1 <Jumper list> Jumper Function Power mode select JRTC CMOS Normal/Clear Setting JVLCD Panel Voltage Setting JMSATA MiniCard mSATA Setting COM1 Voltage Setting (For Pin 9) COM2 Voltage Setting (For Pin 9) -
Page 12: Clear Cmos And Power On Type Selection
LE-37P User’s Manual 2.3.2 <Clear CMOS and Power on type selection> JRTC JAT: AT/ATX mode select jumper Jumper settings Function AT mode ATX mode (Default) JRTC: Clear CMOS data jumper Jumper settings Function Clear CMOS Normal (Default) -11-... -
Page 13: I/O Interface
LE-37P User’s Manual 2.4 <I/O interface> 2.4.1 <Serial ATA interface> SATA 1/2 : SATA3 7-pin connector SATA3-1 SATA3-2 Signal -12-... -
Page 14: Ethernet Interface
LE-37P User’s Manual 2.4.2 <Ethernet interface> The board provides I219-LM Gigabit Ethernet which supports WOL on rear I/O. It supports Intel® AMT 15.0 feature on I219-LM. (Note that the CPU must support vPro technology.) I225-LM I219-LM 2.4.3 <Display interface> Based on the 11th Gen CPU with built-in Intel® UHD Graphics, the DisplayPort... - Page 15 LE-37P User’s Manual CN_INV CN_LVDS JVLCD CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD Detect (Active low) A_LVDS_0- B_LVDS_0- A_LVDS_0+ B_LVDS_0+ A_LVDS_1- B_LVDS_1- A_LVDS_1+ B_LVDS_1+ A_LVDS_2- B_LVDS_2- A_LVDS_2+ B_LVDS_2+ A_LVDS_CLK- B_LVDS_3-...
-
Page 16: Serial Port Interface
LE-37P User’s Manual CN_INV: LVDS 5-pin Backlight power connector Signal Backlight Control Enable Backlight JVLCD: LVDS panel power select jumper Jumper settings Function 3.3V (Default) 2.4.4 <Serial Port interface> CN_COM3/4 CN_COM1/2 -15-... - Page 17 LE-37P User’s Manual COM1/2: RS232/422/485 20-pin header (Pitch 2.54 x 1.27mm) Signal Signal DCD1/ 422TX-/ 485- RXD1/ 422TX+/ 485+ TXD1 DTR1 DSR1/ 422RX+ RTS1 CTS1/ 422RX- DCD2/ 422TX-/ 485- RXD2/ 422TX+/ 485+ TXD2 DTR2 DSR2/ 422RX+ RTS2 CTS2/ 422RX- COM1 & COM2 RS-232/422/485 can set by BIOS.
- Page 18 LE-37P User’s Manual COM3/4: RS232 20-pin header (Pitch 2.54 x 1.27mm) Signal Signal DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 DCD2 RXD2 TXD2 DTR2 DSR2 RTS2 CTS2 -17-...
-
Page 19: Usb Interface
LE-37P User’s Manual 2.4.5 <USB interface> TYPE_E CN_USB USB3.2 Gen2 CN_USB: USB2.0 10-pin header (Pitch 2.54 mm) Signal Signal 5VSB 5VSB DATA0- DATA1- DATA0+ DATA1+ -18-... -
Page 20: Audio Interface
LE-37P User’s Manual TYPE_E: USB3.2 Gen2 20-pin header (Cable optional) Signal Signal USB3.2_Gen2_TX1+ USB2.0_DATA+ USB3.2_Gen2_TX1- USB2.0_DATA- USB3.2_Gen2_RX1+ USB3.2_Gen2_RX2- USB3.2_Gen2_RX1- USB3.2_Gen2_RX2+ USB3.2_Gen2_TX2- USB3.2_Gen2_TX2+ 2.4.6 <Audio interface> CN_AUDIO 2.54*1.27 CN_AUDIO: Front panel audio 10-pin header (Pitch Signal Signal MIC_L MIC_R FP_OUT_R MIC_DETECT... -
Page 21: Expansion Slot
LE-37P User’s Manual 2.4.7 <Expansion slot> JMSATA MINI_CARD M.2 KEY E -20-... -
Page 22: Front Panel Switch And Indicator
LE-37P User’s Manual MINI_CARD support mSATA by JMSATA, and connect SIM card M.2_NVME1 support PCIe Gen4 and SATA M.2_NVME2 supoort PCIe Gen4 JMSATA: Setting MINI_CARD to support PCIe/mSATA Jumper settings Function Support mSATA Normal operation (Default) 2.4.8 <Front panel switch and indicator>... -
Page 23: Gpio And Other Interface
LE-37P User’s Manual 2.4.9 <GPIO and Other interface> CN_DIO CPUFAN CN_SMBUS SYSFAN -22-... - Page 24 LE-37P User’s Manual When using GPIO function, please note: As Output: Open-drain, most applications need use an external pull up resistor. (If not may cause damage) As Input: TTL-level. GPIO DC characteristics (open drain mode) Parameter UNIT Conditions Input Low Voltage...
-
Page 25: Power Supply
LE-37P User’s Manual 2.5 <Power supply> 2.5.1 <Power input> DC_2PJ DC_IN DC_2PJ: 3-pin 9~35V connector Signal Signal 9~35V 2.5.2 <Power Output> DC_OUT: SATA power 4-pin connector Signal -24-... -
Page 26: Appendix A
LE-37P User’s Manual Appendix A <Flash BIOS> A.1 <Flash tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: FPT Tool The tool’s file name is “FPT.exe”, it’s the utility that can write the data into the... -
Page 27: Appendix B
LE-37P User’s Manual Appendix B <LCD Panel Type select> According your panel, it needs to select the correct resolution in the BIOS. If there is no fit your panel type, please feedback for us to make OEM model. Find the setting from Advanced->Motherboard Advanced menu->LVDS Configuration... -
Page 28: Appendix C
LE-37P User’s Manual Appendix C <Programmable Watch Dog Timer> The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. You can select Timer setting in the BIOS, after setting the time options, the system will reset according to the period of your selection. - Page 29 LE-37P User’s Manual Program sample Watchdog timer setup as system reset with 5 second of timeout -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 08 ;select Logical Device -o 4E 30 -o 4F 01 ; activate WDTO# function...
-
Page 30: Appendix D
LE-37P User’s Manual Appendix D <Hardware Monitor> Find the setting from Advanced-> Motherboard Advanced menu-> Super IO configuration-> Hardware Monitor -29-... -
Page 31: Appendix E
LE-37P User’s Manual Appendix E <Programmable GPIO> The GPIO can be programmed using simple IN/OUT commands. GPIO -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 07 ;select Logical Device -o 4E 30 -o 4F 10 ;activate GPIO function (The board use GPIO4) -
Page 32: Appendix F
LE-37P User’s Manual Appendix F <RAID Setting> When use RAID function, it need to enter the BIOS set RAID mode first. Advanced Intel Advanced menu SA Configuration VMD Configuraion 1. Find VMD controller, and set to enable 2. Set “Map this Root port under VMD” to enable. -
Page 33: Appendix G
LE-37P User’s Manual Appendix G <Cooler fan> You will see two different cool fans on CPU. OHS-P-M-L is for high power CPU (Core™ i7-11850HE, Core™ i5-11500HE, Xeon® W-11865MRE, Xeon® W-11555MRE, Xeon® W-11155MRE) OHS-P-M-L OHS-P-M-K is for low power CPU (Core™ i3-11100HE, Celeron® 6600HE, Xeon®... -
Page 34: Contact Information
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -33-...
