Summary of Contents for Commell LP-180

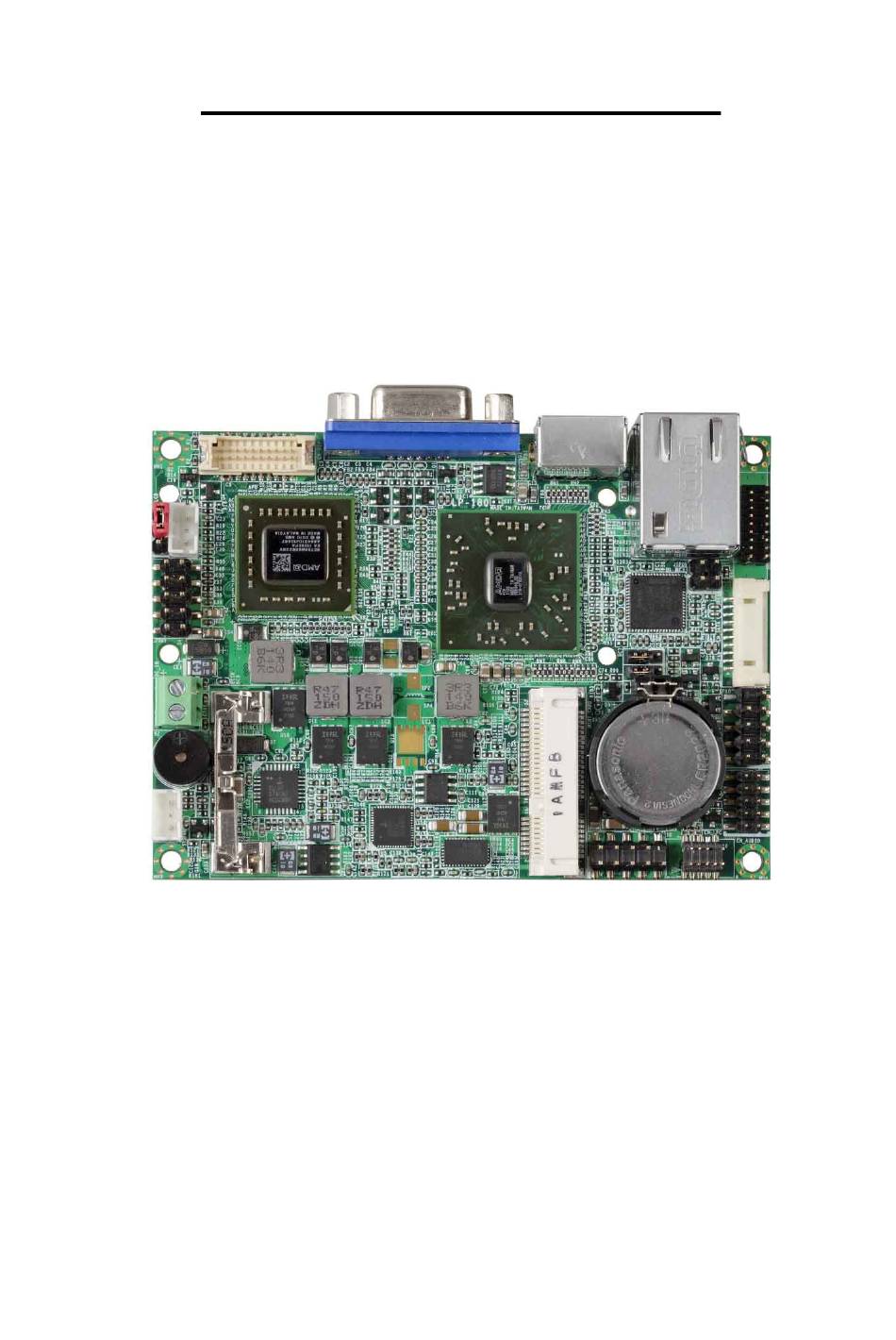

- Page 1 LP-180 Pico-ITX User’s Manual 2012/02/23 Version:1.0...
- Page 3 Trademark All trademarks are the property of their respective holders. Any questions please visit our website at http://www.commell.com.tw...
-
Page 4: Packing List
LE-380 User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: LE-380 3.5“ Miniboard x 1 Cable Kit: Audio Cable x 1 (OALPJ-HDUNB) USB Cable x 1 (OALUSBA-3) DVI Module With DVI Cable x 1 PS/2 keyboard &... - Page 5 LE-380 User’s Manual Index Chapter 1 <Introduction> ................. 6 1.1 <Product Overview>....................6 1.2 <Product Specification> ..................7 1.3 <Mechanical Drawing> ..................9 1.4 <Block Diagram> ....................10 Chapter 2 <Hardware Setup>................. 11 2.1 <Connector Location> ..................11 2.2 <Jumper Reference>....................13 2.3 <Connector Reference> ..................14 2.3.1 <Internal Connector>...
-
Page 6: Table Of Contents
LE-380 User’s Manual Appendix A <I/O Port Pin Assignment> ............35 A.1 <SATA Port> ..................... 35 A.2 < CRT Port > ...................... 35 A.3 <LAN Port>......................35 A.4 <LAN LED Port>....................36 A.5 <LPC Port> ......................36 Appendix B <Flash BIOS>................37 B.1 BIOS Auto Flash Tool.................. - Page 7 LE-380 User’s Manual (This page is left for blank)
-
Page 8: Chapter 1

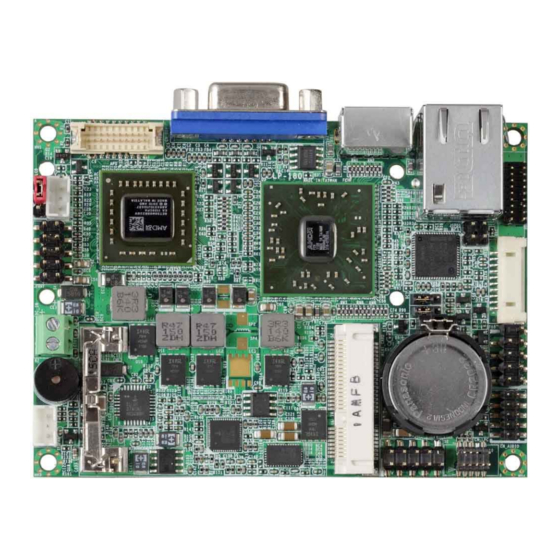

Chapter 1 <Introduction> 1.1 <Product Overview> LP-180 is the PICO-ITX miniboard with AMD G-T56N platform, with onboard VGA, Realtek ALC888 HD Codec audio, Giga LAN interface. Based on the AMD G-T56N Processor , the board provides many advanced features for reduced power consumption. -
Page 9: Product Specification
LE-380 User’s Manual 1.2 <Product Specification> General Specification Form Factor PICO-ITX miniboard AMD G-Series T56N Processor 1.65GHz Memory 1 x 204-pin DDR3 1066/1333 SO-DIMM SDRAM up to 4G Chipset AMD A55E FCH Watchdog Timer System reset programmable watchdog timer with 1 ~ 255 sec./min. - Page 10 Temperature Operating within 0 ~ 60℃ Storage within -20 ~ 85℃ Ordering Code LP-180D Same as LP-180 but without VGA, support LP-180X Same as LP-180 but without VGA, support Chipset Integrated 18-bit single channel LVDS The specifications may be different as the actual production.
-
Page 11: Mechanical Drawing
LE-380 User’s Manual 1.3 <Mechanical Drawing>... -
Page 12: Block Diagram
LE-380 User’s Manual 1.4 <Block Diagram> DDR3 SODIMM 4GB max. G-T56N CRT / DVI / LVDS HD Audio Mini card socket A55E 4 x USB port 1 x SATA PS2 KB/MS Giga LAN 2 x Serial Port W83627DHG-P... -
Page 13: Chapter 2
LE-380 User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> CPUFAN CN_DDP CN_COM1/2 JFRNT CN_SATA DC_IN CN_USB1 SYSFAN CN_LPC MINI_CARD CN_USB2 CN AUDIO... - Page 14 LE-380 User’s Manual CN_INV DC_OUT SO-DIMM LP-180 RJ45...
-
Page 15: Jumper Reference
LE-380 User’s Manual 2.2 <Jumper Reference> Jumper Function JRTC CMOS Operating/Clear Setting AT/ATX Mode Setting JVLCD LCD Panel Voltage Setting JVLCD JRTC... -
Page 16: Connector Reference
LE-380 User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connector> Connector Function Remark SO-DIMM 204 -pin DDR3 SO-DIMM SDRAM slot CN_SATA 10-pin SATA Cable connector MINI_CARD PCIE mini card socket CN_DDP 20 -pin LVDS connector(LP-180X) 20 -pin DVI connector(LP-180D) CN_INV 5-pin LCD inverter connector(LP-180X) CN_USB1/2 5 x 2-pin USB connector... -
Page 17: Cpu And Memory Setup
LE-380 User’s Manual 2.4 <CPU and Memory Setup> The board provides one 204-pin DDR3 SO-DIMM to support DDR3 1066/1333 memory modules up to 4GB. SO-DIMM... -
Page 18: Cmos & Atx Setup
LE-380 User’s Manual 2.5 <CMOS & ATX Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, please remove battery to clear (reset) the CMOS to its default values. JRTC Battery The board has a jumper to switch AT power mode (automatic power on) or standard... -
Page 19: Sata & Cfast Interface
LE-380 User’s Manual 2.6 <SATA & CFast Interface> Based on AMD A55E, the board provides one Serial ATAII interfaces with up to 300MB/s of transfer rate. CN_SATA DC_OUT Remark: Only catch 2.5” HDD... -
Page 20: Lan Interface
LE-380 User’s Manual 2.8 <LAN Interface> The Intel® 82583V supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. -
Page 21: Onboard Display Interface
LE-380 User’s Manual 2.9 <Onboard Display Interface> Based on AMD G-T56N chipset with built-in AMD Radeon HD 6300 series Graphics, the board provides one DB15 connector on real external I/O port, and two 20-pin DVI and LVDS interface with 5-pin LCD backlight inverter connector. The board provides dual display function with clone mode and extended desktop mode for CRT, DVI and LVDS. -
Page 22: Digital Display> (Lp-180X)
LE-380 User’s Manual 2.9.2 <Digital Display> (LP-180X) The board provides one 20-pin LVDS connector for 18 bit single channel panel, with one LCD backlight inverter connector and one jumper for panel voltage setting. CN_DDP CN_INV... - Page 23 LE-380 User’s Manual Connector: CN_INV Type: 5-pin Inverter power connector Connector model: JST B5B-XH-A Description +3.3V LVDS_VARY_BL INV_ON Jumper: JVLCD Type: 3-pin Power select jumper Description +3.3V Default: 2-3 Connector: CN_DDP Type: onboard 20-pin connector for LVDS connector Connector model: HIROSE DF13-20DP-1.25V Signal Signal LCDVCC...
- Page 24 LCD Installation Guide: Preparing the LP-180, LCD panel and the backlight inverter You would need a LVDS type cable. Panel side...
- Page 25 LE-380 User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: LP-180 BIOS panel type selection form On board Single channel LVDS 18bit Output format...
-
Page 26: Dvi Interface > (Lp-180D)
LE-380 User’s Manual 2.9.3 <DVI Interface > (LP-180D) The board also comes with a DVI interface. Supports up to 1600 x 1200 (WUXGA) of resolution. Connector: CN_DDP Type: onboard 20-pin connector for DVI connector Connector model: HIROSE DF13-20DP-1.25V Pin Number Assignment Pin Number Assignment... -
Page 27: Onboard Audio Interface
LE-380 User’s Manual 2.10 <Onboard Audio Interface> The board provides the onboard high definition audio with Realtek ALC888 Connector: CN_AUDIO Type: 10-pin (2 x 5) 1.27mm x 2.54mm-pitch header Description Description MIC2_L AGND MIC2_R AVCC FP_OUT_R MIC2_JD SENSE_B FP_OUT_L LINE2_JD CN_AUDIO... -
Page 28: Usb2.0 Interface
LE-380 User’s Manual 2.11 <USB2.0 Interface> Based on AMD A55E FCH, the board provides 4 USB2.0 ports. The USB2.0 interface provides up to 480Mbps of transferring rate. Interface USB2.0 Controller A55E Transfer Rate Up to 480Mb/s Output Current 500mA CN_USB1 CN_USB2 Connector: CN_USB Type: 10-pin (5 x 2) header for USB Port... -
Page 29: Gpio Interface
LE-380 User’s Manual 2.12 <GPIO Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_LPC Type: onboard 2 x 5-pin header, pitch=2.0mm Description Description LPC_CLK1 A_RST#... -
Page 30: Serial Port Jumper Setting
LE-380 User’s Manual 2.13 <Serial Port Jumper Setting > The board provides two RS232 serial ports Connector: CN_COM1/2 Type: 20-pin (5 x 2) 1.27mm x 2.54mm-pitch header for COM1/2 Description Description MDCD1- MSIN1- MSO1- MDTR1- MDSR1- MRTS1- MCTS1- MRI1- MDCD2- MSIN2- MSO2- MDTR2-... -
Page 31: Power & Fan Connector
LE-380 User’s Manual 2.14 <Power & FAN Connector > The board requires DC input with 3-pin header, the input voltage range is from 5V for the input current, please take a reference of the power consumption report on appendix. 2.14.1 <Power Input> Connector: DC_IN Type: 2-pin header Description... -
Page 32: Power Output
LE-380 User’s Manual 2.14.2 <Power Output> Connector: DC_OUT Type: 6-pin connector for +5V output Pin Description Pin Description Pin Description Ground Ground Note: Maximum output current 5V/1A 2.14.3 <Fan Connector> Connector: SYSFAN Type: 3-pin fan wafer connector Description Description Description Ground CSFAN Connector: CPUFAN... -
Page 33: Indicator And Switch
LE-380 User’s Manual 2.15 <Indicator and Switch> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 10-pin (2 x 5) 2.54-pitch header Function Signal Signal... - Page 34 LE-380 User’s Manual (This Page is Left For Blank)
-
Page 35: Chapter 3
LE-380 User’s Manual Chapter 3 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel® x86 and compatible CPU architecture based processors and computers. - Page 36 LE-380 User’s Manual (This Page is Left for Blank)
-
Page 37: Appendix A
LE-380 User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <SATA Port> Connector: SATA1/2 Type: 10-pin header for SATA Port Description Description Ground Ground Ground Ground A.2 < CRT Port > Connector: CRT Type: 15-pin D-sub female connector on rear panel Description Description Description... -
Page 38: A.4
LE-380 User’s Manual A.4 <LAN LED Port> Connector: JSPD1 Type: 2-pin header for LAN Speed LED connectorRJ45 connector with LED on rear panel When Lan speed 10/100Mbps Description LED- LED+ When Lan speed 1Gbps Description LED+ LED- Connector: JACT Type: 5-pin header for LAN Activity LED connector Description LED- LED+... -
Page 39: Appendix B
The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm File name of the tool is “Pflash.exe”, it’s the utility that can write the data into the BIOS flash ship and update the BIOS. -
Page 40: Appendix C
LE-380 User’s Manual Appendix C <System Resources> C.1 <I/O Port Address Map>... - Page 41 LE-380 User’s Manual...
-
Page 42: C.2
LE-380 User’s Manual C.2 <Memory Address Map >... - Page 43 LE-380 User’s Manual...
-
Page 44: C.3 < System Irq Resources
LE-380 User’s Manual C.3 < System IRQ Resources >... - Page 45 LE-380 User’s Manual...
-
Page 46: Appendix D
LE-380 User’s Manual Appendix D <Watch Dog timer Setting > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range - 1 to 255 - Second or Minute Program Sample... -
Page 47: Appendix E
LE-380 User’s Manual Appendix E <AMD Hing Definition Audio Device > 1. Copy the CD Driver folder to disk, Ex: C:\ , D:\ … 2. Please choose “Device Manager” 3. You can see other devices ”Audio Device on High Definition Audio Bus”... - Page 48 LE-380 User’s Manual 9. Install finish (This Page is Left for Blank)
-
Page 49: Contact Information
Taiwan Commate Computer Inc. 19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is our trademark of industrial PC division...
