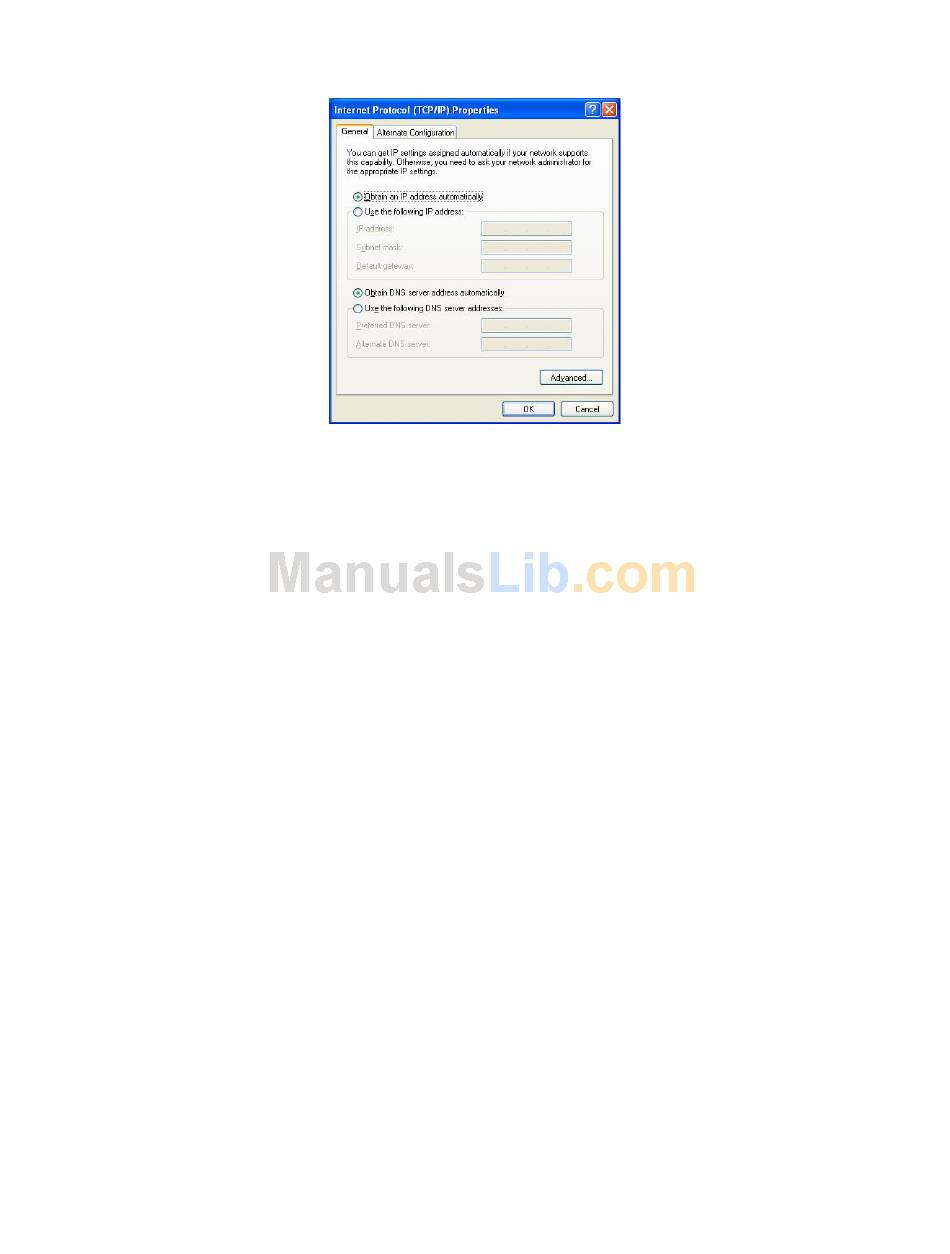

Figure 11: Internet Protocol (TCP/IP) Properties dialog box

6. Verify that the following choices are selected:
Obtain an IP address automatically
•
Obtain DNS server address automatically
•
Note: Obtaining an IP address automatically is recommended. If static IP address settings
are preferred, refer to your own wireless network settings.
7. Select OK.
You are returned to the Wireless Network Connection Properties dialog box.
For instructions on how to set WEP security refer to Section 5.3.1. For instructions on how to set
WPA security refer to Section 5.3.2.
