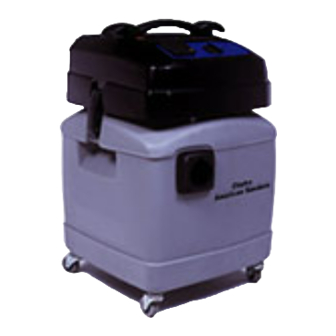

C.A.V. 15
Operator's
CLARKE-AMERICAN
Manual
Vacuum 15 Gallon
READ THIS BOOK
This book has important information for the use and safe operation of this machine. Failure to read
this book prior to operating or attempting any service or maintenance procedure to your Clarke
American Sanders machine could result in injury to you or to other personnel; damage to the machine
or to other property could occur as well. You must have training in the operation of this machine
before using it. If your operator(s) cannot read English, have this manual explained fully before
attempting to operate this machine.
All directions given in this book are as seen from the operator's position at the rear of the machine.
®
For new books write to: Clarke
, 2100 Highway 265, Springdale, Arkansas 72764
Form No. 70641B
7/05
Printed in the U.S.A.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Clarke American Sanders C.A.V. 15
Summary of Contents for Clarke American Sanders C.A.V. 15
- Page 1 This book has important information for the use and safe operation of this machine. Failure to read this book prior to operating or attempting any service or maintenance procedure to your Clarke American Sanders machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well.
-
Page 2: Table Of Contents
How To Assemble the Machine ................7 Machine Operation ....................7 Maintenance and Repair ..................9 Troubleshooting ....................... 10 Section II Parts and Service Manual Assembly Drawing for C.A.V. 15 Gallon..............12 Parts List ..................... 13 ® Page Clarke American Sanders C.A.V. 15 Operator's Manual... -
Page 3: Important Safety Instructions
13. Turn off all controls before unplugging. 14. Use extra care when cleaning on stairs. 16. Connect to properly grounded outlet. See "Grounding Instructions". SAVE THESE INSTRUCTIONS Page -3- ® Clarke American Sanders C.A.V. 15 Operator's Manual... - Page 4 Wrap cord around handle when machine is not in use. Use caution not to run over cord while machine is in use. CAUTION: This machine is not suitable for picking up health endangering dust. CAUTION: If foam/liquid comes out, switch off immediately. Page Clarke ® American Sanders C.A.V. 15 Operator's Manual...
-
Page 5: Specifications And Accessories
H.E.P.A. Filter 40181 Clothe Filter Liner / 61086A -Dacron Washable 61281A-Sateen Filter Element Cover 11801 Squeegee Floor Tool 5149 Replacement 6114 Squeegee Blades (set of 2) NA = Not available Page -5- ® Clarke American Sanders C.A.V. 15 Operator's Manual... -
Page 6: Grounding Instructions
CAUTION: The operating instructions and the safety precautions contained therein must be observed when using appliances connected to the appliance plug socket of the machine. ® Page Clarke American Sanders C.A.V. 15 Operator's Manual... -
Page 7: How To Assemble The Machine
If foaming is observed, stop work immediately and empty the tank. Figure 3 Switching On The Machine (C.A.V 15) Turn the switch to position "I" (Figure 3). Page -7- ® Clarke American Sanders C.A.V. 15 Operator's Manual... -
Page 8: Maintenance And Repair
CAUTION: Do not make any technical modifications to the machine. Your safety could be endangered as a result! For all other maintenance and repair work, please contact and authorized Wap Technology Service department. ® Page Clarke American Sanders C.A.V. 15 Operator's Manual... -
Page 9: Troubleshooting
3. Clean and replace filter element. 3. Filter element clogged. No suction power during 1. Empty tank. 1. Tank full (float switch closing off the wet cleaning. suction opening). NOTES Page -9- ® Clarke American Sanders C.A.V. 15 Operator's Manual... - Page 10 NOTES ® Page -10- Clarke American Sanders C.A.V. 15 Operator's Manual...
-
Page 11: Parts And Service
Division of C.A.V. 15 Wet/Dry Vacuum Section II Parts and Service (70641B) Page -11- ® Clarke American Sanders C.A.V. 15 Operator's Manual Page -11- CLARKE-AMERICAN SANDER TECHNOLOGY C.A.V. 15 Operator's Manual... - Page 12 C.A.V. 15 Assembly Drawing 7/05 ® Page -12- Clarke American Sanders C.A.V. 15 Operator's Manual...
- Page 13 920349 Nut, ¼ - 2 11565 Screw, 50 x 18 11180 Inlet 80299A Rivet 80219A Washer 61086A Filter Bag, Dacron 61281A Filter Bag, Sateen 639804 Curved Wand, Chrome (Not illustrated) Page -13- ® Clarke American Sanders C.A.V. 15 Operator's Manual...
- Page 14 NOTES ® Page -14- Clarke American Sanders C.A.V. 15 Operator's Manual...
- Page 15 29815 John R. Gilwilly Industrial Estate (810) 544-6300 Penrith Cumbria CA11 9BN American Lincoln ® / Clarke, Marietta, Georgia 30066 +44 1768 868 995 1455 Canton Road (770) 973-5225 ALTO France S.A. Strasbourg B.P. 44, 4 Place d’Ostwald F-67036 Strasbourg...
- Page 16 (b). Return the product to the nearest Clarke American Sanders repair location. Transportation charges to and from the repair location must be prepaid by the purchaser. (c). Clarke American Sanders will repair the product and or replace any defective parts without charge within a reasonable time after receipt of the product.
