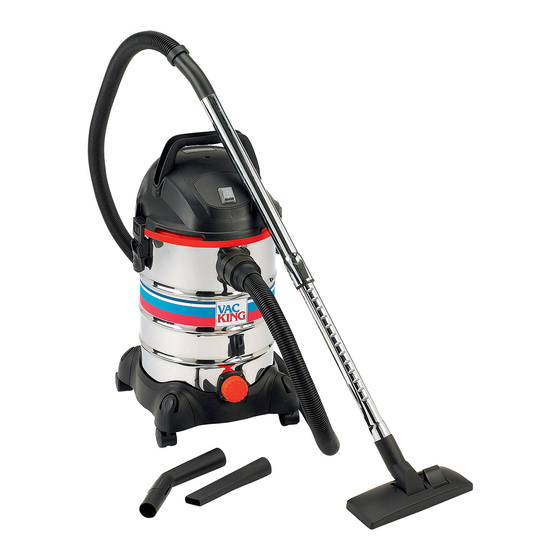

- Page 1 WET & DRY VACUUM CLEANERS MODEL NO: CVAC20SS, CVAC25SS & CVAC30SSR PART NO: 6471105, 6471110 & 6471120 OPERATING & MAINTENANCE INSTRUCTIONS GC0416...
-
Page 2: Environmental Protection
GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. -
Page 3: Safety Precautions
3. Never use this CVAC if any part is damaged. Have it inspected and repaired by your Clarke dealer. Do not use if the electric cable, plug, or the machine itself, is in poor condition. 4. Never abuse the power cable. Never pull on the cable when removing the plug from the socket or lift the machine by the power cable. -
Page 4: Care And Storage
CARE & STORAGE 1. When not in use, turn off by the On/Off switch on top of the machine, then remove the plug from the mains power supply. 2. When you have finished with the machine, ensure the electric cable is stowed away and not left as a hazard for others to trip over. -
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. - Page 6 CVAC30SSR (EARTHED ELECTRICAL APPLIANCE) WARNING! THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE: Blue = Neutral Brown = Live Yellow and Green = Earth If the colours of the wires in the power cable of this product do not correspond with the markings on the terminals of your plug, proceed as follows.
- Page 7 COMPONENTS No Description No Description Motor Housing & Head Section Crevice Tool Container Power Tool Adaptor(30SSR only) Flexible Hose Caster Extension Tube Cartridge Filter Brush Adaptor Paper Dust Bag Hose/Extension Tube Angle Adaptor 12 Foam Filter (water pick-up only) Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 8: Preparation For Use
PREPARATION FOR USE WARNING: Before using the CVAC, make sure that you have read and understood the safety instructions UNPACKING & ASSEMBLY With the CVAC removed from the packaging, undo the two clamps securing the head and remove the components from within the tank. Lay them out and check for shortages and that no damage was suffered in transit. - Page 9 If the paper bag is full, replace it. Spare bags are available from your Clarke Stockist. Switch the machine ON and proceed to use as normal. The CVAC should be positioned on a firm, level surface.
-
Page 10: Maintenance
Inspect all other components periodically and replace damaged castors or accessories when necessary. Contact your CLARKE dealer for replacements. Regular inspection and the correct maintenance of the filters will ensure efficient running and prolong the life of your machine. -
Page 11: Spare Parts
SPARE PARTS ESCRIPTION ESCRIPTION Handle Water Drain Assembly Head Assembly Base Frame Latch Assembly Castor Assembly Hose Inlet Assembly Container Body Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 12 ACCESSORIES CVAC20SS CVAC25SS CVAC30SSR CARTRIDGE FILTER HT90501 PAPER DUST BAG FILTER HT90605 HT90609 HT90602 FOAM FILTER HT90503 CASTER TVQTJC0400 FLEXIBLE HOSE 2.5 M HT80819 ANGLE ADAPTOR (HOSE TO TUBE) HT80401 METAL TELESCOPIC TUBE HT80905 COMBI BRUSH ADAPTOR TOOL HT80701 CREVICE TOOL HT80707 POWER TOOL ADAPTOR HT80302...
-
Page 13: Specification
82 dB LwA Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 14: Declarations Of Conformity
DECLARATIONS OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
