Summary of Contents for Clarke ASHVAC1200

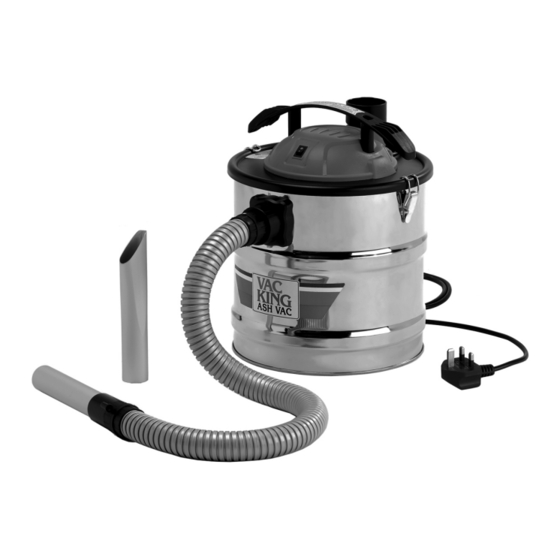

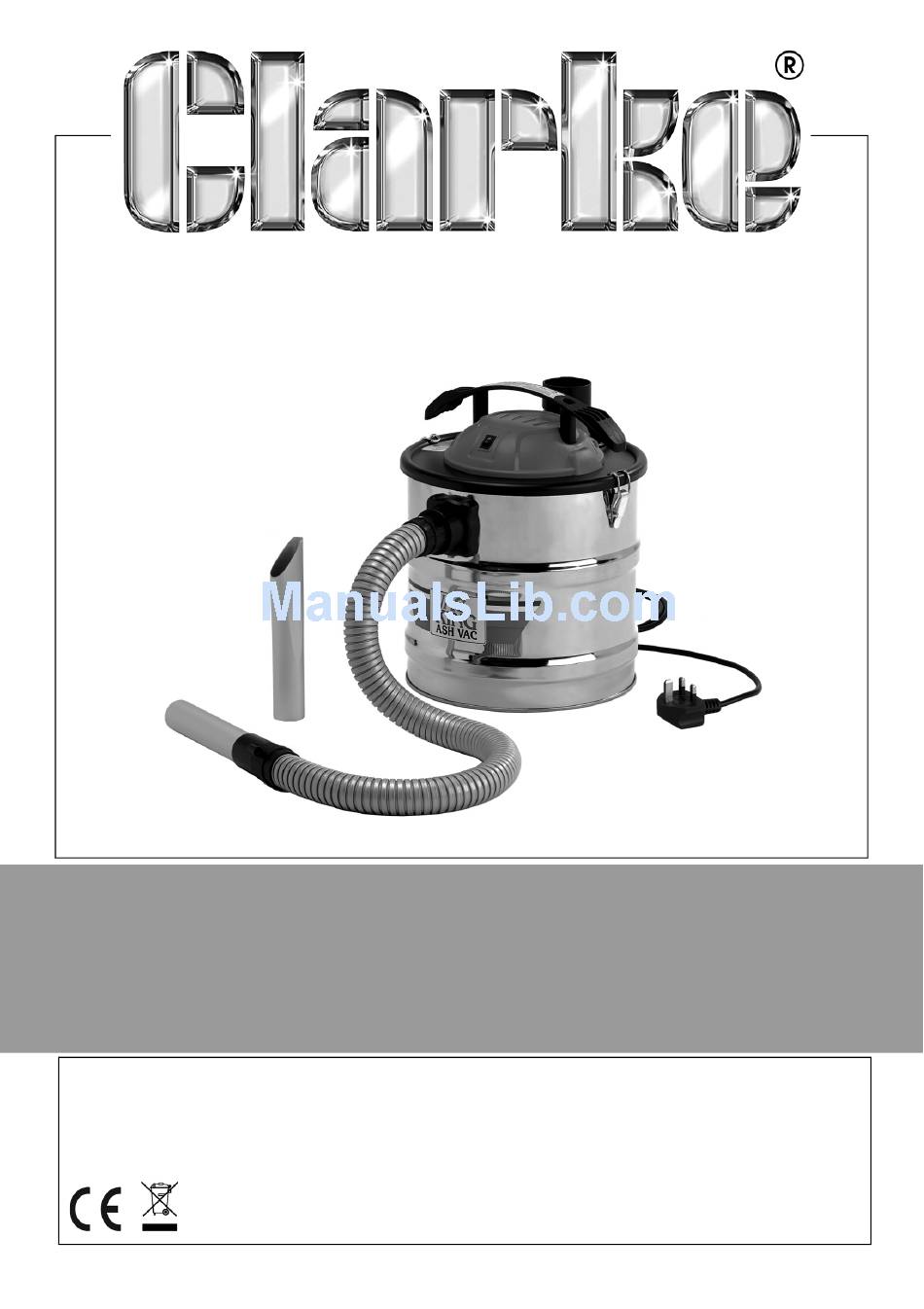

- Page 1 ELECTRIC ASHCAN MODEL NO: ASHVAC1200 PART NO: 6471133 OPERATING & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC1216...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE product which is designed for fast, easy removal of cold ash from stoves and fireplaces. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
-
Page 3: Specifications
Sound Power Level 84 dB LwA Please note that the details and specifications contained herein are correct at the time of going to print. However CLARKE International reserve the right to change specifications at any time without prior notice. GENERAL SAFETY PRECAUTIONS Prior to use, all users should become familiar with these instructions. - Page 4 2. Never use this product if any part is damaged. Have it inspected and repaired by your Clarke dealer. Do not use if the power cable, plug, or the machine itself, is in poor condition. 3. Never abuse the power cable. Never pull on the cable when removing the plug from the socket or lift the ashcan by the power cable.
-
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. - Page 6 COMPONENTS When unpacking please check contents and advise your dealer immediately if any parts are missing. The essential components are as follows. NO DESCRIPTION NO DESCRIPTION Tank Suction Tube with Crevice end Motor/Lid Assembly Cartridge Filter Suction Hose Assembly Filter Canister Suction Tube Outlet Adaptor Parts &...
-
Page 7: Preparation For Use
PREPARATION FOR USE 1. With the ashcan removed from the packaging, undo the securing clips securing the lid assembly and remove the components from within the tank. Check for shortages and that no damage was suffered in transit. 2. Check that the sponge filter is correctly in position at the end of the motor housing. -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS CAUTION: MAKE SURE THAT FIREPLACES AND STOVES ARE COLD BEFORE YOU ATTEMPT TO VACUUM THEM CLEAN. WAIT UNTIL THE ASH HAS COOLED DOWN COMPLETELY BEFORE YOU BEGIN TO COLLECT IT. CAUTION: EXCESSIVE TEMPERATURES CAN LEAD TO DAMAGE TO THE SUCTION HOSE AND THE ASH CAN AND CAUSE A RISK OF FIRE. - Page 9 8. Do not attempt to repair or modify this product or attempt any electrical repair yourself. Consult a qualified electrician or the Clarke Service Department on 020 8988 7400. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 10 PARTS DIAGRAM Ref No Description Carrying Handle Top Cover Moulding On/Off Switch Sealing Cap Motor Lid Sealing Ring Air Inlet Adaptor Rubber Seal Filter Proximity Microswitch Inner Wiring Motor Housing Top Cover Assembly Suction Hose Cartridge Filter Power Cable & Plug Straight Suction Tube Filter Canister Connecting Elbow...
-
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
