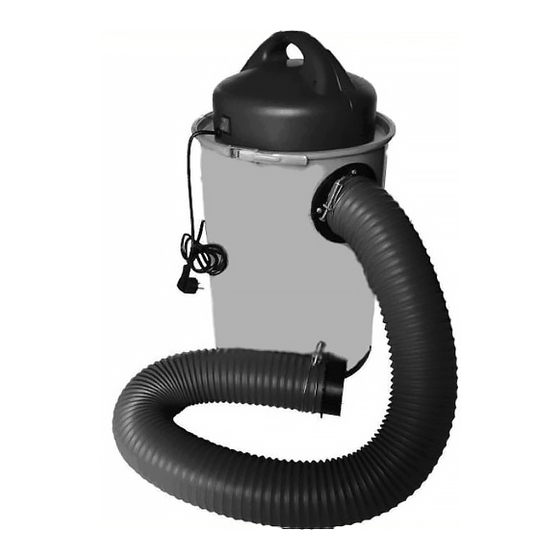

- Page 1 DUST EXTRACTOR MODEL No: CDE1000 Part No:6471165 OPERATING & MAINTENANCE INSTRUCTIONS GC0514...
-
Page 2: Introduction
INTRODUCTION Thank you for purchasing this CLARKE Dust Extractor which is intended to keep work areas free from dust particles & wood shavings etc. Please read this manual thoroughly and follow the instructions carefully. Before attempting to use the product, thoroughly familiarise yourself with the product &... -
Page 3: Table Of Contents
A weighted sound pressure level (Lpa) 80 dB Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. -
Page 4: Safety Precautions
4. ALWAYS check for damage. Check for any condition that may affect the machine’s operation. Any damage should be properly repaired or the part replaced. If in doubt, DO NOT use the machine. Consult your Clarke dealer. 5. ALWAYS keep the mains cable well away from any machinery and ensure an adequate electrical supply is close to hand so that the operation is not restricted by the length of cable. - Page 5 8. NEVER use if the ON/OFF switch does not turn it on and off. A machine that cannot be controlled with the switch is dangerous and must be repaired. 9. ALWAYS store out of reach of children and do not allow persons unfamiliar with these instructions to operate this machine.
-
Page 6: Electrical Connections
3. Should you wish to replace a detachable fuse carrier, ensure that the correct replacement is used (as indicated by marking or colour code). 4. Replacement fuse covers can be obtained from your local Clarke dealer or most electrical stockists. -
Page 7: Unpacking & Assembly
UNPACKING When unpacking please check contents and advise your dealer immediately if any parts are missing. The essential parts of the machine are as follows; 1. Motor casing 2. Shavings container 3. On/off switch 4. Locking strap Release the locking strap and remove the motor casing. - Page 8 ASSEMBLY 1. Place filter cartridge (1) into filter bag (2). 2. Fold any overhang into the filter cartridge. 3. Push the filter cartridge (1) complete with bag (2), onto the fan housing part of the motor casing (3). 4. Sit the entire motor casing on the container and secure with the locking strap as shown in Fig 1.
-
Page 9: Operation & Maintenance
6. Secure the other end of the inlet hose to the hose coupling using the other hose clamp as shown in Fig 7. • The inlet adaptors can then be connected as required to suit the size of the extract duct on the wood- working appliance to be used. -
Page 10: Parts List & Diagram
PARTS LIST & DIAGRAM r t r t l i t l i n i l n i l l n I... -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY...
