SpectraLink Corporation

3. Installing on an I-Beam

Items provided : Outdoor enclosure, Base Station

Items needed :

4 - "Caddy" or "B-Line" 3/8" Beam Clamps

4 - ½" ¼" x 20 bolts

4 - 2" ¼" x 20 bolts

4 - ¼" x 20 nuts

1. Attach a beam clamp to the center of the top and bottom flanges on the outdoor

enclosure.

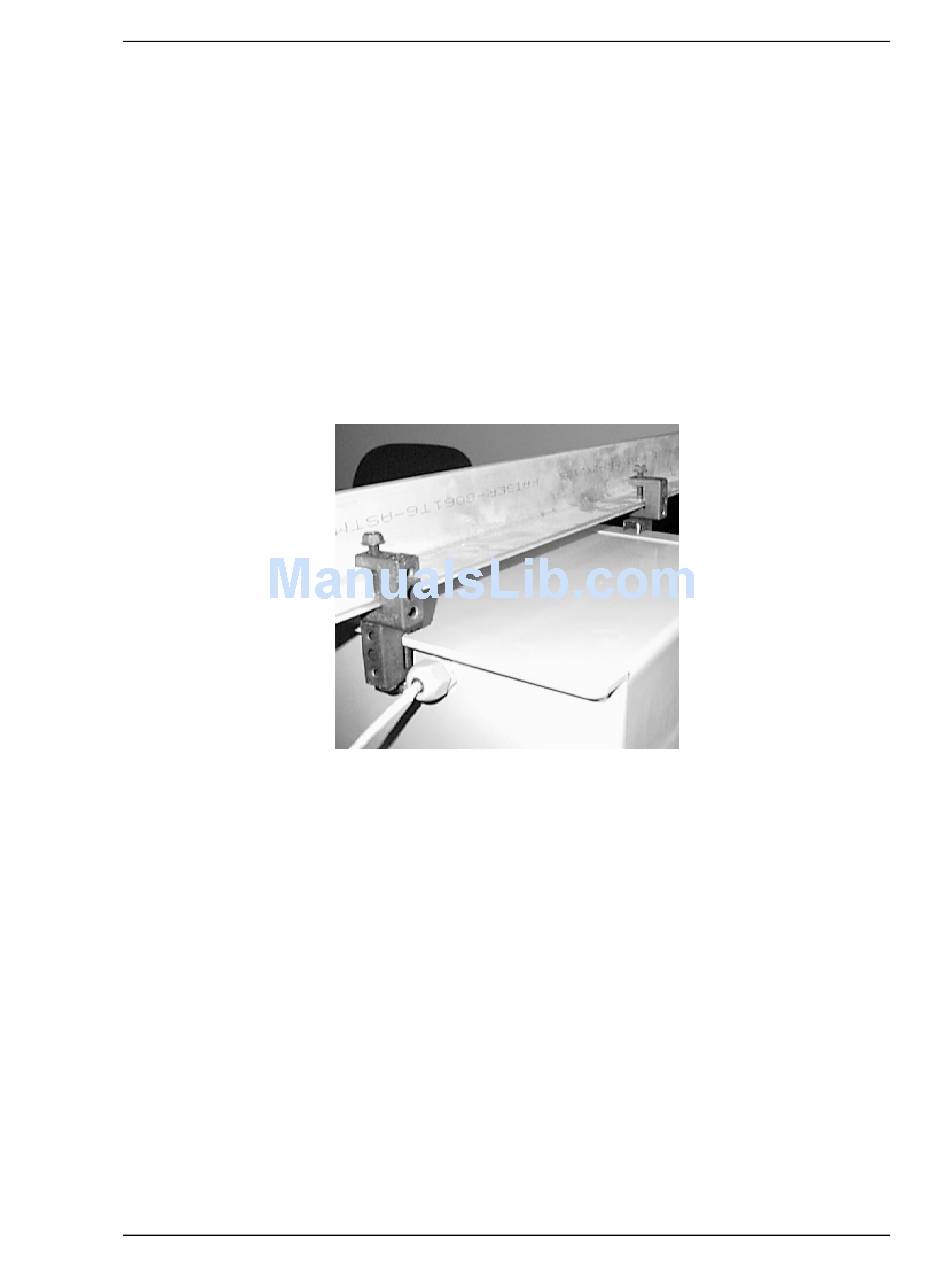

2. Attach a second beam clamp to each of the beam clamps on the enclosure using a

½" ¼" x 20 bolt and a nut. (See Picture Below)

3. Attach the outdoor enclosure to I-Beam using the beam clamps attached in step 2.

See figures in Section 2 for pictorial data for the remaining steps:

4. Slide the Base Station cable through the compression fitting and tighten the

fitting.

5. Crimp an RJ45 onto the Base Station cable using the same wiring guide as the

indoor Base Station.

6. Plug the RJ45 into the RJ48C connector.

7. Place the Base Station into the enclosure with the side of the Base Station with the

mounting hole facing the I-beam. The Base Station should fit tightly between the

foam.

8. Screw the outdoor enclosure lid back onto the enclosure.

Part Number: 72-0050-01-B.doc

Installing the Outdoor Base Station

Link WTS

Page 6
