MP-124 Rear Panel

The device's rear panel (shown in the figure below) provides the ports for cabling the device
to the various interfaces.
The table below describes the MP-124 rear panel components.

Table 2-5: MP-124 Rear Panel Component Descriptions

Item # Label
1
100-250 V~
50 - 60 Hz 2A
2
- or -
48V 1.3A
ANALOG FXS LINES
3
1–24
4 RS-232
5 ETHERNET
The Ethernet LEDs are located within the RJ-45 socket. The table below describes these
LEDs.

Table 2-6: MP-124 Rear Panel Ethernet LEDs Description

Label Type
ETHERNET Ethernet
Status
Version 6.0

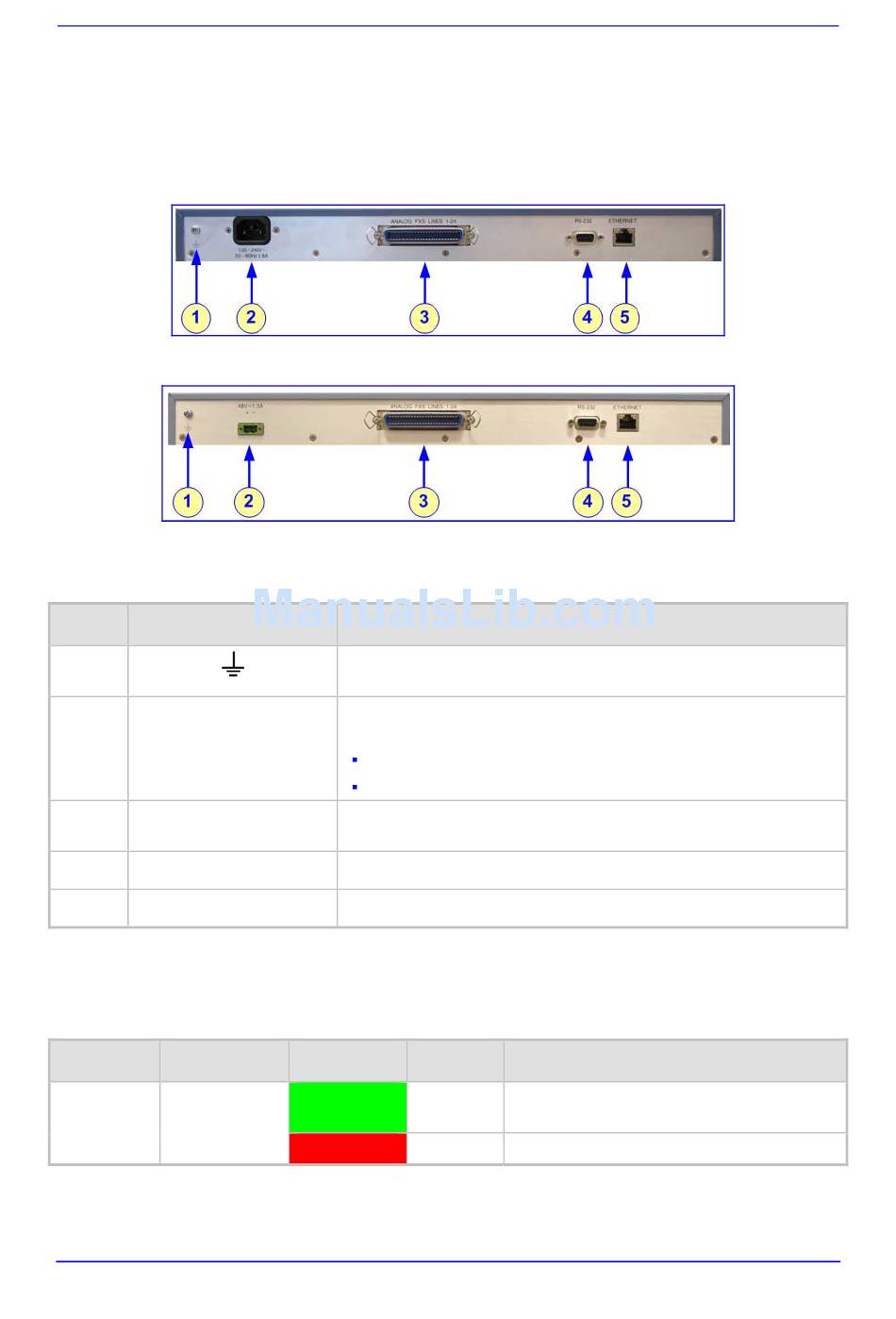

Figure 2-14: MP-124 Rear Panel - AC Power Model

Figure 2-15: MP-124 Rear Panel - DC Power Model

Protective earthing screw (mandatory for all installations).
Accepts a 6-32 UNC screw.
The MP-124 can be ordered with one of the following power
configurations:
AC power: provides an AC power supply socket
DC power: provides a DC inlet for a DC terminal block
50-pin Telco connector for 1-24 analog lines.
9-pin RS-232 port.
10/100Base-TX Ethernet RJ-45 port.
Color
Green
Red
Component Description
State
On Valid 10/100Base-TX Ethernet
connection.
On Malfunction.
