2.1.3.1

Desktop Mounting

Attach the four (supplied) anti-slide bumpers to the base of the MP-11x and place it on a
desktop in the desired position.
2.1.3.2

Wall Mounting

Follow the procedure below for mounting the MP-11x on a wall.
To mount the MP-11x on a wall:
1. Drill four holes according to the following dimensions:
•
Horizontal distance between holes: 140 mm (5.51 inches)
•
Vertical distance between: 101.4 mm (4 inches)
2. Insert a wall anchor of the appropriate size into each hole.
3. Fasten a DIN 96 3.5X20 wood screw (not supplied) into each of the wall anchors.
4. Position the four oval notches, located on the underside of the MP-11x (refer to Item
#2 in 'Mounting the MP-11x' on page 15), over the four screws and hang the MP-11x
on them.
2.1.3.3

19-inch Rack Mounting

The MP-11x can be installed in a standard 19-inch rack by placing it on an AudioCodes' 19-
inch rack-mounting shelf (special customer order) that must be pre-installed in a rack. The
shelf can hold up to two MP-11x devices. The rack-mounting shelf can be ordered
separately from AudioCodes. The 19-inch rack installation package contains a single shelf
(shown in the figure below), and eight shelf-to-device screws.

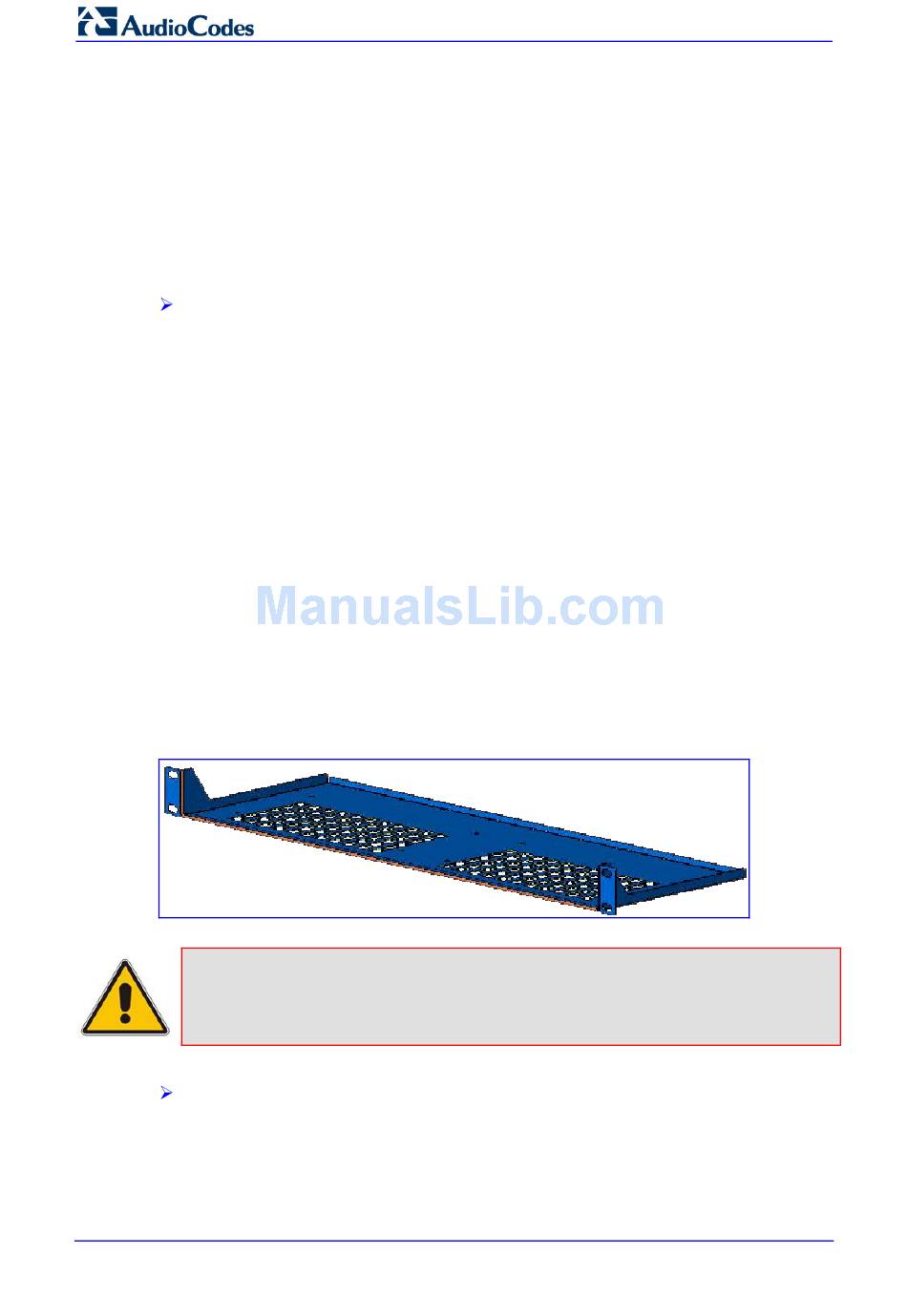

Figure 2-4: AudioCodes 19-inch Rack Shelf for MP-11x

Note:
To install the MP-11x in a 19-inch rack:
1. Attach one or two MP-11x devices to the shelf using the shelf-to-device screws
(supplied).
2. Position the shelf in the rack and align its side holes with the rack frame holes.
Installation Manual
The 19-inch rack shelf is not supplied in the standard package kit, but can be
ordered separately: Bulk Pack package (MCMK00015) containing 10 rack
mounting shelves for MP-11x. For ordering and pricing, please contact your
AudioCodes' sales representative.
