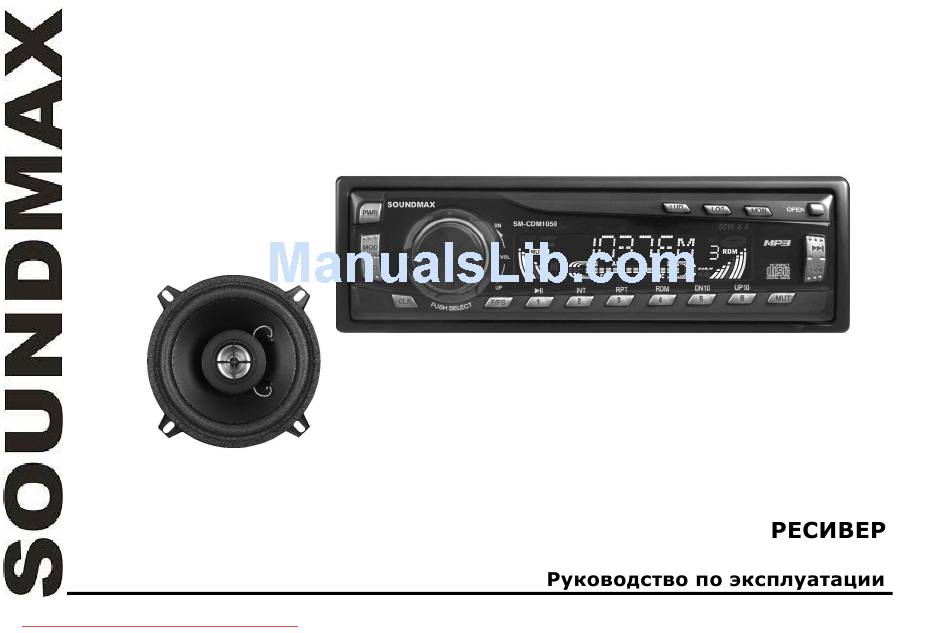

- Page 1 SM-CDM1050 CD/MP3-RECEIVER CD/MP3- Instruction manual Downloaded from Caradio-Manual.com Manuals...
-
Page 2: Table Of Contents
Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ......................2 Instruction manual for CD/MP3-RECEIVER ............... -
Page 3: Instruction Manual For Cd/Mp3-Receiver
Instruction manual for CD/MP3-RECEIVER Important safeguards Read carefully through the manual to familiarize yours with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit. -
Page 4: Installation/ Connections
Installation/ Connections Din front-mount (method 1) After inserting the holder into the dashboard, select the appropriate tab and bend them inwards to secure to the place Insert fingers into the groove in the front of frame and remove it. Insert the levers supplied with the unit to the grooves at both sides. The unit can be installed or removed from the dashboard. - Page 5 1. Dashboard 2. Nut (5mm) 3. Spring washer 4. Screw (5 x 25mm) 5. Screw 6. Strap 7. Plain washer Din rear-mount (method 2) Installation using the screw holes at both sides of the unit. 1. Select a position where the screw holes of the main unit are fitted for aligned, and tighten the screws at 2 positions at each sides.
- Page 6 2. Screw 3. Factory radio mounting bracket. 4. Dashboard or Console 5. Hook (Remove this parts) Note: The mounting box, outer trim ring, and the Half-sleeve are not used for this method of installation. Detachable control panel Detaching the control panel 1.
- Page 7 Attaching the control panel 1. Insert the left side of the control panel into the main unit (pic. 3). Note: the control panel must be attached into the T-Joint. 2. Press the right side of the control panel until a “click” sound is heard. 3.
- Page 8 Electrical connections Notes: In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. Prohibit to make the conductors of auto antenna and ground touch with each other. Downloaded from Caradio-Manual.com Manuals...
- Page 9 Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. Cut the connector, connect the colored leads of the power cord to the car battery as shown in the colour code table below for speaker and power cable connections.
-
Page 10: Accessories
Accessories Name Hexagon nut M5 T (3.5 mm) Mounting box (0.6 mm) Left key (1.0 mm) Right key (1.0 mm) Metal bar (0.8 mm) ISO connector Plain washer =5 mm Carrying case Outer trim ring Spring washer =5 mm Screw 5X5 mm Screw 5X25 mm... -
Page 11: Panel Controls
Panel controls 1. OPEN BUTTON 2. VOL KNOB / SEL BUTTON Rotate it clockwise to increase the volume level; rotate anticlockwise to decrease the volume level. Press it repeatedly to select the mode: VOL => BAS => TRE => BAL => FAD Rotate VOL knob to adjust each mode. - Page 12 4. Display buttons In Disc mode press the buttons shortly to go to previous/next track. Press and hold them to start fast backward/ forward rewind. In Radio mode press the buttons shortly to search the stations manually. Press and hold for 2 seconds to start searching the stations automatically. 6.
-
Page 13: Inner Panel
17. Loudness button. 18. MODE button Press it to select the mode: TUNER => DISC => AUX. 19. Power on: press any button on the panel except OPEN to turn on the unit. Press more than 2 seconds to power off. 20. -
Page 14: Menu Function
Menu Function Press the POWER button to turn the unit on, the display will show a message to indicate it is ready to use. Press the BAND for the radio mode, press MODE to select between Aux, Radio mode and CD/MP3 play. Press the POWER button again to turn the unit off. VOLUME CONTROL A. - Page 15 LOUD mode Press the LUD to emphasize the Bass output, the word LOUD ON shows on the display indicates that the loudness function is on. Press again to cancel. Time clock setting The time clock can be set anytime when the power is on. Press the CLK button and then press and hold CLK button for 3 seconds, the time will blink on the display.
- Page 16 Radio Tune/ Seek Function In Radio Mode, press and hold buttons for more than 3 second to manually adjust the radio frequency. Rotate volume knob for less than 1 second, the radio will seek to the next up or down strong and clear frequency station.
-
Page 17: Mp3 Play Back
MP3 Play back CD Electronic Shock Protection 12or 45 seconds The electronic shock protection is ideal for driving uneven road. Press the Sound Select button for 2 seconds, the display will show "DSP OFF". Press the button again so that "ESP 12" will be shown on the display indicating that Electronic Shock Protection for 12 seconds will be activated. - Page 18 to choose your desired folder and press all the way down to confirm. The input folder will be searched and play. CHARACTER SEARCH Press the "F/PS" Button for three times and the display will show "CHAR SCH". This is for searching the computer file names of the Mp3 songs.
- Page 19 WMA (Windows Media Audio) – music data compression format, created by Microsoft Corporation. This format uses coding algorithm for compression of initial audio-record, greatly decreasing the file size, but, saving the good sound quality even when the bit rate is low (for example, 64 Kbit/s).
-
Page 20: Anti-Theft System
Anti-Theft System Remove the panel 1. Press POWER button to switch off the power of the unit. 2. Press OPEN button to flip down the panel. 3. Push the panel to the left and then pull it towards you. 4. Put it to the special box and take it with you. Remove the unit 1. -
Page 21: Handling Compact Discs
Handling compact discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust. -
Page 22: Troubleshooting Guide
Troubleshooting guide General Car's engine switch is not on. Turn your car's key to ACC or ON. Cable is not correctly connected. Check connection. No power or no Fuse is burnt. Replace fuse. Check volume or mute on / off. sound If above solutions cannot help, press the RESET button. -
Page 23: Specification
Specification General 12 V DC Power supply Current consumption max. 10 A Maximum power output 50Wx4 channels Fuse 1A & 10A Dimensions (L x W x H) 178 x 51 x 178 mm FM stereo radio Frequency range 87.5 - 108.0 MHz Usable sensitivity 3 uV I.F. -
Page 24: Instruction Manual 13 Cm 2 Way Coaxial Acoustic System
Instruction manual 13 cm 2 way coaxial acoustic system Description The set of acoustic system includes: - acoustic system - speaker wire – 2 m - screw – 8 pcs - clip – 8 pcs (x 8) (x 8) Downloaded from Caradio-Manual.com Manuals... -
Page 25: Important Safeguards
Important safeguards The owner’s manual contains important operating and maintenance instructions for your safety. It is necessary to refer the manual. Do not install the speakers where they may be subjected to excessive heat moisture, dust or where they will be kicked repeatedly, brushed or bumped. Before mounting and connecting the wires be sure that wire of the negative pole terminal is disconnected from accumulator. -
Page 26: Mounting The Speakers
Mounting the speakers Installation kits are available from your dealer or local stereo shop to help make your installation easy. These kits also give your installation a clean, custom appearance. Questions about installations methods please consult a professional auto sound dealer/installer for assistance. Choose the place of installation for acoustic system. -
Page 27: Securing The Speakers
Securing the speakers Position the speaker into the mounting hole and reconfirm the correct mounting location and hole placement. Screw clips are provided to ensure a snug fit. These should be placed over the metal surface and line up the hole you have previously drilled with the screw clip. Place the speaker into the hole, align the holes and proceed to insert the screws. -
Page 28: If Unit Fails To Operate Properly
If unit fails to operate properly Carefully read the instruction to make sure the unit is being operated properly. Check the following before you take your unit to the local dealer for repair. SYMPTOM POSSIBLE CAUSE SOLUTION No sound The volume control regulator Adjust sound level set in the minimal position Bad power connections... -
Page 29: Specification
Specification woofer: polypropylene cone Loudspeaker one tweeter: 20 mm piezo Magnet 5.3 Oz Peak output power 120 W Rated output power 60 W Impedance Sensitivity 90 dB Frequency response 80 – 20000 Hz Dimensions 138.5 x 49 mm Net/Gross weight 0.38 kg/0.8 kg Gift box dimension (L x W) 275 mm... - Page 30 ............................30 CD/MP3- ......................31 ........................31 ........................32 ......................37 ..........................39 ........................40 ............................43 MP3 ...........................46 ........................50 ......................51 ............................52 ..................53 ........................55 ..........56 ...............................56 ..........................57 ......................59 ......................60 ..................61 ........................62 Downloaded from Caradio-Manual.com Manuals...
- Page 31 CD/MP3- Downloaded from Caradio-Manual.com Manuals...
- Page 32 Downloaded from Caradio-Manual.com Manuals...
- Page 33 (5 x 25 Downloaded from Caradio-Manual.com Manuals...
- Page 34 Downloaded from Caradio-Manual.com Manuals...
- Page 35 OPEN . 1). . 2). . 3). Downloaded from Caradio-Manual.com Manuals...
- Page 36 Downloaded from Caradio-Manual.com Manuals...
- Page 37 Downloaded from Caradio-Manual.com Manuals...
- Page 38 ISO, (+)--- (-)--- (+)--- (-)--- (+)/ (+)--- ((-)--- ACC+/ (+)--- (-)--- Downloaded from Caradio-Manual.com Manuals...
- Page 39 M5 T (3,5 (0,6 (1,0 (1,0 (0,8 5X25 5X29,3 Downloaded from Caradio-Manual.com Manuals...
- Page 40 OPEN EJECT VOL/BAS/TRE/BAL/FAD. ESP 45s/120s : LOCAL ( DISTANCE Downloaded from Caradio-Manual.com Manuals...
- Page 41 MUTE MUTE, MON. STEREO ( MONO ( BAND BAND ( PLAY/PAUSE ( "RPT ON.". "RDM ON" . 3 –10 3 +10 F/PS: LOUD LOUD ON ( LOUD OFF ( MODE Downloaded from Caradio-Manual.com Manuals...
- Page 42 : TUNER ( ) => DISC ( ) => AUX. POWER OPEN, OPEN, 1. LED RESET EJECT Downloaded from Caradio-Manual.com Manuals...
- Page 43 POWER BAND MODE Aux, Radio CD/MP3. POWER VOL, BAS. TRE. BAL. FAD. Downloaded from Caradio-Manual.com Manuals...
- Page 44 BEEP ON/OFF DSP OFF. BEEP ON LOUD LOUD ON, CLK, CLK, DSP OFF. ROCK CLASSIC FLAT DSP OFF Downloaded from Caradio-Manual.com Manuals...
- Page 45 BAND 3 FM (FM1, FM2) (MW1, MW2) . 3 FM , F1, F2 F3 – . 2 MW , MW1 MW2 – "F/PS" Downloaded from Caradio-Manual.com Manuals...
- Page 46 "F/PS" CD (12 "DSP OFF". "ESP 12" , "ESP 45". Downloaded from Caradio-Manual.com Manuals...
- Page 47 "F/PS" , "TRK SCH". SEL, "TRK" "F/PS" "FILE SCH". SEL, "F/PS" "CHAR SCH". SEL, MPEG 3 Downloaded from Caradio-Manual.com Manuals...
- Page 48 CD-ROM, CD-R 9660. “.mp3”. “.mp3”, “ MP3” “ ”, PC “ ” “ ” 256. VBR, . VBR: WMA (Windows Media Audio) – Microsoft Corporation. , 64 Downloaded from Caradio-Manual.com Manuals...
- Page 49 CD-R CD-RW, MP3. 44,1 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW ID3TAG. Downloaded from Caradio-Manual.com Manuals...
- Page 50 POWER, OPEN, Downloaded from Caradio-Manual.com Manuals...
- Page 51 Downloaded from Caradio-Manual.com Manuals...
- Page 52 Downloaded from Caradio-Manual.com Manuals...
- Page 53 30 , Downloaded from Caradio-Manual.com Manuals...
- Page 54 NO FILE: ERR-7: ERR-10: ERR-11: ERR-3: ERR-4: RESET Downloaded from Caradio-Manual.com Manuals...
- Page 55 12 , . 10 87.5 - 108.0 10.7 522-1620 MP3/ CD-R/ CD-RW 20-100 10-20 . 1000 Downloaded from Caradio-Manual.com Manuals...
- Page 56 – 2 – 8 – 8 (x 8) ( 8) Downloaded from Caradio-Manual.com Manuals...
- Page 57 Downloaded from Caradio-Manual.com Manuals...
- Page 58 Downloaded from Caradio-Manual.com Manuals...
- Page 59 =115 , Ø =5 Downloaded from Caradio-Manual.com Manuals...
- Page 60 Downloaded from Caradio-Manual.com Manuals...
- Page 61 Downloaded from Caradio-Manual.com Manuals...
- Page 62 : 120 (150 ) 80 – 20000 138,5 x 49 0,38 /0,8 Downloaded from Caradio-Manual.com Manuals...
