SoundMax SM-CDM1055 Instruction Manual

Cd/mp3/wma-receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SM-CDM1055
CD/MP3/WMA-RECEIVER
CD/MP3/WMA-
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-CDM1055 and is the answer not in the manual?

Questions and answers

Related Manuals for SoundMax SM-CDM1055

Summary of Contents for SoundMax SM-CDM1055

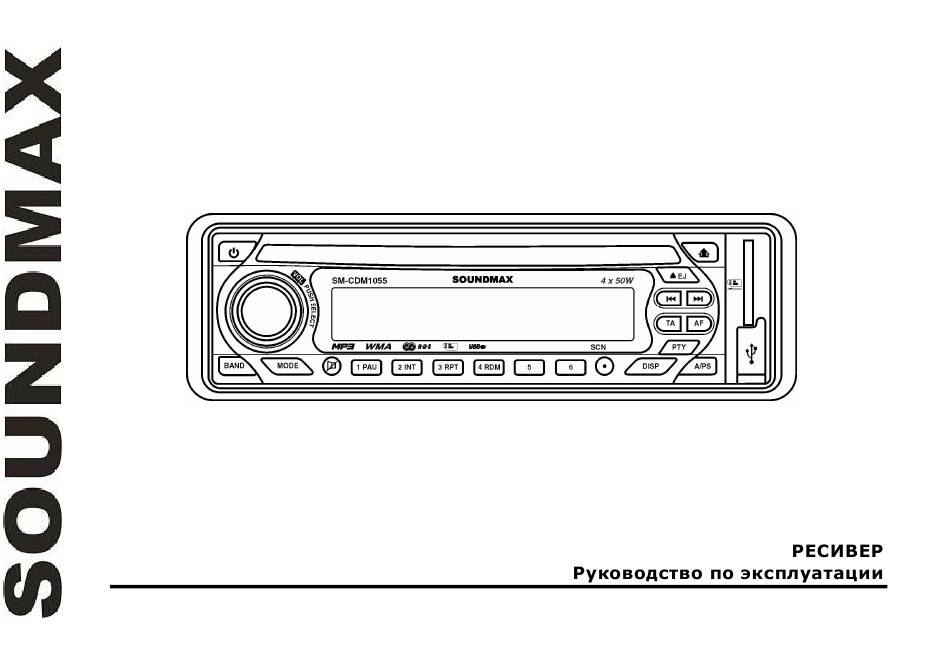

  • Page 1 SM-CDM1055 CD/MP3/WMA-RECEIVER CD/MP3/WMA- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents TABLE OF CONTENTS ....................2 IMPORTANT SAFEGUARDS ...................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to heat up the passenger compartment during 20 seconds or to the operation temperature. Use the unit with the temperature that goes beyond the operation temperature greatly decreases the operation resource of the screen and other components of device and can result an outage.

  • Page 4: Accessories

    Accessories 1. Receiver 1 pc 2. Front panel 1 pc 3. Front panel case 1 pc 4. ISO adapter set 1 pc 5. Mounting parts: Rear support strap 1 pc Release key 2 pcs Screw 1 pc 1 pc Plain washer 3 pcs Spring washer 2 pc...

  • Page 5: Installation/Connection

    Installation/Connection Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring and make sure that the unit works properly. Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
  • Page 6 1. Unit 2. Sleeve 3. Dash board 4. Hex nut 5. Lock washer 6. Plain washer 7. Car body 8. Metal strap 9. Tapping screw 10. M5X15 hex bolt Use the metal strap to fix the rear side of the unit. Determine a place for fixing and install the strap as shown in the picture.
  • Page 7 Trim frame installation To install the trim frame, press it to the unit body and push it to fix it in place. This should be done before installing the front panel; otherwise you are not able to install the trim frame. When the trim frame being installed, the side with the groove should face down and fixed first.

  • Page 8: Electrical Connection

    Electrical connection Connector A 1. - 2. - 3. - 4. Memory +12V 5. Auto antenna output 6. - 7. +12V (to ignition key) 8. Ground Connector B 1. Rear right speaker (+) 2. Rear right speaker (-) 3. Front right speaker (+) 4.

  • Page 9: Control Elements

    Control elements Front panel 1. POWER button 2. VOL knob/SELECT button 3. Display 4. Disc slot 5. TA button 6. PREVIOUS/NEXT buttons 7. EJECT button 8. SD/MMC slot 9. AF button 10. USB slot 11. A/PS button 12. PTY button 13.

  • Page 10: Lcd Layout

    LCD layout 1. Track playback 2. Intro playback indicator 3. Repeat playback indicator 4. Random playback indicator 5. EON function indicator 6. Mute function indicator 7. Loudness indicator 8. Digit display 9. Folder name on 10. POP equalizer mode 11. ROCK equalizer mode 12.

  • Page 11: General Operations

    General operations Power button Press any button (except OPEN and EJECT buttons) to switch the unit on. The display will show a message “WELCOME”. Press and hold POWER button to switch the unit off. Note: After the unit is off, volume level and radio current settings will be memorized, and when you turn the unit on it will resume the stored status you set.
  • Page 12 Mute function Press MUTE button to cancel the sound. Press it again or adjust the volume level to resume the sound. Loudness Press and hold SELECT button then press it repeatedly to select LOUD OFF (LOUD ON). If LOUD ON is displayed, it means that Loudness function is activated.

  • Page 13: Radio Operations

    Radio operations BAND selection Press repeatedly BAND button to select your desired radio band in radio mode: FM1, FM2, FM3, FM (OIRT), AM1 (MW1), AM2 (MW2). Each band can store 6 preset stations, for a total of 36 preset memory stations. Tuning Press PREVIOUS or NEXT button to manually adjust the radio frequency.
  • Page 14 and STEREO by rotating VOL knob. RDS function RDS (Radio Data System) service availability varies with areas. Please understand that if RDS service is not available in you area, the following service is not available either. AF (Alternative Frequencies) function Press AF button to turn the AF function on or off.
  • Page 15 programs available. Press PTY button twice to show the speech type program. Then press 1 - 6 number buttons to choose different speech programs. Each number button will show 3 different speech programs for you to choose (see table below). Button Music type programs Speech time programs...
  • Page 16 SEEK MODE SEEK 1: When SEEK 1 mode is activated, auto seek scan is stopped when station is detected even if user still presses PREVIOUS or NEXT button. SEEK 2: Auto seek scan is not stopped even station is detected if user presses PREVIOUS or NEXT button. When user releases the button, then seek stops when station is detected.

  • Page 17: Disc/Usb/Sd/Mmc Card Operations

    Disc/USB/SD/MMC card operations USB/SD/MMC notes USB functions (flash memory type) MP3 music play. SD/ MMC card support, 2in1 (SD/MMC) support. USB flash memory. FAT 12/ FAT 16/ FAT 32 is possible FAT 12/16 (dir: 200 support, file: 500 support), FAT 32 (dir: 200 support, file: 500 support). Filename: 32 byte/ Dir name: 32 byte.
  • Page 18 Pausing playback To ensure good system performance, wait until the unit finishes reading the disc information before proceeding. Press 1/PAU button to pause the playback. Press again to resume the playback. Playing the previous/next track During playback press NEXT or PREVIOUS buttons to play next or previous track correspondingly. Fast forward and backward playback Press and hold NEXT or PREVIOUS buttons on the panel or RC to fast forward or reverse correspondingly.
  • Page 19 Press A/PS button. Press SELECT button, the first digit of the track number will blink. Rotate VOL knob to select track number. Switch between track number digits by pressing SEL button. Press SELECT button, the selected track will start to play. Folder search: Press A/PS button twice.

  • Page 20: Mp3/Wma Overview

    MP3/WMA overview Notes on MP3 and WMA MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
  • Page 21 Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc. You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.

  • Page 22: Handling Compact Discs

    Handling compact discs Do not insert anything other than a CD into the CD loading slot. Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause skipping or noise damage the player. Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface. Store discs in their cases when not in use.

  • Page 23: Troubleshooting Guide

    Troubleshooting guide Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer. Symptom Cause Solution...

  • Page 24: Specification

    Specification General Power supply 12 V DC Current consumption max. 10 Maximum power output 50Wx4 channels Fuse Dimensions (L x W x H) 178 x 50 x 178 mm Temperature range - +60 Installation angle – +/-30 FM stereo radio Frequency range 65.0 –...
  • Page 25 ......................25 ..................26 ....................27 ..................28 ..............31 ................... 32 .................... 33 ..................... 34 ....................36 /USB- SD/MMC ....40 3/WMA ....................... 44 ................46 ......................46 ..........47 ................49...
  • Page 27 ISO-...
  • Page 28 30°,...
  • Page 29 M5x15 – – –...
  • Page 30 OPEN,...
  • Page 31 1. - 2. - 3. - +12 ) 6. -...
  • Page 32 POWER VOL/ SELECT PREVIOUS/NEXT EJECT SD/MMC 10. USB- A/PS DISP 2/INT 1/PAU MUTE 4/RDM MODE 3/RPT BAND RESET RESET...
  • Page 33 ROCK FLAT CLASS CD/MP3...
  • Page 34 OPEN EJECT), «WELCOME». POWER, VOL, SELECT, : VOL ( ) => BAS ( ) => TRE ) => BAL ( ) => FAD ( VOL, VOLUME: 00, 02,.., 47 BASS/TREBLE: -7, -5,.., 0, +1, +2,..+5, +7 BALANCE: 10L,.., 10R FADER: 10R,.., 10F MODE, : AUX =>...
  • Page 35 MUTE, VOL, DISP DISP DISP SELECT, LOUD OFF (LOUD ON). LOUD ON, LOUD OFF VOL. (DSP) SELECT, DSP OFF. : POP =>ROCK =>CLASS =>FLAT =>DSP OFF ( BEEP SELECT, BEEP OFF (BEEP ON). BEEP ON ( BEEP OFF ( DISP...
  • Page 36 BAND, : FM1, FM2, FM3, FM (OIRT), MW1 (AM1), MW2 ( PREVIOUS NEXT, PREVIOUS/NEXT; PREVIOUS NEXT. A/PS, A/PS; SCN. SELECT, DX (LOCAL). LOCAL,...
  • Page 37 LOCAL VOL. SELECT, STEREO MONO ( STEREO MONO VOL. RDS ( AF ( RDS. REGION. REG ON ( , PI- REG OFF ( ): PI- TA (...
  • Page 38 PTY ( RDS, PTY, 1-6, 1-6, Pop, Rock News, Affairs, Info Easy, Light Sport, Educate, Drama Classics Culture, Science, Varied Jazz, Weather, Country Finance, Children Nation, Social, Religion, Oldies Phone IN Folk Travel, Leisure, Document...
  • Page 39 SELECT VOL, TA SEEK/TA ALARM TA SEEK TA ALARM: MASK DPI/MASK ALL AF ( MASK DPI. MASK DPI MASK ALL RDS. RETUNE S/L (SHORT/LONG) «RETUNE» . «S» ; «L» Retune TA SEEK. SEEK1/SEEK2 SEEK 1: PREVIOUS NEXT. SEEK 2: PREVIOUS NEXT PREVIOUS NEXT,...
  • Page 40 /USB- SD/MMC USB/ SD/ MMC SD/ MMC, 2 1 (SD/MMC). FAT 12/ FAT 16/ FAT 32 FAT 12/ 16 ( , 500 FAT 32 ( , 500 : 32 : 32 (id3tag ver 2.0) USB 2.0. USB: USB 2.0. SD/MMC: EJECT, 1/PAU,...
  • Page 41 USB/SD/MMC SD/MMC MODE, PREVIOUS NEXT, PREVIOUS NEXT, Intro ( 2/INT, 4/RDM, MP3/WMA)
  • Page 42 ID3- ID3 Tag, A/PS. SELECT; SELECT. SELECT, A/PS. SELECT; VOL, SELECT, A/PS. SELECT, “A”. VOL, SELECT SELECT “NOT FOUND” (“ ”). MULT ( “MULT ON” ( SELECT, MULT ON...
  • Page 43 (MULT OFF). VOL. “MULT OFF”. ESP ( SELECT, “ESP12” (“ESP45”). VOL, “ESP 12“; “ESP 45”.
  • Page 44 3/WMA MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. “.mp3”. “.mp3”, “ MP3” “ ”, PC “ ” “ ” 256. VBR, . VBR: WMA (Windows Media Audio) – Microsoft Corporation. , 64 CD-R CD-RW MP3: 44,1...
  • Page 45 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW...
  • Page 47 “ ”. POWER RESET.
  • Page 48 (ERROR 1 – 11) (ERROR 1 – 11)
  • Page 49 . 10 - +60 – +/-30 65.0 – 74.0/87.5 – 108.0 10.7 MW (AM) 522-1620 CDDA/MP3/WMA CD/CD-R/CD-RW/USB/SD/MMC - 20 >60 CD/ 120 MP3/ 300 RCA- (2 ) RCA- (2 )
