Summary of Contents for SoundMax SM-CDM1057

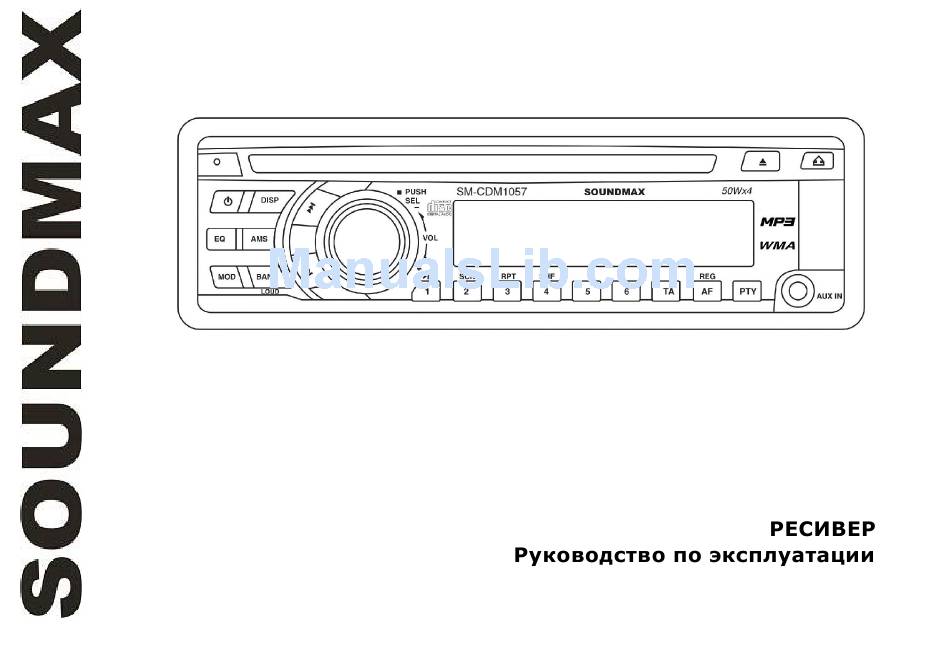

- Page 1 SM-CDM1057 CD/MP3/WMA RECEIVER CD/MP3/WMA- Instruction manual...
-
Page 2: Table Of Contents
Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ... 2 Important safeguards ... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS Read carefully through the manual to familiarize yours with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit. -
Page 4: Installation/Connections
First complete the electrical connections, and then check them for correctness. If you are not confident working with electrical wiring, removing and reinstalling interior panels, carpeting, dashboards or other components of your vehicle, please call your dealer in order to have the unit professionally installed. - Page 5 Installation method A After inserting the holder into the dashboard, select the appropriate tab and bend them inwards to secure the holder in place. Insert fingers into the groove in the front of frame and remove it. Insert the levers supplied with the unit to the grooves at both sides.
- Page 6 Note: Outer trim frame, hook, and mounting sleeve are not used for this installation. This is only intended as a general guide; contact the vehicle's manufacturer for specific instructions. This method of installation uses the screw holes at the sides of the unit and the holes of the existing vehicle mounting bracket.
- Page 7 To detach the front panel The front panel of the unit may be removed as a theft deterrent. After removing the front panel, use the case provided to keep the front panel from getting damaged. 1. Press OPEN button to flip down the front panel. 2.
-
Page 8: Connection Scheme
Connection scheme Notes: In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. Prohibit to make the conductors of auto antenna and ground touch with each other. -
Page 9: Accessories
Accessories Name Hexagon nut M5 T (3.5 mm) Mounting box (0.6 mm) Left key (1.0 mm) Right key (1.0 mm) Metal bar (0.8 mm) ISO connector Plain washer =5 mm Carrying case Outer trim ring Spring washer =5 mm Screw 5X5 mm Screw 5X25 mm... -
Page 10: Panel Controls
Panel controls Front panel 1. AMS button 2. EQ button 3. MOD button 4. BAND/LOUD button 5. PREV button 6. No 1/PLAY/PAUSE button 7. No 2/SCN button 8. No 3/RPT button 9. No 4/SHF button 10. No 5 button 11. No 6 button 12. - Page 11 Inner panel Press OPEN button on the front panel to flip it down. 23. Light indicator 24. RESET button...
-
Page 12: General Operations
Power button Press any button (except OPEN) or insert disc to switch the unit on. Press the POWER button to switch the unit off. Volume control Rotate the VOL knob on the front panel to adjust volume level. Audio settings adjustment Press SEL button until the display shows: VOL =>... - Page 13 Choose PI sound or mute. PI sound refers to the reception noise when the AF function tries to scan alternative frequency. RETUNE mode To determine the initial time of automatic TA (Traffic Announcement) search. There are 2 modes: RETUNE L and RETUNE L. RETUNE L: 90 seconds.
- Page 14 - In case of receiving a RDS station In radio mode: PS -> CT -> FREQ -> P TY In CD mode: CD -> CT -> (ID3 TAG) -> PS -> FREQ -> PTY * In case of no receiving CT or PTY Information, the display shows as “NO CLOCK” or “NO PTY”. - In case of receiving a non RDS station In radio mode: “NO CLOCK”...
-
Page 15: Radio Operations
Radio operations Band selection Press the BAND/LOUD button repeatedly to select your desired radio band during RADIO mode: FM1, FM2, FM3, MW1. Automatic memory storing Press AMS button for 2 seconds, the radio searches from current frequency and checks the signal strength until one cycle is finished. -
Page 16: Rds Function
RDS function Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. Press AF/REG button to switch ON or OFF RDS function. Setting RDS mode Whenever RDS is switch on, symbol “AF”... - Page 17 No2/SCN No3/RPT No4/SHF When you select the PTY SPEECH GROUP, the preset numbered buttons are shared as follows: Button No1/PLAY/PAUSE NEWS, AFFAIRS, INFO No2/SCN SPORT, EDUCATE, DRAMA No3/RPT CULTURE, SCIENCE, VARIED No4/SHF WEATHER, FINANCE, CHILDREN SOCIAL, RELIGION, PHONE IN TRAVEL, LEISURE, DOCUMENT Listening to Traffic Announcement Press TA button to turn on mode and a traffic announcement is transmitted:...
-
Page 18: Other Functions
PI: Program Identification Code – for identifying code. PS: Program Service Name Broadcast – station name data expressed in alphanumerically character. TP: Traffic Program Identification – for traffic information broadcasting station. TA: Traffic Announcement Identification – showing traffic information is being transmitted or not. AF: Alternative frequencies –... -
Page 19: Cd/Mp3/Wma Operations
CD/MP3/WMA operations This unit can play disc types: CD/CD-R/-RW. Compatible with formats: MP3/WMA. Loading/Removing the disc Insert the disc into the disc slot with the printed side facing up; the unit will play the disc automatically. Press EJECT button to eject the disc. Switching to CD/MP3/WMA mode When a disc is inserted in the unit, press MOD button to switch to the CD/MP3/WMA mode. - Page 20 Selecting directory up/down Press No5 or No6 button to select directory downward or upward. If the MP3/WMA disc does not contain any directory, these buttons are not functional. Searching file and directory Press AMS button repeatedly to cycle through the following search modes: Searching by track number =>...
- Page 21 3. Searching from root directory Press AMS button thrice to enter “Searching from root directory” mode. Rotate VOL knob to browse file or directory in the root directory. Press BAND/LOUD button to confirm and start playback if the selected title is a file. If the selected title is a directory, the display will show “D-DIR”.
-
Page 22: Mixed-Cd Operations
Mixed-CD Operations The unit can play the mixed-CD disc (when disc contains both CD audio tracks and MP3/WMA files). When you insert a mixed-CD disc into the CD slot, it starts to play the CD audio tracks. If you want to play MP3/WMA files, press No5 button or No6 button, it will search the disc over and start to play the MP3 files. -
Page 23: Mp3 Overview
MP3 overview Notes on MP3 MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write. -
Page 24: Esp Function
CD-RW disc is recommended. Up to 16 characters are displayed for the name of an Album or a Track. ID3TAG version 1.x is required. Note that the unit may not play Tracks in the order that you wrote them to the disc. ESP function This unit has the electronic shockproof (ESP) function. -
Page 25: Cleaning
Cleaning Cleaning the cabinet Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean. Cleaning discs Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth should remove must panicles. -
Page 26: Troubleshooting Guide
Symptom No power The car ignition is not on. The fuse is blown. Disc cannot be loaded. There is a disc inside the unit. Disc cannot be read. The disc inserted upside down. Compact disc is extremely dirty or defective. Temperature inside the car is too high. -
Page 27: Specification
Specification General Power supply Current consumption Maximum power output Fuse Dimensions (L x W x H) Supported storages: FM stereo radio Frequency range Usable sensitivity I.F. Frequency Preset stations MW Section Frequency range I.F. Frequency: Preset stations Disc player System: Frequency response: Signal to noise CD: Number of channels:... - Page 28 ... 28 ... 29 ... 30 ... 34 ... 35 ... 36 ... 38 ... 41 RDS ... 42 ... 44 ... 46 CD/MP3/WMA ... 49 AUX In ... 49 3 ... 50 ESP... 51 ... 51 ... 52 ... 53 ...
- Page 33 OPEN...
- Page 35 M5 T (3,5 (0,6 (1,0 (1,0 5X25 5X29,3 (0,8...
- Page 36 BAND/LOUD PREV No 1/PLAY/PAUSE No 2/SCN No 3/RPT No 4/SHF No 5 No 6 AF/REG AUX in OPEN EJECT VOL/ NEXT DISP POWER...
- Page 37 OPEN, RESET...
- Page 38 (POWER) POWER, SEL, ) => TRB ( ) => FAD ( L/S => MASK DP/IALL => BEEP 2’nd/ALL/OFF. VOL, TA SEEK (Traffic Program – OPEN) ) => BAL ( : TA SEEK/ALARM => PI SOUND/MUTE => RETUNE : TA SEEK - RETUNE SHORT (30 : VOL ( ) =>...
- Page 39 ALARM: PI SOUND/MUTE PI SOUND PI MUTE RETUNE Retune-S Retune-L – Seek. RETUNE S: RETUNE L: Retune MASK VOL, MASK DPI: MASK ALL: BEEP BEEP 2nd: BEEP ALL: BEEP OFF: TA SEEK 30 TA SEEK 90 TA SEEK. : MASK DPI MASK ALL.
- Page 40 MOD, LOUD. DISP, : PS ->CT ->FREQ ->PTY CD: CD ->CT ->(ID3 TAG) ->PS ->FREQ ->PTY “NO PTY”. : “NO CLOCK” ->FREQ->”NO PTY” CD -> “NO CLOCK” -> FREQ -> “NO PTY” : CT = clock time ( => ROCK M => DSP OFF ( LOUD) BAND/LOUD, ) FREQ = frequency (...
- Page 41 RDS ( BAND/LOUD, : FM1, FM2, FM3, MW1. (1-6), PREV/NEXT, «MANUAL», PREV/NEXT PREV/NEXT, PREV/NEXT, (1-6).
-
Page 42: Rds
AF/REG, «ALARM»; REG. PTY, ) => PTY SPEECH GROUP ( PTY MUSIC GROUP PTY MUSIC GROUP, No1/PLAY/PAUSE No2/SCN AF/REG PTY SPEECH GROUP POPM, ROCKM EASYM, LIGHT M RDS. «AF». RDS. «AF» : PTY MUSIC GROUP ) => GROUP PTY OFF... - Page 43 No3/RPT CLASSICS, OTHER M No4/SHF JAZZ, COUNTRY NATION M, OLDIES PTY SPEECH GROUP, No1/PLAY/PAUSE NEWS, AFFAIRS, INFO No2/SCN SPORT, EDUCATE, DRAMA No3/RPT CULTURE, SCIENCE, VARIED No4/SHF WEATHER, FINANCE, CHILDREN SOCIAL, RELIGION, PHONE IN TRAVEL, LEISURE, DOCUMENT TA ( Local ( )/distance ( EON TA DISTANCE ( FOLKM...
- Page 44 LOCAL ( PI, PS, TP, TA, AF, EON EON: Enhanced Other Networks EON ( RESET EON TA DISTANCE ( – – «TEL CALL», «TEL CALL» – –...
- Page 45 ERROR (...
-
Page 46: Cd/Mp3/Wma
CD/MP3/WMA : CD/CD-R/-RW. : MP3/WMA. OPEN, EJECT, CD/MP3/WMA MOD, CD/MP3/WMA. PREV NEXT, PREV NEXT No1/PLAY/PAUSE No2/SCN... - Page 47 No3/RPT No4/SHF => AMS, AMS, No1/PLAY/PAUSE A, B, C, 1 No2/SCN D, E, F, 2 No3/RPT G, H, I, 3 No4/SHF J, K, L, 4 M, N, O, 5 => VOL, PREV NEXT DISP POWER MP3/WMA => BAND/LOUD. S, T, U, 7 V, W, X, 8 Y, Z, _, -, +, 0...
- Page 48 P, Q, R, 6 BAND/LOUD. «NO FOUND». AMS, DIR». AMS, DIR». MPEG1 Audio Layer 3 (44.1 BAND/LOUD BAND/LOUD BAND/LOUD 32, 48, 64, 96, 128, 192, 256, 320 «D-DIR». BAND/LOUD. «D- «D- MP3:...
-
Page 49: Aux In
MP3/WMA MP3/WMA No6, No6, AUX In AUX. - Page 50 «.mp3». PC « 44,1 MPEG 3 » « » 256. VBR, . VBR: CD-R CD-RW, ISO 9660, CD-ROM, CD-R ISO 9660. «.mp3», « MP3» « »,...
-
Page 51: Esp
CD-R CD-RW ID3TAG. : 40 : 120 : 300 CD-R MP3 CD-R CD-RW CD-R CD-RW (ESP). - Page 54 « ». RESET.
- Page 56 12 , . 15 D/CD-R/CD-RW 87,5 – 108,0 10,7 522 – 1620 – 18 . 2000...
