Martin Exterior 200 LED User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

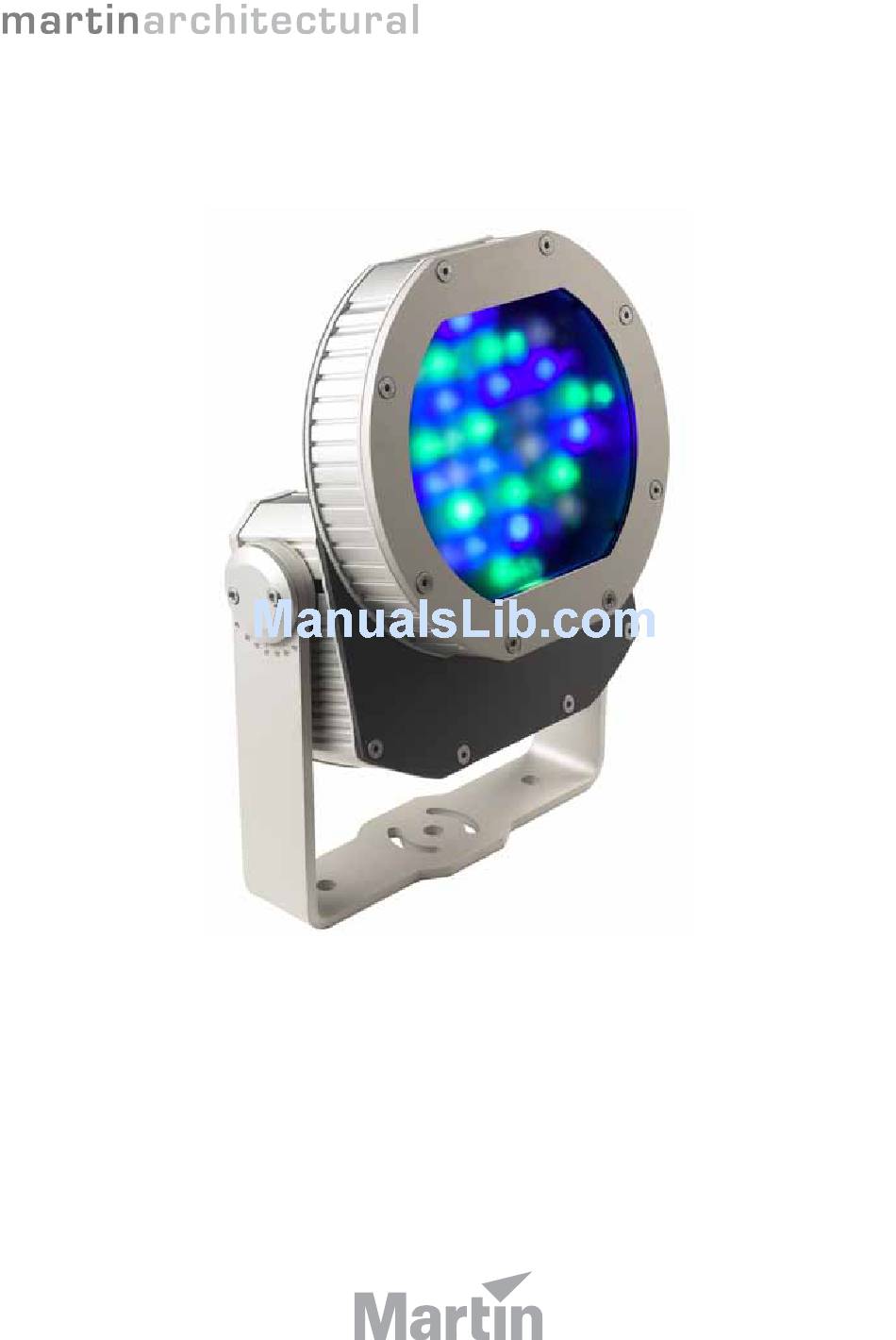

Exterior 200 LED™

user manual

Advertisement

Table of Contents
loading

Related Manuals for Martin Exterior 200 LED

Summary of Contents for Martin Exterior 200 LED

  • Page 1: User Manual

    Exterior 200 LED™ user manual...

  • Page 2: Dimensions

    The Martin logo, the Martin name and all other trademarks in this document pertaining to services or products by Martin Professional A/S or its affiliates and subsidiaries are trademarks owned or licensed by Martin Professional A/S or its affiliates or subsidiaries.

  • Page 3: Safety Information

    If you have questions about how to operate the fixture safely, please contact your Martin dealer or call the Martin 24-hour service hotline at +45 70 200 201. P R O T E C T I O N F R O M E L E C T R I C S H O C K •...
  • Page 4 • Keep flammable materials well away from the fixture. • Do not modify the fixture in any way not described in this manual or install other than genuine Martin parts. Do not stick filters, masks or other materials directly onto LEDs. Use only Martin approved accessories to mask or modify the light beam.

  • Page 5: Table Of Contents

    Contents Dimensions ............... . 2 Safety Information .
  • Page 6 Notes Exterior 200 LED user manual...

  • Page 7: Introduction

    Introduction Thank you for selecting the Exterior 200 LED™, a compact LED-based color-changing floodlight from Martin™. This product features: • Luxeon K2 high-power LEDs • 1400 lm total LED output per fixture (balanced white 5600 K at 25° C / 77° F) •...

  • Page 8: Physical Installation

    Allow for service access to the front and rear of the fixture. The Exterior 200 LED can be installed outdoors. It has an IP rating of 65 and is designed to withstand rain and other low-pressure water projections but: •...

  • Page 9: Tilt Adjustment

    mm (5/16 inch) shaft diameter passing through slots C to anchor the fixture. installing bolts through slots C will give approximately 90° of pan adjustment. Install washers under all nuts and bolt heads. If additional bolts are required to mount the fixture safely, install bolts through holes B and slots C. Ø53 90°...

  • Page 10: Power And Dmx Data Cable Layout

    AC power AC power 230V AC 230V AC 50 Hz 50 Hz 50 Hz 50 Hz Max. 32 luminaires or 500m. before Figure 3: Schematic cable layout diagram opto-splitter is required. Power 230V AC 50 Hz Exterior 200 LED user manual...

  • Page 11: Ac Power

    See “Fuse replacement” on page 27 for details of changing fuses. See "Specifications" on page 33 for details of fuse rating and typical current. There is no power on/off switch. Power is applied to the Exterior 200 LED as soon as it is connected to power.

  • Page 12: Replacing The Power Cable

    L N L2 terminal L. Important! Do not connect the live wire to terminal L2 as there is electrical continuity between this terminal and terminal N (see Figure 6). Figure 5: Power terminals Exterior 200 LED user manual...
  • Page 13 If you use a cable with an external diameter that is not within the range accepted, replace the cable gland with a suitably dimensioned item. Cable glands must be rated IP68 and suitable for the cable diameter and application. New cable glands can be obtained from Martin (P/N 13102000) or from electrical suppliers.

  • Page 14: Control Data Link

    • The number of fixtures that can be individually controlled in one DMX universe depends on the number of DMX channels they use. if Exterior 200 LED fixtures are set to HSI mode, each fixture require 3 DMX channels (one channel for hue, one for saturation and one for intensity). The total number of Exterior 200 LED fixtures that can be linked in one DMX universe will therefore be 512/3 = 170.

  • Page 15: Connecting The Data Link

    The Exterior 200 LED is supplied with a 1.8 meter (5.9 ft.) data cable tail for data connection. The cable contains both input and output conductors that are identified as follows: •...

  • Page 16: Fixture Setup

    2. Connect the DABS1 adaptor to your PC using the USB cable. 3. Connect the DABS1 adaptor to the Exterior 200 LED using an XLR connector connected to the data link. Note that you may only connect to one fixture at a time.
  • Page 17 Setting DMX address and DMX color control mode If individual control of each Exterior 200 LED is required, each fixture must be set up to receive instructions from the DMX controller on a group of DMX channels that are not used by any other device in its DMX universe.
  • Page 18 To set the DMX mode using MUM, click on the Fixture settings button and use the DMX Mode drop-down dialog box to select the desired mode. The DMX mode will be updated in the fixture in real time. Remember that changing the DMX mode will affect the number of channels the fixture uses. Exterior 200 LED user manual...

  • Page 19: Operation

    Ambient temperatures The Exterior 200 LED can be operated at ambient temperatures from -30° C (-22° F) to 45° C (113° F). At temperatures below 0° C (32° F), leave the fixture permanently powered on, even if LEDs are dimmed to zero because light output is not required.
  • Page 20 Capture current sensor value to set the current ambient light level to trigger stand-alone operation. To avoid false triggering by sudden light changes (caused by vehicle headlights or clouds, for example), the light level must remain above or below the trigger threshold for 5 minutes to activate the trigger. Exterior 200 LED user manual...
  • Page 21 Programming stand-alone operation About scenes A stand-alone light show consists of scenes. Each scene is a particular lighting effect with predetermined color, intensity and duration. Up to 20 scenes can be programmed into the Exterior 200 LED’s program memory. Each scene has a dynamic part – the fade – during which effects move to the scene’s programmed positions, and a static part –...
  • Page 22 All other luminaires must be set as slaves. Combining with other fixtures An Exterior 200 LED running a stand-alone show can perform synchronized scene changes with other Exterior 200 LED fixtures as well as Martin Architectural fixtures of the following types: •...
  • Page 23 If you are programming a group of fixtures to perform the same scenes with synchronized master/slave triggering, we recommend that you: 1. Use MUM to program a show on one slave fixture 2. Download and save this fixture’s program and settings to your PC using MUM’s Files menu (see Figure 16), and then 3.
  • Page 24 Note that in the following example, the scenes in the slave run out of their programmed sequence because scenes 0 and 2 on the slave are longer than the corresponding scenes on the master. M=master, S=slave F=fade, W=wait Time > Programmed Master Slave Result Master Slave .. F Exterior 200 LED user manual...

  • Page 25: Service And Maintenance

    Any service procedures not described in this section must be carried out by the Martin Service organization or its authorized agents. It is Martin policy to use the best quality materials available to ensure optimum performance and the longest possible component lifetimes. However, optical components in all lighting fixtures are subject to wear and tear over the life of the fixture, resulting in gradual changes in color rendition, for example.

  • Page 26: Installing And Removing A Diffuser Filter

    LEDs. The Exterior 200 LED is supplied with a narrow diffuser filter installed and medium and wide diffuser filters packed separately with each product. Diffuser filters soften the output from the LEDs and alter the beam angle.

  • Page 27: Fuse Replacement

    Replace fuses with ones of the same type and rating only. Primary fuse Exterior 200 LED fixtures are protected by a 2.5 amp slow-blow primary fuse located on the power PCB. If a fixture is completely dead, the primary fuse may have blown.

  • Page 28: Status Indicators

    Installing software: normal method 1. Connect the uploader hardware to a Exterior 200 LED fixture’s data input connector. The software will be uploaded to that fixture and all Exterior 200 LED fixtures that are powered on and connected via the DMX link.
  • Page 29 • Lights steady green when the fixture is successfully receiving a DMX signal. • Flashes green when the fixture is successfully receiving a data signal. • Lights steady yellow during a software upload. • Flashes yellow while the fixture is resetting. Service and maintenance...

  • Page 30: Dmx Protocols

    Violet Magenta Saturation → 0 - 255 0 - 100 Zero (white) Full Intensity → 0 - 255 0 - 100% Intensity 0 100% In HSI mode, white color temperature is fixed at 5500 K. Exterior 200 LED user manual...

  • Page 31: Hsic Mode

    HSIC Mode Start code = 0 Channel Value Percent Function → → → → 0 - 255 0 - 100 Orange Amber Yellow → → → → Green Cyan Blue Indigo → → Violet Magenta Saturation → 0 - 255 0 - 100 Zero (white) Full saturation...

  • Page 32: Troubleshooting

    Bypass devices on DMX link until the faulty device has been identified. Other device on DMX link defective. Have faulty device tested and serviced by Martin service technician or device supplier. Ensure free airflow around fixture. Clean fixture. LEDs cut out intermittently.

  • Page 33: Specifications

    DMX channels ..............3, 4 or 5 DMX address setting ....PC with Martin MUM software and DABS1 hardware interface Stand-alone trigger options .
  • Page 34 Exterior 200 LED, Aluminum, EU model ........
  • Page 35 Notes...
  • Page 36 • • • www.martin.com Olof Palmes Allé 18 8200 Aarhus N Denmark Tel: +45 8740 0000 • Fax +45 8740 0010...
