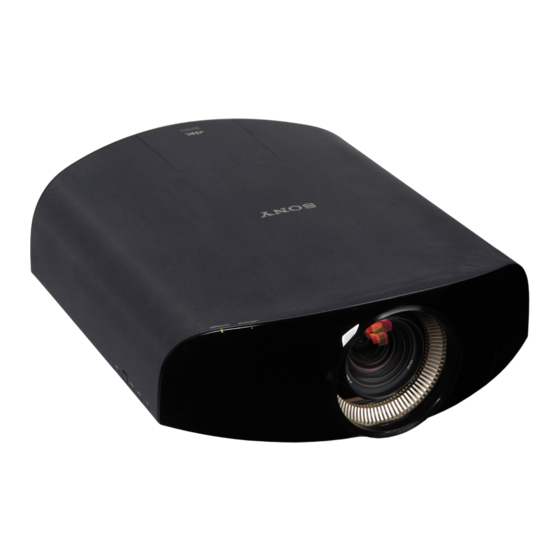

Sony VPL-VW1100ES Operating Instructions Manual

Video projector
Hide thumbs Also See for VPL-VW1100ES:
Table of Contents

Advertisement

4-486-360-12 (1)
Video Projector

Operating Instructions

Before operating the unit, please read this manual and supplied Quick
Reference Manual thoroughly and retain them for future reference.
VPL-VW1100ES

Advertisement

Table of Contents
loading

Summary of Contents for Sony VPL-VW1100ES

  • Page 1: Operating Instructions

    4-486-360-12 (1) Video Projector Operating Instructions Before operating the unit, please read this manual and supplied Quick Reference Manual thoroughly and retain them for future reference. VPL-VW1100ES...
  • Page 2: Table Of Contents

    Table of Contents Using “ImageDirector3” to Adjust the Picture Quality ........28 Location of Controls Front/Right Side ......... 4 Using the Menus Rear/Bottom ........5 Remote Control ........6 Operation through the Menus ...29 Picture Menu ........31 Screen Menu ........37 Connections and Setup Menu ........40 Preparations Function Menu .........42...
  • Page 3 About the simulated 3D feature ..56 Troubleshooting .......57 Warning Indicators .....60 Message Lists ......61 Replacing the Lamp and Cleaning the Ventilation Holes (intake) ....63 Cleaning ...........66 Specifications ........67 Preset Signals ......68 Input Signals and Adjustable/ Setting Items .......71 Compatible 3D Signals ....73 3D Signals and Adjustable/Setting Items ..........73 Aspect Mode .......74...
  • Page 4: Location Of Controls

    Location of Controls Front/Right Side You can use the buttons on the control panel with the same names as those on the remote control to operate the unit. Control panel LENS button (1 page 8) M/m/</, (arrow)/ (enter) button (1 page 29) ON/STANDBY indicator MENU button (1 page 29)
  • Page 5: Rear/Bottom

    Rear/Bottom Lamp cover (1 page 63) Remote control detector (1 page 8) Ventilation holes (exhaust) AC IN socket AC inlet cover (supplied) For details on how to attach the AC inlet cover, see Quick Reference Manual (separately printed manual). Front feet (adjustable) (1 page 12) Ventilation holes (intake) Projector suspension support attaching hole...
  • Page 6: Remote Control

    Remote Control Infrared transmitter LIGHT button Illuminates the buttons on (ON/STANDBY) the remote control. button (1 page 9) INPUT button (1 page 17) CALIBRATED PRESET buttons (1 page 27) LENS ADJUSTMENT buttons (1 page 9) POSITION button RESET button (1 page 30) (1 page 22) M/m/</, (arrow)/ (enter)
  • Page 7: Connections And Preparations

    When installing the unit on the ceiling To dealers Use the Sony PSS-H10 Projector Suspension Support, and take measures to prevent falling using wire, etc. For details, refer to the installation manual for dealers of the PSS-H10.
  • Page 8: Preparation 2: Adjusting The Picture Position

    Preparation 2: Adjusting the Picture Position Project an image on the screen and then adjust the picture position. ON/STANDBY indicator Remote control detector (ON/ STANDBY) button 3, 4, 5 LENS ADJUSTMENT buttons Tips • The (ON/STANDBY), INPUT, MENU, and M/m/</,/ (joystick) buttons on the side panel of the unit function the same as those on the remote control.
  • Page 9 After connecting the AC power cord to the unit, plug the AC power cord into a wall outlet. The ON/STANDBY indicator lights in red and the unit goes into standby mode. Lights in red. When “Lens Control” is set to “Off” on the Press the (ON/STANDBY) Installation...
  • Page 10 Adjust the picture position. Press the LENS ADJUSTMENT (SHIFT) button to display the Lens Shift adjustment window (test pattern). Then adjust to the proper position of the picture by pressing the M/m/</, buttons. The test pattern disappears when no operation has been performed for one minute.
  • Page 11: To Adjust The Horizontal Position

    To adjust the horizontal position Press </,. The picture projected on the screen moves right or left by a maximum of 31% of the screen width from the center of the lens. 1 screen width Top view : Picture position when moving the picture to the left at maximum : Picture position when moving the picture to the right at maximum...
  • Page 12 Note The range to move the picture projected on the screen can be adjusted only within the octagon area illustrated below. For details, see “Projection Distance and Lens Shift Range” (1 page 78). Range of movement of the projected picture 0.8V Projected Picture 0.31H...
  • Page 13: Preparation 3: Connecting The Unit

    Right side of the unit connectors AV amplifier Speakers to HDMI output HDMI cable (not supplied) When using an optional HDMI cable, be sure to use a Sony : Video signal flow HDMI cable or other cable that has the HDMI logo.
  • Page 14: To Connect To Equipment With Component Video Output Connectors

    Notes • Use a high-speed HDMI cable. With a standard HDMI cable, images of 1080p, DeepColor, 3D video and 4K video may not be displayed properly. • When connecting an HDMI cable to the unit, make sure the mark on the upper part of the HDMI input of the unit and the mark on the connector of the cable is set at the same position.
  • Page 15: Connecting To A Computer

    HD-Dsub15 pin cable (not supplied) or HDMI cable (not supplied) : Video signal flow When using an optional HDMI cable, be sure to use a Sony HDMI cable or other cable that has the HDMI logo. Notes •...
  • Page 16: Connecting To A 3D Sync Transmitter

    Connecting to a 3D Sync Transmitter This unit incorporates a 3D Sync Transmitter. Depending on the installation environment of the unit, the 3D glasses may not receive 3D signals properly from the unit’s built-in 3D Sync Transmitter. In this case, connect an optional 3D Sync Transmitter and place it near your viewing position.
  • Page 17: Projecting

    Projecting This section describes how to operate the unit to view the picture from the equipment connected to the unit. It also describes how to adjust the quality of the picture to suit your taste. Projecting the To view the picture from Press INPUT to display Picture...
  • Page 18: Turning Off The Power

    Turning Off the Power Watching 3D Video Images Press the (ON/STANDBY) button. A message “POWER OFF?” appears on You can enjoy powerful 3D video images, the screen. such as from 3D games and 3D Blu-ray Discs, using the supplied 3D glasses. Press the (ON/STANDBY) button again before the...
  • Page 19: Using The 3D Glasses

    Precautions for use • You can watch 3D video images only when signals from HDMI input. When connecting The 3D glasses receive infrared signals sent 3D equipment such as a 3D game or 3D Blu- by the 3D Sync Transmitter built into the ray Disc player to the unit, use an HDMI front of the unit, which are reflected to the cable.
  • Page 20 3D glasses communication range Figures A and B below indicate the communication range of the 3D glasses. If you try to watch 3D video images from a distance greater than the communication range or install the unit outside the communication range, the 3D glasses may not be able to display the images properly.
  • Page 21: Charging The 3D Glasses

    Connect the AC power cord for Charging the 3D Glasses USB charging AC power adaptor to the supplied USB charging Use the provided USB charging AC power AC power adaptor. adaptor to charge your 3D glasses. AC power cord for USB charging AC power adaptor Caution Connect the USB charging cable supplied...
  • Page 22: Using The Picture Position

    Cleaning Using the Picture • Clean the unit with a soft, dry cloth. If the unit is very dirty, wipe it off with a soft Position cloth lightly moistened with a mild detergent solution, and then wipe with a soft dry cloth. You can store up to five combinations of •...
  • Page 23 Image of the lens moving In the example below, the images with aspect ratio of 1.78:1 (16:9) and 2.35:1 are projected on a 2.35:1 screen. When a 1.78:1 (16:9) image is input When a 2.35:1 image is input Press the POSITION button.
  • Page 24: Selecting The Aspect Ratio According To The Video Signal

    Selecting the Aspect Ratio According to the Video Signal You can select an aspect ratio best suited for the video signal received. Press ASPECT. Each time you press the button, you can select the “Aspect” setting. You can also select it using the menu ASPECT (1 page 38).
  • Page 25 Original image Recommended setting and resultant images Normal 1.78:1 (16:9) 1.33:1 (4:3) 1.33:1 (4:3) with side panels Stretch Squeezed V Stretch 2.35:1 When using an anamorphic lens...
  • Page 26 Original image Recommended setting and resultant images Squeeze 16:9 When using an anamorphic lens Notes • Selectable aspect modes vary depending on the input signal. (1 page 74) • The aspect cannot be selected for an input signal from a computer, or when preset memory number 76, 77, 78, 79, or 96 (1 page 70) signal is input.
  • Page 27: Selecting The Picture Viewing Mode

    Selecting the Picture Viewing Mode You can select the picture viewing mode that best suits the type of video source or room conditions. You can save and use different preset modes for 2D/3D respectively. Press one of the CALIBRATED PRESET buttons. CALIBRATED PRESET buttons Setting items...
  • Page 28: Using "Imagedirector3" To Adjust The Picture Quality

    For details on how to use “ImageDirector3,” refer to the Help in “ImageDirector3.” Notes • You need to install the “ImageDirector3” on a computer beforehand. “ImageDirector3” can be downloaded from the Sony website. http://esupport.sony.com/US/p/select-system.pl http://www.pro.sony.eu/pro/article/projectors-home-cinema-article • When connecting the REMOTE or LAN connector to a computer, connect with both the computer and unit turned off.
  • Page 29: Using The Menus

    Using the Menus This section describes how to make various adjustments and settings using the menus. Operation through the Menus The unit is equipped with an on-screen menu for making various adjustments and settings. If you select an item name followed by an arrow (B), the next menu window with setting items appears.
  • Page 30 To reset the picture that has Setting menu been adjusted Select “Reset” from the Picture menu. When the screen display appears, select “Yes” using < and press Adjustment menu All of the following settings are reset to its factory preset value: “Reality Creation,”...
  • Page 31: Picture Menu

    Picture Menu The Picture menu is used for adjusting the picture. Note These items may not be available, depending on the type of input signal. For details, see “Input Signals and Adjustable/Setting Items” (1 pages 71 to 74 ). Item names in brackets represent those printed on the remote control. Calib.
  • Page 32 Database: Select “Normal” or “Mastered in 4K.” “Mastered in 4K” provides image quality suitable for Blu-ray Disc™ “Mastered in 4K” releasing from Sony Pictures Home Entertainment. “Database” cannot be selected if a signal other than preset memory number 14 or 20 (1 page 69) is input.
  • Page 33 Motionflow Film Projection Reproduces an image similar to that of projected film. Use this setting as preferred, based on the image content. On: Reduces afterimage. Off: The reduction effect of afterimage is less than the “On” setting. The picture will become brighter. Motion Enhancer [MOTION ENHANCER] Reproduces fast-moving pictures smoothly without generating afterimages.
  • Page 34 Color Temp. Adjusts the color temperature. [COLOR TEMP] D93: Equivalent to 9,300 K color temperature normally used in TVs. Gives white colors a blue tint. D75: Equivalent to 7,500 K color temperature used as an ancillary standard illuminant. Gives a neutral tint between “D93” and “D65.” D65: Equivalent to 6,500 K color temperature used as a standard illuminant.
  • Page 35 Expert Setting Black Level Adj. (Adjust) [BLACK LEVEL] Emphasizes blacks and strengthens the contrast. High/Middle/Low: You can adjust the black level. Off: The black level function is not applied. Gamma Correction [GAMMA CORRECTION] Adjusts the response characteristics of the tone of the picture. Select a favorite tone from 10 options.
  • Page 36 Expert Setting Color Space [COLOR SPACE] Converts the color space. BT.709: An ITU-R BT.709 color space, which is used for high- definition television broadcast or Blu-ray Disc. The color space is equivalent to sRGB. DCI: A color space based on the DCI specification (1 page 56). Adobe RGB: An approximated Adobe RGB color space, which has a wider range of color reproduction than sRGB, and suited for displaying an image recorded in Adobe RGB specification.
  • Page 37: Screen Menu

    Screen Menu You can set the input signal, picture size, aspect mode, etc. Note These items may not be available, depending on the type of input signal. For details, see “Input Signals and Adjustable/Setting Items” (1 pages 71 to 74). Item names in brackets represent those printed on the remote control.
  • Page 38 Aspect You can set the aspect ratio of the picture to be displayed for the [ASPECT] current input signal (1 page 24). This item is enabled only when a video signal (preset memory numbers 3 to 14, 74, 75, and 93 to 95) (1 page 68) is input.
  • Page 39 Adjust Signal You can adjust the input signal setting. Phase: Adjusts the pixel/signal phase of an analog computer input signal. Adjusts the picture to the point where it looks clearest. Pitch: Adjusts the horizontal picture size of an analog computer input signal.
  • Page 40: Setup Menu

    Setup Menu The Setup menu is used to change the factory preset settings, etc. Status Sets whether or not the on-screen display is displayed. Set to “Off” to turn off the on-screen displays except for certain menus, message when turning off the power, and warning messages. Language Selects the language used in the menu and on-screen displays.
  • Page 41 Power Saving Sets the power saving mode. Lamp Cutoff: If no signal is input for 10 minutes, the lamp turns off automatically and power consumption is reduced. If signal is resumed, or any button on the control panel or remote control is pressed, the lamp will light again.
  • Page 42: Function Menu

    Function Menu The Function menu is used for changing the settings of the various functions of the unit. 3D Settings You can change the settings of the 3D function. 2D-3D Display Sel.: For Switching the video images to “2D” or “3D.”...
  • Page 43 • The operation of the unit and the connected Control for HDMI compatible equipment will synchronize with each other. • The Control for HDMI setting of Sony equipment (AV amplifier, video, etc.), which is compatible with “Control for HDMI - Easy Setting,”* will also be effective.
  • Page 44 Device List: Lists all the Control for HDMI compatible equipment connected to the unit. When “Enable” is selected, the Control for HDMI setting of Sony equipment (AV amplifier, video, etc.), which is compatible with “Control for HDMI - Easy Setting,”* will also be effective.
  • Page 45 Test Pattern Displays a test pattern according to the setting. On: A test pattern appears on the screen to be used when adjusting the lens with “Lens Focus,” “Lens Zoom,” and “Lens Shift.” Off: A test pattern does not appear. While the test pattern is displayed, it is only displayed in green to allow you to adjust the focus easily.
  • Page 46: Installation Menu

    Installation Menu The Installation menu is used for changing the installation settings. Image Flip Flips the picture on the screen horizontally and/or vertically. HV: Flips the picture horizontally and vertically. H: Flips the picture horizontally. V: Flips the picture vertically. Off: The picture does not flip.
  • Page 47 Blanking This feature allows you to adjust the displayable region within the four directions of the screen. Select the edge to adjust by highlighting Left, Right, Top, or Bottom using the M/m buttons. Adjust the amount of blanking using the </, buttons. Depending on the aspect ratio setting, right/left blanking may not be available.
  • Page 48 Panel Alignment Set the amount to adjust with </, buttons for the horizontal direction (H direction) and with M/m buttons for the vertical direction (V direction). You can select the position to adjust again by pressing Reset: Returns to the factory settings. Notes •...
  • Page 49: Information Menu

    Model name: VPL-VW1100ES Serial No. Preset memory No. Signal type Model name Displays the model name (VPL-VW1100ES). Serial No. Displays the serial number. fH (horizontal frequency) Displays the horizontal frequency of the input signal. fV (vertical frequency) Displays the vertical frequency of the input signal.
  • Page 50: Using Network Features

    Using Network Features Connection to the network allows you to operate the following features: • Checking the current status of the unit via a Web browser. • Remotely controlling the unit via a Web browser. • Receiving the e-mail report for the unit. •...
  • Page 51: Displaying The Control Window Of The Unit With A Web Browser

    Once you make the network settings, Displaying the you can open the Control window only by performing step 3 of this procedure. Control Window of the Unit with a Web Browser Connect the LAN cable. LAN cable (straight type) (not supplied) LAN Connector Hub, router, etc.
  • Page 52: Operating The Control Window

    Note Operating the If you forget your password, consult with Control Window qualified Sony personnel. Confirming the Information Regarding the Unit Switching the Page You can confirm the current settings for the Click one of the Page Switching buttons to unit on the Information page.
  • Page 53: Using The E-Mail Report Function

    Using the E-mail Report Mail Report button Function Set the e-mail report function on the Setup page. Entered values will not be applied unless you click on [Apply]. Click on [Owner information] to enter the owner information recorded in the e-mail report.
  • Page 54 SMTP Authentication: Check this check box to arrange for SMTP authentication to be performed before sending e-mail. Account Name: Enter the mail account. Password: Enter the password. Confirm the contents of the e- mail report. When you click on [View], the contents of the e-mail report are displayed.
  • Page 55: Others

    Control for HDMI player, a DVD player/recorder, an AV • By turning on or playing back the amplifier, etc. to a Sony Control for HDMI compatible TV or a projector with an HDMI connected equipment, the projector will turn on and the input setting will switch to...
  • Page 56: About Dci Specification

    Sony Corporation. • xvYCC is an international standard of the technical specifications of the extended- gamut color space for video signals. The...
  • Page 57: Troubleshooting

    Troubleshooting If the unit appears to be operating erratically, try to diagnose and correct the problem using the following instructions. If the problem persists, consult with qualified Sony personnel. Power Symptom Cause and Remedy c The power may not turn on if you turn the power off with The power is not turned on.
  • Page 58 The display mode of the unit may be set at the time of purchase. disappear from the screen. Consult with your local dealer or qualified Sony personnel. c Set “Auto Input Search” on the Function Input terminals do not menu to “Off”...
  • Page 59 3D video images Symptom Cause and Remedy c Check if the 3D glasses are turned on (1 page 19). The video image does not c Make sure that the battery in the 3D glasses is charged. seem like 3D video images. c Check if the input source is HDMI.
  • Page 60: Warning Indicators

    If the symptom persists, the lamp may be at the end of its service flashes) life. In this case, replace the lamp with a new one (1 page 63). c The fan is broken. Consult with qualified Sony personnel. ON/STANDBY flashes in red. (A repetition rate of 4 flashes) c The internal temperature is unusually high.
  • Page 61: Message Lists

    Note When a warning indicator other than the above starts flashing, and the symptom persists even after carrying out the above methods, consult with qualified Sony personnel. Message Lists Warning messages Message Cause and Remedy c Turn off the power.
  • Page 62: Caution Messages

    Message Cause and Remedy Power Saving Mode is set. c “Power Saving” is set to “Lamp Cutoff.” (1 page 41) Projector lamp will Note automatically cutoff in 1 If no signal is input, the lamp turns off after 1 minute. minute.
  • Page 63: Replacing The Lamp And Cleaning The Ventilation Holes (Intake)

    Turn off the unit and unplug the Replacing the Lamp AC power cord. and Cleaning the When setting the unit on a flat surface such as a desk etc., put Ventilation Holes a cloth to prevent the surface (intake) from being scratched. Place the unit on the cloth.
  • Page 64 Note Be careful not to touch the optical block inside the unit. Close the lamp door, (inner cover) and then tighten the screw. Loosen the 3 screws on the lamp with the Phillips screwdriver. Hold up the handle, then pull the lamp straight out. Close the lamp cover.
  • Page 65 Turn on the unit, then select the desired setting item on the Setup menu. The menu screen below will be 30° appeared. Note The lamp contains mercury. The disposal Select “Yes.” rules for used fluorescent tubes depend on where you live. Follow the waste disposal policy in your area.
  • Page 66: Cleaning

    Cleaning Cleaning the cabinet • To remove dust from the cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution. • Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide.
  • Page 67: Specifications

    Specifications Item Description Display system SXRD panel, projection system Display device Size of effective 0.74-inch (18.8 mm) SXRD display area Number of pixels 26,542,080 pixels (8,847,360 pixels × 3) Projection lens 2.1 times zoom lens (motorized) f=21.3 mm to 46.2 mm F2.9 to F3.9 Light source Ultra High Pressure Lamp 330 W type...
  • Page 68: Preset Signals

    • The values for mass and dimensions are approximate. • Not all optional accessories are available in all countries and area. Please check with your local Sony Authorized Dealer. • Information on accessories in this manual is current as of October 2013.
  • Page 69 Preset Preset signal Sync Pitch memory (resolution) (kHz) (Hz) (H Size) 1080/60i 1080/60i 33.750 60.000 SonG/Y – (1920 × 1080i) 1080/50i 1080/50i 28.130 50.000 SonG/Y – (1920 × 1080i) 720/60p 720/60p 45.000 60.000 SonG/Y – (1280 × 720p) 720/50p 720/50p 37.500 50.000 SonG/Y...
  • Page 70 Preset Preset signal Sync Pitch memory (resolution) (kHz) (Hz) (H Size) 1280 × 768 1280 × 768/60 47.776 59.870 H-neg, V-pos 1664 1280 × 720 1280 × 720/60 44.772 59.855 H-neg, V-pos 1664 3840 × 2160/ 3840×2160/60p 135.000 60.000 – –...
  • Page 71: Input Signals And Adjustable/Setting Items

    * Some digital signals input from computers may be displayed as preset memory number of Component or Video GBR signal. Input Signals and Adjustable/Setting Items The items in the menus available to adjust differ depending on the input signal. The following tables indicate them.
  • Page 72 Item Input signal Component signal Video GBR signal Computer signal Gamma Correction Color Correction Clear White x.v.Color – – Color Space : Adjustable/can be set – : Not adjustable/cannot be set Screen menu Item Input signal Component signal Video GBR signal Computer signal Aspect* –...
  • Page 73: Compatible 3D Signals

    Compatible 3D Signals This unit accepts the following types of 3D signals. Resolution 3D signal format 720/60, 50P Side-by-Side format Over-Under format* Frame packing* 1080/60, 50i Side-by-Side format* 1080/24P Over-Under format* Frame packing* 1080/60, 50P Side-by-Side format Over-Under format *: Mandatory 3D format of the HDMI standards. 3D Signals and Adjustable/Setting Items Some items on the menus may not be available to adjust/set, depending on the 3D signals.
  • Page 74: Aspect Mode

    When the unit is set to convert 2D video images to 3D video images, some items on the menus may be not available to adjust/set, depending on the “3D Format” settings on the Function menu. The items that cannot be adjusted are not displayed on the menu. The following tables indicate these items.
  • Page 75: Storage Conditions Of Adjustable/Setting Items

    Acceptable signals 4096 × 2160 3840 × 2160 1920 × 1080 720 × 480 Others 1280 × 720 720 × 576 Preset memory 76, 77, 78, 74, 75, 93 to 7, 8, 10 to 3 to 6 26, 28 to 35, number (1 page 68) 79, 96 37 to 39, 55,...
  • Page 76 Input Preset memory numbers HDMI 1 (3D) 7, 8, 10 to 14, 18 to 20 HDMI 2 (3D) Picture menu Item Storage conditions Calib. Preset For each input connector and preset signal Reset For each input connector and Calib. Preset Reality Creation Advanced Iris Lamp Control...
  • Page 77 Screen menu Item Storage condition Aspect For Picture Position 1.85:1, 2.35:1, or Custom 1-3 Over Scan For each input connector and preset signal Adjust Signal: Phase For each input connector and preset signal (Analog PC signal) Adjust Signal: Pitch For each input connector and preset signal (Analog PC signal) Adjust Signal: Shift For each input connector and preset signal...
  • Page 78: Projection Distance And Lens Shift Range

    Projection Distance and Lens Shift Range The projection distance refers to the distance between the front of the lens and the projected surface. Projection distance L Front of the lens Projected image The lens shift range represents the distance in percent (%) by which the lens can be shifted from the center of the projected image.
  • Page 79 When projecting in 1.90:1 (Native Full Display 17:9) format 1.90 Projection distance Unit: m (inches) Projection image size Projection distance L Diagonal Width × Height 80" (2.03 m) 1.80 × 0.95 (71 × 37) 2.23 – 4.90 (88 – 192) 100"...
  • Page 80 When projecting in 1.78:1 (16:9) format 1.78 Video display area Projection area Projection distance Unit: m (inches) Projection image size Projection distance L Diagonal Width × Height 80" (2.03 m) 1.77 × 1.00 (70 × 39) 2.35 – 5.15 (93 – 202) 100"...
  • Page 81 When projecting in 2.35:1 format 2.35 Video display area Projection area Projection distance Unit: m (inches) Projection image size Projection distance L Diagonal Width × Height 80" (2.03 m) 1.87 × 0.80 (74 × 31) 2.33 – 5.10 (92 – 200) 100"...
  • Page 82: Dimensions

    Dimensions Front Unit: mm (inches) 520 (20 260 (10 260 (10 Center of the lens Bottom Unit: mm (inches) Front of the cabinet 150 (6) 171.3 (6 150.6 (6) 563.5 (22 18.1 ( 640 (25...
  • Page 83 Front of the cabinet Attaching the PSS-H10 projector suspension support To dealers Use the Sony PSS-H10 Projector Suspension Support, and take measures to prevent falling using wire, etc. For details, refer to the installation manual for dealers of the PSS-H10. Front view...
  • Page 84: Side View

    Side view Unit: mm (inches) 241.9 (9 130 (5 Front of the cabinet 286.9 (11 353.1 (14) 640 (25 Top view Unit: mm (inches) 241.9 (9 130 (5 Front of the cabinet Upper ceiling 286.9 (11 mount bracket Center of the supporting pole (The center of the supporting pole is different from that of the unit.)
  • Page 85: Index

    Reference ..........31 Index TV ............31 Cinema Black Pro ........32 Cleaning ..........66 Numerics Clear White ..........35 Color ............33 3D Glasses Color Correction ........35 3D glasses communication range ..20 Color Space ..........36 Using the 3D Glasses ......19 Color Temp.
  • Page 86 Trademark Information Using the Picture Position ....22 • “PlayStation” is a registered trademark Power Saving .......... 41 of Sony Computer Entertainment Inc. Preset Memory ........49 • The terms HDMI and HDMI High- Preset mode Definition Multimedia Interface, and the BRT CINE ...........
