Configuration Guide

(en)
Version 3.1 from March 24, 2015
tiptel 31xx
tiptel
Page 1 / 252

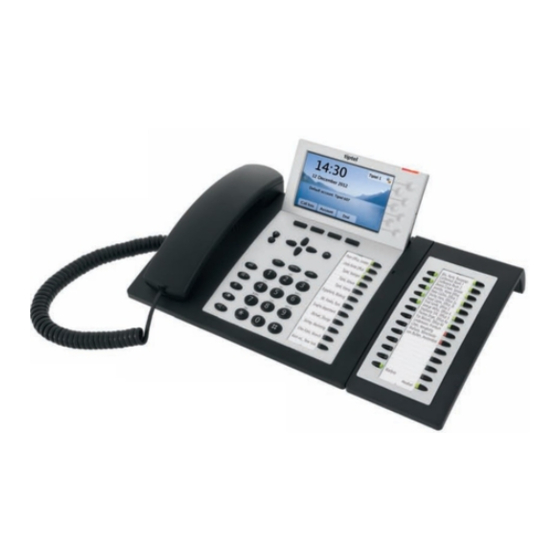

Configuration Guide for Tiptel.com SIP Phones 31xx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 31xx series and is the answer not in the manual?

Questions and answers

Related Manuals for TIPTEL 31xx series

Summary of Contents for TIPTEL 31xx series

  • Page 1: Configuration Guide

    Configuration Guide (en) Version 3.1 from March 24, 2015 tiptel 31xx tiptel Page 1 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 2: Table Of Contents

    4 Additional Features.............................59 5 Configuration..............................60 5.1 SIP Accounts............................60 5.2 DECT-Module..........................101 5.3 Funktion Keys, Selection Keys......................102 5.3.1 General.............................102 5.3.2 Description of Function keys....................102 5.3.2.1 Example..........................103 5.3.3 Extention Module........................104 5.3.4 Phone Funktion Keys........................106 Page 2 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 3 5.5.17 Custom Tone Settings......................222 5.5.18 User Access..........................229 5.5.19 Webserver..........................231 5.5.20 Other settings..........................233 5.6 Door station (V3.1 or later).......................234 5.7 Internal Voicemail (V3.0 or later, license required)................241 6 History of this document...........................250 Page 3 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 4: Preface

    Service/Trace → Phonelog on configuration trouble (fg.log and cm.log) • you can download the current version of the configuration file through the web interface • Page 4 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 5: Legend

    Graphic User Interface Media Access Control Session Initiation Protocol User Interface Uniform Resource Locator, in this document the same as URI Uniform Resource Identifier RFC's 1630, 3986 eXtensible Markup Language Page 5 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 6: Configuration File Format

    • sections and keys can be arranged as desired. In case of duplicate keys, the last wins. • Page 6 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 7: Inifile Version Header

    Version number of theconfiguration interface (you can get the current version of the interface by saving configuration through the webinterface) Format String Default Value 1.00.000 Range major.minor.revision [.build] Note mandatory Example [_Version] Version=1.0.0 Page 7 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 8 Phone UI SectionOffset Configuration Files <model>.cfg, <mac>.cfg Description section offset for all parameter Format String Default Value Range Note optional, leave blank or do not set Example [_Version] SectionOffset= Page 8 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 9 Configuration File Format Parameter — Web UI [_Version] Phone UI Timestamp Configuration Files <model>.cfg, <mac>.cfg Description timestamp for configuration file Format String Default Value Range Note ignore, do not set Example Page 9 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 10: Autoprovisioning

    # *** version header for identification *** [_Version] Type=inifile Version=1.00.001 PWDEncryption=1 # *** extended commands for Autoprovisioning *** [_AutoAction] FactoryReset=no Reboot=no [_AutoUpload] Firmware=http://www.myServer.com/fw/newFirmware.rom Ringtone=ringring.wav # *** normal configuration *** [user/Webserver] HttpPort=8080 Page 10 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 11: Autoaction

    OnCfgChanged: reboot if configuration changed yes: reboot unconditional Note optional in some case the phone will reboot every time regardless of this setting, e.g. firmware update Example [_AutoAction] Reboot=no Page 11 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 12 Complete: delete configuration including user ressources as background images, user ringtones CfgOnly: configuration only Note optional the phone reboots automatically on factory reset after proceeding the Autoprovisioning file Example [_AutoAction] FactoryReset=no Page 12 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 13: Autoupload

    *1) The current firmware doesn't check the resulution of a background image on upload. If you chose an image with higher resolution the display will show a white background. Page 13 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 14: Upload Resource

    Default Value Range Note optional Do not turn power off while updating the phone! After firmware update the phone will reboot every time regardless of other settings Example [_AutoUpload] Firmware=http://www.myServer.com/fw/newFirmware.rom Page 14 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 15: Internal Xml Phone Book

    Please use the settings for the external telephone register, if you want to synchronize regularly, see chapter 5.5.12.3 Settings for external XML telephone register Example [_AutoUpload] XMLContacts=http://www.myServer.com/newContacts.xml Page 15 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 16: Background Images

    Format Filename Default Value Range Filename or * Note optional, multiple use allowed (up to 20 times) Example [_AutoUpload] BackGroundImage.delete=myGrandma.jpg BackGroundImage.delete=myGrandfather.jpg BackGroundImage.delete=* Page 16 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 17: Client Certificates (V3.1 Or Later)

    Security/Client Certs → Delete [_AutoUpload] Phone UI ClientCert.delete Configuration Files <model>.cfg, <mac>.cfg Version V3.1 or later Description delete the specified certificate Format Default Value Range Note optional Example [_AutoUpload] ClientCert.delete=* Page 17 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 18: Contact Images

    Format Filename Default Value Range Filename or * Note optional, multiple use allowed (up to 100 times) Example [_AutoUpload] ContactImage.delete=myGrandma.jpg ContactImage.delete=myGrandfather.jpg ContactImage.delete=* Page 18 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 19: Display Language

    Format Filename Default Value Range Filename or * Note optional, multiple use allowed (up to 10 times) Example [_AutoUpload] CSVDisplayLanguage.delete=language.en CSVDisplayLanguage.delete=* Page 19 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 20: Web Language

    Format Filename Default Value Range Filename or * Note optional, multiple use allowed (up to 10 times) Example [_AutoUpload] CSVWebLanguage.delete=language.en CSVWebLanguage.delete=* Page 20 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 21: Ringtones

    Description delete the specified ringtone or all ringtones Format Filename Default Value Range Filename or * Note optional, multiple use allowed (up to 20 times) Example [_AutoUpload] Ringtone.delete=ringring.wav Ringtone.delete=* Page 21 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 22: Trusted Certificates

    Configuration Files <model>.cfg, <mac>.cfg Description delete the specified certificate Format Filename Default Value Range Filename or * Note optional, multiple use allowed (up to 100 times) Example [_AutoUpload] TrustedCert.delete=cert.pem TrustedCert.delete=* Page 22 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 23: Softkeys Xml Configuration (V3.0 Or Later)

    V3.0 or later Description delete the specified softkey file or softkey files Format Filename Default Value Range Filename or * Note optional Example [_AutoUpload] SoftkeysXMLConf.delete=softkeys.xml (fix internal filename) SoftkeysXMLConf.delete=* Page 23 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 24: Licensing (V3.0 Or Later)

    # *** version header for identification *** [_Version] Type=inifile Version=1.00.000 # *** import licenses (only corresponding macs will take effect) *** [_Licensing] 000CC4300100= purchased_license_key_for_mac 000CC4300101= purchased_license_key_for_mac 000CC4300102= purchased_license_key_for_mac 000CC4300103= purchased_license_key_for_mac Page 24 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 25: Vpn (V3.1 Or Later)

    Network/Advanced → Upload configuration [_AutoUpload] Phone UI VPNConfiguration.delete Configuration Files <model>.cfg, <mac>.cfg Version V3.1 or later Description delete VPN configuration Format Default Value Range Note optional Example [_AutoUpload] VPNConfiguration.delete=* Page 25 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 26: Access Control File

    # ** configuration requires admin or higher level ** [user/Webserver] HttpPort_perm=01 HttpsPort_perm=01 WebType_perm=01 # ** access to Service/Upgrade requires admin or higher level ** [acctl/WebPageAccess] service-upgrade_perm=1 See chapter “Access control“ on page 27 for further information. Page 26 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 27: Access Control

    – the item is visible for all user and configurable for admin & provider item=02 – the item is visible for all user and configurable for provider item=12 – the item is visible for admin & provider and configurable for provider Page 27 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 28: Set The Access Level For Configuration Items (V2.0 Or Later)

    2: provider only Note Example [user/AlwaysFWD] Target_perm=0 – parameter is configurable for all user [user/AlwaysFWD] Target_perm=01 – parameter is configurable for admin & provider, but visible for all user Page 28 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 29: Set The Access Level Forgui Language

    1: admin & provider 2: provider only Note Example [user/Lang] Language_perm=1 – parameter is configurable for admin & provider [user/Lang] Language_perm=12 – parameter is configurable for provider, but visible for admin too Page 29 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 30: Setting Access Level For Sip Codec Selection

    Range 0..2[1..2] 1st digit: access level for visibility digit: access level for write access (optional) 0: all user 1: admin & provider 2: provider only Note Example [SIP/sipAccount0/audioX] ChangeCodec_perm=02 Page 30 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 31: Set The Access Level For Web

    <model>.cfg, <mac>.cfg, AccessControl.cfg Description Set the acces level for Account/Advanced Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/WebPageAccess] account-advanced_perm=0 Page 31 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 32 <model>.cfg, <mac>.cfg, AccessControl.cfg Description Set the acces level for Account/Codec Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/WebPageAccess] account-codec_perm=0 Page 32 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 33 <model>.cfg, <mac>.cfg, AccessControl.cfg Description Set the acces level for Contacts/Contacts Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/WebPageAccess] contacts-basic_perm=0 Page 33 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 34 V2.0 or later Description Set the acces level for Contacts/Contact Images Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/WebPageAccess] contacts-images_perm=0 Page 34 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 35 Description Set the acces level for Contacts/Remote Phone Book Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/WebPageAccess] contacts-remote_perm=0 Page 35 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 36 AccessControl.cfg Description Set the acces level for Keys/Control Keys Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/WebPageAccess] keys-controlkeys_perm=0 Page 36 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 37 AccessControl.cfg Description Set the acces level for Keys/Ext Key Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/WebPageAccess] keys-extkeys_perm=0 Page 37 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 38 AccessControl.cfg Description Set the acces level for Keys/Selection Keys Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/WebPageAccess] keys-selectkeys_perm=0 Page 38 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 39 <model>.cfg, <mac>.cfg, AccessControl.cfg Description Set the acces level for Network/Basic Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/WebPageAccess] network-basic_perm=0 Page 39 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 40 <model>.cfg, <mac>.cfg, AccessControl.cfg Description Set the acces level for Phone/Dect Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/WebPageAccess] phone-dect_perm=0 Page 40 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 41 <model>.cfg, <mac>.cfg, AccessControl.cfg Description Set the acces level for Phone/Features Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/WebPageAccess] phone-features_perm=0 Page 41 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 42 <model>.cfg, <mac>.cfg, AccessControl.cfg Description Set the acces level for Phone/Preferences Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/WebPageAccess] phone-preferences_perm=0 Page 42 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 43 <model>.cfg, <mac>.cfg, AccessControl.cfg Description Set the acces level for Phone/Time Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/WebPageAccess] phone-time_perm=0 Page 43 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 44 <model>.cfg, <mac>.cfg, AccessControl.cfg Description Set the acces level for Phone/Voice Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/WebPageAccess] phone-voice_perm=0 Page 44 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 45 AccessControl.cfg Description Set the acces level for Security/Remote Server Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/WebPageAccess] security-remote_srv_perm=0 Page 45 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 46 <model>.cfg, <mac>.cfg, AccessControl.cfg Description Set the acces level for Service/Autoprovisioning Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/WebPageAccess] service-autoprovisioning_perm=0 Page 46 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 47 <model>.cfg, <mac>.cfg, AccessControl.cfg Description Set the acces level for Service/Upgrade Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/WebPageAccess] service-upgrade_perm=0 Page 47 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 48 V3.0 or later (license required) Description Set the acces level for Phone Voicemail/Settings Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/WebPageAccess] vm-basic_perm=0 Page 48 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 49 V3.0 or later (license required) Description Set the acces level for Phone Voicemail/Recordings Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/WebPageAccess] vm-recordings_perm=0 Page 49 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 50: Set The Access Level For Maintenance (Prospective)

    Description Set the acces level for PCAP trace Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/Maintenance] PCAP-Trace_perm=0 Page 50 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 51 Set the acces level for setting time and date Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/Maintenance] SetTimeDate_perm=0 Page 51 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 52 Description Set the acces level for factory reset Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/Maintenance] FactoryReset_perm=0 Page 52 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 53: Set The Access Level For Resource Files (Prospective)

    Set the acces level for upload or delete client certificates Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/ResourceFiles] ClientCerts_perm=0 Page 53 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 54 Set the acces level for upload or delete display language files Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/ResourceFiles] DisplayLanguageFiles_perm=0 Page 54 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 55 Set the acces level for edit, upload or delete the internal phone book Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/ResourceFiles] InternalPhoneBook_perm=0 Page 55 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 56 Set the acces level for upload or delete trusted certificates Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/ResourceFiles] TrustedCerts_perm=0 Page 56 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 57 Set the acces level for upload or delete web language files Format Enum Default Value Range 0..2 0: all user 1: admin & provider 2: provider only Note Example [acctl/ResourceFiles] WebLanguageFiles_perm=0 Page 57 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 58: License Keys (V3.0 Or Later)

    #MAC mac address Version V3.0 or later Description License key Format String Default Value Range License key Note non corresponding MACs will be ignored Example [_Licensing] 000CC4300100=purchased_license_key_for_mac 000CC4300101=purchased_license_key_for_mac 000CC4300102=purchased_license_key_for_mac 000CC4300103=purchased_license_key_for_mac Page 58 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 59: Additional Features

    Since Version 3.0 you can unlock the following features by purchasing a license key for your phone: Feature Requirements min. Version Info Internal Voicemail SD Card G729 restart required after license installed Page 59 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 60: Configuration

    #a account 1 .. 8 #a account 0 .. 7 Description DTMF transmission Format Enum Default Value Range 0 to 2 0:Inband 1:RFC2833 2:SIP Info Note Example [SIP/sipAccount0/DTMF] DTMFInbandTransfer=2 Page 60 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 61 <model>.cfg, <mac>.cfg #a account 1 .. 8 #a account 0 .. 7 Description Keep alive SIP message Format Bool Default Value Range 0 or 1 Note Example [SIP/sipAccount0/NAT] EnableUDPUpdate=1 Page 61 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 62 Default Value Range up to 100 character except: " : < > @ (up to V 2.0.249 up to 100 character (as from V 2.0.250 Note Example [SIP/sipAccount0/account] AuthName= Page 62 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 63 #a account 0 .. 7 Description Displayed name at the other end of connection Format String Default Value Range up to 100 character except: " : < > @ Note Example [SIP/sipAccount0/account] DisplayName= Page 63 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 64 <model>.cfg, <mac>.cfg #a account 0 .. 7 #a account 1 .. 8 Description Provisional Response Acknowledgement (PRACK) Format Bool Default Value Range 0 or 1 Note Example [SIP/sipAccount0/account] Enable100Rel=0 Page 64 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 65 Configuration Files <model>.cfg, <mac>.cfg #a account 1 .. 8 #a account 0 .. 7 Description Registration expires Format Integer Default Value 3600 Range min=60, max=86400 sec Note Example [SIP/sipAccount0/account] Expire=3600 Page 65 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 66 Default Value (empty) Range up to 100 character except: " : < > @ (up to V 2.0.249 up to 100 character (as from V 2.0.250 Note Example [SIP/sipAccount0/account] Label=(empty) Page 66 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 67 #a account 1 .. 8 #a account 0 .. 7 Description Outbound Proxy server port Format Integer Default Value 5060 Range min=1, max=65536 or blank Note Example [SIP/sipAccount0/account] OutboundPort=5060 Page 67 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 68 #a account 0 .. 7 Description Contact-Update Method Format Enum Default Value Range 1 to 2 1:legacy ( 2 messages ) 2: compact ( 1 message ) Note Example [SIP/sipAccount0/account] ReregisterMethod=1 Page 68 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 69 Enables connections to telephone systems via NAT Format Bool, V3.1: Enum Default Value Range 0 or 1 Network configuration NAT required V3.1: 0: disabled, 1:STUN, 2: VPN Note Example [SIP/sipAccount0/account] ReregisterOnNewWANIP=1 Page 69 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 70 Configuration Files <model>.cfg, <mac>.cfg #a account 1 .. 8 #a account 0 .. 7 Description SIP server address Format IP4 OR Domain name Default Value Range Note Example [SIP/sipAccount0/account] SIPServerHost= Page 70 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 71 <model>.cfg, <mac>.cfg #a account 1 .. 8 #a account 0 .. 7 Description Fallback SIP server address Format IP4 OR Domain name Default Value Range Note Example [SIP/sipAccount0/account] SIPServerHost= Page 71 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 72 Blank value OR String Default Value Range up to 100 character except: " : < > @ *: any, empty: same as SIP server host Note Example [SIP/sipAccount0/account] SIPServerRealm=* Page 72 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 73 <model>.cfg, <mac>.cfg #a account 1 .. 8 #a account 0 .. 7ire Description MWI subscription expires Format Integer Default Value 3600 Range min=300, max=86400 sec Note Example [SIP/sipAccount0/account] SubscribeMWIExpire=3600 Page 73 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 74 #a account 0 .. 7 Description Querying of your external answering machine Format Bool Default Value Range 0 or 1 Note Only if supported by your PABX Example [SIP/sipAccount0/account] SubsribeMWI=0 Page 74 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 75 #a account 1 .. 8 #a account 0 .. 7 Description Send SIP messages to outbound proxy Format Bool Default Value Range 0 or 1 Note Example [SIP/sipAccount0/account] UseOutboundProxy=0 Page 75 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 76 Description Mailbox (external) user name or number Format Blank value OR String Default Value Range up to 100 character except: " : < > @ Note Example [SIP/sipAccount0/account] VoiceMailNumber= Page 76 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 77 #a account 0 .. 7 Description Length of RTP data Rx Format String Enum Default Value Range 0,10, 20, 30, 40, 50, 60 msec Note 0 = disabled Example [SIP/sipAccount0/account] ptime=20 Page 77 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 78 Security for voice data (RTP) and SIP messages Format Enum Default Value Range 0 to 3 0:RTP, 1:SRTP, 2:SRTP+TLS, 3:SRTP+SIPS Note Relationship between srtp_security an d Transport: srtp_security Transport SRTP SRTP+TLS SRTP+SIPS SIPS Example [SIP/sipAccount0/account] srtp_security=0 Page 78 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 79 #a account 0 .. 7 #a account 1 .. 8 Description Enable Codec Format Bool Default Value Range 0 or 1 Note Access Control [SIP/sipAccount#a/audioX] ChangeCodec_perm Example [SIP/sipAccount0/audio0] enable=1 Page 79 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 80 (for some codecs you must purchase a license): rtpmap - Codec 0-PCMU, 3-GSM, (4-G723), 8-PCMA, 9-G722, (18-G729), (111-G726), 120-L8, 122-L1 Access Control [SIP/sipAccount#a/audioX] ChangeCodec_perm Example [SIP/sipAccount0/audio0] rtpmap=8 Page 80 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 81 #a account 1 .. 8 Description Enable Codec Format Bool Default Value Range 0 or 1 Note at least minimum one enabled codec required Access Control [SIP/sipAccount#a/audioX] ChangeCodec_perm Example [SIP/sipAccount0/audio1] enable=0 Page 81 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 82 Note supported rtpmaps (for some codecs you must purchase a license): 0-PCMU, 3-GSM, (4-G723), 8-PCMA, 9-G722, (17- G729), (111-G726), 120-L8, 122-L1 Access Control [SIP/sipAccount#a/audioX] ChangeCodec_perm Example [SIP/sipAccount0/audio1] rtpmap=0 Page 82 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 83 #a account 1 .. 8 Description Priority for use of codec Format Bool Default Value Range 0 or 1 0: highest, 10: lowest Note Access Control [SIP/sipAccount#a/audioX] ChangeCodec_perm Example [SIP/sipAccount0/audio10] enable=0 Page 83 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 84 Note supported rtpmaps (for some codecs you must purchase a license): 0-PCMU, 3-GSM, (4-G723), 8-PCMA, 9-G722, (17- G729), (111-G726), 120-L8, 122-L1 Access Control [SIP/sipAccount#a/audioX] ChangeCodec_perm Example [SIP/sipAccount0/audio10] rtpmap= Page 84 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 85 #a account 0 .. 7 #a account 1 .. 8 Description Enable Codec Format Bool Default Value Range 0 or 1 Note Access Control [SIP/sipAccount#a/audioX] ChangeCodec_perm Example [SIP/sipAccount0/audio2] enable=0 Page 85 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 86 Note supported rtpmaps (for some codecs you must purchase a license): 0-PCMU, 3-GSM, (4-G723), 8-PCMA, 9-G722, (17- G729), (111-G726), 120-L8, 122-L1 Access Control [SIP/sipAccount#a/audioX] ChangeCodec_perm Example [SIP/sipAccount0/audio2] rtpmap=9 Page 86 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 87 #a account 0 .. 7 #a account 1 .. 8 Description Enable Codec Format Bool Default Value Range 0 or 1 Note Access Control [SIP/sipAccount#a/audioX] ChangeCodec_perm Example [SIP/sipAccount0/audio3] enable=0 Page 87 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 88 Note supported rtpmaps (for some codecs you must purchase a license): 0-PCMU, 3-GSM, (4-G723), 8-PCMA, 9-G722, (17- G729), (111-G726), 120-L8, 122-L1 Access Control [SIP/sipAccount#a/audioX] ChangeCodec_perm Example [SIP/sipAccount0/audio3] rtpmap=3 Page 88 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 89 #a account 0 .. 7 #a account 1 .. 8 Description Enable Codec Format Bool Default Value Range 0 or 1 Note Access Control [SIP/sipAccount#a/audioX] ChangeCodec_perm Example [SIP/sipAccount0/audio4] enable=0 Page 89 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 90 Note supported rtpmaps (for some codecs you must purchase a license): 0-PCMU, 3-GSM, (4-G723), 8-PCMA, 9-G722, (17- G729), (111-G726), 120-L8, 122-L1 Access Control [SIP/sipAccount#a/audioX] ChangeCodec_perm Example [SIP/sipAccount0/audio4] rtpmap=120 Page 90 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 91 #a account 0 .. 7 #a account 1 .. 8 Description Enable Codec Format Bool Default Value Range 0 or 1 Note Access Control [SIP/sipAccount#a/audioX] ChangeCodec_perm Example [SIP/sipAccount0/audio5] enable=0 Page 91 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 92 Note supported rtpmaps (for some codecs you must purchase a license): 0-PCMU, 3-GSM, (4-G723), 8-PCMA, 9-G722, (17- G729), (111-G726), 120-L8, 122-L1 Access Control [SIP/sipAccount#a/audioX] ChangeCodec_perm Example [SIP/sipAccount0/audio5] rtpmap=122 Page 92 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 93 #a account 0 .. 7 #a account 1 .. 8 Description Enable Codec Format Bool Default Value Range 0 or 1 Note Access Control [SIP/sipAccount#a/audioX] ChangeCodec_perm Example [SIP/sipAccount0/audio6] enable=0 Page 93 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 94 Note supported rtpmaps (for some codecs you must purchase a license): 0-PCMU, 3-GSM, (4-G723), 8-PCMA, 9-G722, (17- G729), (111-G726), 120-L8, 122-L1 Access Control [SIP/sipAccount#a/audioX] ChangeCodec_perm Example [SIP/sipAccount0/audio6] rtpmap= Page 94 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 95 #a account 0 .. 7 #a account 1 .. 8 Description Enable Codec Format Bool Default Value Range 0 or 1 Note Access Control [SIP/sipAccount#a/audioX] ChangeCodec_perm Example [SIP/sipAccount0/audio7] enable=0 Page 95 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 96 Note supported rtpmaps (for some codecs you must purchase a license): 0-PCMU, 3-GSM, (4-G723), 8-PCMA, 9-G722, (17- G729), (111-G726), 120-L8, 122-L1 Access Control [SIP/sipAccount#a/audioX] ChangeCodec_perm Example [SIP/sipAccount0/audio7] rtpmap= Page 96 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 97 #a account 0 .. 7 #a account 1 .. 8 Description Enable Codec Format Bool Default Value Range 0 or 1 Note Access Control [SIP/sipAccount#a/audioX] ChangeCodec_perm Example [SIP/sipAccount0/audio8] enable=0 Page 97 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 98 Note supported rtpmaps (for some codecs you must purchase a license): 0-PCMU, 3-GSM, (4-G723), 8-PCMA, 9-G722, (17- G729), (111-G726), 120-L8, 122-L1 Access Control [SIP/sipAccount#a/audioX] ChangeCodec_perm Example [SIP/sipAccount0/audio8] rtpmap= Page 98 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 99 #a account 0 .. 7 #a account 1 .. 8 Description Enable Codec Format Bool Default Value Range 0 or 1 Note Access Control [SIP/sipAccount#a/audioX] ChangeCodec_perm Example [SIP/sipAccount0/audio9] enable=0 Page 99 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 100 Note supported rtpmaps (for some codecs you must purchase a license): 0-PCMU, 3-GSM, (4-G723), 8-PCMA, 9-G722, (17- G729), (111-G726), 120-L8, 122-L1 Access Control [SIP/sipAccount#a/audioX] ChangeCodec_perm Example [SIP/sipAccount0/audio9] rtpmap= Page 100 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 101: Dect-Module

    PIN=0000 Parameter — Web UI [dect/DECT] Phone UI register_timeout Configuration Files <model>.cfg, <mac>.cfg Description timeout for registration Format Integer Default Value Range min=60, max=240 sec Note Example [dect/DECT] register_timeout=120 Page 101 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 102: Funktion Keys, Selection Keys

    Dial the phone Number [PARAM1] Phone number or SIP URI [PARAM2] optional Line-Id/Account-Id to use for the call Toggle “Do not disturb” state [PARAM1] optional line id V2.0.20x or later Page 102 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 103: Example

    For variable in URI see chapter PBX Sync in Administrator Guide / Wiki. 5.3.2.1 Example # Key 1 Dial the number using Account 1 Page 103 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 104: Extention Module

    Range up to 600 characters, TYPE(0x20 <= character <= 0x7F); [Label;][PARAM1;][PARAM2;][PARAM3;] Note see Description of Function keys, Page 102 Example [phonekeys/ExtKeys0/FunctionKeys] #Dial the number using Account 1 fkey1=dial;My grandma;0123456789;1 Page 104 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 105 Configuration / Funktion Keys, Selection Keys Page 105 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 106: Phone Funktion Keys

    600 characters, TYPE(0x20 <= character <= 0x7F); [Label;][PARAM1;][PARAM2;][PARAM3;] Note see Description of Function keys, Page 102 Example [phonekeys/FunctionKeys] fkey1= dial;My grandma;0123456789;1 (Dial the number using Account 1) Page 106 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 107: Description Of Selection Keys

    For variable in URI see chapter PBX Sync in Administrator Guide / Web Wiki. 5.3.5.1 Example #Key 1 Line-Key for SIP-Account 2 fkey1=line;Second line;2 # Key 2 Answer the longest waiting incoming call fkey2=answer;Get call Page 107 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 108: Phone Selection Keys

    Description Selection Key Format String Default Value Range up to 600 characters, TYPE(0x20 <= character <= 0x7F); [Label;][PARAM1;][PARAM2;][PARAM3;] Note see Tip_selection_keys.pdf Example [phonekeys/SelectionKeys] fkey1= Page 108 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 109: Control Keys (V2.0 Or Later)

    Function of Alpha keypad Format String Default Value default Range up to 600 characters, TYPE(0x20 <= character <= 0x7F); [Label;][PARAM1;][PARAM2;][PARAM3;] Note see Description of Function keys, Page 102 Example [phonekeys/SystemKeys] key_alpha=default Page 109 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 110 Function of Control key left Format String Default Value default Range up to 600 characters, TYPE(0x20 <= character <= 0x7F); [Label;][PARAM1;][PARAM2;][PARAM3;] Note see Description of Function keys, Page 102 Example [phonekeys/SystemKeys] key_cursor_left=default Page 110 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 111 Function of Control key up Format String Default Value default Range up to 600 characters, TYPE(0x20 <= character <= 0x7F); [Label;][PARAM1;][PARAM2;][PARAM3;] Note see Description of Function keys, Page 102 Example [phonekeys/SystemKeys] key_cursor_up=default Page 111 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 112 Function of Phone register key Format String Default Value dial;;2003#;0; Range up to 600 characters, TYPE(0x20 <= character <= 0x7F); [Label;][PARAM1;][PARAM2;][PARAM3;] Note see Description of Function keys, Page 102 Example [phonekeys/SystemKeys] key_dir=dial;;2003#;0; Page 112 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 113 Function of ESC key Format String Default Value default Range up to 600 characters, TYPE(0x20 <= character <= 0x7F); [Label;][PARAM1;][PARAM2;][PARAM3;] Note see Description of Function keys, Page 102 Example [phonekeys/SystemKeys] key_esc=default Page 113 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 114 Function of Minus key Format String Default Value default Range up to 600 characters, TYPE(0x20 <= character <= 0x7F); [Label;][PARAM1;][PARAM2;][PARAM3;] Note see Description of Function keys, Page 102 Example [phonekeys/SystemKeys] key_minus=default Page 114 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 115 Function of Enter key Format String Default Value default Range up to 600 characters, TYPE(0x20 <= character <= 0x7F); [Label;][PARAM1;][PARAM2;][PARAM3;] Note see Description of Function keys, Page 102 Example [phonekeys/SystemKeys] key_newdirentry=default Page 115 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 116 Function of Plus key Format String Default Value default Range up to 600 characters, TYPE(0x20 <= character <= 0x7F); [Label;][PARAM1;][PARAM2;][PARAM3;] Note see Description of Function keys, Page 102 Example [phonekeys/SystemKeys] key_plus=default Page 116 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 117 Function of R key Format String Default Value default Range up to 600 characters, TYPE(0x20 <= character <= 0x7F); [Label;][PARAM1;][PARAM2;][PARAM3;] Note see Description of Function keys, Page 102 Example [phonekeys/SystemKeys] key_rkey=default Page 117 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 118 Function of Loudspeaker key Format String Default Value default Range up to 600 characters, TYPE(0x20 <= character <= 0x7F); [Label;][PARAM1;][PARAM2;][PARAM3;] Note see Description of Function keys, Page 102 Example [phonekeys/SystemKeys] key_speaker=default Page 118 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 119: System Settings

    Phone/Voice → PNP active [system/AutoProvision] Phone UI bEnablePNP Configuration Files <model>.cfg, <mac>.cfg Description Receive URL for Autoprovisioning on restart Format Bool Default Value Range 0 or 1 Note Example [system/AutoProvision] bEnablePNP=1 Page 119 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 120 Web UI Phone/Voice → Repeatedly [system/AutoProvision] Phone UI bEnableRepeat Configuration Files <model>.cfg, <mac>.cfg Description Regular querying of configuration Format Bool Default Value Range 0 or 1 Note Example [system/AutoProvision] bEnableRepeat=1 Page 120 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 121 Phone/Voice → Weekly [system/AutoProvision] Phone UI bEnableWeekly Configuration Files <model>.cfg, <mac>.cfg Description Weekly querying of the configuration Format Bool Default Value Range 0 or 1 Note Example [system/AutoProvision] bEnableWeekly=1 Page 121 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 122 Time Default Value 01:00 Range format hh[:mm], 00:00..23:59 Note For technical reasons, schedule_time must be less than schedule_time_end. Example [system/AutoProvision] schedule_time=01:00 Changes up to V2.0.317: Default Value = 00:00 Page 122 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 123 Format String Default Value Range any character allowed except: " : < > @ Note Use external tool to encrypt configuration Example [system/AutoProvision] strKeyAES16= Page 123 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 124 Configuration Files <model>.cfg, <mac>.cfg Description Password for your Autoprovisioning Server (if required) Format String Default Value Range any character allowed except: " : < > @ Note Example [system/AutoProvision] strPassword= Page 124 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 125 Phone UI strUser Configuration Files <model>.cfg, <mac>.cfg Description User name for your Autoprovisioning Server (if required) Format String Default Value Range any character allowed except: : Note Example [system/AutoProvision] strUser= Page 125 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 126 Day(s) at which weekly querying is enabled Format String Default Value 123456 Range up to 7 characters, regex: <<^[0-9]{0,7}$>> 0:sunday, ... 6:saturday Note Example [system/AutoProvision] strWeeklyMask=12345;;;; monday to friday Page 126 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 127: Debug

    7: debug, all messages ... 3: error, error messages only, web interface debug level Note choose 7 to get advanced info on all pages Example [system/DEBUG] WebLevel=3 Page 127 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 128: Jitter

    Web UI Phone/Voice → Jitter buffer [system/Jitter] Phone UI Enable Configuration Files <model>.cfg, <mac>.cfg Description Enable Jitter Buffer Format Bool Default Value Range 0 or 1 Note Example [system/Jitter] Enable=1 Page 128 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 129 Web UI Phone/Voice → min delay [system/Jitter] Phone UI Configuration Files <model>.cfg, <mac>.cfg Description Jitter Buffer range begin Format Integer Default Value Range min=0, max=280 msec Note Example [system/Jitter] Min=35 Page 129 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 130 [system/Jitter] Phone UI OptimizationFactor Configuration Files <model>.cfg, <mac>.cfg Description Jitter buffer optimisation factor Format Integer Default Value Range min=1, max=12 1:low delay .. 12:large buffer Note Example [system/Jitter] OptimizationFactor=7 Page 130 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 131: Local Time

    Example [system/LocalTime] DHCPTime=0 Parameter — Web UI [system/LocalTime] Phone UI DateFormat Configuration Files <model>.cfg, <mac>.cfg Description Format Enum Default Value Range 0 or 1 unused Note Example [system/LocalTime] DateFormat=0 Page 131 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 132 Web UI Phone/Time → Offset [system/LocalTime] Phone UI OffSetTime Configuration Files <model>.cfg, <mac>.cfg Description DST offset (manual setting) Format Integer Default Value Range min=1, max=3600 Note Example [system/LocalTime] OffSetTime=60 Page 132 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 133 Example [system/LocalTime] StartTime=2/5/7/02:00 Parameter — Web UI [system/LocalTime] Phone UI TimeFormat Configuration Files <model>.cfg, <mac>.cfg Description Format Enum Default Value Range 0 or 1 unused Note Example [system/LocalTime] TimeFormat=1 Page 133 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 134 [system/LocalTime] Phone UI TimeServer2 Configuration Files <model>.cfg, <mac>.cfg Description NTP server address (fallback) Format Blank value OR IP4 OR Domain name Default Value Range Note Example [system/LocalTime] TimeServer2= Page 134 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 135 Name of the Time Zone Format String Default Value Germany(Berlin) Range up to 100 characters e.g. Germany(Berlin) Note set TimeZone & TimeZoneName according to Time Zone Table Example [system/LocalTime] TimeZoneName=Germany(Berlin) Page 135 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 136 Phone UI iDSTTimeType Configuration Files <model>.cfg, <mac>.cfg Description Type of start- & endtime Format Enum Default Value Range 0 or 1 0:by date, 1:by week Note Example [system/LocalTime] iDSTTimeType=1 Page 136 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 137 Phone/Time → Update intervall [system/LocalTime] Phone UI nNTPLeaseSeconds Configuration Files <model>.cfg, <mac>.cfg Description Time interval between NTP queries Format Integer Default Value 3600 Range min=3600, max=86400 sec Note Example [system/LocalTime] nNTPLeaseSeconds=3600 Page 137 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 138: Time Zone Table

    Canada-New Foundland(St.Johns) 3:30 Denmark-Greenland(Nuuk) Argentina(Buenos Aires) Brazil(no DST) Brazil(DST) BRST BRDT +2,M11.1.0/00:00:00,M2.5.0/00:00:00 Brazil(no DST) Portugal(Azores) Denmark-Faroe Islands(Torshaven) Ireland(Dublin) -1,M3.5.0/01:00:00,M10.5.0/02:00:00 Portugal(Lisboa,Porto,Funchal) WEST -1,M3.5.0/01:00:00,M10.5.0/02:00:00 Spain-Canary Islands(Las Palmas) United Kingdom(London) -1,M3.5.0/01:00:00,M10.5.0/02:00:00 Morocco Page 138 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 139 Russia(Kaliningrad) Romania(Bucharest) Syria(Damascus) Turkey(Ankara) Ukraine(Kyiv,Odessa) EEST -3,M3.5.0/03:00:00,M10.5.0/04:00:00 dst ? East Africa Time Iraq(Baghdad) Russia(Moscow) -4,M3.5.0/02:00:00,M10.5.0/03:00:00 dst ? +3:30 Iran(Teheran) -3:30 Armenia(Yerevan) Azerbaijan(Baku) Georgia(Tbilisi) Kazakstan(Aqtau) Russia(Samara) Kazakstan(Aqtobe) Kyrgyzstan(Bishkek) Pakistan(Islamabad) Russia(Chelyabinsk) Page 139 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 140 LHDT -11,M10.1.0/02:00:00,M4.1.0/03:00:00 New Caledonia(Noumea) New Zeland(Wellington,Auckland) NZST NZDT -13,M10.1.0/02:00:00,M3.3.0/03:00:00 +12:45 New Zeland(Chatham Islands) CHAD -12:45 Tonga(Nukualofa) Samoa(Apia) flexible dst default Combinations of Timezone and TimeZoneName for automatic DST settings Page 140 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 141: Nat

    Network/Advanced → STUN Interval [system/NAT] Phone UI STUNInterval Configuration Files <model>.cfg, <mac>.cfg Description Time interval STUN query Format Integer Default Value Range min=60, max=86400 sec Note Example [system/NAT] STUNInterval=60 Page 141 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 142 Network/Advanced → STUN Server [system/NAT] Phone UI STUNServer Configuration Files <model>.cfg, <mac>.cfg Description STUN server address Format Blank value OR IP4 OR Domain name Default Value Range Note Example [system/NAT] STUNServer= Page 142 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 143: Network Settings

    Value is set to 0 if there is no client certificate present (there must be at least one certificate exists when setting this value to „1“) Example [system/Network] bUseTrustedCertsOnly=0 Page 143 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 144 DHCP eWANType Configuration Files <model>.cfg, <mac>.cfg Description IP configuration WAN Port Format Enum Default Value Range 0 or 1 0:DHCP, 1:static Note reboot required on change Example [system/Network] eWANType=0 Page 144 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 145 Parameter — Web UI [system/Network] Phone UI strLanIP Configuration Files <model>.cfg, <mac>.cfg Description IP address LAN Port Format Blank value OR IP4 Default Value Range unused Note Example [system/Network] strLanIP= Page 145 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 146 Address strWANIP Configuration Files <model>.cfg, <mac>.cfg Description IP address for your phone Format Blank value OR IP4 Default Value 192.168.100.1 Range Note reboot required on change Example [system/Network] strWANIP=192.168.100.1 Page 146 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 147 Advanced Settings/Network → Gateway strWanGateway Configuration Files <model>.cfg, <mac>.cfg Description Address of your gateway Format Blank value OR IP4 Default Value Range Note reboot required on change Example [system/Network] strWanGateway= Page 147 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 148 Configuration Files <model>.cfg, <mac>.cfg Description Address of your name server (DNS) Format Blank value OR IP4 OR Domain name Default Value Range Note reboot required on change Example [system/Network] strWanSecondaryDNS= Page 148 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 149: Other System Settings

    Web UI Phone/Voice → Echo canceller [system/Profile] Phone UI ECHO Configuration Files <model>.cfg, <mac>.cfg Description Echo cancellation Format Bool Default Value Range 0 or 1 Note Example [system/Profile] ECHO=1 Page 149 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 150 Network/Advanced → Min RTP port [system/RTPPORT] Phone UI MinRTPPort Configuration Files <model>.cfg, <mac>.cfg Description First Port for audio (RTP) Format Integer Default Value 11780 Range min=2, max=65516, even Note Example [system/RTPPORT] MinRTPPort=11780 Page 150 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 151: Sip Options

    Web UI Network/Advanced → QoS SIP [system/SIPOptions] Phone UI DSCPvalSIP Configuration Files <model>.cfg, <mac>.cfg Description DSCP (QoS) SIP Format Integer Default Value Range min=0, max=63 Note Example [system/SIPOptions] DSCPvalSIP=0 Page 151 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 152 Configuration Files <model>.cfg, <mac>.cfg Description Force UDP for SIP-packets > 1300 (prevent TCP for large packet size) Format Bool Default Value Range 0 or 1 Note Example [system/SIPOptions] bForceUDP=1 Page 152 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 153 Account/Global → SIP notify push [system/SIPOptions] Phone UI bNotifyPushXML Configuration Files <model>.cfg, <mac>.cfg Description XML data can be send directly to the phone using proprietary SIP NOTIFY event "tiptel-xml" with XML content. Format Bool Default Value Range 0 or 1 Note Example...
  • Page 154 Configuration Files <model>.cfg, <mac>.cfg Description SIP session timer T3 Format Integer Default Value 5000 Range min=500, max=60000 msec Note T4 must be greater than T1 + T2 Example [system/SIPOptions] default_t4=5000 Page 154 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 155 Configuration Files <model>.cfg, <mac>.cfg Description System debug level Format Integer Default Value Range min=3, max=7 7: debug, all messages ... 3: error, error messages only Note Example [system/SYSLOG] Level=3 Page 155 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 156 Service/Trace → Export system log [system/SYSLOG] Phone UI eType Configuration Files <model>.cfg, <mac>.cfg Description Syslog to Format Enum Default Value Range 0 or 1 0:file, 1:server Note Example [system/SYSLOG] eType=0 Page 156 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 157 Phone UI USRPRIORITY Configuration Files <model>.cfg, <mac>.cfg Description Priority for the VLAN on WAN-Port Format Integer Default Value Range min=0, max=7 Note reboot required on change Example [system/VLAN] USRPRIORITY=0 Page 157 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 158 Configuration Files <model>.cfg, <mac>.cfg Version V2.0.304 or later Description Enable VLAN on PC-Port Format Bool Default Value Range 0 or 1 Note reboot required on change Example [system/VLAN] PC_PORT_VLAN_ENABLE=0 Page 158 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 159 <model>.cfg, <mac>.cfg Version V2.0.304 or later Description ID for the required VLAN on PC-Port Format Integer Default Value Range min=0, max=4094 Note reboot required on change Example [system/VLAN] PC_PORT_VID=0 Page 159 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 160 Network/Advanced → VPN [system/VPN] Phone UI EnableVPN Configuration Files <model>.cfg, <mac>.cfg Version V3.1 or later Description Enable VPN Format Bool Default Value Range 0 or 1 Note Example [system/VPN] EnableVPN=0 Page 160 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 161 Note the user agent string will always change after firmwareupdate if default a user agent string that begins with „Tiptel t31xx“ will be replaced by default reboot required on change V3.0: For variables in Useragent see PBX Sync in Administrator Guide / Web Wiki.

  • Page 162: User Settings

    Format String Default Value Range up to 500 characters Note For variables in Action URLs see PBX Sync in Administrator Guide / Web Wiki. Example [user/ActionURL] callattendtransfer= http://www.myServer.com/aurl? url=$active_url&cause=callattendtransfer Page 162 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 163 Send get request to URL on connected Format String Default Value Range up to 500 characters Note For variables in Action URLs see PBX Sync in Administrator Guide / Web Wiki. Example [user/ActionURL] callestablished=http://www.myServer.com/aurl? url=$active_url&cause=callestablished Page 163 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 164 Send get request to URL on incomming call Format String Default Value Range up to 500 characters Note For variables in Action URLs see PBX Sync in Administrator Guide / Web Wiki. Example [user/ActionURL] callin=http://www.myServer.com/aurl? url=$active_url&cause=callin Page 164 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 165 Send get request to URL on call transfer Format String Default Value Range up to 500 characters Note For variables in Action URLs see PBX Sync in Administrator Guide / Web Wiki. Example [user/ActionURL] calltransfer=http://www.myServer.com/aurl? url=$active_url&cause=calltransfer Page 165 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 166 Send get request to URL on CFB on Format String Default Value Range up to 500 characters Note For variables in Action URLs see PBX Sync in Administrator Guide / Web Wiki. Example [user/ActionURL] cfb_on=http://www.myServer.com/aurl? url=$active_url&cause=cfb_on Page 166 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 167 Send get request to URL on CFNR on Format String Default Value Range up to 500 characters Note For variables in Action URLs see PBX Sync in Administrator Guide / Web Wiki. Example [user/ActionURL] cfnr_on=http://www.myServer.com/aurl? url=$active_url&cause=cfnr_on Page 167 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 168 Send get request to URL on CFU on Format String Default Value Range up to 500 characters Note For variables in Action URLs see PBX Sync in Administrator Guide / Web Wiki. Example [user/ActionURL] cfu_on=http://www.myServer.com/aurl? url=$active_url&cause=cfu_on Page 168 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 169 Send get request to URL on DND enabled Format String Default Value Range up to 500 characters Note For variables in Action URLs see PBX Sync in Administrator Guide / Web Wiki. Example [user/ActionURL] dnd_on=http://www.myServer.com/aurl? url=$active_url&cause=dnd_on Page 169 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 170 Send get request to URL on phone exited standby mode Format String Default Value Range up to 500 characters Note For variables in Action URLs see PBX Sync in Administrator Guide / Web Wiki. Example [user/ActionURL] idletobusy=http://www.myServer.com/aurl? url=$active_url&cause=idletobusy Page 170 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 171 Send get request to URL on new calls Format String Default Value Range up to 500 characters Note For variables in Action URLs see PBX Sync in Administrator Guide / Web Wiki. Example [user/ActionURL] missedcall=http://www.myServer.com/aurl? url=$active_url&cause=missedcall Page 171 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 172 Send get request to URL on receiver lifted Format String Default Value Range up to 500 characters Note For variables in Action URLs see PBX Sync in Administrator Guide / Web Wiki. Example [user/ActionURL] offhook=http://www.myServer.com/aurl? url=$active_url&cause=offhook Page 172 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 173 Send get request to URL on registration erroneous Format String Default Value Range up to 500 characters Note For variables in Action URLs see PBX Sync in Administrator Guide / Web Wiki. Example [user/ActionURL] register_err=http://www.myServer.com/aurl? url=$active_url&cause=register_err Page 173 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 174 Send get request to URL on startup Format String Default Value Range up to 500 characters Note For variables in Action URLs see PBX Sync in Administrator Guide / Web Wiki. Example [user/ActionURL] startup=http://www.myServer.com/aurl? url=$active_url&cause=startup Page 174 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 175 Send get request to URL on mute off Format String Default Value Range up to 500 characters Note For variables in Action URLs see PBX Sync in Administrator Guide / Web Wiki. Example [user/ActionURL] unmute=http://www.myServer.com/aurl? url=$active_url&cause=unmute Page 175 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 176 Send get request to URL on registration cancelled Format String Default Value Range up to 500 characters Note For variables in Action URLs see PBX Sync in Administrator Guide / Web Wiki. Example [user/ActionURL] unregister=http://www.myServer.com/aurl? url=$active_url&cause=unregister Page 176 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 177: Alert Info

    Phone/Ring → External Ringer Text [user/AlertInfo#a] Phone UI Text Configuration Files <model>.cfg, <mac>.cfg #a 0..9 Description Alert Info Format String Default Value Range up to 100 characters Note Example [user/AlertInfo0] Text= Page 177 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 178: Alphablending

    Phone UI DateOpac Configuration Files <model>.cfg, <mac>.cfg Description Increase the contrast for date Format Integer Default Value Range min=0, max=100 Note If display is enabled for wallpaper Example [user/Alphablending] DateOpac=0 Page 178 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 179 DefAccountOpac Configuration Files <model>.cfg, <mac>.cfg Description Increase the contrast for default account Format Integer Default Value Range min=0, max=100 Note If display is enabled for wallpaper Example [user/Alphablending] DefAccountOpac=0 Page 179 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 180 SoftKeysOpac Configuration Files <model>.cfg, <mac>.cfg Description Increase the contrast for soft keys Format Integer Default Value Range min=0, max=100 Note If display is enabled for wallpaper Example [user/Alphablending] SoftKeysOpac=25 Page 180 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 181 Phone UI TimeOpac Configuration Files <model>.cfg, <mac>.cfg Description Increase the contrast for time Format Integer Default Value Range min=0, max=100 Note If display is enabled for wallpaper Example [user/Alphablending] TimeOpac=0 Page 181 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 182: Call Forwardingunconditional (Cfu)

    Phone/PBX-Sync → CFU off code [user/AlwaysFWD] Phone UI Off_Code Configuration Files <model>.cfg, <mac>.cfg Description Invite code CFU off Format String Default Value Range up to 100 characters Note Example [user/AlwaysFWD] Off_Code= Page 182 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 183 Configuration Files <model>.cfg, <mac>.cfg Description CFU target Format Blank value OR String Default Value Range up to 100 character except: " : < > @ Note Example [user/AlwaysFWD] Target= Page 183 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 184: Auto Redial

    Phone/Features → Auto redial times [user/AutoRedial] Phone UI RedialTimes Configuration Files <model>.cfg, <mac>.cfg Description Maximum number of dial attempts Format Integer Default Value Range min=1, max=10 Note Example [user/AutoRedial] RedialTimes=10 Page 184 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 185: Busy Forward (Cfb)

    Phone/PBX-Sync → CFB off code [user/BusyFWD] Phone UI Off_Code Configuration Files <model>.cfg, <mac>.cfg Description Invite code CFB off Format String Default Value Range up to 100 characters Note Example [user/BusyFWD] Off_Code= Page 185 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 186 Configuration Files <model>.cfg, <mac>.cfg Description CFB target Format Blank value OR String Default Value Range up to 100 character except: " : < > @ Note Example [user/BusyFWD] Target= Page 186 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 187: Dnd

    Phone/PBX-Sync → DND on code [user/DND] Phone UI On_Code Configuration Files <model>.cfg, <mac>.cfg Description Invite code DND on Format String Default Value Range up to 100 characters Note Example [user/DND] On_Code= Page 187 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 188: Features

    Status subscription of a called party on busy or no answer Format Bool Default Value Range 0 or 1 Note Must be disabled if not supported Example [user/Features] CallCompletion=0 Page 188 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 189 Phone/Features → Call waiting tone [user/Features] Phone UI Call_WaitingTone Configuration Files <model>.cfg, <mac>.cfg Description Call waiting is sounded acoustically Format Bool Default Value Range 0 or 1 Note Example [user/Features] Call_WaitingTone=1 Page 189 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 190 [user/Features] Phone UI EnableHotline Configuration Files <model>.cfg, <mac>.cfg Description Dial a preset number automatically on pick up Format Bool Default Value Range 0 or 1 Note Example [user/Features] EnableHotline=0 Page 190 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 191 Configuration Files <model>.cfg, <mac>.cfg Description Hotline number Format Blank value OR String Default Value Range up to 100 character except: " : < > @ Note Example [user/Features] Hotlinenumber= Page 191 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 192 Configuration Files <model>.cfg, <mac>.cfg Description An announcement automatically places the active call on hold or simply waits Format Bool Default Value Range 0 or 1 Note Example [user/Features] IntercomBarge=1 Page 192 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 193 IntercomTone Configuration Files <model>.cfg, <mac>.cfg Description An announcement is to be signalled beforehand with an alert tone Format Bool Default Value Range 0 or 1 Note Example [user/Features] IntercomTone=1 Page 193 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 194 Phone/Features → Reject anonymous caller [user/Features] Phone UI RejectAnonymous Configuration Files <model>.cfg, <mac>.cfg Description Reject callers without identifier automatically Format Bool Default Value Range 0 or 1 Note Example [user/Features] RejectAnonymous=0 Page 194 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 195 Configuration Files <model>.cfg, <mac>.cfg Description Transparent sending of Format Bool Default Value Range 0 or 1 0: send # as escape (%23), 1:send # as is Note Example [user/Features] ReserveHash=1 Page 195 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 196: Keylock Exception Numbers

    Format Blank value OR String Default Value Range up to 100 character except: " : < > @ Note Example [user/KeylockExceptionNums] 1=110 2=112 3=113 Page 196 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 197: Language

    Phone UI CurrencyString Configuration Files <model>.cfg, <mac>.cfg Description Currency string for display Format String Default Value € Range up to 100 characters for future use Note Example [user/Lang] CurrencyString=€ Page 197 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 198 Display language string, depends on factory & custom languages (typically 2-digit alphanumerical string, e.g. en Format String Default Value Range up to 100 characters Note Leave blank to start wizard Example [user/Lang] Language=en Page 198 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 199: Internal Call Lists

    [user/PBXSync] Phone UI InternalCdrOut Configuration Files <model>.cfg, <mac>.cfg Version Description Internal call list for outgoing calls Format Bool Default Value Range 0 or 1 Note Example [user/PBXSync] InternalCdrOut=1 Page 199 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 200: Telephone Register

    Blank value OR String Default Value Range up to 500 characters Note For variables in Action URLs see PBX Sync in Administrator Guide / Web Wiki. Example [user/RemotePhoneBook0] URL= Page 200 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 201 Description Password for external telephone register on Telephone register mode 0 (if required) Format String Default Value Range any character allowed except: * = ? Note Example [user/RemotePhoneBook0] Password= Page 201 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 202: Services

    V2.0 or later Description User name for external server access on action URLs (if required) Format String Default Value Range any character allowed except: : Note Example [user/Services] ActionURLUser= Page 202 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 203: Settings For External Xml Telephone Register

    2+3 Format String Default Value Range up to 500 characters Note For variables in Action URLs see PBX Sync in Administrator Guide / Web Wiki. Example [user/PBXSync] PhoneBookXMLServerURL=http://myServer.com/xmlUrl Page 203 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 204 Password for external XML telephone register on Telephone register mode 2+3 (if required) Format String Default Value Range any character allowed except: * = ? Note Example [user/PBXSync] PhoneBookXMLPassword= Page 204 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 205: Phone Settings

    Phone UI Basic Settings/Display → Brightness BackLight Configuration Files <model>.cfg, <mac>.cfg Description Background lighting brightness for status Active Format Integer Default Value Range min=1, max=15 Note Example [user/PhoneSetting] BackLight=10 Page 205 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 206 Basic Settings/Display → Brightness BackLightIdle in Idle Mode Configuration Files <model>.cfg, <mac>.cfg Description Background lighting brightness for status Standby Format Integer Default Value Range min=0, max=15 Note Example [user/PhoneSetting] BackLightIdle=2 Page 206 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 207 Phone/Preferences → Phone display contrast [user/PhoneSetting] Phone UI Contrast Configuration Files <model>.cfg, <mac>.cfg Description Display contrast Format Integer Default Value Range min=0, max=15 Note b/w display only Example [user/PhoneSetting] Contrast=8 Page 207 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 208 Basic Settings/Display → Text with Shadow ImageFont3D Configuration Files <model>.cfg, <mac>.cfg Description Display shadow font Format Bool Default Value Range 0 or 1 0=off, 1=on Note Example [user/PhoneSetting] ImageFont3D=0 Page 208 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 209 [user/PhoneSetting] Phone UI InterDigitTime Configuration Files <model>.cfg, <mac>.cfg Description Time after which dialling is automatically started Format Integer Default Value Range min=0, max=20 sec 0:disabled Note Example [user/PhoneSetting] InterDigitTime=5 Page 209 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 210 Phone UI KeyLockPIN Configuration Files <model>.cfg, <mac>.cfg Description PIN for unlocking key lock Format Blank value OR PIN Default Value 1234 Range min=4, max=12 digits Note Example [user/PhoneSetting] KeyLockPIN=1234 Page 210 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 211 Phone/Preferences → Use PIN [user/PhoneSetting] Phone UI KeyLockUsePIN Configuration Files <model>.cfg, <mac>.cfg Description Keylock is protected by entering a PIN Format Bool Default Value Range 0 or 1 Note Example [user/PhoneSetting] KeyLockUsePIN=0 Page 211 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 212 V2.0 or later Description Show default account label on idle screen (instead of time) Format Bool Default Value Range 0 or 1 Note b/w display only Example [user/PhoneSetting] ShowDefAccountOnIdle=0 Page 212 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 213 Example [user/PhoneSetting] ShowPickupInfo=0 Parameter — Web UI [user/PhoneSetting] Phone UI Theme Configuration Files <model>.cfg, <mac>.cfg Description Display theme Format Default Value Range for future use Note Example [user/PhoneSetting] Theme=0 Page 213 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 214 Web UI Phone/Preferences → Keyboard lock [user/PhoneSetting] Phone UI lock Configuration Files <model>.cfg, <mac>.cfg Description Enable keylock Format Bool Default Value Range 0 or 1 Note Example [user/PhoneSetting] lock=0 Page 214 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 215: Phone Volume

    [user/PhoneVolume] Phone UI Basic Settings/Volume → Volume HandFreeSpkVol Loudspeaker Configuration Files <model>.cfg, <mac>.cfg Description Hand free speaker volume Format Integer Default Value Range min=0, max=8 Note Example [user/PhoneVolume] HandFreeSpkVol=5 Page 215 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 216 Phone/Voice → Headset mic volume [user/PhoneVolume] Phone UI HeadSetMicVol Configuration Files <model>.cfg, <mac>.cfg Description Head set mic volume Format Integer Default Value Range min=0, max=8 Note Example [user/PhoneVolume] HeadSetMicVol=5 Page 216 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 217 Phone/Ring → Ringer Volume [user/PhoneVolume] Phone UI Basic Settings/Volume → Volume Ringer RingVol Configuration Files <model>.cfg, <mac>.cfg Description Ringer volume Format Integer Default Value Range min=0, max=8 Note Example [user/PhoneVolume] RingVol=5 Page 217 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 218: Pound Send

    [user/PoundSend] Phone UI Enable Configuration Files <model>.cfg, <mac>.cfg Description Set how dialling is terminated Format Enum Default Value Range 0 to 2 0:disabled, 1:#, 2:* Note Example [user/PoundSend] Enable=1 Page 218 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 219: Call Forwarding On No Response (Cfnr)

    Phone/PBX-Sync → CFNR off code [user/TimeoutFWD] Phone UI Off_Code Configuration Files <model>.cfg, <mac>.cfg Description Invite code CFNR off Format String Default Value Range up to 100 characters Note Example [user/TimeoutFWD] Off_Code= Page 219 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 220 Configuration Files <model>.cfg, <mac>.cfg Description CFNR target Format Blank value OR String Default Value Range up to 100 character except: " : < > @ Note Example [user/TimeoutFWD] Target= Page 220 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 221 Phone UI Timeout Configuration Files <model>.cfg, <mac>.cfg Description CFNR timeout Format String Enum Default Value Range 10, 15, 20, 25, 30, 40, 5, 50, 60 sec Note Example [user/TimeoutFWD] Timeout=10 Page 221 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 222: Custom Tone Settings

    Custom tone scheme for busy tone Format String Default Value Range up to 100 characters, f1[+f2]/t1_on[-t1_off][/tx_on[-tx_off]], f=0, 300..1980 (hz), t=10..9990 (ms) in 10 ms steps Note use t1=0 for continuous tone Example [user/ToneParam] busy=425/1000-4000 Page 222 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 223 Custom tone scheme for congestion tone Format String Default Value Range up to 100 characters, f1[+f2]/t1_on[-t1_off][/tx_on[-tx_off]], f=0, 300..1980 (hz), t=10..9990 (ms) in 10 ms steps Note use t1=0 for continuous tone Example [user/ToneParam] congestion=425/1000-4000 Page 223 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 224 Custom tone scheme for dialrecall tone Format String Default Value Range up to 100 characters, f1[+f2]/t1_on[-t1_off][/tx_on[-tx_off]], f=0, 300..1980 (hz), t=10..9990 (ms) in 10 ms steps Note use t1=0 for continuous tone Example [user/ToneParam] dialrecall=425/1000-4000 Page 224 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 225 Custom tone scheme for message tone Format String Default Value Range up to 100 characters, f1[+f2]/t1_on[-t1_off][/tx_on[-tx_off]], f=0, 300..1980 (hz), t=10..9990 (ms) in 10 ms steps Note use t1=0 for continuous tone Example [user/ToneParam] message=425/1000-4000 Page 225 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 226 Custom tone scheme for ring tone Format String Default Value Range up to 100 characters, f1[+f2]/t1_on[-t1_off][/tx_on[-tx_off]], f=0, 300..1980 (hz), t=10..9990 (ms) in 10 ms steps Note use t1=0 for continuous tone Example [user/ToneParam] ring=425/1000-4000 Page 226 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 227 Call transfer on hook Format Bool Default Value Range 0 or 1 0: disconnects the active call, 1:hanging up connects the active connection with the call on hold Note Example [user/Transfer] AttendTransferOnHook=1 Page 227 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 228 Range 0 or 1 0: call transferring by PABX, 1: call transferring is be controlled by the phone until the target has picked the call Note Example [user/Transfer] EnableSemiAttendTran=1 Page 228 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 229: User Access

    Format Blank value OR String Default Value Range up to 20 characters (min 4 characters), character from a-z, A- Z and 0-9 Note Example [user/UserAccess] phone= Page 229 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 230 Web user password Format String Default Value user Range up to 20 characters (min 4 characters), any character allowed except * = ? " blank Note Example [user/UserAccess] user=user Page 230 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 231: Webserver

    [user/Webserver] Phone UI HttpsPort Configuration Files <model>.cfg, <mac>.cfg Description Webserver https port Format Integer Default Value Range min=1, max=65536 or blank Note default if blank: 443 Example [user/Webserver] HttpsPort=443 Page 231 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 232 [user/Webserver] Phone UI WebType Configuration Files <model>.cfg, <mac>.cfg Description Webserver type Format Enum Default Value Range 0 to 3 0=off 1=HTTP&HTTPS 2=HTTP only 3=HTTPS only Note Example [user/Webserver] WebType=1 Page 232 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 233: Other Settings

    Signalling for dialling tones etc Format String Enum Default Value Germany Range Austria, Custom, France, Germany, GreatBritain, Italy, Netherlands, Switzerland, UnitedStates Note See ToneParam if 'Custom' selected Example [user/vpm_tone_Country] Country=Germany Page 233 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 234: Door Station (V3.1 Or Later)

    #a doorstation 1..3 Version V3.1 or later Description Password for access to doorstation Format String Default Value Range up to 100 character except: * ? = Note Example [door/DoorStation1] AuthPassword= Page 234 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 235 Display font color Format Enum Default Value Range 0 to 10 0:black, 1:dark grey, 2:grey, 3: light grey, 4:white, 5:Yellow, 6:Red, 7:Green, 8:Blue, 9:Cyan, 10:Magenta Note Example [door/DoorStation1] FontColor=0 Page 235 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 236 Phone UI Label Configuration Files <model>.cfg, <mac>.cfg #a doorstation 1..3 Version V3.1 or later Description Text displayed on your phone Format Default Value (empty) Range Note Example [door/DoorStation1] Label=(empty) Page 236 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 237 Configuration Files <model>.cfg, <mac>.cfg #a doorstation 1..3 Version V3.1 or later Description Parameter: URL or DTMF-Code Format String Default Value Range up to 500 character Note Example [door/DoorStation1] OpenerURL= Page 237 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 238 Configuration Files <model>.cfg, <mac>.cfg #a doorstation 1..3 Version V3.1 or later Description Refresh time for Picture Format Enum Default Value 1000 Range 500 to 60000 msec Note Example [door/DoorStation1] Refresh=1000 Page 238 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 239 #a doorstation 1..3 Version V3.1 or later Description SIP-ID of the doorstation Format String Default Value Range up to 100 character except: " : < > @ Note Example [door/DoorStation1] SipID= Page 239 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 240 Phone UI Type Configuration Files <model>.cfg, <mac>.cfg #a doorstation 1..3 Version V3.1 or later Description Type Format Enum Default Value Range 0 or 0 Note not supported Example [door/DoorStation1] Type=0 Page 240 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 241: Internal Voicemail (V3.0 Or Later, License Required)

    #a 0..9 #a 1..10 Version V3.0 or later, license required Description OGM index assigned to alert info Format Integer Default Value Range min=0, max=10 or blank Note Example [vm/AlertInfo4] ogmIdx=0 Page 241 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 242 #a 0..7 #a 1..8 Version V3.0 or later, license required Description OGM for account #a Format Integer Default Value Range 0: default, 1..10: OGM 1..10 Note Example [vm/accounts] ogmIdx7=2 Page 242 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 243 V3.0 or later, license required Description pick up time Format String Enum Default Value Range 0, 10, 15, 20, 30, 40, 5, 50, 60 sec Note Example [vm/globals] PickUpTime=15 Page 243 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 244 RecordingTime Phone UI Configuration Files <model>.cfg, <mac>.cfg Version V3.0 or later, license required Description recording time Format Integer Default Value Range min=1, max=60 min Note Example [vm/globals] RecordingTime=1 Page 244 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 245 Phone UI Configuration Files <model>.cfg, <mac>.cfg Version V3.0 or later, license required Description enable two way recording Format Bool Default Value Range 0 or 1 Note Example [vm/globals] TwoWayRecording=1 Page 245 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 246 #a ogm 0..9 #a 1..10 Version V3.0 or later, license required Description ogm type Format Enum Default Value Range 0 or 1 0:OGM only (no recording), 1:recording Note Example [vm/ogm0] ogmType=1 Page 246 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 247 Enable Configuration Files <model>.cfg, <mac>.cfg Version V3.0 or later, license required Description Enable remote control for voicemail Format Bool Default Value Range 0 or 1 Note Example [vm/remote] Enable=0 Page 247 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 248 V3.0 or later, license required Description Quick Remote Control (QCR) 1 Format String Default Value Range up to 100 character except: " : < > @ Note Example [vm/remote] QRC1= Page 248 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 249 VB activity RemoteActivation Phone UI Configuration Files <model>.cfg, <mac>.cfg Version V3.0 or later, license required Description RemoteActivation on/off Format Bool Default Value Range 0 or 1 Note Example [vm/remote] RemoteActivation=0 Page 249 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

  • Page 250: History Of This Document

    6 History of this document Page 250 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 251 12.02.15 3.1.xx 03.03.15 3.1.xx settings for voicemail added (Rel 3.0 or later settings for door station added (Rel 3.1 or later) door 24.03.15 3.1.xx door new parameter: FontBackgroundColor statiom Page 251 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...
  • Page 252 23, avenue René Duguay-Trouin F – 78960 Voisins-Le-Bretonneux Tél. : 01 / 39 44 63 30 Fax : 01 / 30 57 00 29 e-mail : support@tiptel.fr (en) 06/2013 Internet : www.tiptel.fr Page 252 / 252 Configuration Guide for Tiptel.com SIP Phones 31xx...

This manual is also suitable for:

31 series

Table of Contents
