RECOVERY SYSTEM

The recovery system of the MiniMag series is powered by a 24 volt 650 watt vacuum motor.
The recovery tank is designed with a large lid to facilitate 100% access for complete clean-
ing out the recovery tank when use of the machine is finished. The vacuum motor draws
air in through the squeegee tool, through the squeegee hose and into recovery tank. The
water travels with the air flowing through the system and falls out of the air when it reaches
the recovery tank. The air then passes through the vacuum saver and out through the
vacuum motor. The recovery tank is equipped with a clear lid that allows the operator to
observe the conditions inside the recovery tank as well as the recovery water level inside.
Inside the recovery tank there are 4 major components. The recovery lid, drain saver,
vacuum float and the water baffle.

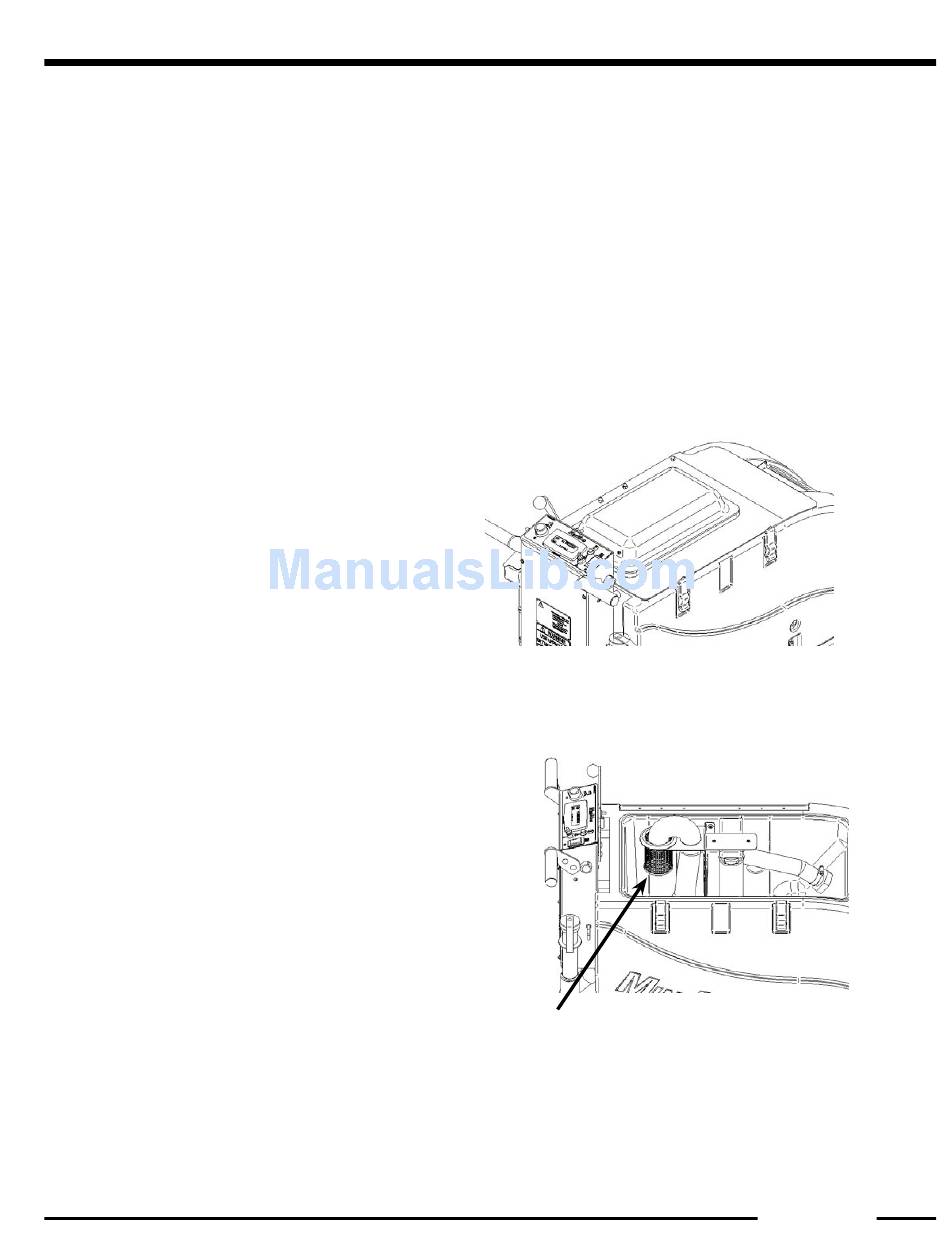

RECOVERY LID

The recovery lid is made from 10 gaugee
stainless steel with a clear dome. The
dome is to provide you with the ability to
see the condition of the recovery tank dur-
ing operation.

DRAIN SAVER

The drain saver is located inside the
recovery tank and is accessed by open-
ing the recovery lid. It is designed to
collect large debris that is picked up by
the squeegee so it does not settle in your
recovery tank or clog the drain hose.
Mini-Mag Service Manual V1.0
DRAIN
SAVER
RECOVERY SYSTEM
5-1
5
