Mini-Mag Service Manual V1.0
MACHINE INTRODUCTION

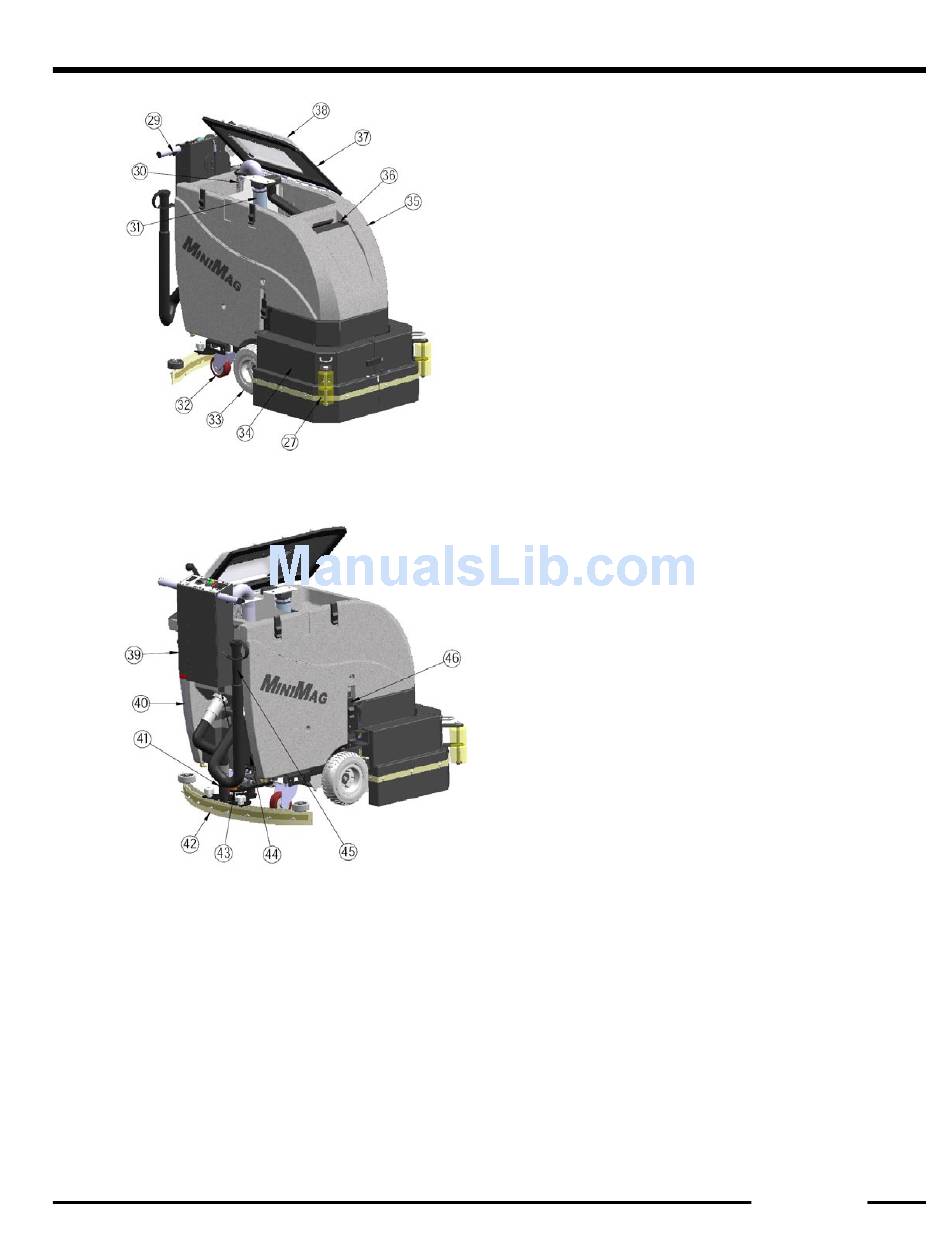

BODY
29. DRIVE BUTTON
30. "DRAIN SAVER" STRAINER
31. VAC SCREEN
32. CASTER
33. MAIN TIRE
34. JAWS
35. TANK IN A TANK
36. SOLUTION FILL ID
37. RECOVERY LID
38. CLEAR COVER
39. CONTROL PANEL
40. SOLUTION LEVEL DRAIN TUBE
41. VACUUM HOSE
42. SQUEEGEE BLADE
43. SQUEEGEE PITCH ADJUSTMENT
44. "ON-BOARD" BATTERY CHARGER
45. RECOVERY DRAIN HOSE
46. TANK LATCH
