CENTRAL COMMAND CONTROLLER
"VACUUM MOTOR" does
not run.
See the "VACUUM
SWITCH" section
Replace the
vacuum motor
Replace the
controller
13-40
MiniMAG – TRACTION DRIVE w/CCII

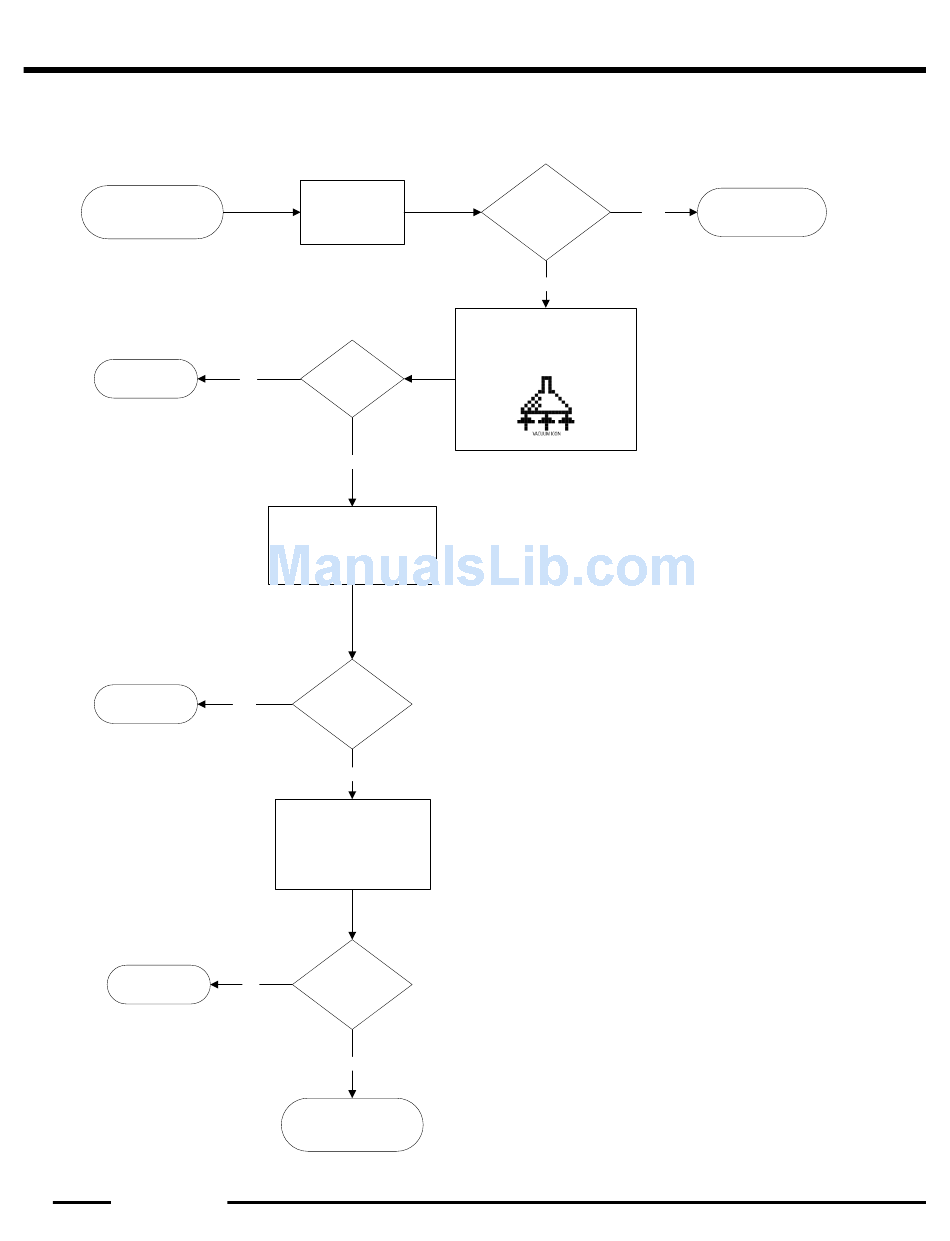

VACUUM MOTOR FLOW CHART
Operate machine
and verify the
customers
complaint.
Does the icon
NO
turn on?
YES
With a voltmeter set on the DC
setting measure the voltage at
the vacuum motor while the
machine is running and the
vacuum icon is on.
Was there
34 volts or more
YES
at the vacuum
motor?
NO
Using a voltmeter set to the
DC scale back probe the two
lead in the vacuum plug at
the controller while the
machine is running and the
vacuum icon is on
Was there
NO 34 volts or more
at the controller
YES
Repair connection
between the vacuum
motor and the controller
1 of 1
Does the motor
work properly?
NO
Turn on the vac motor switch and
depress foot pedal. Observe the
LCD display to see if the vacuum
icon turns on.
Instruct owner on
YES proper machine
operation
