MAINTENANCE

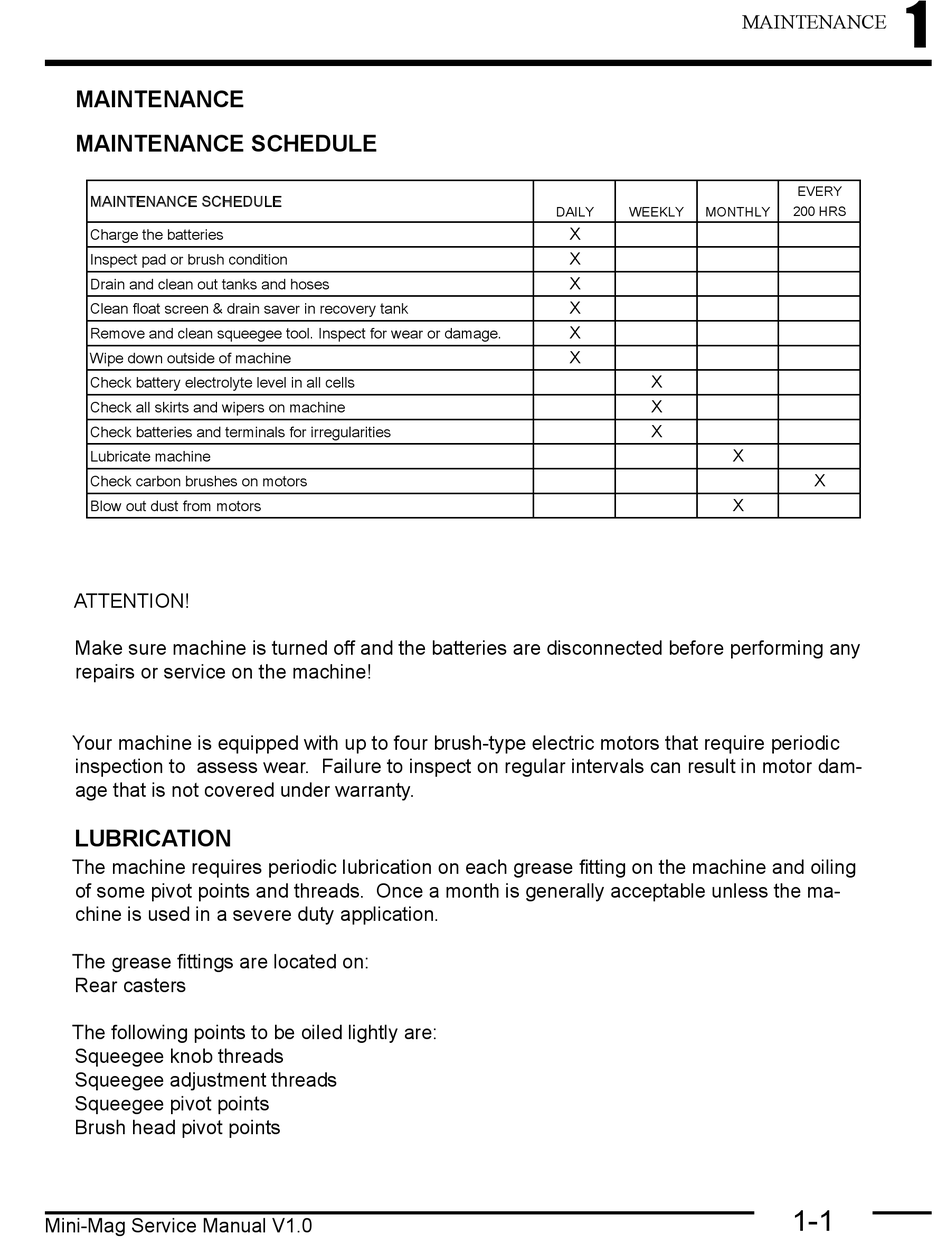

MAINTENANCE SCHEDULE

��

ATTENTION!

Make sure machine is turned off and the batteries are disconnected before performing any

repairs or service on the machine!

Your machine is equipped with up to four brush-type electric motors that require periodic

inspection to assess wear. Failure to inspect on regular intervals can result in motor dam-

age that is not covered under warranty.

The machine requires periodic lubrication on each grease ﬁtting on the machine and oiling

of some pivot points and threads. Once a month is generally acceptable unless the ma-

chine is used in a severe duty application.

The grease ﬁttings are located on:

Rear casters

The following points to be oiled lightly are:

Squeegee knob threads

Squeegee adjustment threads

Squeegee pivot points

Brush head pivot points

Mini-Mag Service Manual V1.0

��

�

MAINTENANCE

��

�

1-1
