Range Gate - Vectronix USMC VECTOR 21 Operating & Operator Maintenance Instructions

Range gate

3x

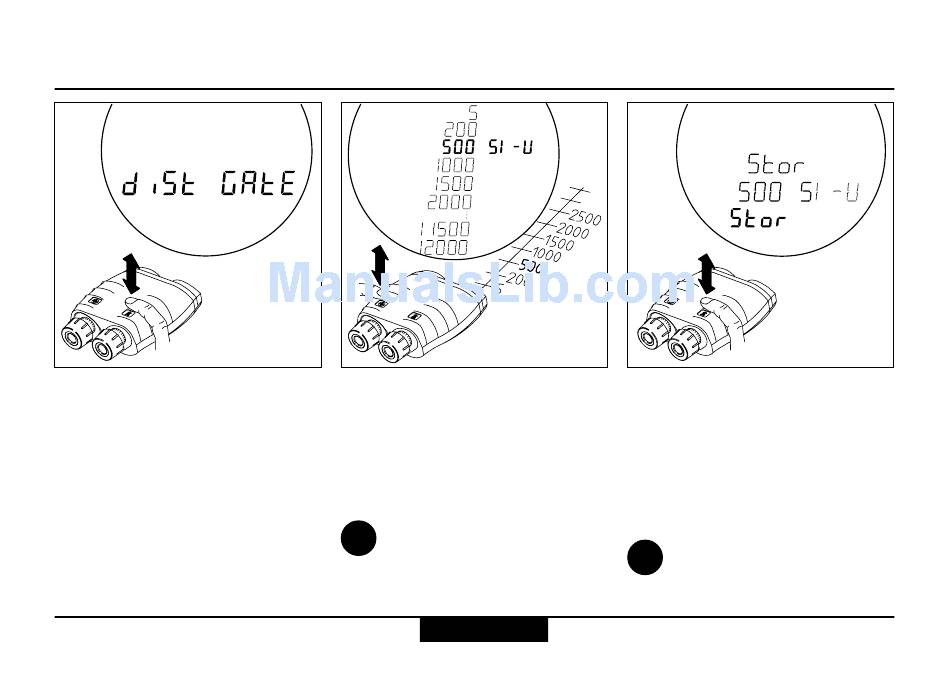

In certain applications, it may be
desirable to limit the closest
distance that the VECTOR will
measure.
Click the distance key three
times in rapid succession. "diSt
GAtE" appears, followed by the
current setting.
VECTOR ™- USMC VECTOR 21-V.0.3
Click the azimuth key until the
desired minimum distance
appears (e.g. 500 m).
Depending on VECTOR model
the range gates will be different.
Setting the minimum
i
distance to "5 SI-U"
disables the range gate (default
gate = 500m).
www.
Shop for Vectronix products online at:
33
SCOUTBASECAMP
.com 1.877.766.5412
3x
Click the distance key three
times in rapid succession to
save the setting.
If you do not press the distance
key, the previous setting remains
unchanged and "Old GAtE" is
displayed.
"GAtE on" is displayed
i
when closer ranges are
measured.
Settings
