Distance measurement (slope distance)

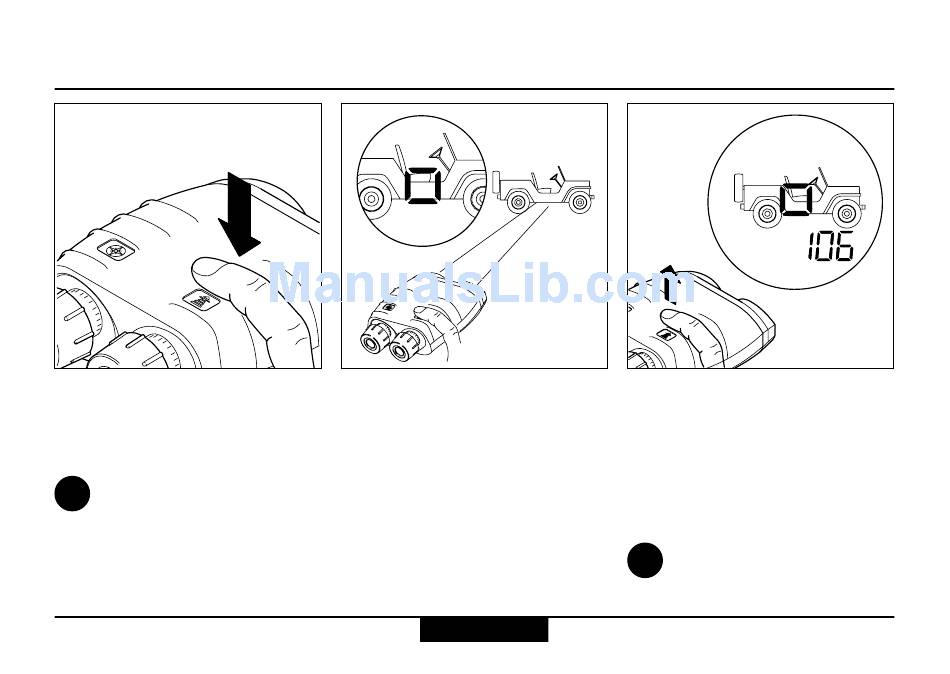

Press and hold the distance key;
the pointing circle appears in the
field of view.
Turning the pointing circle
i
on and off: see page 29.
VECTOR ™- USMC VECTOR 21-V.0.3
Sight the pointing circle on the
object.
www.
Shop for Vectronix products online at:
11
SCOUTBASECAMP
.com 1.877.766.5412
Hold the VECTOR steady as
you release the distance key.
Read off the distance.
If "----" appears in the display, the
object lies outside the measuring
range, or measuring conditions
are poor (see page 10).
Setting measurement units
i
and range gate: see pages
32, 33.
Distance measurements
