Azimuth and horizontal distance between two objects

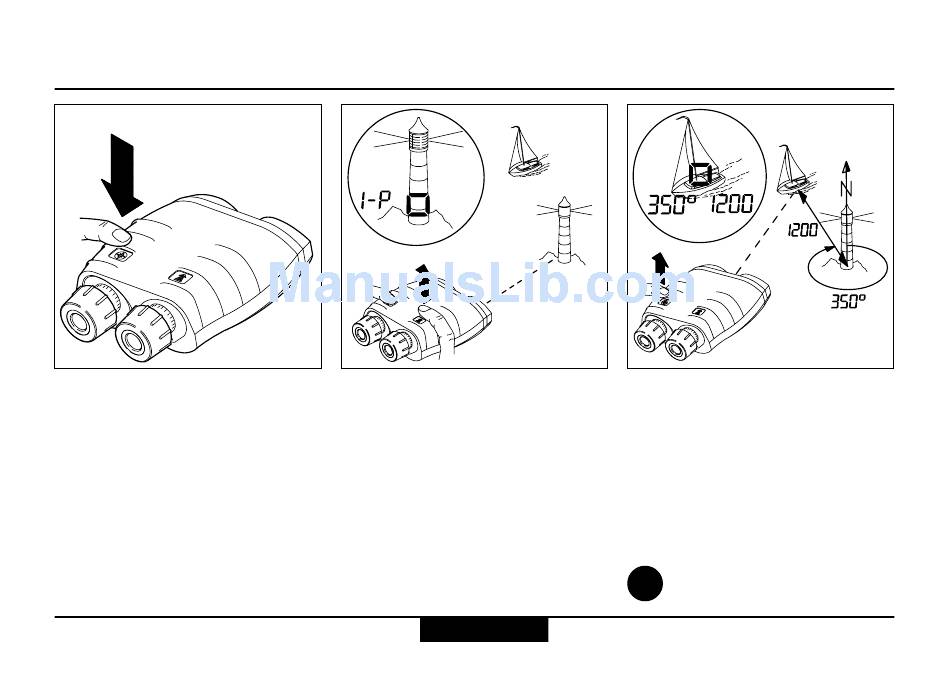

Press and hold the azimuth key.
The pointing circle appears,
together with the current
azimuth.
VECTOR ™- USMC VECTOR 21-V.0.3
Sight the first object with the
pointing circle.
Click the distance key (> 0.5 s)
while holding the VECTOR
steady.
The first object measurement is
confirmed (1-P = first point).
www.
Shop for Vectronix products online at:
21
Azimuth and inclination measurement
SCOUTBASECAMP
.com 1.877.766.5412
Sight the second object with the
pointing circle.
Release the azimuth key while
holding the VECTOR steady.
The azimuth appears at the left
and the horizontal distance at
the right of the field of view.
Setting measurement units:
i
see page 32.
