Data transfer format for PC

Every measurement (distance,
azimuth, inclination) is transmitted
as 10 ASCII characters; 11 for
distance data:
Z XXXXXX XY <CR>
A complete set of measure-
ments therefore consists of 31
ASCII characters.
Before and after this continuous
string, a steady logic 1 is
transmitted while the VECTOR
is powered on.
VECTOR ™- USMC VECTOR 21-V.0.3
Start character for measurement
value:
d (v) .............................. distance
a .................................... azimuth
e ................... angle of inclination
Start character for error report:
C ......................... compass error
R .......................... distance error
M ............................... instrument
Measurement value: 6 integer
digits or six-digit hexadecimal
error code.
The data transmitted comprises:
• distance in centimetres, with
0.5 m resolution
• azimuth and inclination in
milliradians (full circle =
6'283.2 mrad) and 0.2 mrad
resolution.
www.
Shop for Vectronix products online at:
(elevation)
(main board) error
27
SCOUTBASECAMP
.com 1.877.766.5412

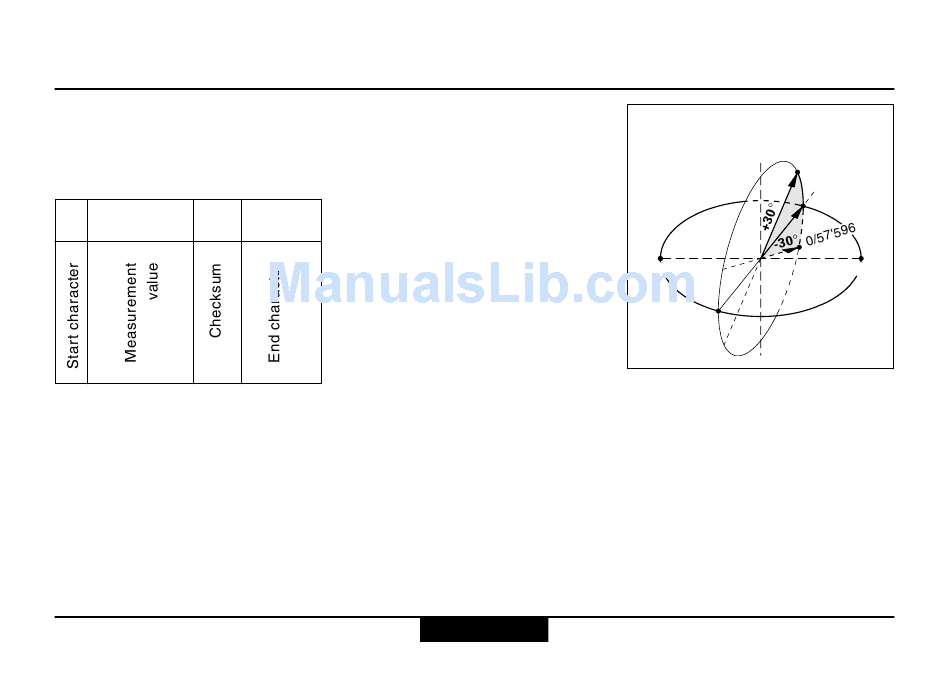

Measurement examples:
0/5'236
47'124/0
31'416/0
Checksum: 2 hexadecimal
digits. These correspond to the
8 LSBs (least significant bits) of
the ASCII measurement value
and the start character.
End character: 1 position for line
feed (CR).
Data transfer
N
0/0
15'708/0
